FAQ

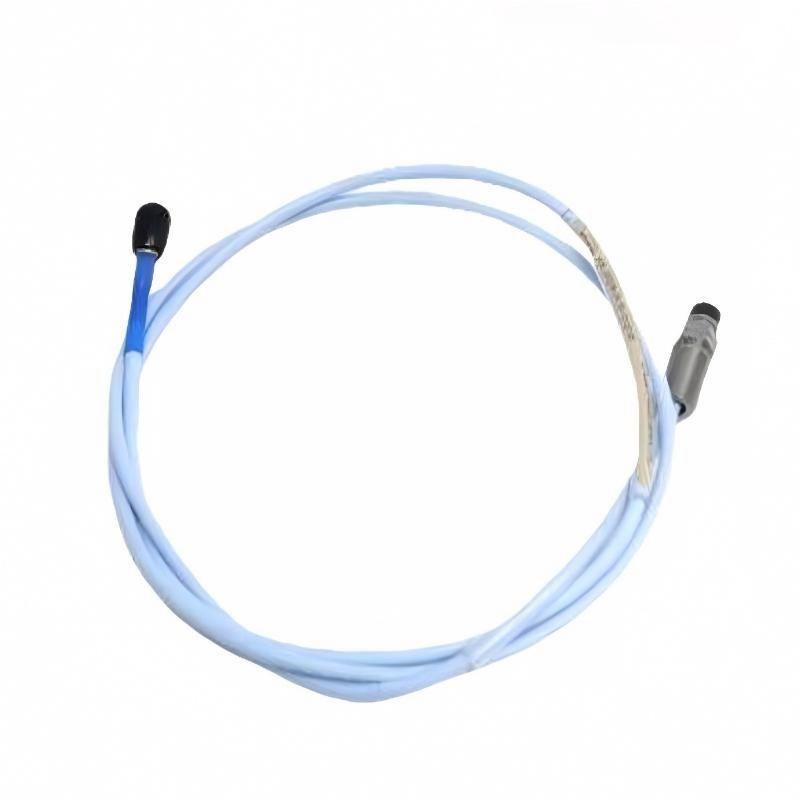

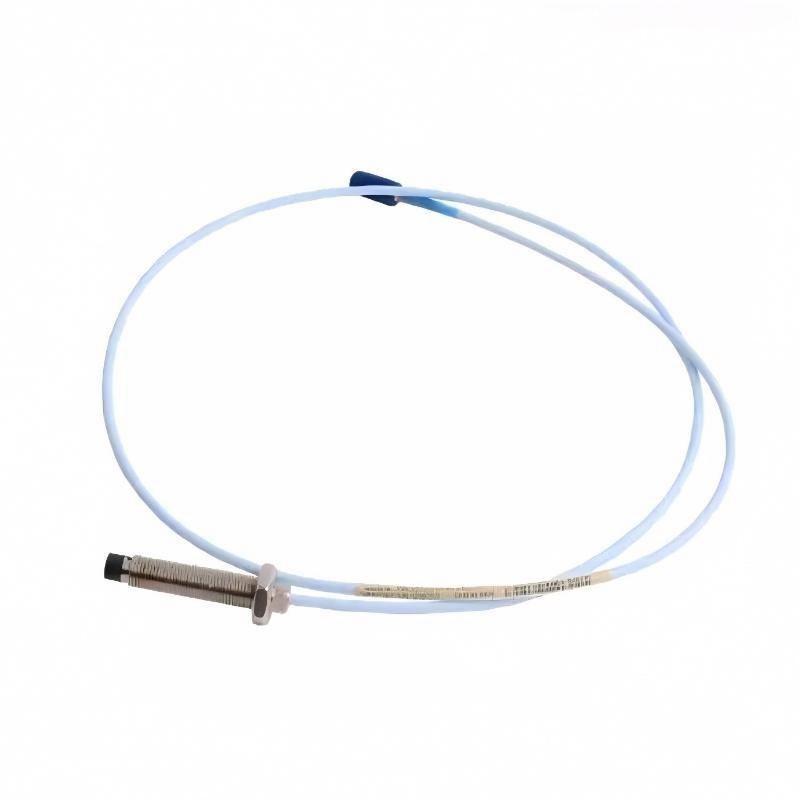

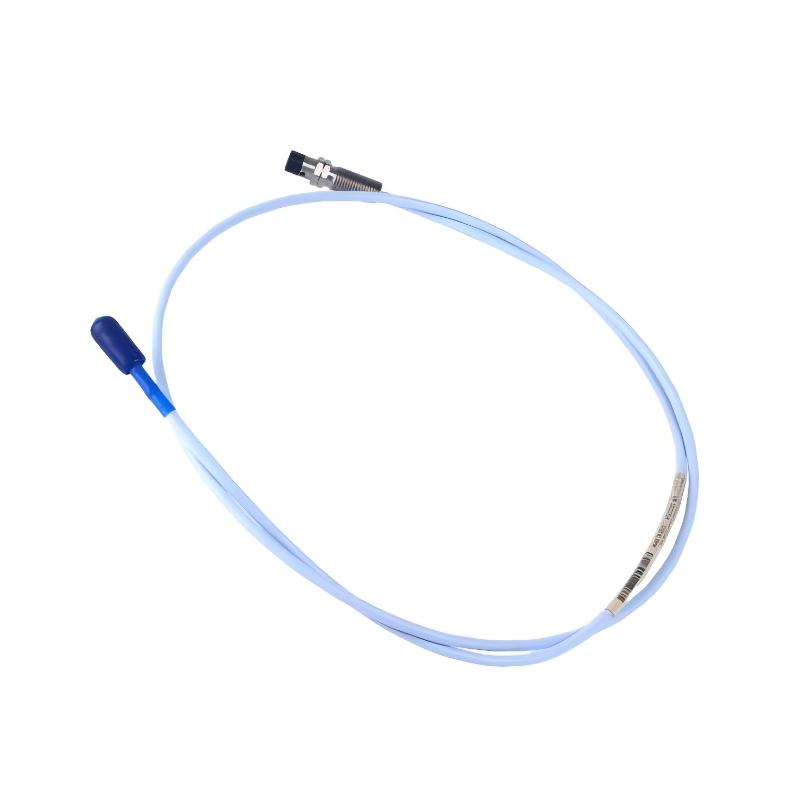

Q1: What is the main function of the Bently Nevada 330703-000-50-10-11-00 proximity probe?

The Bently Nevada 3300 XL 11 mm proximity probe is designed for non-contact measurement of shaft displacement and relative movement in rotating machinery. It is commonly used in machinery protection and condition monitoring systems for equipment such as turbines, compressors, pumps, and motors. The probe detects changes in the distance between its sensing tip and a conductive target, providing a signal that can be processed by a compatible Proximitor sensor and monitoring system.

Q2: What is the difference between an 11 mm proximity probe and an 8 mm proximity probe?

The main differences involve probe construction, sensing characteristics, and the associated transducer system configuration. An 11 mm probe belongs to the 3300 XL 11 mm system and must be matched with the appropriate extension cable and Proximitor sensor. An 8 mm probe is designed for a different system configuration. They should not be treated as interchangeable simply because both are used for shaft displacement or vibration monitoring.

Q3: Which extension cable and Proximitor sensor should be used with this probe?

This probe has a 1-meter integral lead and is intended for use in a compatible 3300 XL 11 mm measurement system. The complete electrical system length is determined by the probe lead and extension cable together. The appropriate extension cable and Proximitor sensor must be selected to achieve the required 5-meter or 9-meter system configuration. Always check the full part numbers and system documentation before replacing individual components, because mismatched components can affect measurement accuracy.

Q4: What types of machinery can use the 3300 XL 11 mm proximity probe?

When installed in a compatible monitoring system, the probe can be used on rotating equipment such as steam turbines, gas turbines, centrifugal compressors, pumps, electric motors, and other machinery where shaft displacement or vibration-related movement needs to be monitored. The specific application depends on the machine design, target material, mounting arrangement, operating conditions, and monitoring-system requirements.

Q5: What could cause an unstable or inaccurate proximity probe signal?

An unstable signal can result from incorrect probe gap adjustment, loose connectors, damaged cables, electrical interference, an unsuitable target surface, or an incorrectly matched extension cable and Proximitor sensor. Mechanical movement of the probe mounting bracket can also produce misleading readings. Troubleshooting should include checking the complete transducer chain, inspecting the cable and connectors, verifying the installation gap, and comparing the signal with the monitoring system’s diagnostic information.

Q6: Why is correct probe gap adjustment important?

Probe gap determines the initial distance between the sensing tip and the target surface. If the gap is outside the recommended operating range, the output may become inaccurate or the system may lose its ability to measure shaft movement reliably. Incorrect adjustment can also reduce the usable measurement range and affect alarm or trip decisions. Set the gap according to the applicable Bently Nevada installation instructions and the requirements of the complete transducer system.

Q7: What should be checked before replacing an existing 3300 XL 11 mm probe?

Before ordering a replacement, verify the complete part number, M14 × 1.5 thread, case configuration, lead length, cable type, connector arrangement, and approval option. Confirm that the replacement is compatible with the installed extension cable and Proximitor sensor. During installation, inspect the mounting threads and target clearance, protect the connector from contamination, and follow the equipment manufacturer’s isolation and maintenance procedures. Matching the full configuration is more reliable than choosing a probe based only on its series name.

Q8: How can the service life and measurement reliability of the probe be maintained?

Regular inspection helps identify cable damage, loose connections, contamination, corrosion, and changes in mounting conditions before they affect measurements. Keep connectors clean and properly protected, route the cable away from sources of electrical interference, and avoid bending or pulling the lead beyond its permitted limits. During planned maintenance, review probe gap and signal trends alongside the monitoring system’s diagnostic data. If readings change unexpectedly, inspect the entire measurement chain before assuming that the probe itself has failed.
