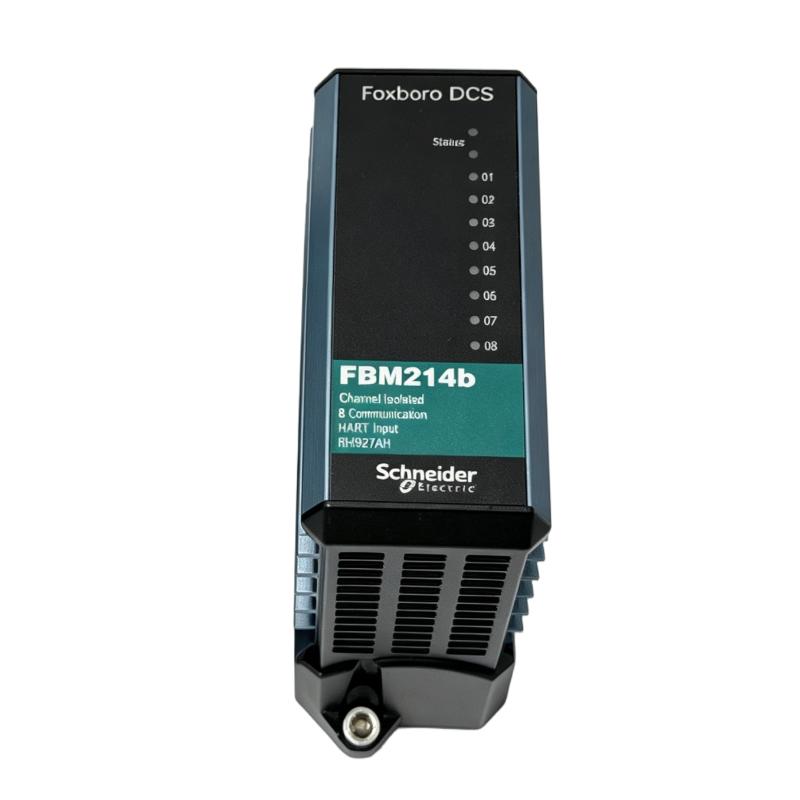

Foxboro FBM214b RH927AH Communication Input Interface Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Foxboro |
| Product Name | FBM214b HART Communication Input Interface Module |
| Model Number | FBM214b |
| Order Number | RH927AH |
| Product Series | Foxboro I/A Series 200 |
| Module Type | Analog Input / HART Communication Module |
| Number of Input Channels | 8 individually isolated channels |
| Input Signal | 4–20 mA DC |
| Communication Protocol | HART |
| HART Compatibility | HART Versions 5, 6, and 7 |
| Communication Mode | Point-to-point, master/slave, asynchronous, half-duplex |
| HART Communication Speed | 1200 baud |
| Current Input Resolution | 15 bits |
| Current Input Accuracy | ±0.03% of full scale, including nonlinearity |
| Nominal Sense Resistance | 61.5 Ω |
| Nominal Total Input Resistance | 280 Ω |
| Input Update Rate | 100 ms |
| Channel Isolation | Individual isolation between channels, ground, and module logic |
| Mounting | Modular baseplate |
| Dimensions | 114 × 45 × 104 mm |
| Weight | 0.284 kg |
| Typical Applications | Process monitoring, transmitter signal acquisition, and HART field device communication |
FAQ
Q1: What is the primary function of the Foxboro FBM214b module?
A: The FBM214b acquires 4–20 mA analog signals and supports HART digital communication with compatible field instruments. It allows a Foxboro DCS to monitor process variables and access supported device information through the same input channels.
Q2: How many input channels does the FBM214b provide?
A: The module provides eight individually isolated input channels. Each channel can accept a standard 4–20 mA signal or a compatible HART signal superimposed on the analog current loop.
Q3: Which field instruments can be connected to the FBM214b?
A: Compatible instruments include HART-enabled pressure, temperature, flow, and level transmitters, as well as standard 4–20 mA transmitters. Confirm the instrument’s electrical requirements and HART compatibility before connecting it.
Q4: Can the FBM214b communicate digitally with HART transmitters?
A: Yes. Each input channel has a dedicated HART communication interface for bidirectional digital communication. The module supports standard HART commands, but it does not support HART burst communication mode.
Q5: What is the purpose of individual channel isolation?
A: Individual channel isolation helps reduce electrical interference and prevents unwanted electrical interactions between input circuits, ground, and module logic. This is particularly useful when monitoring multiple field instruments with different electrical conditions.
Q6: What should be checked if a channel does not receive the correct 4–20 mA signal?
A: Check the transmitter’s power supply, loop wiring, polarity, terminal connections, and current-loop continuity. Also verify the DCS channel configuration and confirm that the input signal is within the specified operating range.
Q7: Why might HART communication fail while the analog current signal remains normal?
A: Possible causes include incorrect HART configuration, excessive loop resistance, wiring problems, electrical interference, or incompatibility with the field device. Check the loop conditions and communication settings before replacing the module.
Q8: What should be verified before replacing an FBM214b module?
A: Confirm that the replacement is the correct FBM214b version with order number RH927AH and is compatible with the installed Foxboro DCS hardware and software. Follow the site’s isolation and module replacement procedures, then verify channel readings and HART communication after installation.
Foxboro FBM214b RH927AH Communication Input Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
