Q1: What is the main function of the Honeywell MU-KFTS10 51204033-010 Cable?

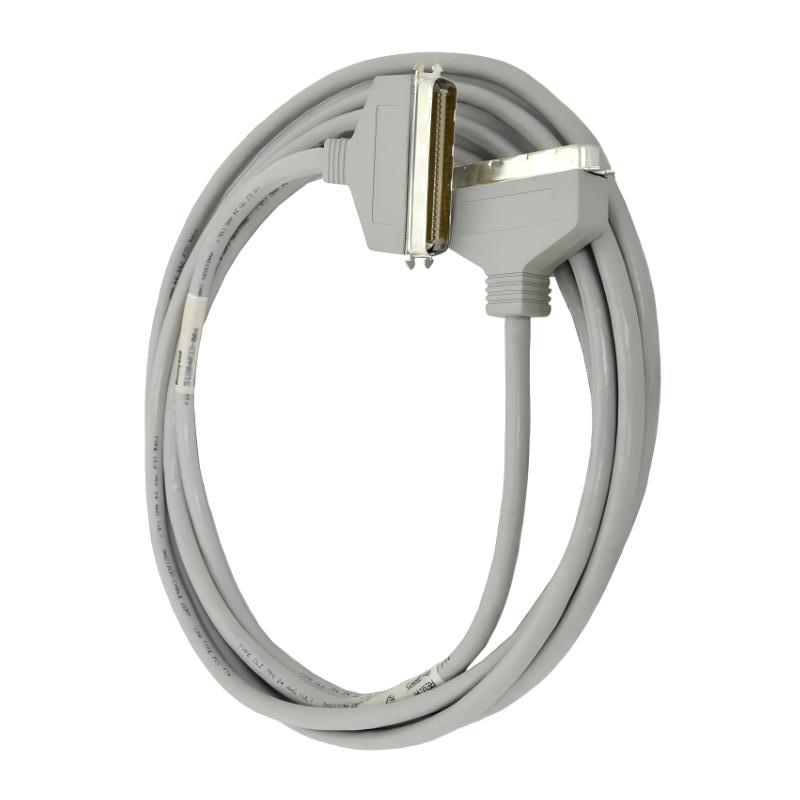

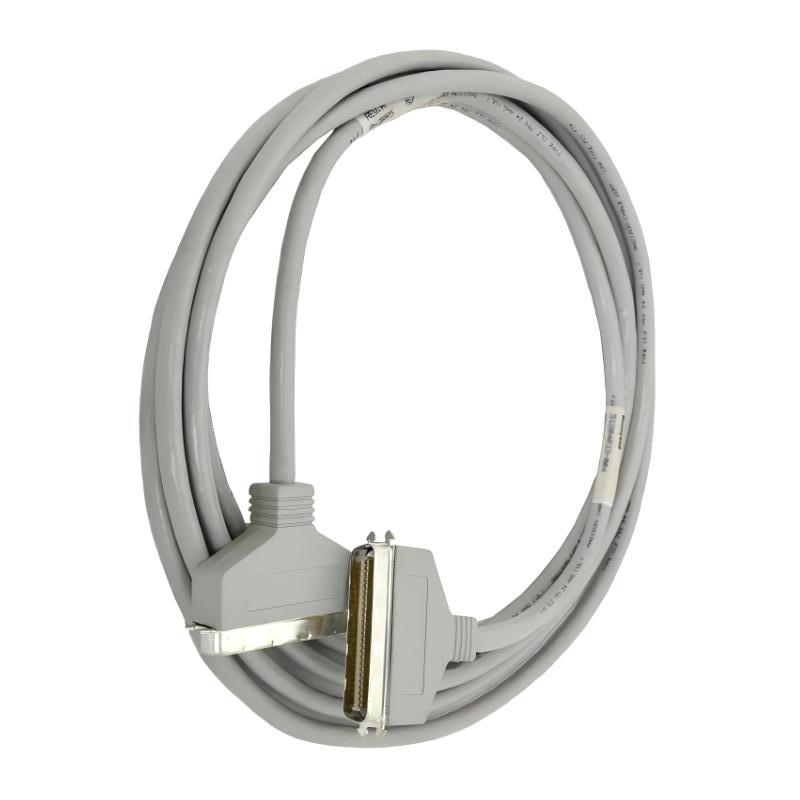

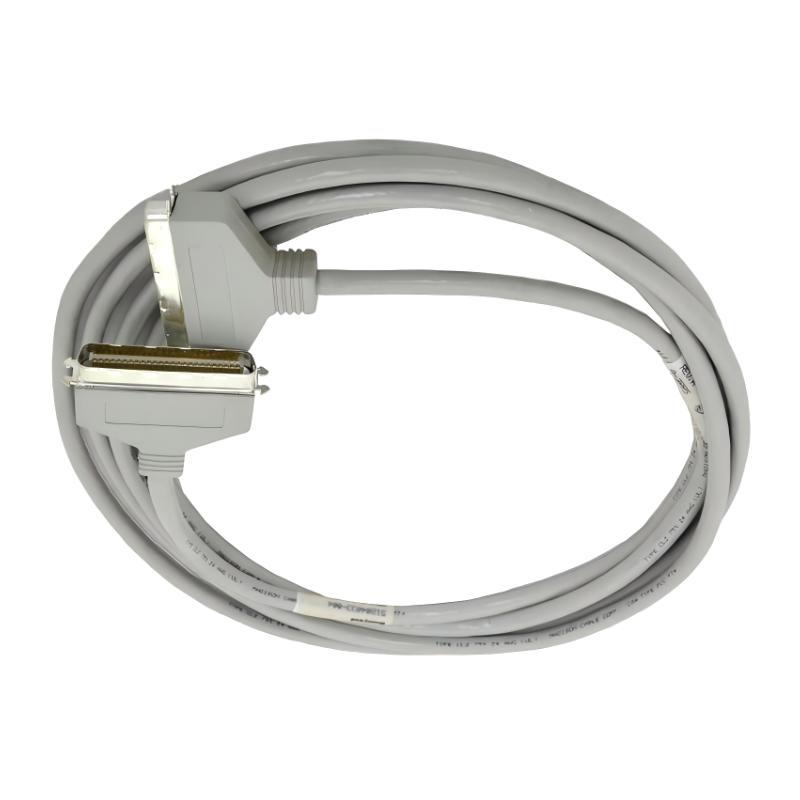

The Honeywell MU-KFTS10 is an IOP-to-FTA connection cable designed for use in compatible Honeywell control systems. It connects the Input/Output Processor (IOP) to the Field Termination Assembly (FTA), providing the required electrical connection for signal transmission between these system components. A reliable cable connection helps maintain communication between the controller-side interface and the field termination hardware, supporting stable operation of industrial automation and process control systems.

Q2: What is the difference between the MU-KFTS10 and MU-KFTA10 cables?

The MU-KFTS10 and MU-KFTA10 are both used for IOP-to-FTA connections, but they are intended for different compliance configurations. The MU-KFTS10 is the CE-compliant version and features a shielded cable with metal connector housings. The MU-KFTA10 is generally associated with non-CE configurations and uses plastic connector housings. When selecting a replacement, users should check the original cable designation, connector construction, and system compliance requirements rather than choosing solely by cable length.

Q3: Can the Honeywell 51204033-010 cable be used in CE-compliant control systems?

The MU-KFTS10 is designed as a CE-compliant cable option for compatible Honeywell I/O configurations. Its metal connector housings and shielded construction support the intended installation requirements. However, cable compliance alone does not establish that an entire control system meets CE requirements. The connected IOP, FTA, cabinet wiring, grounding arrangement, and other system components must also meet the applicable installation and regulatory requirements.

Q4: Which devices can the MU-KFTS10 cable connect?

The MU-KFTS10 is intended to connect compatible Honeywell Input/Output Processors and Field Termination Assemblies. It should be selected according to the IOP and FTA models installed in the control cabinet. Before installation, check the connector configuration at both ends and confirm that the cable is specified for the relevant I/O hardware. It should not be treated as a universal cable for power distribution, Ethernet communication, or direct connection to field instruments.

Q5: What is the purpose of the shielding in the MU-KFTS10 cable?

The cable shielding helps reduce the influence of electromagnetic interference that may be present in industrial environments. Variable-frequency drives, motors, switching power supplies, and high-current wiring can generate electrical noise that affects nearby signal circuits. Proper shielding and grounding help limit unwanted interference and support more stable signal transmission. During installation, the shielding arrangement should follow Honeywell’s system wiring instructions. Incorrect grounding or damaged shielding may reduce the effectiveness of the cable’s noise protection.

Q6: What precautions should be taken when installing the Honeywell MU-KFTS10 cable?

Before installation, verify the model number MU-KFTS10 and order number 51204033-010 against the system documentation. Confirm that the connectors match the designated IOP and FTA interfaces. Route the cable carefully to prevent excessive bending, twisting, pulling, or compression. Where practical, keep it separated from high-voltage power cables and other strong sources of electromagnetic interference. Make sure both connectors are fully seated and secured. Installation should be performed by qualified personnel in accordance with the control system’s approved wiring and safety procedures.

Q7: Can the MU-KFTS10 replace other cables in the MU-KFTS series?

Not automatically. Different MU-KFTS model suffixes may indicate different cable lengths or configurations. For example, a cable intended for a shorter installation distance may not reach the required connection point, while a longer cable may introduce unnecessary routing or installation difficulties. Even when two cables have similar connector arrangements, their compliance characteristics and intended applications should be checked. Before replacement, compare the complete part number, cable length, connector type, and compatibility requirements with the original system documentation.

Q8: How can connection faults or signal abnormalities involving the MU-KFTS10 be diagnosed?

Start by checking whether both connectors are fully inserted and securely attached to the IOP and FTA. Inspect the cable along its entire route for cuts, crushed sections, damaged insulation, excessive bending, or signs of overheating. Check the connector contacts for contamination, corrosion, or bent pins, and inspect the shielding and grounding connections for damage or looseness. If the physical inspection does not reveal the problem, isolate the cable according to site safety procedures and use an appropriate test instrument to check electrical continuity and possible short circuits. If the fault remains, test with a verified compatible replacement cable and review the IOP and FTA diagnostic indicators to determine whether the issue originates from the cable or another system component.
