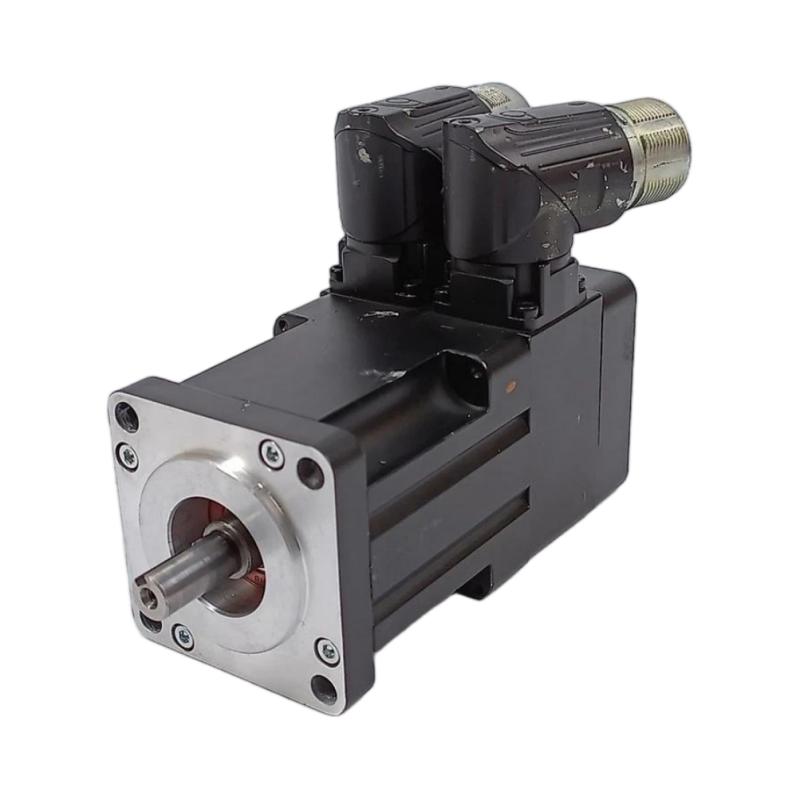

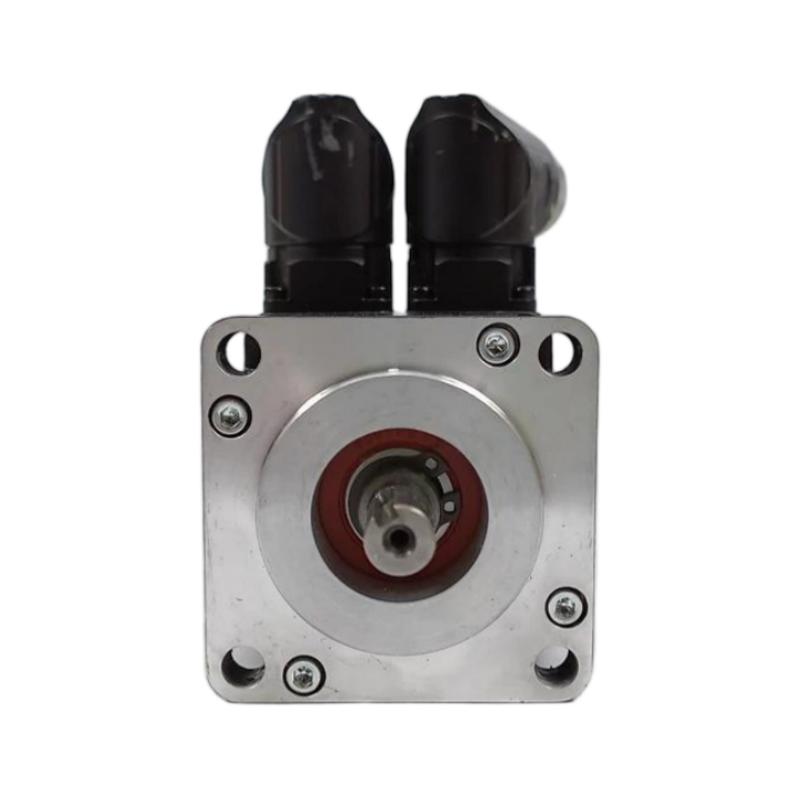

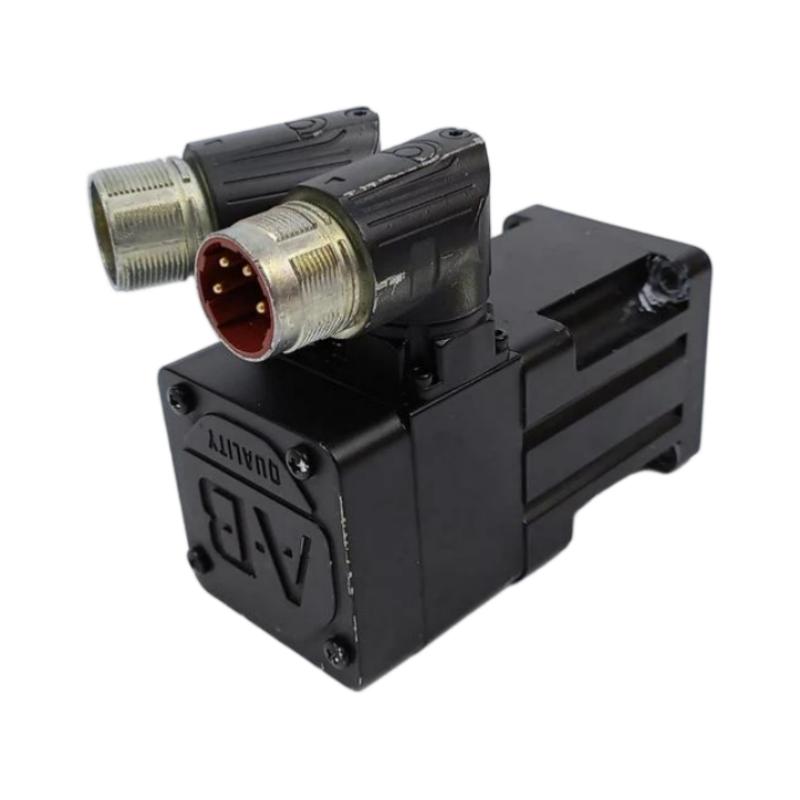

Allen-Bradley MPL-B320P-MJ72AA Low-Inertia AC Servo Motor
Technical Specifications
The Allen-Bradley MPL-B320P-MJ72AA is a low-inertia brushless servo motor from the MP-Series MPL product family. Designed for industrial motion control applications, it combines a compact frame, high-speed operation, and multi-turn absolute feedback. Its keyed shaft and adjustable right-angle connector provide practical installation options for automated machinery and precision positioning systems.
| Parameter | Specification |
|---|---|
| Brand | Allen-Bradley |
| Model | MPL-B320P-MJ72AA |
| Product Type | Low-Inertia AC Brushless Servo Motor |
| Product Series | MP-Series MPL |
| Motor Type | Rotary Servo Motor |
| Voltage Rating | 460 V AC |
| Voltage Class | 400 V class |
| Rated Power | 1.5 kW |
| Rated Speed | 5,000 RPM |
| Maximum Speed | 5,000 RPM |
| Continuous Stall Torque | 3.05 Nm |
| Peak Torque | 7.91 Nm |
| Frame Size | 100 mm |
| Magnet Stack Length | 50.8 mm (2.0 in.) |
| Feedback Type | Multi-turn High-Resolution Absolute Encoder |
| Feedback Resolution | 1024 Sin/Cos Cycles per Revolution |
| Feedback Protocol | Hiperface |
| Shaft Type | Keyed Shaft Extension |
| Connector Type | SpeedTEC DIN Connector |
| Connector Orientation | Right Angle, 180° Rotatable |
| Brake | No Brake |
| Mounting Type | IEC Metric Flange Mount |
| Mounting Holes | Type FF |
| Protection Rating | IP50 (reference specification; verify motor nameplate) |
| Operating Temperature | 0–40°C |
| Dimensions | 100 mm frame size; 50.8 mm magnet stack length. Overall dimensions depend on the mechanical drawing |
| Approximate Weight | 4.08 kg (9.0 lbs; distributor-listed value) |
| UPC | 820919980435 |
FAQ
Q1: What is the Allen-Bradley MPL-B320P-MJ72AA used for?
A1: This servo motor is designed for industrial motion control applications requiring accurate speed regulation, positioning, and repeatable movement. Typical applications include packaging machinery, material handling systems, automated assembly equipment, and manufacturing lines.
Q2: What is the rated speed of the MPL-B320P-MJ72AA?
A2: The motor has a rated speed of 5,000 RPM and a maximum speed of 5,000 RPM, making it suitable for high-speed industrial motion applications.
Q3: Does the MPL-B320P-MJ72AA have an integrated brake?
A3: No. This model is supplied without an integrated holding brake. If an application requires the motor shaft to remain mechanically locked when power is removed, an external braking solution may be necessary.
Q4: What type of encoder does this servo motor use?
A4: It features a multi-turn high-resolution absolute encoder with 1024 Sin/Cos cycles per revolution. The feedback system provides position information for precise motion control and positioning applications.
Q5: Which servo drives are compatible with the MPL-B320P-MJ72AA?
A5: This motor is associated with Allen-Bradley Kinetix and other supported MP-Series drive platforms. Compatibility depends on the specific drive model, firmware, feedback interface, and electrical configuration. Always check the drive selection documentation before installation.
Q6: What type of shaft and connector does this model have?
A6: The MPL-B320P-MJ72AA features a keyed shaft extension and a right-angle SpeedTEC DIN connector. The connector can rotate through 180 degrees, offering greater flexibility when arranging motor cables in compact installations.
Q7: What are the dimensions and weight of the MPL-B320P-MJ72AA?
A7: The motor has a 100 mm frame size and a 50.8 mm magnet stack length. Its approximate listed weight is 4.08 kg (9.0 lbs). For exact overall dimensions, mounting measurements, and installation clearances, refer to the manufacturer’s mechanical drawing.
Q8: What should be checked before replacing an existing MPL-B320P-MJ72AA motor?
A8: Before replacement, verify the complete model number, voltage rating, rated speed, encoder type, shaft configuration, connector orientation, mounting dimensions, and brake requirements. Also confirm that the replacement motor is compatible with the existing servo drive and control system.
Allen-Bradley MPL-B320P-MJ72AA Low-Inertia AC Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
