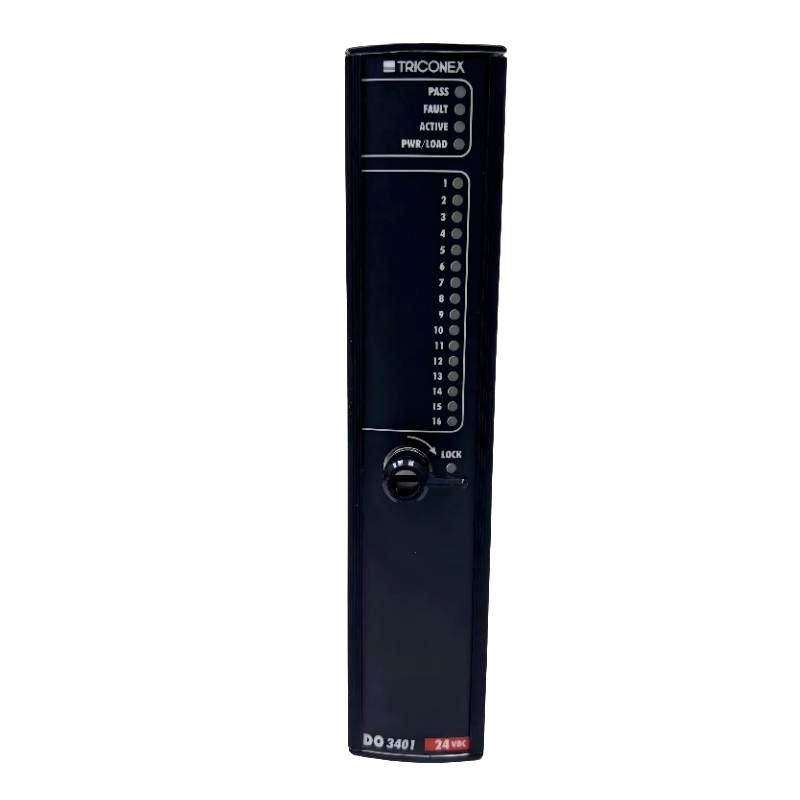

1. What is the Triconex DO3401 Digital Output Module used for?
The Triconex DO3401 is a digital output module designed for use in safety instrumented systems and critical industrial control applications. It converts the control decisions generated by the Triconex system into discrete output signals that can be used by field equipment. Typical applications include emergency shutdown systems, equipment interlocking, alarm circuits and actuator control. In a complete safety system, the DO3401 normally works together with Triconex controllers, input modules and field devices to create a complete safety control loop. The actual function of each output channel depends on the application logic and approved system design.

2. What types of field devices can be controlled by the DO3401?
Digital outputs are typically used to control field devices that operate through defined discrete states. Depending on the application and approved electrical design, these may include solenoid valves, relays, contactors, alarm devices and other discrete actuators. Before connecting a load, the electrical characteristics of the field device must be checked against the applicable output requirements. For safety-related loads, engineers should also verify the load’s normal state, de-energized state, protection circuit and fault behavior to ensure that the complete field loop performs as required during both normal operation and abnormal conditions.

3. What role does the DO3401 perform in a Safety Instrumented System?
The DO3401 provides the output interface between the Triconex safety logic and the final elements in the field. When the safety controller determines that a defined process condition requires an action, the corresponding digital output can be commanded according to the configured application logic. For example, an output may be used to initiate an emergency shutdown action or operate a solenoid valve associated with a process isolation function. The module therefore forms an important part of the final control path, but the complete safety function depends on the controller logic, input devices, output circuitry, field equipment and overall SIS architecture.

4. What should be checked if a DO3401 output channel does not operate?
Troubleshooting should begin by determining whether the application logic is actually commanding the affected output. Review the controller status and available diagnostic information before assuming that the physical output module has failed. Next, check the module installation, system interface and relevant wiring. The connected field device should also be inspected for open circuits, short circuits, incorrect wiring or mechanical problems that could prevent the expected response. If the control command is present and the external circuit is healthy but the channel still does not operate correctly, further module-level diagnostics should be performed according to the approved maintenance procedure. Safety functions should never be bypassed simply to force an output during normal troubleshooting.

5. Can a faulty DO3401 be replaced directly?
A replacement should only be performed after confirming the nature of the fault and verifying that the replacement module is compatible with the existing Triconex system configuration. The maintenance team should place the system in the appropriate maintenance or safe state before removing the module. The original wiring and channel assignments should be documented so that the replacement can be installed correctly. After installation, the system should be checked for proper module recognition, diagnostic status and output-channel operation. Any emergency shutdown, interlocking or other safety function associated with the affected channels should be functionally verified before the system is returned to normal service.

6. How should the DO3401 output channels be functionally tested?
Functional testing should be performed according to the approved SIS commissioning, proof-test or maintenance procedure. First verify that the system and the affected field loop are in a controlled condition suitable for testing. The appropriate output command can then be applied according to the test procedure while monitoring the module status and the response of the connected field device. The test should verify that the correct output channel operates and that the associated solenoid, relay, contactor or other final element responds as expected. Where applicable, interlocking, alarm and shutdown sequences should also be checked. After testing, the output should be returned to its required operating state, and the results should be documented as part of the maintenance record.

7. What installation precautions should be followed when installing a DO3401?
The module should be installed in the correct Triconex system position and the system interface should be properly engaged. Field wiring must follow the approved engineering drawings, including correct channel identification, terminal assignments and load connections. Appropriate electrostatic discharge precautions should be used during handling and installation to reduce the risk of damage to electronic components. The connected loads and external protection circuits should also be checked before energizing the system. After installation, review system diagnostics and confirm that the module is operating normally before performing controlled output tests. For safety-related applications, installation should be followed by the required inspection and functional verification rather than relying only on a visual check.

8. What checks should be performed after installing or replacing a DO3401?
After installation or replacement, first confirm that the module is correctly seated and recognized by the Triconex system. Check for active module, communication or channel diagnostics and verify that the output status is consistent with the configured application logic. The field wiring and connected loads should then be inspected to ensure that all channels are correctly connected. For outputs involved in emergency shutdown, process interlocking or other safety functions, perform the applicable functional tests under controlled conditions. These tests should verify not only normal output operation but also the expected response under defined fault or trip conditions. Once all required tests have been completed successfully, confirm that the system has returned to its normal diagnostic state and document the maintenance and test results before restoring the equipment to normal operation.
