1. What is the Triconex TCM 4355X Communication Module used for?
The Triconex TCM 4355X is a communication module designed to provide reliable data exchange between a Triconex safety system and external control or monitoring equipment. It can be used to connect the safety system with DCS, SCADA, HMI, engineering stations, Modbus devices and other compatible industrial systems. The module provides both Ethernet and serial communication interfaces, allowing different types of equipment to exchange process and system information. Its communication functions can also be used for system engineering, diagnostics, time synchronization and HART-related applications, depending on the configured system architecture.

2. Which communication protocols are supported by the TCM 4355X?
The TCM 4355X supports a broad range of industrial communication protocols. These include TriStation, Modbus Client, Modbus Server, Modbus TCP/IP, TSAA with IP Multicast support, Peer-to-Peer communication, Triconex Time Synchronization, External HART DTM, HART-IP, SNTP and Jet Direct network printing. This protocol support allows the module to serve as an interface between the Triconex safety system and a variety of supervisory, engineering and field-level systems. The actual protocol used depends on the application requirements and the configuration of the connected system.

3. What Ethernet interfaces are available on the TCM 4355X?
The TCM 4355X provides two network interfaces, identified as NET 1 and NET 2. These interfaces support 100BASE-TX and 1000BASE-T Ethernet when copper network connections are used. The module can also support 100BASE-FX and 1000BASE-X fiber communication through suitable Small Form-Factor Pluggable (SFP) interfaces. This gives engineers flexibility when integrating the Triconex system into different industrial network environments. Copper and fiber communication configurations should be selected and installed according to the approved network design and supported SFP requirements.

4. What serial communication functions does the TCM 4355X provide?
The TCM 4355X provides two galvanically isolated RS-232/RS-485 serial interfaces using DB-9 connectors. Each serial port can support communication at speeds of up to 115.2 Kbps, with an aggregate serial data rate of up to 230.4 Kbps. The serial interfaces can be used for compatible Modbus communication and other supported applications. Galvanic isolation helps reduce the possibility of electrical potential differences between connected equipment affecting the communication interface. When troubleshooting serial communication, the protocol configuration, baud rate, wiring, device addressing and communication mode should all be checked.

5. What should be checked if the TCM 4355X cannot communicate with a DCS or SCADA system?
Troubleshooting should begin by determining whether the problem is related to the physical network, protocol configuration or the TCM 4355X itself. First check the NET 1 or NET 2 status indicators and verify that the Ethernet link is established. Inspect network cables, connectors and network equipment for connection problems. Next, check the IP configuration, communication protocol, port settings and device addressing used by the DCS or SCADA system. If Modbus TCP/IP is being used, verify the client/server configuration and register mapping. The TCM diagnostic information should also be reviewed for active faults. If the physical connection and configuration are correct but communication remains unavailable, the network path and module should be investigated systematically rather than immediately replacing the module.

6. Can the TCM 4355X communicate with Modbus devices?
Yes. The TCM 4355X supports Modbus Client, Modbus Server and Modbus TCP/IP communication. This allows compatible Modbus equipment to exchange data with the Triconex system through the appropriate communication interface. During configuration, engineers need to define the correct Modbus communication mode and ensure that device addresses, register mappings, communication parameters and data types correspond between the Triconex system and the external device. Incorrect register mapping or addressing can result in communication being established while the actual process values remain incorrect, so functional verification of the exchanged data is important after commissioning.

7. How can the TCM 4355X communication module be diagnosed when a fault occurs?
The TCM 4355X provides multiple status indicators that can help maintenance personnel identify communication and module conditions. Module status indicators can provide information about PASS, FAULT, ACTIVE, MAINT and TEMP states, while dedicated indicators provide information about Ethernet, serial and SFP communication activity. When a fault occurs, the first step should be to identify whether the problem is related to the module itself, the network interface, a serial port, an SFP connection or the external communication equipment. The physical connections should then be inspected and the communication configuration verified. System diagnostics should be reviewed before replacing the module, as many apparent communication-module faults can originate from external network or configuration problems.

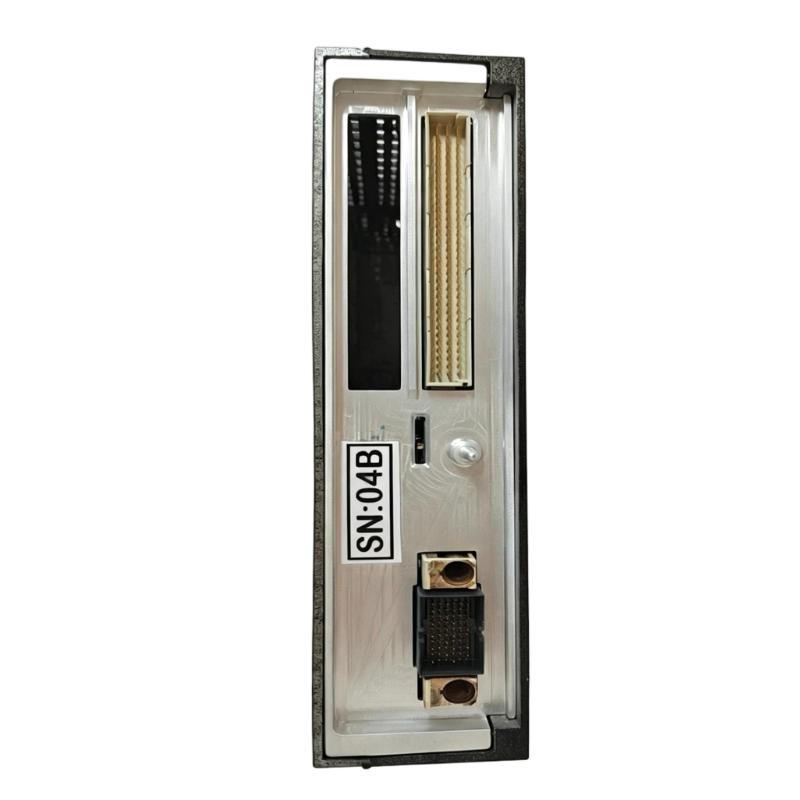

8. What should be checked after installing or replacing a TCM 4355X?
After installing or replacing the TCM 4355X, first confirm that the module is correctly seated in the Triconex chassis and that the system recognizes it normally. Check the module status indicators and verify that no unexpected FAULT or TEMP condition is present. Next, verify the communication interfaces that are actually used by the application, including Ethernet, serial and SFP connections where applicable. Confirm the network configuration, communication protocols, IP addressing, Modbus settings and device mappings. Communication with the DCS, SCADA, HMI or connected field equipment should then be functionally tested by reading and, where authorized, writing the required data points. HART communication and diagnostic functions should also be checked if they are part of the application. Finally, verify that all required system communication is stable under normal operating conditions and document the commissioning or maintenance results before returning the system to normal service.
