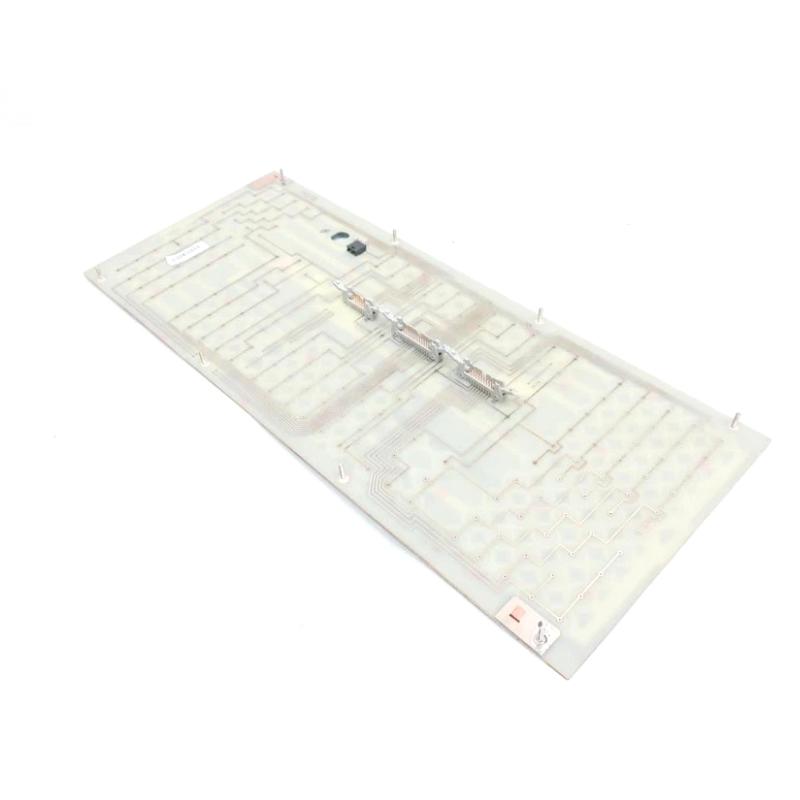

1. What is the main function of the Ovation 1D54471G02 Remote I/O Interface Board?
The 1D54471G02 is intended for interface functions within an Ovation/WDPF control system where remote I/O equipment needs to exchange information with the control system. An interface board of this type provides the electrical and system-level connection required for remote I/O communication, allowing field signals located away from the main controller or I/O rack to be incorporated into the overall DCS architecture.

2. Where is the 1D54471G02 typically used in an Ovation system?
The board is intended for use within compatible Ovation/WDPF system hardware and remote I/O architectures. It can be associated with distributed field I/O arrangements where signal acquisition or control functions are physically separated from the main processing equipment. Its actual installation position depends on the specific system generation, rack configuration, and hardware architecture used at the plant.

3. What should be checked before installing a 1D54471G02?
Before installation, verify the exact part number, system compatibility, rack or interface assembly, associated cables, connectors, and hardware revision. The replacement board should match the existing system configuration rather than being selected solely by physical appearance. It is also important to record existing diagnostic information before removing the original board so that any communication or I/O problems after replacement can be compared with the previous operating condition.

4. What symptoms may indicate a problem with the 1D54471G02?
Possible symptoms include loss of communication with remote I/O equipment, missing or invalid I/O status, intermittent signal updates, unexpected communication diagnostics, or failure of a remote I/O section to initialize correctly. However, these symptoms do not automatically indicate a defective interface board. Power supply problems, communication cables, connectors, rack hardware, remote I/O modules, and system configuration should also be checked before replacing the board.

5. How should communication problems involving the 1D54471G02 be diagnosed?
Start by checking the board’s power and diagnostic status, followed by the associated connectors and communication cabling. Next, determine whether the problem affects the entire remote I/O section or only specific channels or modules. If the complete remote I/O section is unavailable, the interface path, rack hardware, and communication configuration should receive priority during troubleshooting. If only selected I/O points are affected, the investigation should continue toward the corresponding remote modules and field circuits.

6. Can a faulty 1D54471G02 cause incorrect process signals?
Yes. If the interface between the remote I/O equipment and the control system is interrupted or corrupted, the DCS may receive missing, stale, or invalid I/O information. Depending on the control strategy, this can affect alarms, indications, interlocks, or control calculations. For this reason, any suspected interface-board failure should be handled according to the plant’s control-system maintenance and process-safety procedures.

7. What should be checked after replacing the 1D54471G02?
After replacement, verify that the board is correctly seated and that all associated connectors and cables are securely installed. The system should then be checked for diagnostic alarms, remote I/O communication status, and correct recognition of the associated I/O equipment. Individual input and output points should be tested where permitted by the maintenance procedure. For critical control loops or protection-related signals, functional verification should be completed before returning the equipment to normal automatic operation.

8. What are common causes of repeated 1D54471G02 communication failures?
Repeated failures may result from unstable power, loose or contaminated connectors, damaged communication cables, grounding problems, environmental interference, incompatible hardware revisions, or faults elsewhere in the remote I/O architecture. Replacing the interface board without identifying the underlying cause may only provide a temporary solution. A reliable troubleshooting process should therefore compare system diagnostics with the communication path, associated hardware, power conditions, and configuration before concluding that the board itself has failed.
