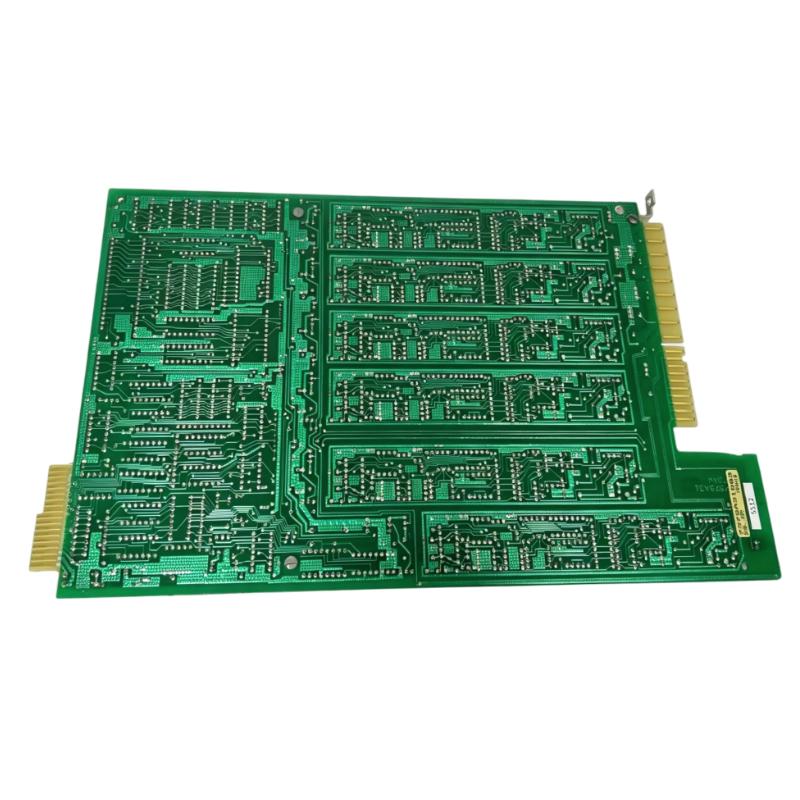

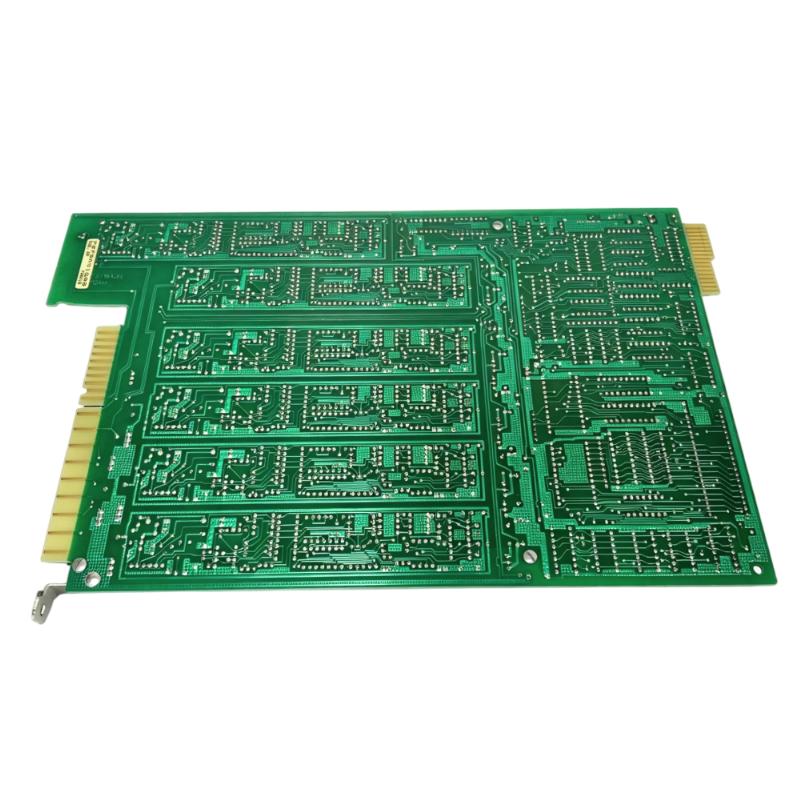

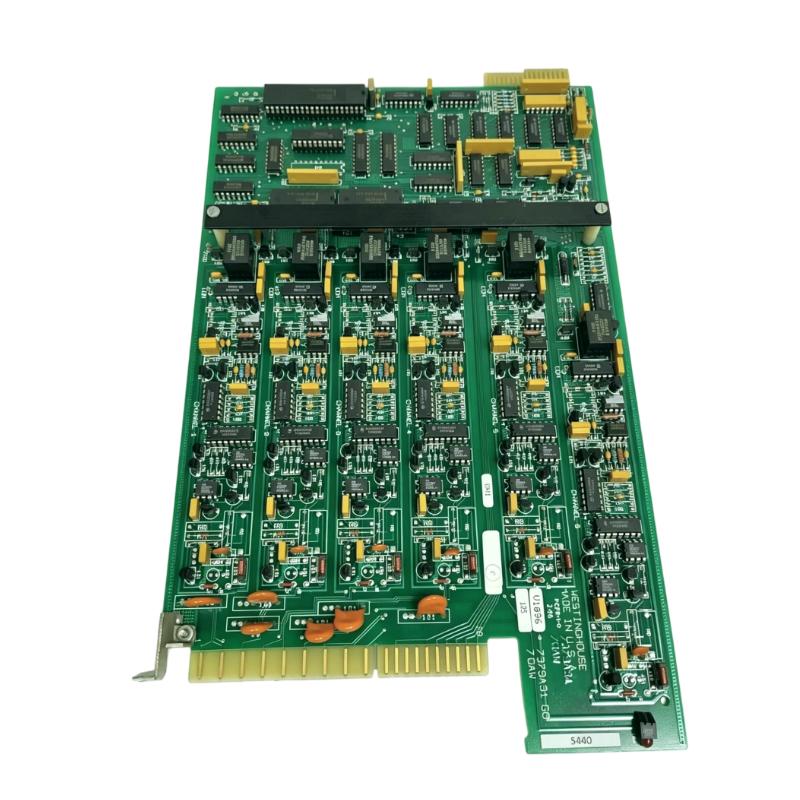

Ovation 7379A31G03 Analog Input Card
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 7379A31G03 |
| Product Series | Ovation |
| Product Type | Analog Input Card |
| Card Designation | QAW G03 |
| Input Type | Analog High-Level Input |
| Input Signal Range | 0 to 10 VDC |
| Application | Analog process signal acquisition |
| System | Ovation Control System |
| Function | Acquires and processes high-level analog voltage signals from field devices |
| Typical Applications | Process monitoring, industrial instrumentation and control systems |
| Installation | Ovation I/O system / control cabinet |
| Related Part Numbers | 3A99165G03 / 3A99165G50 |
| Dimensions | 200 × 35 × 120 mm |
| Weight | 0.63 kg |
FAQ
1. What is the main function of the Ovation 7379A31G03 Analog Input Card?
The 7379A31G03 is a QAW G03 analog input card used in an Ovation control system for acquiring high-level analog voltage signals. It provides an interface between compatible field instruments and the DCS, allowing process measurements to be transferred into the control system for monitoring, control, alarming, and data processing.
2. What input signal does the 7379A31G03 support?
The 7379A31G03 supports a 0 to 10 VDC analog input signal. This type of high-level voltage input is commonly used with compatible industrial transmitters, signal conditioners, and measurement devices. The field instrument output and the corresponding Ovation channel configuration should be matched to the required 0–10 VDC range.
3. What does QAW G03 mean for the 7379A31G03?
QAW G03 is the functional designation associated with this card configuration. The G03 version is intended for high-level analog input signals in the 0–10 VDC range. Other QAW variants use different signal ranges or configurations, so the complete part number should be checked before replacement or system modification.
4. What types of field devices can be connected to the 7379A31G03?
The card can be used with compatible field devices that provide a 0–10 VDC output. Depending on the process application, these may include signal conditioners, transmitters, position-related instruments, and other analog measurement equipment. The electrical characteristics of the field device should be verified before connecting it to the input channel.
5. What should be checked if the 7379A31G03 displays an incorrect process value?
First verify the actual voltage signal from the field device using a suitable calibrated measuring instrument. Check the signal wiring, terminal connections, grounding, and the power supply of the connected transmitter. The corresponding Ovation channel configuration should also be reviewed to ensure that the correct input range, scaling, and engineering units have been configured.
6. What can cause the 0–10 VDC signal on the 7379A31G03 to fluctuate?
An unstable analog value can be caused by signal interference, loose terminals, damaged wiring, poor grounding, an unstable transmitter, or problems with the field device power supply. Long signal cable runs and incorrect cable routing can also increase susceptibility to electrical noise. Troubleshooting should include both the field instrument and the complete signal path leading to the input card.
7. What precautions should be taken when installing or replacing the 7379A31G03?
Before installation, verify the complete part number and confirm that the QAW G03 configuration matches the required 0–10 VDC signal. Follow the site’s electrical maintenance and shutdown procedures, and use appropriate ESD protection when handling the circuit board. Check the I/O position, connectors, field wiring, and system configuration before returning the card to service.
8. How should a 7379A31G03 channel fault be diagnosed?
Begin by checking the Ovation system diagnostics and the status of the affected channel. Measure the field signal to determine whether the expected 0–10 VDC input is actually reaching the card. Then inspect wiring, terminals, grounding, and the connected field device. If the field signal and external wiring are confirmed to be normal but the channel continues to report an incorrect value or fault, compare it with a known-good channel where appropriate and proceed with further card-level testing or replacement.
Ovation 7379A31G03 Analog Input Card is in stock. Please contact us for a quick quote and competitive pricing.
