1. What is the primary function of the Ovation 1D54557G07?

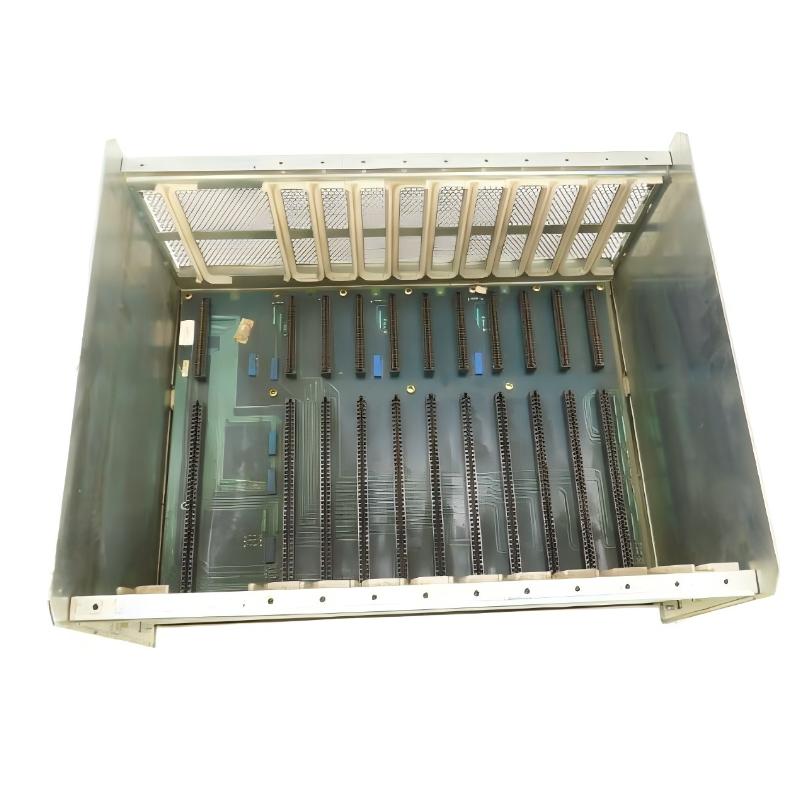

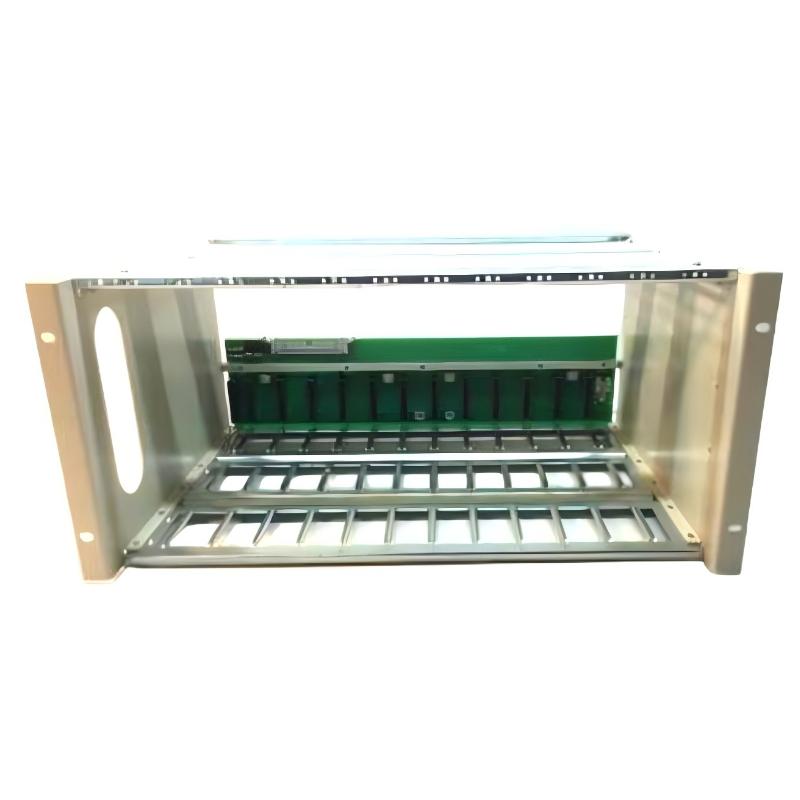

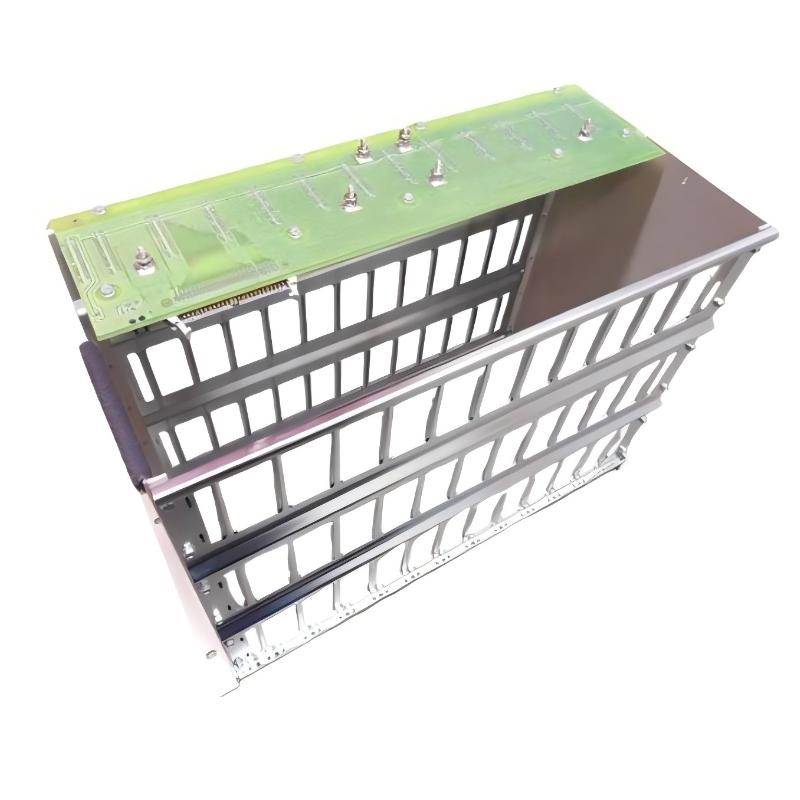

The Ovation 1D54557G07 is a Q-Crate Q-Line card cage used as a rack-based mounting and interconnection platform within Westinghouse/Ovation control systems. It provides the physical structure required to install compatible control and I/O cards and connects these cards through the internal 4256A99G02 backplane. The chassis itself is not a standalone controller; its main purpose is to provide organized card installation and system-level interconnection.

2. What backplane is associated with the 1D54557G07 chassis?
The 1D54557G07 is listed as a Q-Line card cage equipped with the 4256A99G02 backplane. The backplane provides the common electrical connection between installed cards and the surrounding system architecture. When replacing the chassis, the backplane part number should be verified carefully because different Q-Line card cages can use different backplane configurations.

3. What types of modules can be installed in the 1D54557G07?
The chassis is intended for compatible Q-Line system cards used within the Ovation/WDPF hardware architecture. Compatibility should be determined from the actual card type, backplane configuration, system revision, and cabinet design rather than assuming that every Ovation module can be installed. Before installation, verify the card part number and the corresponding system hardware documentation.

4. Can a faulty 1D54557G07 cause multiple module communication failures?
Yes. Because the chassis provides the common backplane connection for installed cards, a problem with the backplane, card connectors, grounding, or internal connections can affect more than one module. If several cards in the same chassis simultaneously report communication, identification, or system-status problems, the chassis and backplane should be included in the troubleshooting process rather than checking each individual card separately.

5. What should be checked before replacing the 1D54557G07?
First, record the existing card arrangement and identify all modules installed in the chassis. Verify the replacement chassis and backplane part numbers, inspect the connectors for contamination or mechanical damage, and confirm that the cabinet power and grounding arrangements are suitable. It is also important to follow the plant’s shutdown, isolation, and ESD procedures before removing cards or working around the backplane.

6. How should the 1D54557G07 be inspected during preventive maintenance?
Preventive maintenance should include checking the mechanical mounting, card guides, backplane connectors, grounding connections, and signs of overheating or physical damage. Installed cards should be firmly seated and properly secured. Dust accumulation, loose connections, damaged connectors, or abnormal heat should be investigated because these conditions can eventually result in intermittent communication or module recognition problems.

7. What are common troubleshooting steps when cards installed in the chassis are not recognized?
Start by reviewing the Ovation system diagnostics and determining whether the problem affects one card or several cards. For a single affected card, inspect its seating, connector interface, and card-specific status. If several cards are affected, check the 4256A99G02 backplane, chassis connections, system power, grounding, and associated communication paths. Comparing the behavior with a known-good compatible card can also help distinguish a card-level problem from a chassis or backplane problem.

8. What should be verified after installing or replacing the 1D54557G07?
After installation, verify that the chassis is securely mounted and that all cards are correctly positioned and fully seated. Check the backplane and system connections, restore power according to the approved commissioning procedure, and review Ovation diagnostics for hardware or communication alarms. The final verification should include confirmation that the installed cards are correctly recognized and that the associated control, I/O, and communication functions operate normally.
