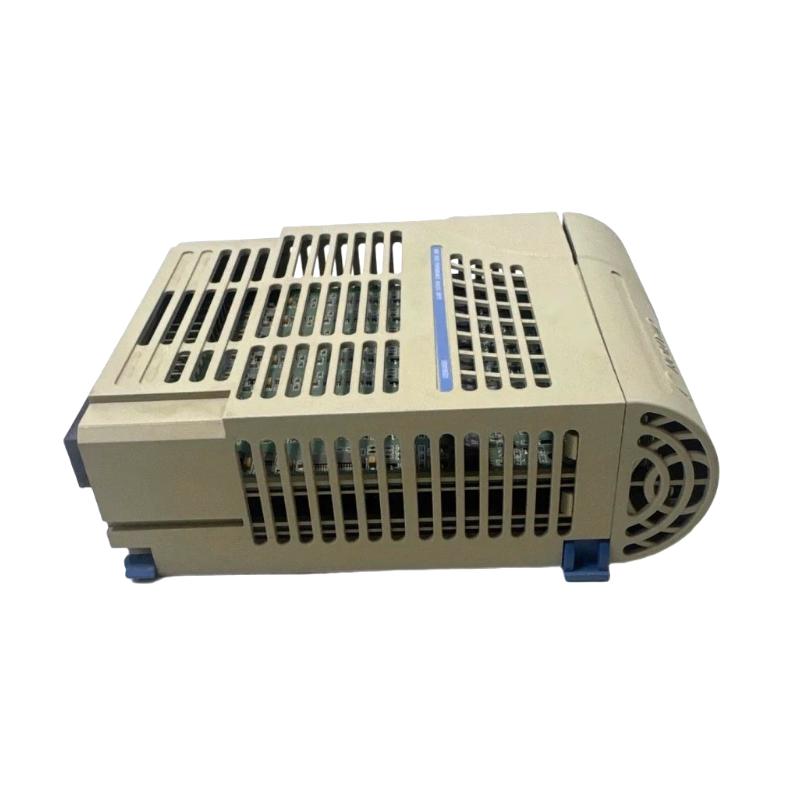

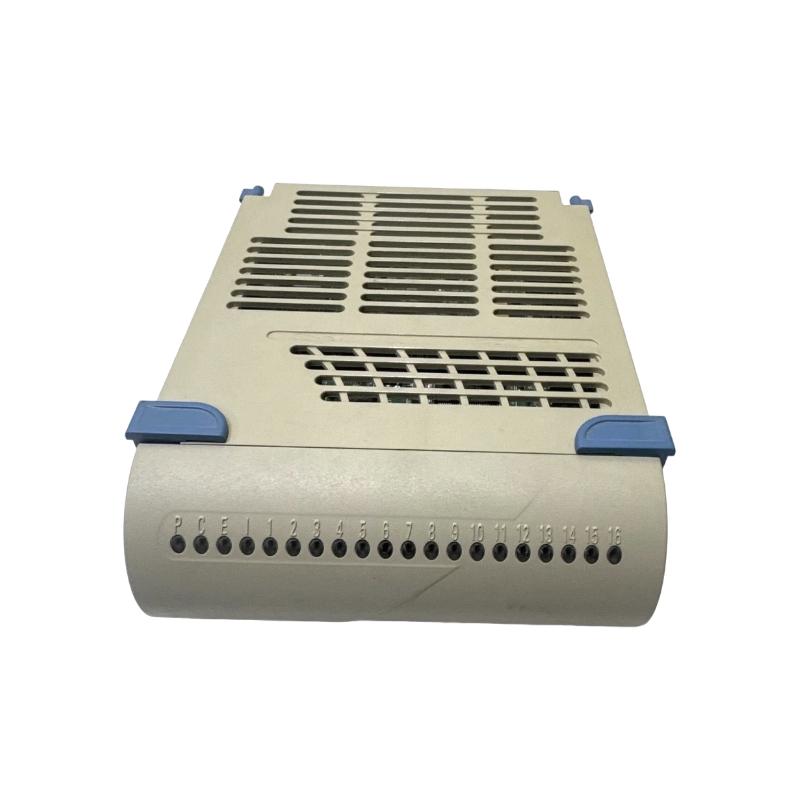

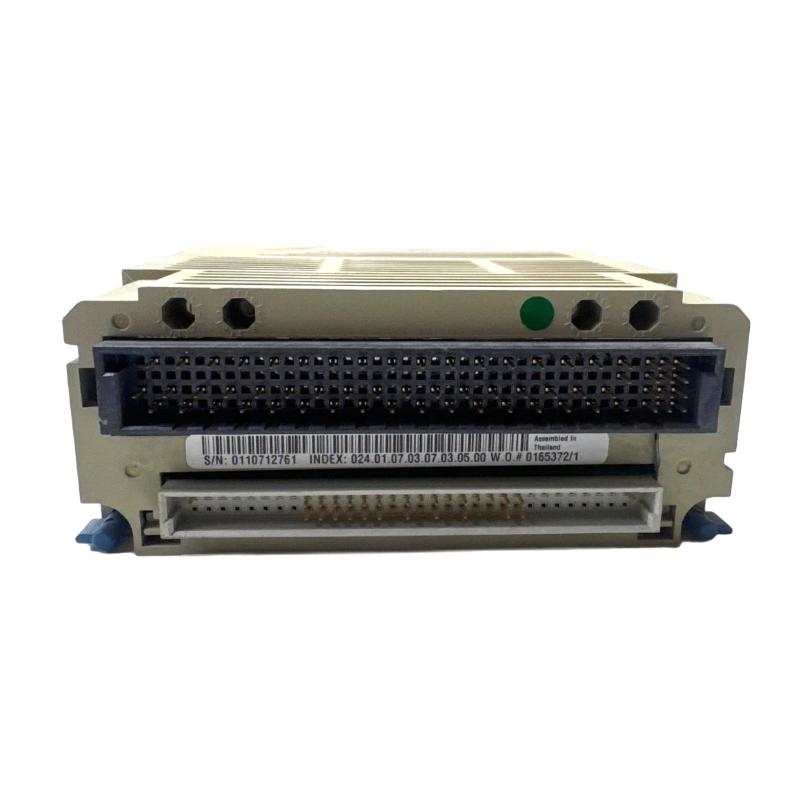

1. What is the main function of the Ovation 1X00093G06 Ethernet Switch?
The 1X00093G06 is a 24-port copper Ethernet switch used within an Ovation DCS network. It provides Ethernet connectivity between control-system nodes and other IP-based devices, allowing control data and system information to be exchanged through the industrial network.

2. What type of Ethernet switch is used with the 1X00093G06?
The 1X00093G06 is associated with the Cisco WS-C2950-24 Ethernet switch platform. It provides 24 copper Ethernet ports with 10/100 Mbps Fast Ethernet capability and is intended for use within the Ovation control-system network environment.

3. How many Ethernet devices can be connected to the 1X00093G06?
The switch provides 24 copper Ethernet ports. The actual number of usable connections in an Ovation system depends on the network topology, port assignments, redundant connections and the specific configuration of the DCS network.

4. Can the 1X00093G06 be used in an Ovation redundant network?
Yes. The 1X00093G06 can be incorporated into an Ovation Ethernet architecture that uses redundant communication paths. The switch configuration and physical connections must match the system’s network design so that redundancy functions correctly.

5. What devices are normally connected to the 1X00093G06?
Typical connections can include Ovation controllers, operator stations, engineering workstations, servers and other Ethernet-based control-system devices. The exact port assignment depends on the plant’s Ovation network architecture.

6. What should be checked when an Ethernet connection fails?
Check the switch power status and the link/activity indication of the affected port first. Then inspect the Ethernet cable and connectors and verify the connected device. If the physical connection is normal, check IP settings, port configuration and the communication status of the associated Ovation node.

7. What can cause multiple nodes connected to the 1X00093G06 to lose communication?
Multiple communication failures may result from switch power loss, incorrect network configuration, damaged Ethernet infrastructure, port configuration problems, network loops or switch hardware failure. When several nodes are affected simultaneously, the common switch and network path should be checked before investigating individual devices.

8. What precautions should be taken when replacing an Ovation 1X00093G06?
Before replacement, identify the switch’s role in the DCS network and document all connected Ethernet ports and relevant configuration information. The replacement switch should be configured to match the existing network architecture. After installation, verify link status, node-to-node communication and any required redundant communication paths before returning the system to normal operation.
