1. What is the main function of the Schneider 490NTW00002U Ethernet cable?

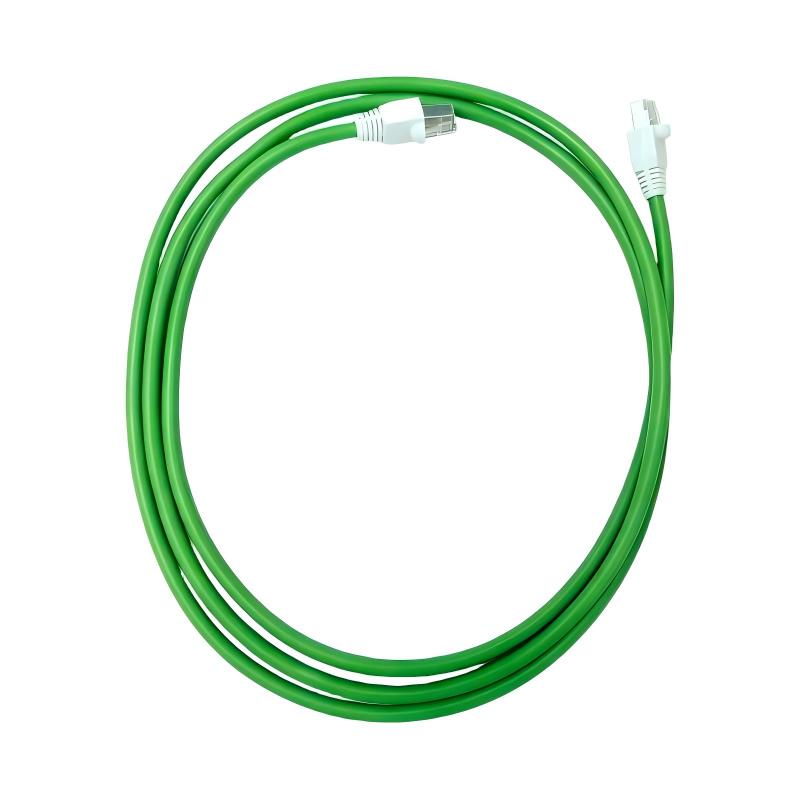

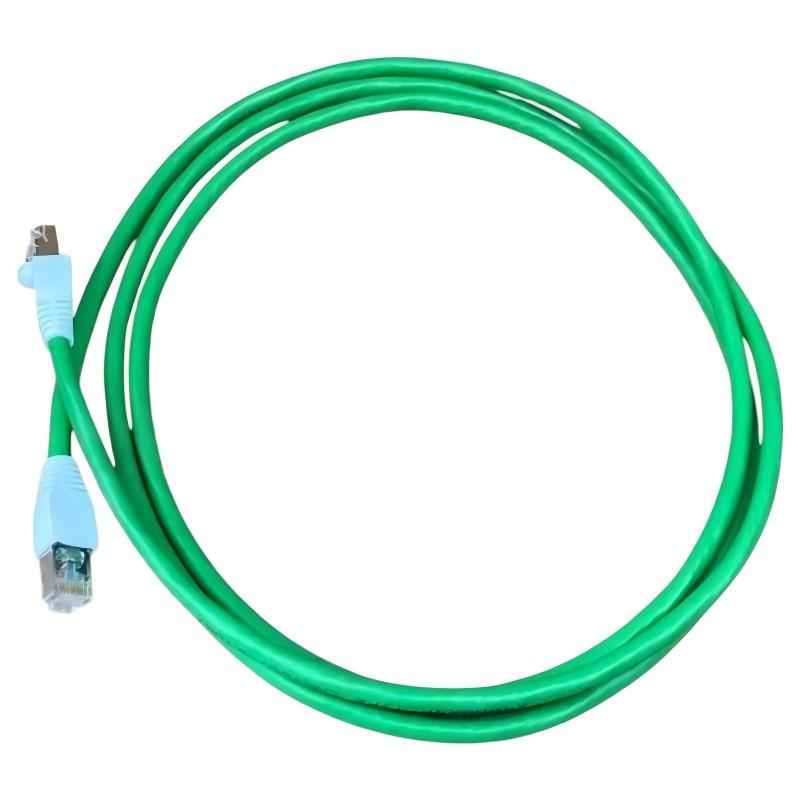

The Schneider 490NTW00002U is an Ethernet communication cable designed to provide reliable data connections between compatible industrial automation and networking devices. It can be used to connect PLCs, Ethernet communication modules, industrial switches, and other Ethernet-enabled equipment. The cable provides a direct physical communication path for exchanging control data, diagnostic information, and network messages. In industrial automation systems, using a suitable Ethernet cable is important for maintaining stable communication between controllers and network devices, particularly when the system operates continuously and requires reliable data transmission.

2. What type of connector is used on the 490NTW00002U?

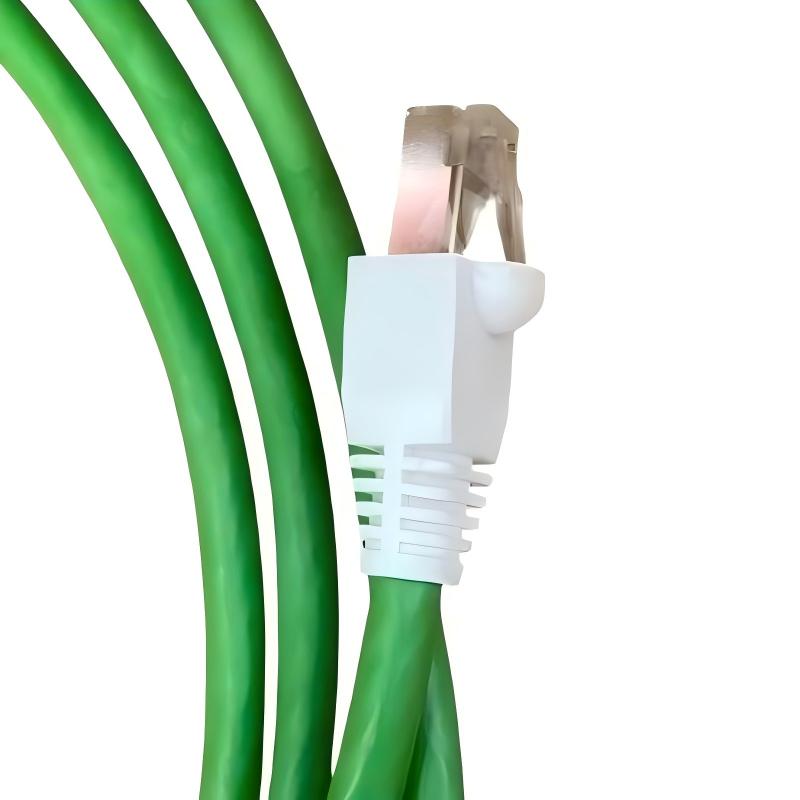

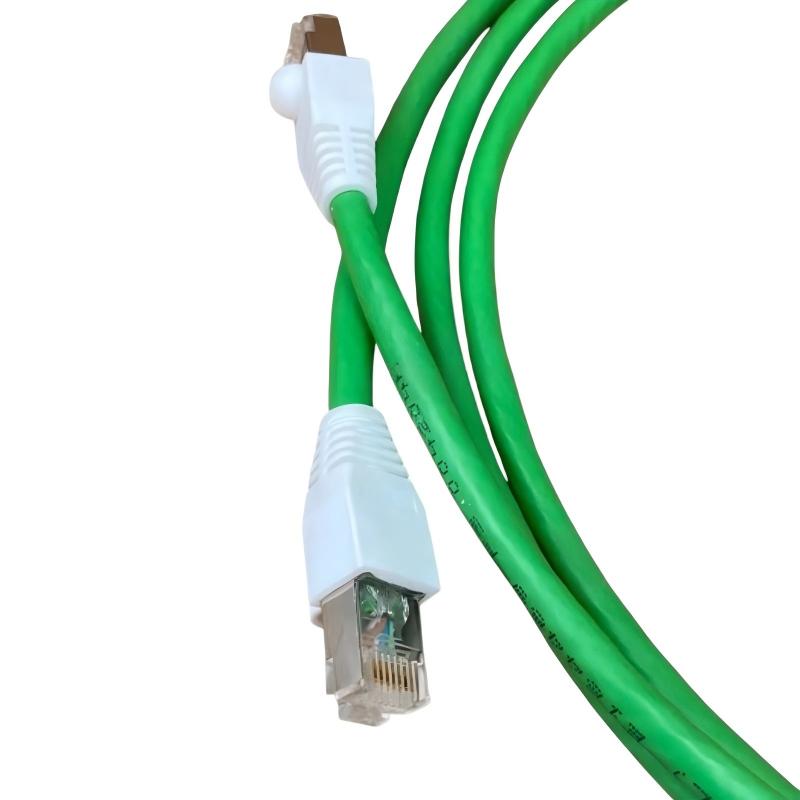

The 490NTW00002U uses RJ45 Ethernet connectors for connection to compatible network ports. The connectors provide a standard physical interface for industrial Ethernet communication and are designed for straightforward connection to PLC communication ports, Ethernet modules, switches, and other network equipment. During installation, both connectors should be fully inserted and securely locked into their respective ports. If an RJ45 connector is not completely seated, the network link may become intermittent or fail completely. The connectors should also be inspected for damaged locking tabs, bent contacts, contamination, or other physical problems before commissioning.

3. Is the 490NTW00002U suitable for PLC and industrial Ethernet networks?

Yes. The 490NTW00002U is suitable for compatible Ethernet communication applications in industrial automation systems. It can be used as a network connection between PLCs, communication modules, industrial switches, and other Ethernet devices. The shielded twisted-pair construction helps provide improved resistance to electromagnetic interference compared with an unshielded cable. This can be beneficial in control cabinets and industrial environments where motors, drives, contactors, and power equipment are present. However, reliable network operation also depends on correct network configuration, proper cable routing, secure connectors, and appropriate installation practices.

4. What should be checked if the Ethernet connection is unstable?

When communication becomes unstable, first inspect both RJ45 connectors and confirm that they are securely inserted into the network ports. The cable should then be checked for visible damage, excessive bending, crushing, or mechanical stress. The Ethernet ports on the connected devices should also be inspected for abnormal link indications. If the physical installation appears normal, check the network configuration and communication status of the connected devices. Replacing the 490NTW00002U temporarily with a known-good Ethernet cable is an effective way to determine whether the cable is contributing to the problem. If the communication becomes stable after replacement, the original cable or connector should be investigated further.

5. Can the 490NTW00002U connect a PLC to an Ethernet switch?

The 490NTW00002U can be used for compatible Ethernet connections between PLCs, Ethernet communication modules, industrial switches, and other network equipment. Before installation, verify that both devices provide suitable Ethernet interfaces and that the selected network topology is appropriate for the control system. Connect each RJ45 plug securely to the corresponding Ethernet port and check the link status after installation. The PLC should then be tested for normal communication with the network switch and other devices. If communication is not established, check the physical connections first, followed by the network configuration and status of the connected ports.

6. What are the advantages of the shielded twisted-pair design?

The shielded twisted-pair design helps reduce the influence of electromagnetic interference on Ethernet communication. Industrial environments often contain electrical equipment such as variable-frequency drives, motors, contactors, switching power supplies, and high-current wiring. These devices can generate electrical noise that may affect communication cables when installation conditions are unfavorable. Shielding provides additional protection for the communication conductors, while the twisted-pair structure helps control interference between signal pairs. Even with a shielded cable, correct installation remains important. The Ethernet cable should be routed appropriately, protected from mechanical damage, and kept away from strong sources of electrical interference whenever practical.

7. How should the 490NTW00002U be routed in an industrial control cabinet?

The cable should be routed carefully to avoid excessive bending, pulling force, crushing, or repeated mechanical movement. When possible, Ethernet communication cables should be separated from high-current power cables, motor cables, and variable-frequency drive wiring. This reduces the possibility of electromagnetic interference affecting communication performance. The RJ45 connectors should not be subjected to excessive mechanical force, and the cable should be supported appropriately rather than allowing the connectors to carry the cable’s mechanical load. After installation, verify that both network ports show a stable link and monitor communication during normal equipment operation. Proper routing and cable management also make future inspection and troubleshooting easier.
