1. What is the main function of the Schneider 490NTW00005 Ethernet cable?

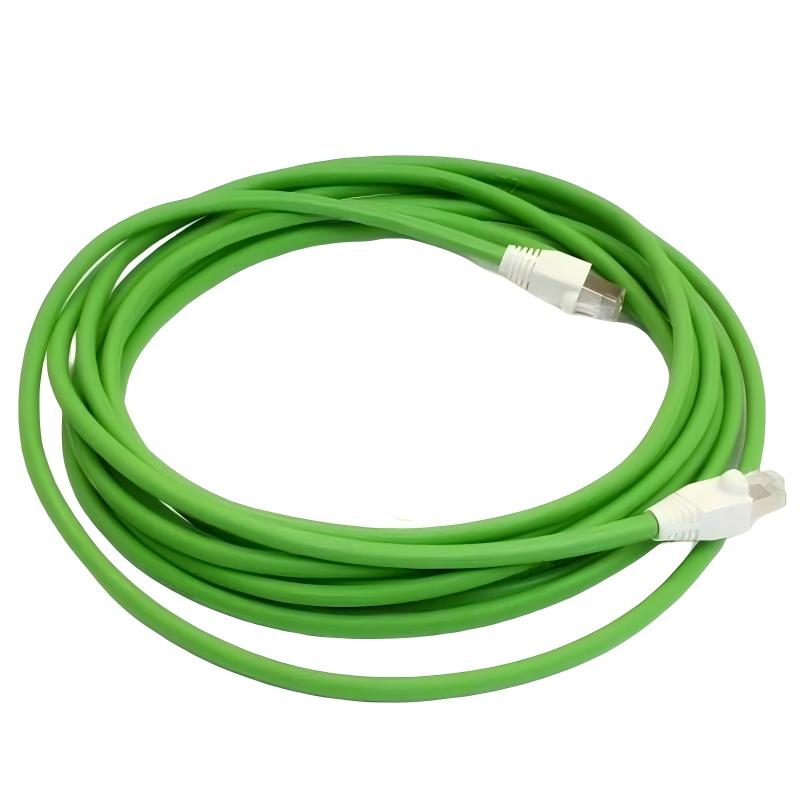

The Schneider 490NTW00005 is a shielded twisted-pair Ethernet connection cable designed for industrial automation networks. It provides a direct communication path between compatible Ethernet devices such as PLCs, Ethernet communication modules, industrial switches, and other network equipment. The cable uses two RJ45 connectors and a straight-through wiring configuration, making it suitable for connecting terminal equipment within an Ethernet network. In automation applications, a stable physical connection is essential for reliable exchange of control data, diagnostic information, and network messages between industrial devices.

2. What type of Ethernet cable is the 490NTW00005?

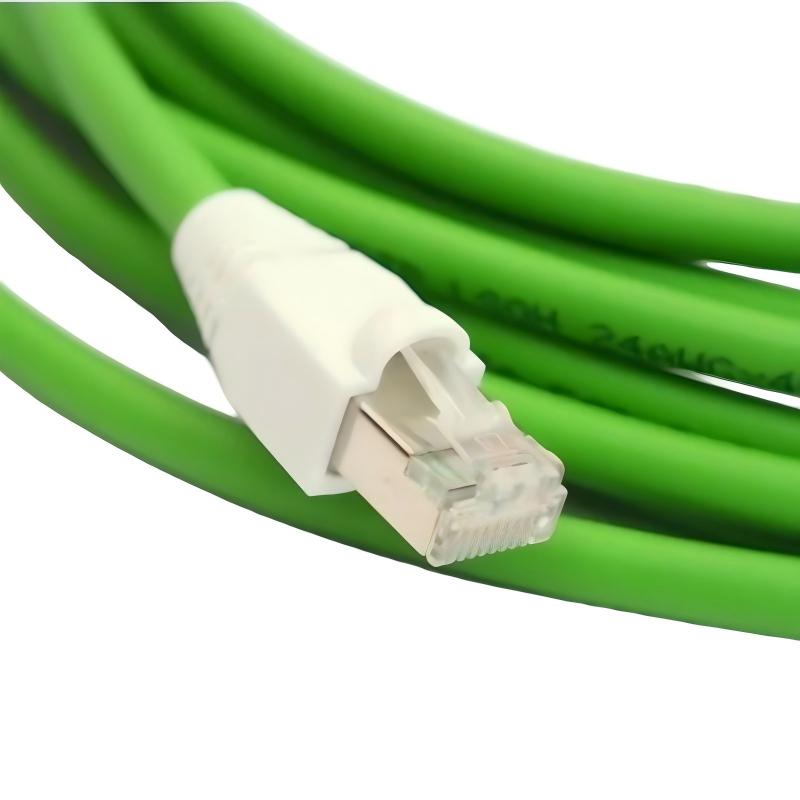

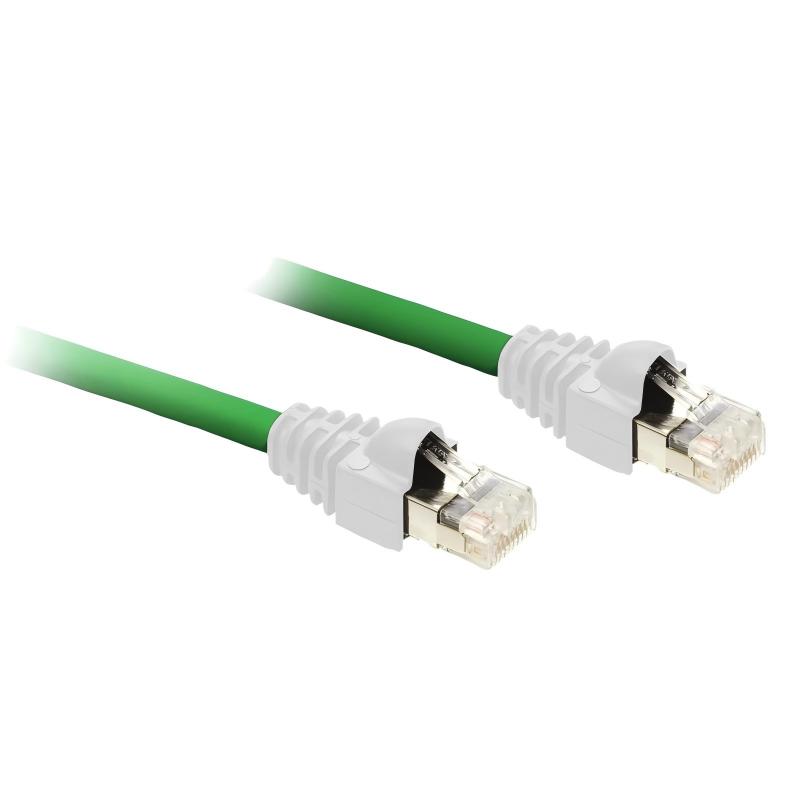

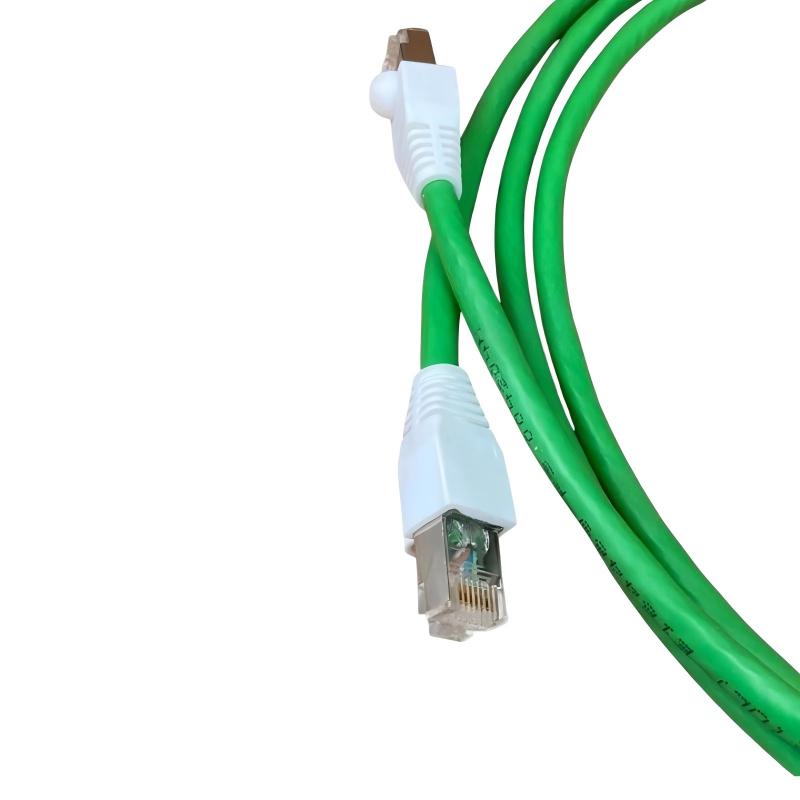

The 490NTW00005 is a shielded twisted-pair straight-through Ethernet cable equipped with two RJ45 connectors. Its cable construction is intended for industrial Ethernet connections, and the wiring follows a 1:1 pin assignment. It conforms to commonly used Category 5 Ethernet cabling requirements and relevant Class D standards. The shielded construction is beneficial in industrial environments because it provides additional protection against electromagnetic interference. The cable is particularly suitable for connecting compatible terminal equipment within automation control and communication networks.

3. Can the 490NTW00005 be used to connect a PLC and an industrial Ethernet switch?

Yes, when the PLC and industrial switch have compatible Ethernet interfaces, the 490NTW00005 can be used as the physical network connection between them. Before installation, confirm that the Ethernet ports and network architecture meet the requirements of the automation system. Connect one RJ45 plug to the PLC or communication module and the other to the appropriate switch port. After connection, check the link indicators on the devices and verify that the PLC can communicate with the required network nodes. If communication cannot be established, the physical connection, network configuration, Ethernet ports, and cable condition should be checked systematically.

4. What should be checked if communication becomes intermittent with the 490NTW00005?

Begin by checking both RJ45 connectors to ensure that they are fully inserted and securely locked. Inspect the entire cable for excessive bending, crushing, cuts, or other physical damage. Because the cable is used in industrial environments, routing should also be checked to ensure that it has not been installed directly alongside strong sources of electrical interference. If the physical installation appears normal, inspect the Ethernet port status and network configuration of the connected devices. A practical diagnostic method is to temporarily replace the cable with a known-good Ethernet cable. If the communication becomes stable, the original cable or its connectors should be investigated further.

5. What are the benefits of the shielded twisted-pair construction?

The shielded twisted-pair construction helps reduce the influence of electromagnetic interference on Ethernet communication. Industrial automation systems often contain motors, variable-frequency drives, contactors, switching power supplies, and other electrical equipment capable of generating electrical noise. Shielding provides additional protection for the communication conductors, while twisting the signal pairs helps reduce interference between the individual signal circuits. This makes the cable well suited to industrial Ethernet applications. However, correct installation remains essential. The cable should be routed appropriately and protected from excessive mechanical stress and unnecessary exposure to strong electrical interference.

6. How should the 490NTW00005 be installed in an industrial control cabinet?

The cable should be routed in a clean and organized manner, avoiding excessive bending, pulling, crushing, or continuous mechanical stress. Ethernet communication wiring should preferably be separated from high-current power cables, motor cables, and variable-frequency drive wiring. This helps minimize electromagnetic interference and makes future troubleshooting easier. The RJ45 connectors should be firmly inserted into the corresponding Ethernet ports, and the cable should be supported so that mechanical force is not transferred directly to the connectors. After installation, verify the network link and monitor communication during equipment operation to ensure that the connection remains stable.

7. What should be done if the 490NTW00005 does not establish an Ethernet link?

First check whether both connected devices are powered and whether their Ethernet ports indicate an active physical link. Inspect both RJ45 connectors and make sure they are completely inserted. The cable should also be inspected for visible damage or abnormal bending. If the physical connection appears normal, check the communication configuration of the PLC, switch, or other connected equipment. Using a known-good Ethernet cable as a comparison test can quickly determine whether the 490NTW00005 is contributing to the problem. If the replacement cable works normally, the original cable or connector should be inspected or replaced. If the problem remains, the network ports and configuration should be investigated.

8. What maintenance is recommended for the 490NTW00005 Ethernet cable?

Maintenance should focus on the physical condition of the cable, RJ45 connectors, and network connection. Periodically inspect the cable for cuts, crushing, excessive bending, or other mechanical damage. Check that both RJ45 connectors remain firmly connected and that the locking mechanisms are intact. In control cabinets, verify that the cable has not been displaced into a position where it is exposed to strong electrical interference or excessive heat. If intermittent communication errors occur, inspect the cable and connectors before replacing network equipment. Keeping the cable properly routed and avoiding unnecessary mechanical stress can help maintain stable Ethernet communication and extend the service life of the connection.
