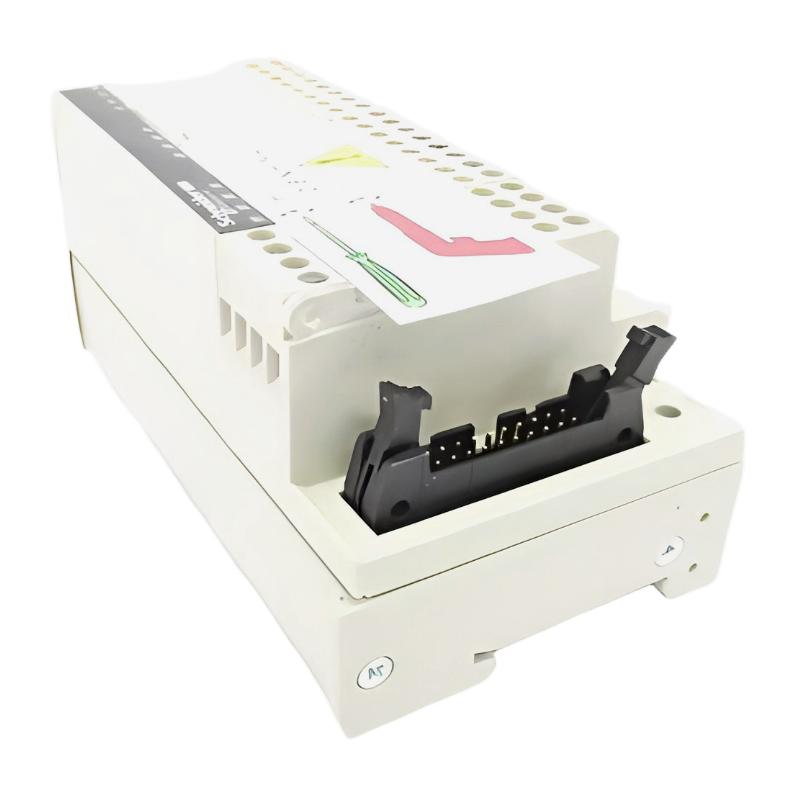

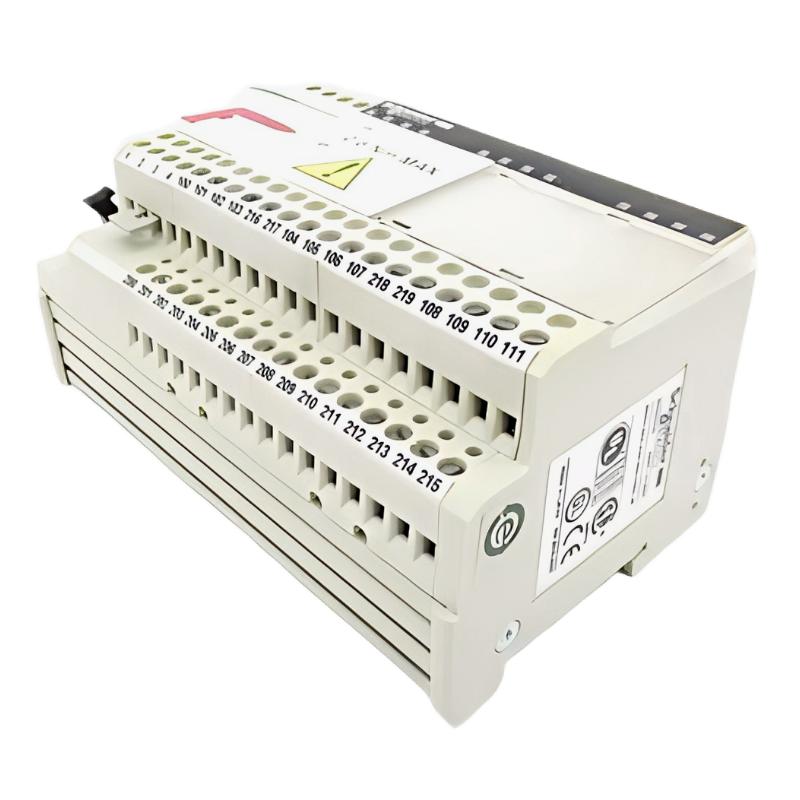

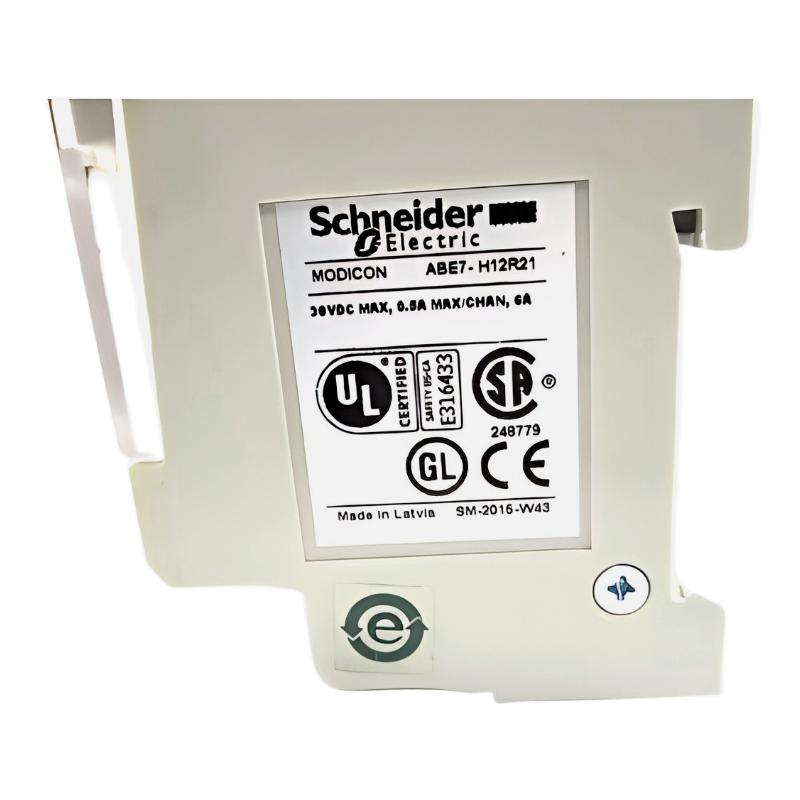

Schneider ABE7H12R21 Passive Connector Subbase

  • Manufacturer: Schneider
  • Product Number: ABE7H12R21
  • Condition: New & In Stock
  • Product Type: Passive Connector Subbase
  • Origin: France
  • Payment Methods: T/T, Western Union
  • Dimensions: 125 x 70 x 67 mm
  • Weight: 0.3 kg
  • Shipping Port: Xiamen, China
  • Lead Time: 1-3 Working Days
  • Warranty: One Year
  • Certificate: COO
  • Courier partners: DHL, UPS, TNT, FedEx and EMS.

Product Detail

Contact Us

FAQS

Packing & Delivery

Company Information
e-mail [email protected]
Mobile +8615305023276
Whatsapp +8615305023276
WeChat 15305023276
Add to Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Technical Specifications

Parameter Specification
Model ABE7H12R21
Product Type Passive Connector Subbase
Brand Schneider Electric
Function Provides passive connection and signal distribution between PLC interface modules and field I/O devices
Application Range Industrial automation systems, PLC I/O signal expansion
Compatible Modules Schneider Telefast ABE7 series interface modules
Installation Type DIN rail mounting
Wiring Method Screw terminal connection
Signal Types Digital and analog signal transmission
Electrical Characteristics Passive signal transmission without internal signal processing or amplification
Isolation Feature Basic electrical separation between control and field side
Structure Type Modular connection subbase
Operating Environment Industrial control cabinet environment
Protection Class IP20
Material Industrial-grade engineering plastic and metal conductive structure
Dimensions 125 × 70 × 67 mm
Weight 0.3 kg

FAQ

1. What is the main function of this passive connector subbase?
This product is used to connect PLC interface modules with field I/O devices. It provides passive electrical connectivity, enabling signal routing and distribution without any internal signal processing or amplification.

2. How is it different from an active interface base?
A passive subbase does not contain electronic components for signal conditioning or isolation amplification. It relies purely on physical electrical connections, making it simpler and highly reliable compared to active versions.

3. What systems is it compatible with?
It is designed for Schneider Electric Telefast ABE7 series interface modules and is commonly used in PLC-based industrial automation systems for I/O signal expansion.

4. What role does it play in automation systems?
It serves as a connection interface between PLC systems and field devices such as sensors and actuators, enabling structured and organized signal wiring within control cabinets.

5. Does it provide electrical isolation?
It offers basic electrical separation between control and field circuits, but it does not include active isolation or signal conditioning functions.

6. Is the installation process complicated?
No. It uses standard DIN rail mounting, allowing fast installation inside industrial control cabinets without special tools.

7. What precautions should be taken during use?
Ensure all terminals are securely tightened and avoid performing wiring or disconnection while the system is energized to prevent equipment damage or signal disruption.

8. Does it require regular maintenance?
Maintenance requirements are minimal. Periodic checks of terminal tightness and cabinet cleanliness are recommended to ensure stable long-term operation.

Schneider ABE7H12R21 Passive Connector Subbase is in stock. Please contact us for a quick quote and competitive pricing.
