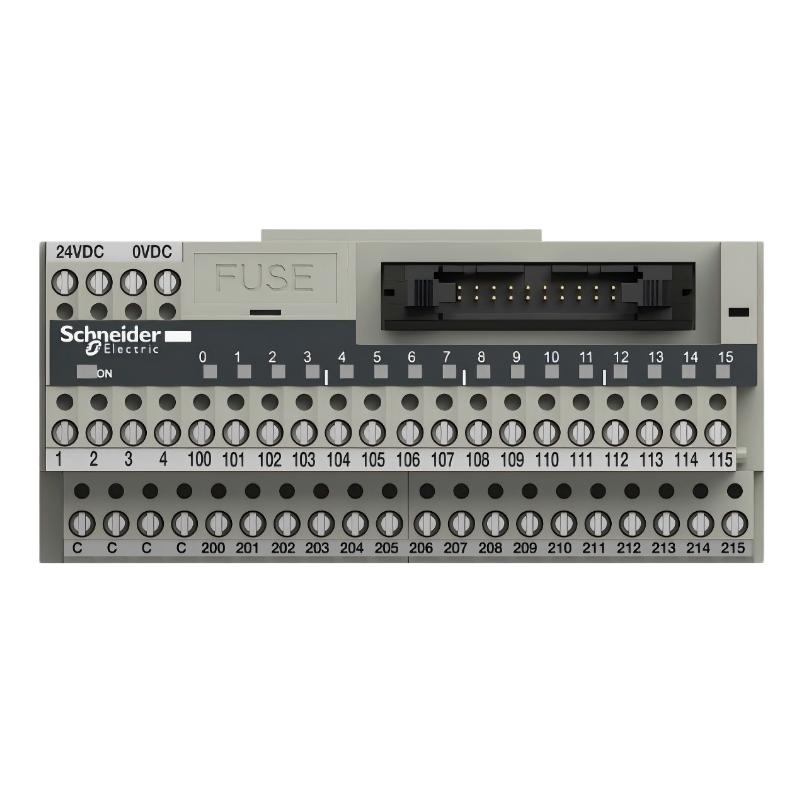

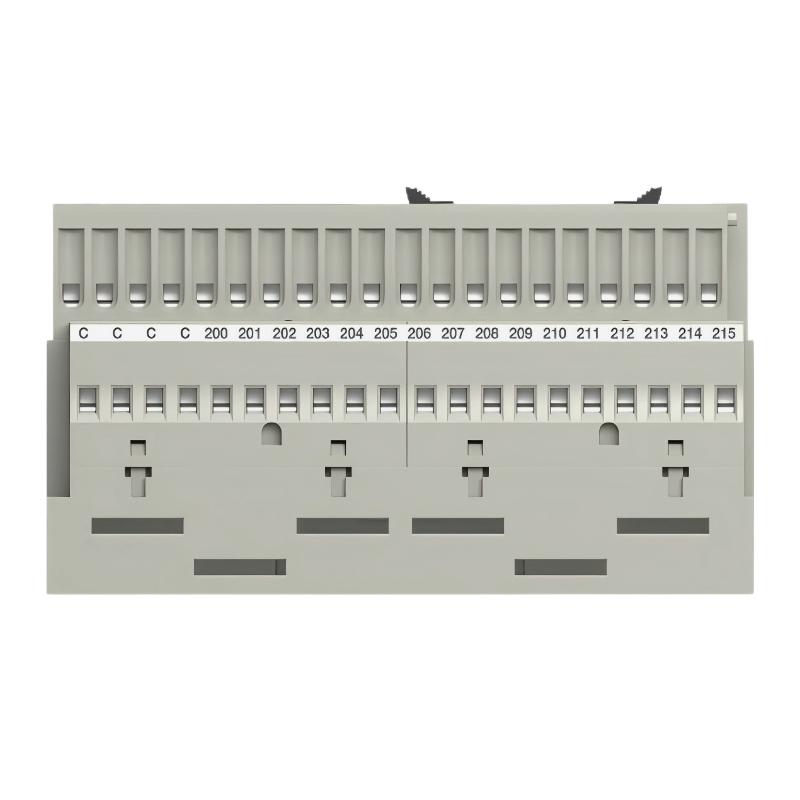

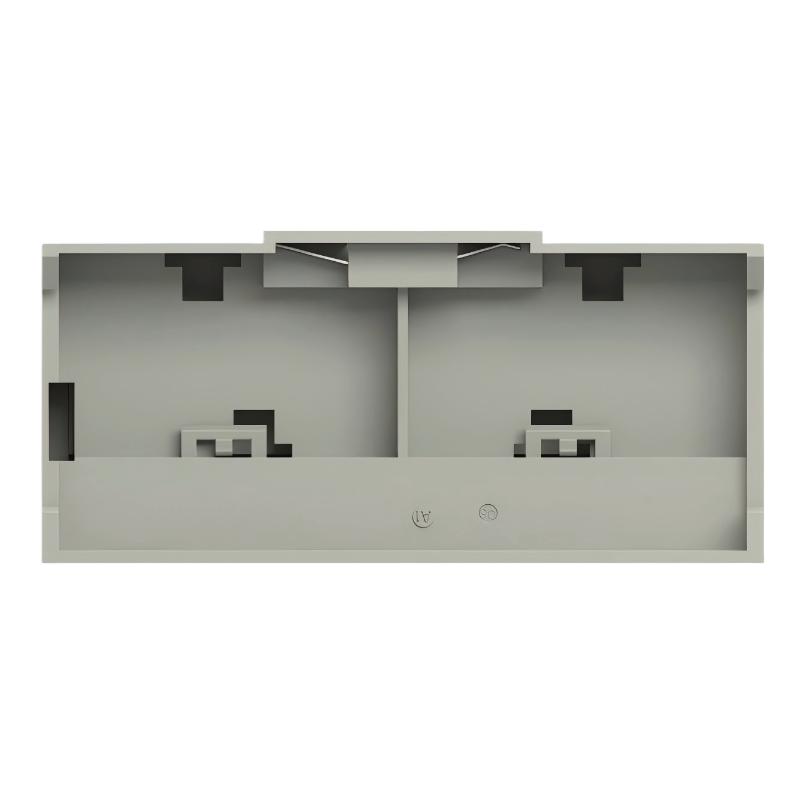

Schneider ABE7H16C21 Passive Connector Subbase
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ABE7H16C21 |
| Product Name | Passive Connector Subbase |
| Manufacturer | Schneider Electric |
| Product Type | Passive interface connector base |
| Application System | Industrial automation / PLC I/O systems |
| Function | Signal distribution and interface connection |
| Channel Capacity | 16 channels |
| Connector Type | Spring clamp / screw terminal interface (depending on configuration) |
| Mounting Type | DIN rail mounting |
| Electrical Function | Passive signal routing (no signal conditioning) |
| Compatibility | Schneider PLC I/O interface modules |
| Operating Voltage | Industrial control signal level |
| Operating Environment | Industrial environment |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Protection Design | Industrial-grade insulation and mechanical housing |
| Dimensions | 106 × 63 × 64 mm |
| Weight | 0.205 kg |
FAQ
1. What is the main function of the ABE7H16C21 passive connector subbase?
The ABE7H16C21 is used as an interface and signal distribution base in industrial automation systems. It provides a structured connection point between field wiring and PLC I/O modules, enabling organized and reliable signal routing without performing any active signal processing.
2. Why is it called a passive connector subbase?
It is called “passive” because it does not modify, amplify, or process signals. Instead, it simply provides electrical continuity and organized wiring distribution between external field devices and control system modules.
3. Which systems is this product compatible with?
It is designed for Schneider Electric PLC and industrial automation systems. It is typically used with compatible I/O modules in distributed control or modular PLC architectures.
4. What are the advantages of using this subbase in automation systems?
It simplifies wiring, reduces installation complexity, and improves system maintenance efficiency. By centralizing connections, it also helps reduce wiring errors and improves overall system organization.
5. How is the subbase installed in a control cabinet?
It is mounted on a standard DIN rail inside the control cabinet. Field wiring is connected to the terminal points, and the corresponding I/O module is then attached to the front interface of the subbase.
6. Does it require configuration or programming?
No programming is required for the subbase itself. However, the associated PLC system and I/O modules may require configuration depending on the application and control logic.
7. What should be considered during wiring installation?
Proper tightening of terminals, correct wire sizing, and clear separation of signal and power wiring are important to ensure stable operation and reduce electrical interference.
8. How can long-term reliability be ensured?
Regular inspection of terminal tightness, avoidance of mechanical stress on wiring, and maintaining a clean and dry cabinet environment help ensure stable and long-term operation in industrial conditions.
Schneider ABE7H16C21 Passive Connector Subbase is in stock. Please contact us for a quick quote and competitive pricing.
