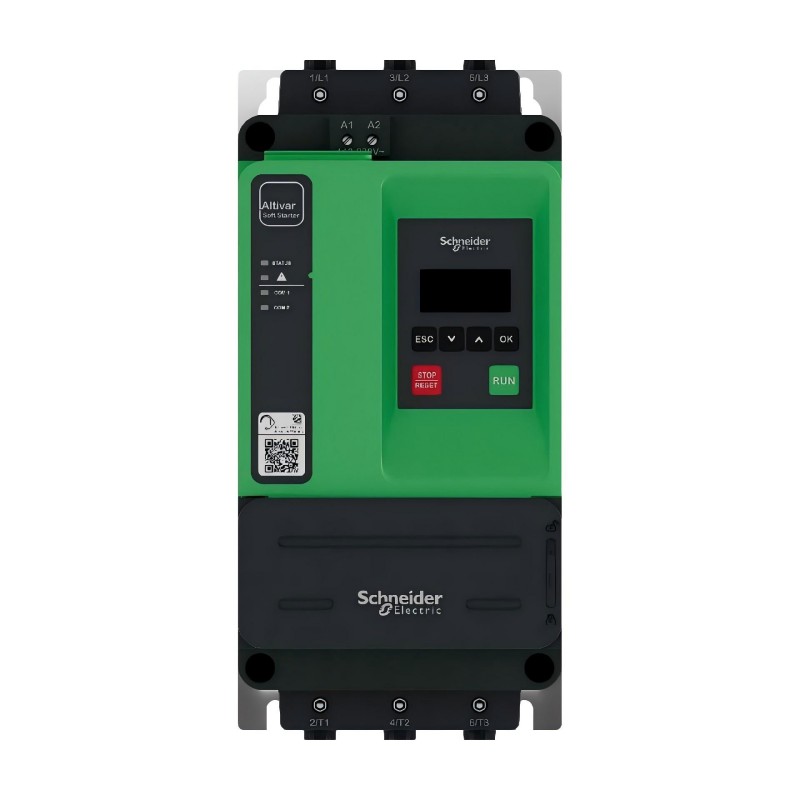

1. What is the main function of the Schneider ATS430D32S6 Soft Starter?

The Schneider ATS430D32S6 Soft Starter is designed to control the starting and stopping process of three-phase asynchronous motors by gradually controlling the motor voltage and torque.

Unlike traditional direct-on-line starting methods, the ATS430D32S6 reduces the high starting current and mechanical shock that occur when a motor starts suddenly. It provides smooth acceleration and deceleration, helping protect motors, power systems, and connected mechanical equipment.

The soft starter is suitable for industrial applications where controlled motor operation is required, including pumps, fans, compressors, and conveyor systems.

By improving starting performance and reducing mechanical stress, the ATS430D32S6 helps increase equipment reliability and reduce maintenance requirements.

2. What types of motors can be controlled by the Schneider ATS430D32S6?

The Schneider ATS430D32S6 is designed for controlling three-phase asynchronous induction motors used in industrial automation systems.

It can be applied to motors driving equipment such as centrifugal pumps, ventilation systems, compressors, conveyors, mixers, and other machinery requiring smooth startup and shutdown.

Before installation, users should verify that the motor voltage, rated current, and operating conditions match the soft starter specifications.

Proper selection ensures stable motor operation, prevents overload conditions, and improves the overall efficiency of the motor control system.

3. How does the Schneider ATS430D32S6 reduce motor starting stress?

The Schneider ATS430D32S6 reduces motor starting stress by gradually increasing the voltage and controlling the motor torque during acceleration.

During startup, the soft starter limits the initial current surge by controlling the power supplied to the motor. This prevents sudden electrical impact on the power network and reduces mechanical shock on connected equipment.

The controlled acceleration process allows motors to reach operating speed smoothly, reducing wear on mechanical components such as couplings, belts, and drive systems.

This makes the ATS430D32S6 particularly suitable for applications where smooth operation and equipment protection are important.

4. How can faults on the Schneider ATS430D32S6 be diagnosed?

When the Schneider ATS430D32S6 detects a fault, technicians should first check the displayed fault information and operating status.

Common troubleshooting steps include checking the incoming power supply, motor connections, control wiring, parameter settings, and protection configuration.

For overload faults, the motor load should be inspected to determine whether the mechanical load exceeds normal operating conditions.

For phase loss or current-related faults, technicians should verify the power supply quality and electrical connections.

Reviewing fault records together with actual operating conditions helps identify the root cause and restore normal operation quickly.

5. How is the Schneider ATS430D32S6 configured for different motor applications?

The Schneider ATS430D32S6 can be configured by adjusting operating parameters according to the motor and application requirements.

Important parameters include acceleration time, deceleration time, starting torque, motor protection settings, and control modes.

For pump applications, optimized stopping parameters can reduce pressure fluctuations. For conveyor systems, smoother acceleration settings can reduce mechanical impact on moving components.

After configuration, the system should be tested under actual operating conditions to verify proper motor performance.

Correct configuration ensures efficient operation and improves the reliability of the motor control system.

6. What are the common causes of Schneider ATS430D32S6 faults?

Common causes of Schneider ATS430D32S6 faults include motor overload, incorrect parameter settings, power supply issues, phase loss, wiring problems, and unsuitable operating conditions.

If the motor load exceeds the rated capacity, the soft starter may activate protection functions to prevent damage.

Incorrect acceleration or torque settings may cause abnormal startup behavior or repeated fault alarms.

Poor electrical connections, unstable power supply, excessive temperature, and insufficient ventilation can also affect performance.

Regular inspection of system parameters, motor conditions, and electrical connections helps prevent unexpected failures.

7. What are the advantages of the Schneider ATS430D32S6 Soft Starter?

The Schneider ATS430D32S6 provides reliable motor control, smooth starting performance, and effective protection functions for industrial applications.

Compared with direct motor starting methods, it reduces starting current peaks and minimizes mechanical stress during acceleration and stopping.

The soft starter supports flexible parameter adjustment, allowing users to optimize operation for different load characteristics.

Integrated protection features help protect motors from abnormal conditions and improve system safety.

Its compact design and industrial reliability make it suitable for various automation and motor control applications.

8. What maintenance practices are recommended for the Schneider ATS430D32S6?

To maintain reliable operation of the Schneider ATS430D32S6, regular inspection and preventive maintenance should be performed.

Maintenance personnel should check electrical connections, motor operating conditions, fault history, and parameter settings periodically.

The ventilation path should be kept clean to ensure proper cooling performance, and the installation environment should be protected from excessive dust, moisture, and electrical interference.

Protection parameters should be reviewed regularly to ensure they match the actual motor application requirements.

A proper maintenance schedule helps reduce unexpected downtime, improve system reliability, and extend the service life of the soft starter and connected equipment.
