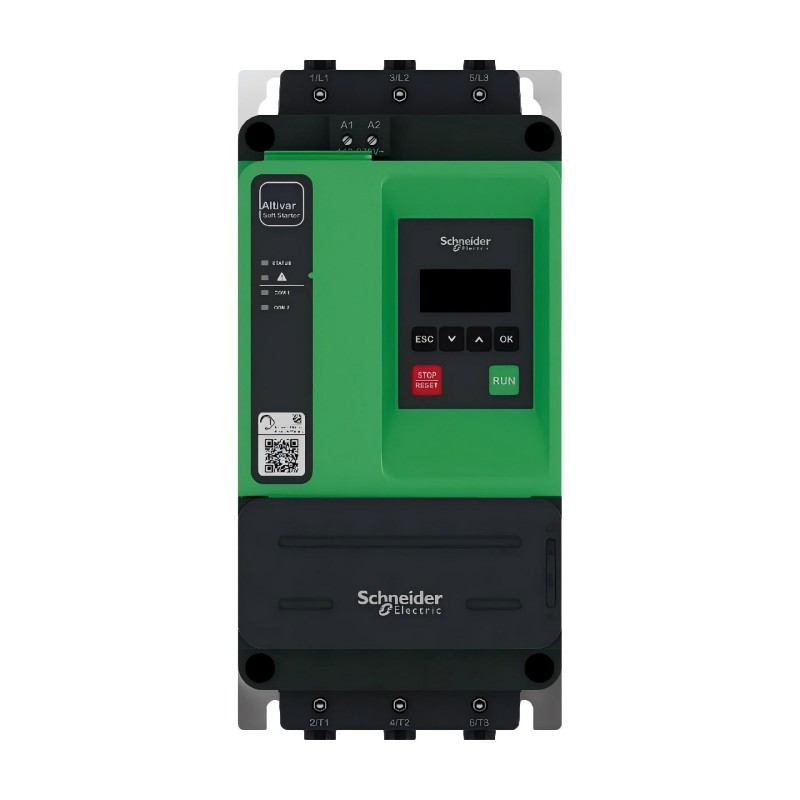

1. What is the main function of the Schneider ATS430D47S6 Soft Starter?

The Schneider ATS430D47S6 Soft Starter is designed to control the starting and stopping process of three-phase asynchronous motors by adjusting the voltage and torque during motor acceleration.

Unlike traditional direct-on-line starting methods, the ATS430D47S6 gradually increases the output voltage during startup, reducing the high inrush current and minimizing electrical stress on the power system.

The soft starter also provides smooth stopping control, reducing mechanical shock on connected equipment.

It is widely used in industrial applications such as pumps, fans, compressors, and conveyor systems where stable motor operation and reduced starting impact are required.

By optimizing the motor starting process, the ATS430D47S6 improves equipment reliability and helps reduce maintenance requirements.

2. What types of motors are suitable for the Schneider ATS430D47S6?

The Schneider ATS430D47S6 is designed for controlling three-phase asynchronous induction motors in industrial environments.

It is suitable for motors used in centrifugal pumps, ventilation systems, air compressors, conveyors, mixers, and other mechanical equipment requiring controlled acceleration and deceleration.

Before installation, users should confirm that the motor voltage, rated current, and operating conditions match the soft starter specifications.

Correct selection and matching between the motor and soft starter ensure stable operation, reduce unnecessary protection trips, and improve the efficiency of the motor control system.

3. How does the Schneider ATS430D47S6 achieve smooth motor starting?

The Schneider ATS430D47S6 achieves smooth motor starting by controlling the voltage variation and torque output during the acceleration process.

During startup, the soft starter does not immediately apply full voltage to the motor. Instead, it gradually increases the voltage according to configured parameters, allowing the motor speed to rise smoothly.

This control method limits the starting current, reduces voltage fluctuations in the electrical network, and minimizes mechanical impact on connected equipment.

For heavy-duty machinery or applications requiring frequent starts, soft starting helps reduce equipment wear and improves long-term system reliability.

4. How can startup faults on the Schneider ATS430D47S6 be diagnosed?

When the Schneider ATS430D47S6 experiences a startup fault, the first step is to check the fault code and operating status displayed by the device.

Maintenance personnel should inspect the incoming power supply, motor wiring, control circuits, parameter settings, and protection configuration.

If abnormal starting current occurs, the motor load condition should be checked, and the starting torque and acceleration parameters should be reviewed.

For phase loss or power-related alarms, technicians should verify the three-phase power supply, cable connections, and terminals.

By analyzing fault information together with actual operating conditions, the root cause can be identified quickly and corrective actions can be taken.

5. How is the Schneider ATS430D47S6 configured for different applications?

The Schneider ATS430D47S6 can be configured according to different motor applications and load characteristics.

Main configuration parameters include acceleration time, deceleration time, starting torque, motor protection settings, and control modes.

For example, pump applications usually require optimized stopping control to reduce pressure fluctuations, while conveyor applications may require adjusted acceleration curves to reduce mechanical stress.

After configuration, the system should be tested under actual operating conditions to verify proper motor performance.

Proper parameter adjustment improves operational efficiency, reduces faults, and extends equipment service life.

6. What are the common faults of the Schneider ATS430D47S6?

Common faults of the Schneider ATS430D47S6 include motor overload, startup failure, phase loss, power supply problems, incorrect parameters, and wiring issues.

When the actual motor load exceeds the allowable range, the soft starter may activate protective functions.

Incorrect acceleration time or torque settings can prevent the motor from reaching normal operating conditions.

In addition, unstable power supply, loose electrical connections, excessive temperature, and insufficient cooling may affect normal operation.

Regular inspection of system conditions, electrical connections, and operating parameters helps reduce the risk of unexpected failures.

7. What are the advantages of the Schneider ATS430D47S6 Soft Starter?

The Schneider ATS430D47S6 provides reliable motor control, flexible parameter adjustment, and comprehensive protection functions.

Compared with traditional starting methods, it effectively reduces starting current impact and minimizes stress on mechanical systems.

The soft starter allows users to optimize acceleration and deceleration processes according to different load requirements, improving equipment performance.

Integrated protection functions help prevent motor damage caused by abnormal operating conditions and improve overall system safety.

With reliable industrial performance, the ATS430D47S6 is suitable for various automation systems and motor control applications.

8. What maintenance practices are recommended for the Schneider ATS430D47S6?

To ensure long-term reliable operation of the Schneider ATS430D47S6, regular inspection and preventive maintenance should be carried out.

Maintenance personnel should check power connections, motor operating conditions, fault history, and parameter settings periodically.

The installation environment should be kept clean and protected from dust, moisture, excessive heat, and electrical interference that may affect equipment performance.

Protection parameters should also be reviewed regularly to ensure they match actual application requirements.

A proper maintenance schedule helps reduce unexpected downtime, improve system reliability, and extend the service life of the soft starter.
