1. What is the main purpose of the Schneider ATS48C32Q soft starter?

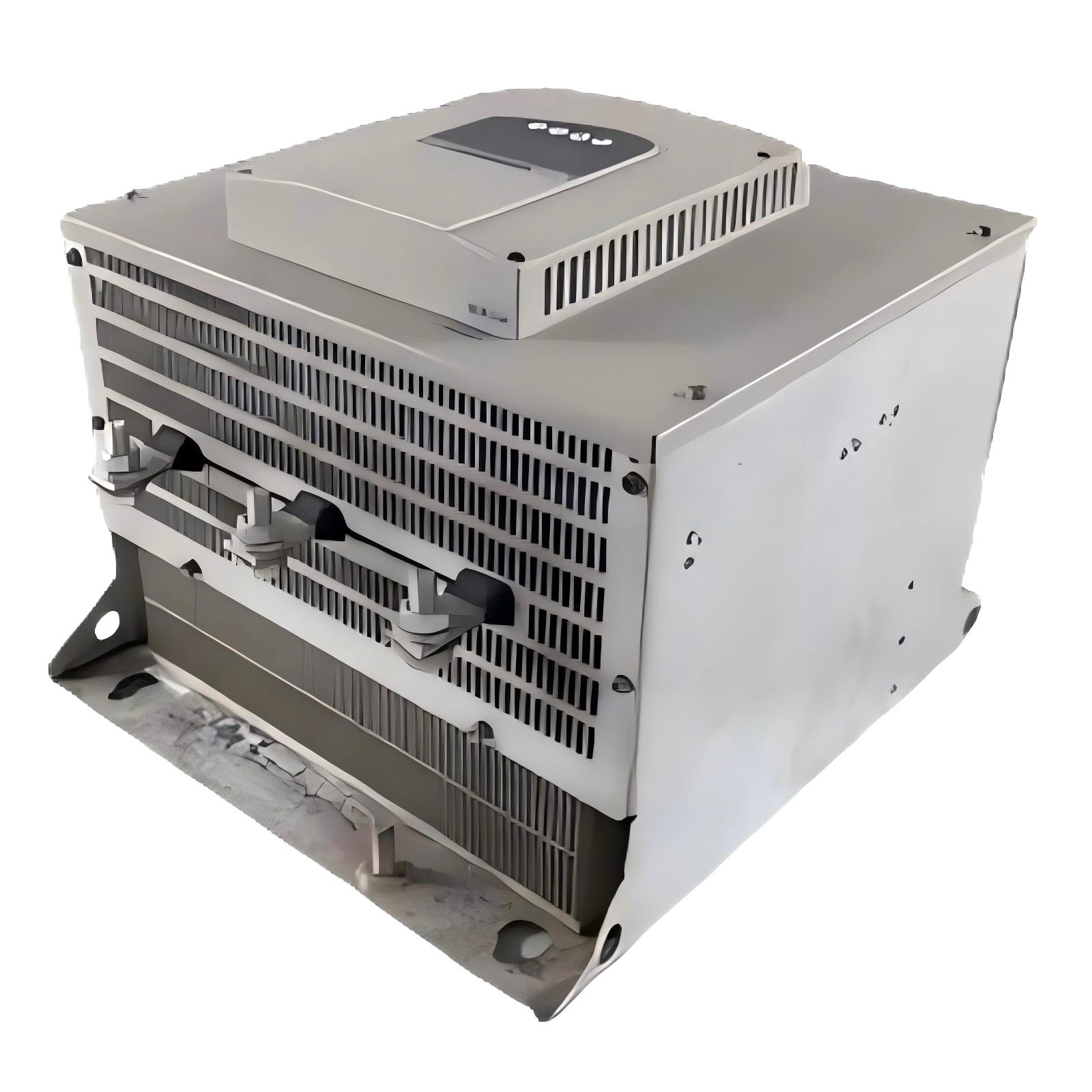

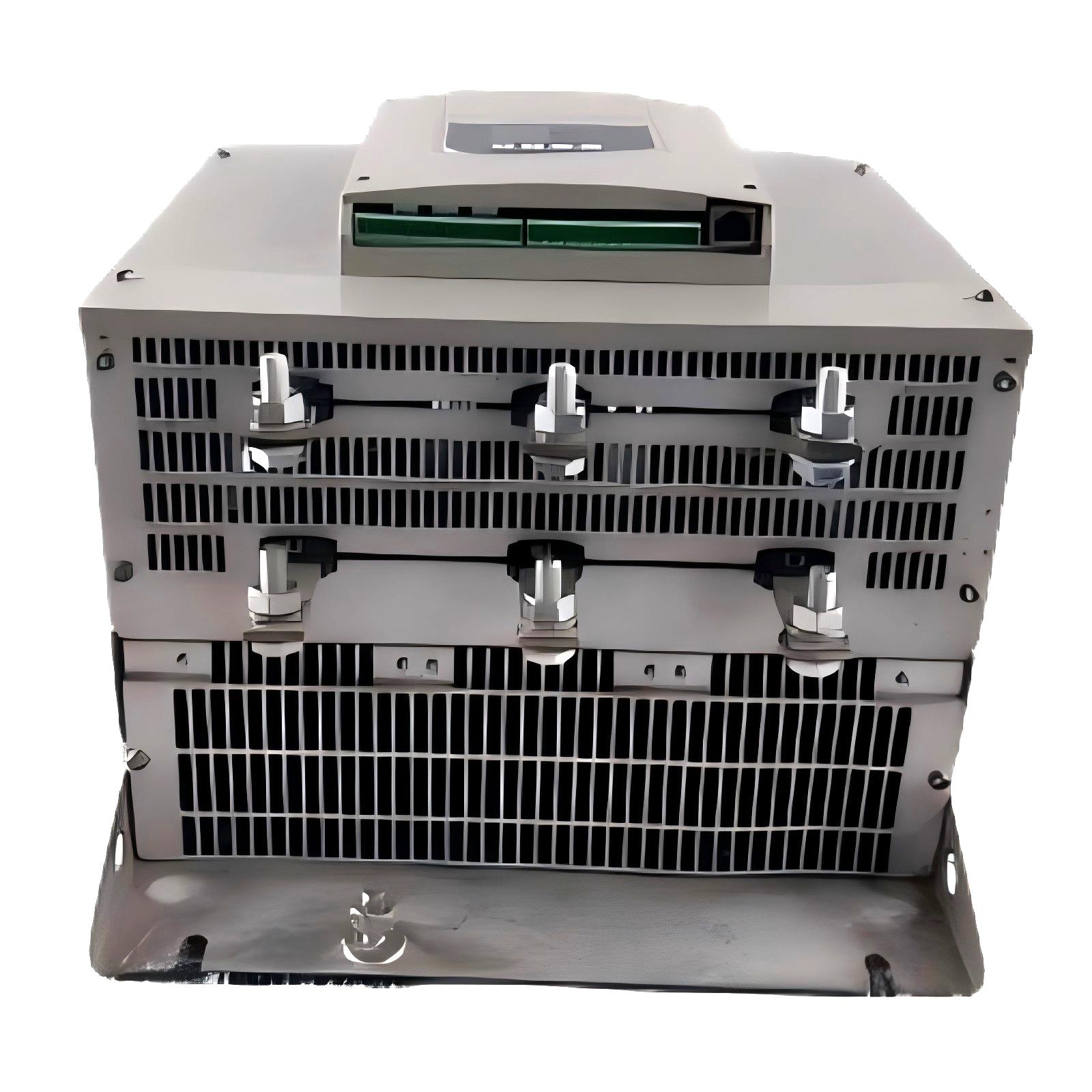

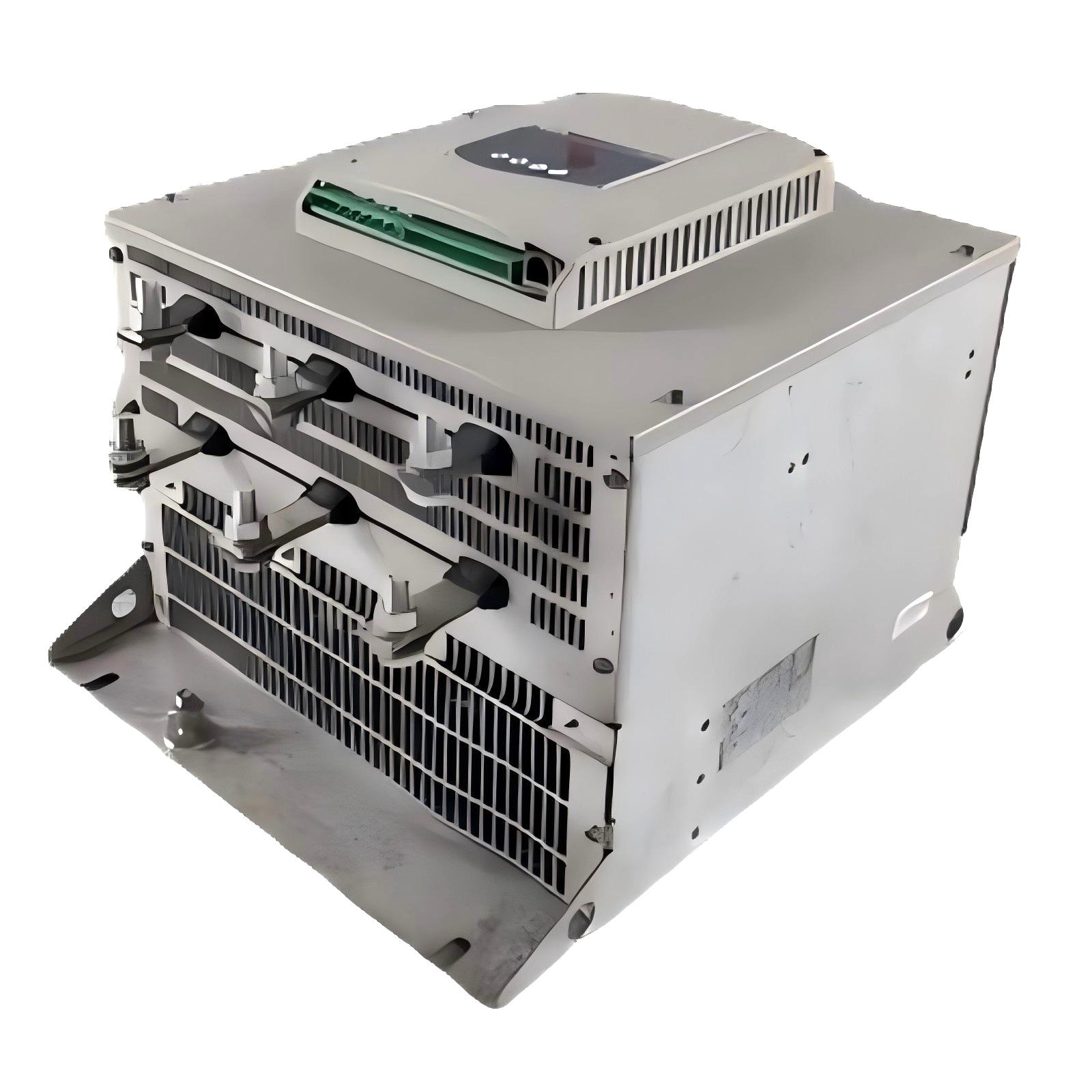

The ATS48C32Q is a high-current soft starter from the Schneider Electric Altistart 48 series. It is designed to control the starting and stopping of three-phase asynchronous motors. The unit uses torque-controlled starting to gradually accelerate the motor instead of applying full line voltage immediately. This reduces electrical stress during startup and helps minimize mechanical shock transmitted to couplings, gearboxes, belts, pumps, and other drive components. The ATS48C32Q is particularly suitable for large pumps, fans, compressors, conveyors, and heavy industrial machinery where direct starting can produce excessive current or mechanical stress. Integrated motor thermal protection, starter protection, and phase-loss detection provide additional operational protection.

2. What motor power range is suitable for the ATS48C32Q?

The applicable motor power depends on supply voltage, motor connection method, and whether the application is standard duty or severe duty. At 400 V with line connection, the ATS48C32Q can be used for approximately 160 kW in standard-duty applications and approximately 132 kW in severe-duty applications. When connected to the motor delta terminals, the applicable rating can reach approximately 250 kW for standard duty and 220 kW for severe duty. At 230 V, the line-connected ratings are approximately 90 kW for standard duty and 75 kW for severe duty, while delta connection supports approximately 160 kW and 132 kW respectively. Actual selection should always consider motor rated current, starting time, load inertia, starting frequency, and operating duty rather than relying on motor power alone.

3. What supply voltage and frequency does the ATS48C32Q support?

The ATS48C32Q is designed for three-phase AC supplies from 230 to 415 VAC, with a supply voltage tolerance of approximately -15% to +10%. Its normal operating frequency is 50–60 Hz, with a permitted frequency range of approximately 47.5–63 Hz. Before commissioning, the actual incoming three-phase voltage should be measured and compared with the soft starter and motor requirements. The motor connection must also be compatible with the selected supply voltage. Phase loss, abnormal voltage, or incorrect motor wiring can result in insufficient starting torque, excessive current, overheating, or protective trips. Proper verification of the incoming supply is therefore an important part of commissioning.

4. What is the rated current of the ATS48C32Q?

The ATS48C32Q has a rated current of approximately 320 A when used with a line connection and up to approximately 554 A when connected to the motor delta terminals. The appropriate current rating also depends on whether the application is standard duty or severe duty. When selecting the soft starter, the motor nameplate current should be compared with the starter’s applicable current rating while also considering acceleration time, starting frequency, load inertia, ambient conditions, and the overall duty cycle. A motor that has an acceptable nominal current can still require a higher-capacity soft starter if it has a very high inertia, extended acceleration period, or frequent starting cycle.

5. What should be checked if the motor does not accelerate properly with an ATS48C32Q?

First, verify the three-phase input supply and confirm that all phases are present and within the required voltage range. Next, check the motor rated-current setting, main power wiring, motor connection method, and control inputs. If the motor is connected through its delta terminals, the complete power connection should be carefully verified. If the electrical installation is correct, inspect the mechanical load for blocked pumps, seized bearings, excessive friction, overloaded conveyors, or excessive load inertia. The starting current limitation and torque-control parameters should also be checked. If the current limit is set too low, the motor may not develop enough torque to accelerate the load. An unusually long acceleration period can indicate either insufficient starting torque or excessive mechanical resistance.

6. What are the common causes of an ATS48C32Q starting fault?

Starting faults can be associated with phase loss, abnormal supply voltage, motor overload, incorrect parameter settings, excessive mechanical load, or excessive acceleration time. When a fault occurs, the first step should be to identify the actual diagnostic condition before changing any settings. The three-phase supply, motor nameplate current, motor wiring, and connection method should then be checked. High-inertia equipment requires particular attention because the motor may remain at elevated current for an extended period during acceleration, increasing thermal stress. Mechanical problems such as blocked pumps, damaged bearings, or jammed transmission components can produce similar symptoms. Simply increasing protection thresholds without identifying the root cause can expose both the motor and soft starter to unnecessary thermal stress.

7. How does the ATS48C32Q provide motor thermal protection?

The ATS48C32Q incorporates motor thermal protection and monitors the motor’s operating condition based on current and configured motor parameters. The motor rated-current setting should correspond to the actual value shown on the motor nameplate. If the configured value is too high, overload protection may not respond appropriately to an actual thermal overload. If it is too low, nuisance trips may occur during normal startup or operation. For severe-duty applications, the starting frequency, acceleration time, ambient temperature, motor cooling conditions, and continuous operating period should all be considered. Large motors that start frequently can accumulate heat over several operating cycles, so thermal protection should be evaluated against the complete duty cycle rather than a single start.

8. What should be checked when installing and commissioning an ATS48C32Q?

Before installation, verify the motor rated voltage, rated current, power, frequency, connection method, and load characteristics. The correct standard-duty or severe-duty rating should then be selected according to the actual application. The ATS48C32Q should be installed vertically with sufficient clearance for its forced-air cooling system. Before energizing the equipment, inspect the incoming power, control circuit, grounding, motor connections, and protective devices. During commissioning, verify the motor rated-current setting, starting torque, acceleration time, current limitation, and control inputs. If Modbus communication is used, the RS-485 wiring, communication address, and baud rate should also be checked. During the first startup, monitor motor current, acceleration behavior, fault status, and operating temperature. For high-inertia, heavy-duty, or frequently started equipment, the complete operating cycle should be evaluated to ensure that thermal loading remains within acceptable limits.
