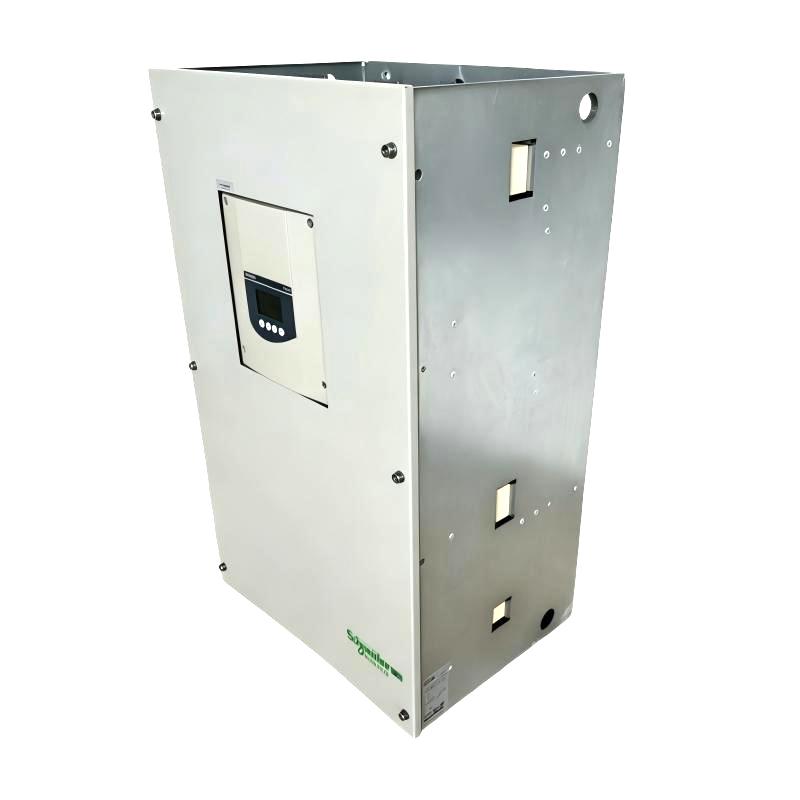

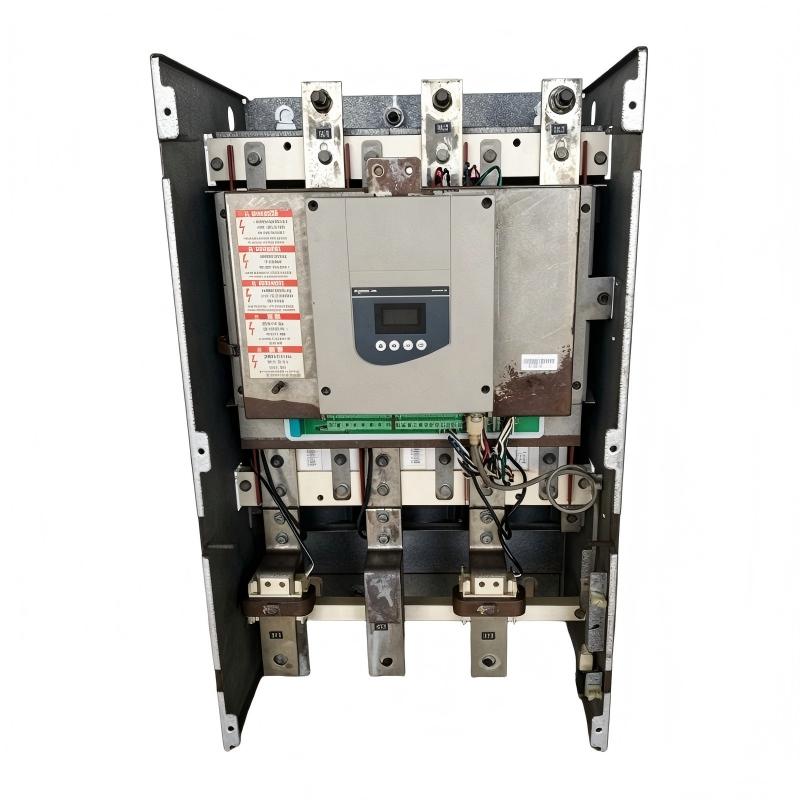

1. What is the main function of the Schneider ATS48C41Q soft starter?

The ATS48C41Q is a high-current Altistart 48 soft starter designed to control the starting and stopping of three-phase asynchronous motors. It uses torque control to progressively accelerate the motor instead of applying the full supply voltage directly at startup. This helps reduce starting current and mechanical shock, particularly on large industrial machines. The ATS48C41Q is suitable for applications such as pumps, ventilation equipment, compressors, conveyors, and other machines requiring controlled motor acceleration. It also provides integrated motor thermal protection and starter protection to improve operational reliability.

2. What motor power range is suitable for the ATS48C41Q?

The ATS48C41Q is designed for large motor applications, with the exact power rating depending on the supply voltage and operating duty. The product is specified for approximately 90–315 kW applications. At 230 V, the typical ratings extend to approximately 90 kW for severe-duty applications and 110 kW for standard-duty applications. At 400 V, the corresponding ratings can reach approximately 220 kW for severe duty and 250 kW for standard duty. Motor rated current, starting time, load inertia, starting frequency, and thermal conditions should also be considered when selecting the starter. The 410 A current class is an important reference when matching the starter to the motor.

3. What are the power supply requirements for the ATS48C41Q?

The ATS48C41Q is designed for three-phase AC supplies from 230 to 415 VAC with a supply voltage tolerance of approximately -15% to +10%. The normal supply frequency is 50–60 Hz. Before commissioning, the incoming three-phase voltage should be checked to ensure that it is within the permitted range and that the phases are correctly connected. The motor’s rated voltage and connection method must also correspond to the actual power supply. Incorrect supply voltage, phase loss, or incorrect motor wiring can cause starting problems, excessive current, insufficient torque, or protective trips.

4. How does the ATS48C41Q reduce motor starting stress?

The ATS48C41Q uses torque-controlled starting and limits starting current to approximately five times the motor rated current. During a conventional direct-on-line start, the motor can draw a very high current and generate a sudden torque increase. The soft starter controls this process so that the motor accelerates more progressively. This can reduce electrical stress on the power network and mechanical stress on shafts, couplings, gearboxes, belts, pumps, and other components. The benefit is particularly noticeable with large or high-inertia machines. Correct adjustment of the acceleration and current-limiting parameters is important to achieve sufficient starting torque without unnecessarily extending the starting period.

5. What should be checked if a motor connected to the ATS48C41Q fails to accelerate?

The first step is to check the three-phase input supply and verify that all phases are present and within the specified voltage range. Next, check the motor rated-current setting, motor wiring, main power connections, control inputs, and motor connection configuration. If the electrical installation is correct, inspect the mechanical load for excessive resistance, blocked pumps, seized bearings, conveyor obstruction, or excessive load inertia. The current-limiting setting should also be reviewed. A current limit that is too low can prevent the motor from developing sufficient torque to accelerate the load. If the motor remains at high current for an unusually long time, both the soft starter parameters and the mechanical load should be evaluated.

6. What can cause the ATS48C41Q to trip during motor starting?

A starting trip can be caused by phase loss, abnormal supply voltage, motor overload, incorrect motor parameters, excessive mechanical load, prolonged acceleration, or unsuitable current-limiting settings. When a fault occurs, the diagnostic information should be checked before changing any protection settings. The motor nameplate current should be compared with the configured motor current, and the incoming power and motor connections should be inspected. High-inertia loads deserve particular attention because they may require a long acceleration period, resulting in increased thermal stress. Mechanical problems such as blocked pumps, damaged bearings, or jammed transmission components can also cause excessive current and trigger protection.

7. How should the motor thermal protection of the ATS48C41Q be configured?

The motor nominal current parameter should be set according to the actual current shown on the motor nameplate. This parameter is important for the ATS48C41Q’s motor thermal protection function. If the value is configured too high, the motor may not receive adequate protection during an overload. If it is set too low, unnecessary trips may occur during normal operation or starting. For large industrial motors, the complete operating cycle should be considered, including starting frequency, acceleration time, ambient temperature, cooling conditions, load percentage, and continuous running time. Severe-duty applications require particular attention because repeated starts can cause thermal accumulation in the motor and soft starter.

8. What should be checked before installing and commissioning an ATS48C41Q?

Before installation, verify the motor rated voltage, rated current, power, frequency, connection method, and mechanical load characteristics. Confirm that the ATS48C41Q is correctly selected for the required standard-duty or severe-duty application. The three-phase supply, control circuit, grounding, motor wiring, protective devices, and emergency-stop circuit should be checked before energization. The starter should be installed vertically with adequate ventilation for its cooling system. During commissioning, verify the motor current setting, acceleration parameters, current limitation, control inputs, and protection functions. If Modbus communication is used, the RS-485 wiring and communication parameters should also be checked. During the first startup, monitor motor current, acceleration behavior, fault status, and operating temperature. For high-inertia or frequently started machinery, the complete duty cycle should be evaluated to ensure that the motor and soft starter remain within their thermal operating limits.
