1. What motor power is the Schneider ATV12HU15M3 designed for?

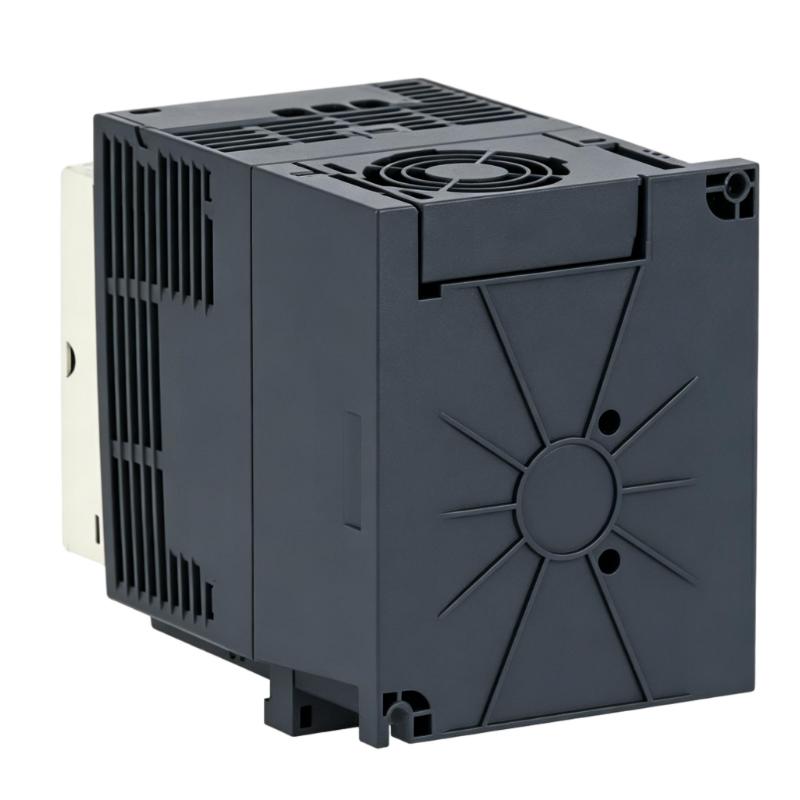

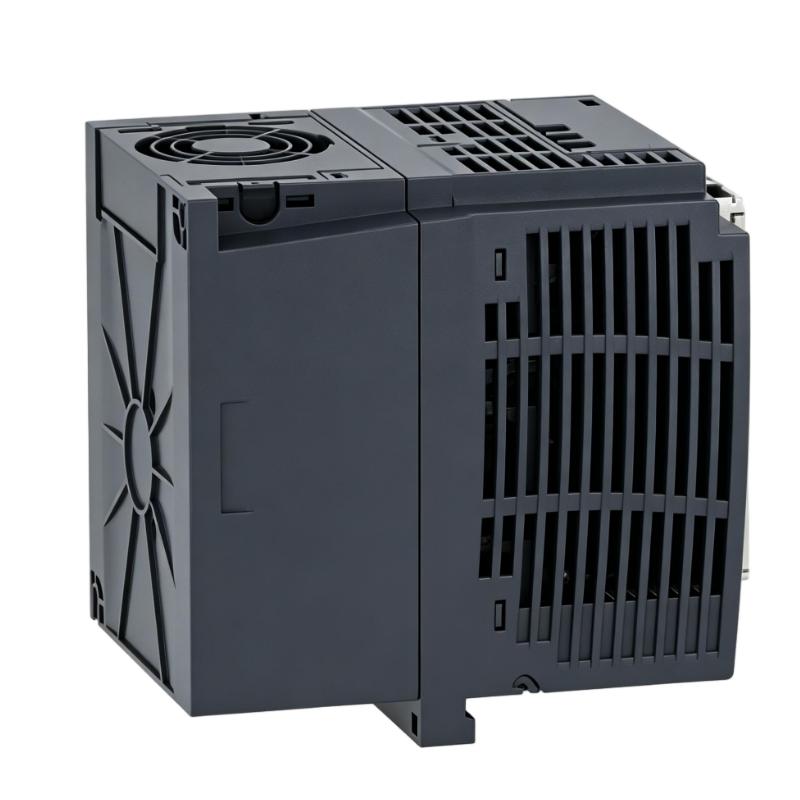

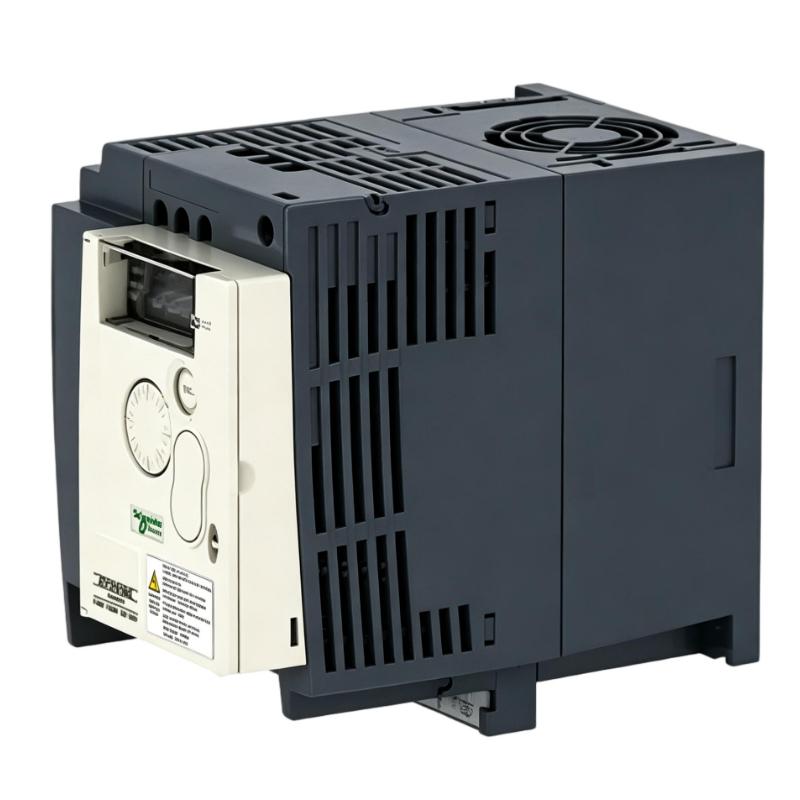

The ATV12HU15M3 is designed for a 1.5 kW, approximately 2 HP, three-phase asynchronous motor. It belongs to the Altivar 12 series and is intended primarily for variable-speed control in simple industrial machinery.

During commissioning, the motor nameplate should be checked carefully and the rated voltage, current, frequency and power should be entered correctly into the drive. Proper parameter configuration is important for stable starting, speed regulation and motor protection.

2. What type of power supply does the ATV12HU15M3 require?

The ATV12HU15M3 requires a three-phase 200–240 V AC input supply with a nominal frequency of 50/60 Hz.

The input current varies according to the supply voltage, with approximately 11.1 A at 200 V and 9.3 A at 240 V. Appropriate upstream protection and correctly sized wiring should be selected according to the actual installation conditions.

3. What motor control method does the ATV12HU15M3 use?

The ATV12HU15M3 uses sensorless flux vector control and also supports quadratic V/f control. Sensorless flux vector control allows the drive to regulate the speed and torque of a three-phase asynchronous motor without requiring an encoder in standard applications.

This control method is suitable for applications such as conveyors, fans, pumps and small industrial machines. Actual performance depends on correct motor parameters, load characteristics and commissioning settings.

4. Does the ATV12HU15M3 support Modbus communication?

Yes. The ATV12HU15M3 supports Modbus communication through a 2-wire RS-485 interface and uses an RJ45 connector for communication.

In an automation system, Modbus can be used for start/stop commands, frequency references, operating-status monitoring, fault monitoring and parameter access. When connecting the drive to a PLC or other controller, the communication address, baud rate, data format and other communication parameters must be configured consistently.

5. What is the maximum output frequency of the ATV12HU15M3?

The ATV12HU15M3 provides an output frequency range of 0.5–400 Hz. The actual operating frequency should be selected according to the motor’s rated frequency, permissible mechanical speed and load requirements.

When operating a motor above its rated frequency, factors such as motor cooling, mechanical speed limitations, bearing conditions and load characteristics must be considered. The maximum frequency supported by the VFD does not mean that every motor can safely operate continuously at that frequency.

6. What protection functions are provided by the ATV12HU15M3?

The ATV12HU15M3 incorporates multiple protection functions for abnormal operating conditions. These include overcurrent, overheating, short circuit, undervoltage and overvoltage protection.

It also provides electronic thermal motor protection based on the motor’s operating conditions. Correct motor power, voltage, current and frequency parameters should be configured during commissioning to ensure appropriate protection behavior.

When a protective trip occurs, the fault code and operating conditions should be checked before resetting the drive.

7. How should the ATV12HU15M3 be commissioned for the first time?

Before commissioning, check the three-phase input power, motor wiring, protective grounding and control connections. After confirming the wiring, enter the motor nameplate data, including rated power, voltage, current and frequency.

Set appropriate acceleration and deceleration times according to the mechanical load and inertia. Select the required speed-reference method, such as keypad control, terminal control, analog input or Modbus communication.

During the initial startup, operate the motor at low speed first. Verify the motor rotation direction, operating current and mechanical condition before gradually increasing the speed and applying the normal load.

8. What should be checked if the ATV12HU15M3 frequently trips or generates alarms?

First, identify the specific fault code and determine whether the fault occurs during startup, acceleration, deceleration or steady-state operation.

For an overcurrent fault, inspect the motor load, mechanical system, motor wiring and acceleration time. For an overheating fault, check ambient temperature, ventilation, load level and switching-frequency settings. For undervoltage or overvoltage faults, inspect the incoming power supply and electrical connections.

Incorrect motor parameters can also cause abnormal current, poor starting performance or protective trips. If the problem continues, systematically check the power supply, motor, mechanical load, control wiring and VFD rather than repeatedly resetting the drive.
