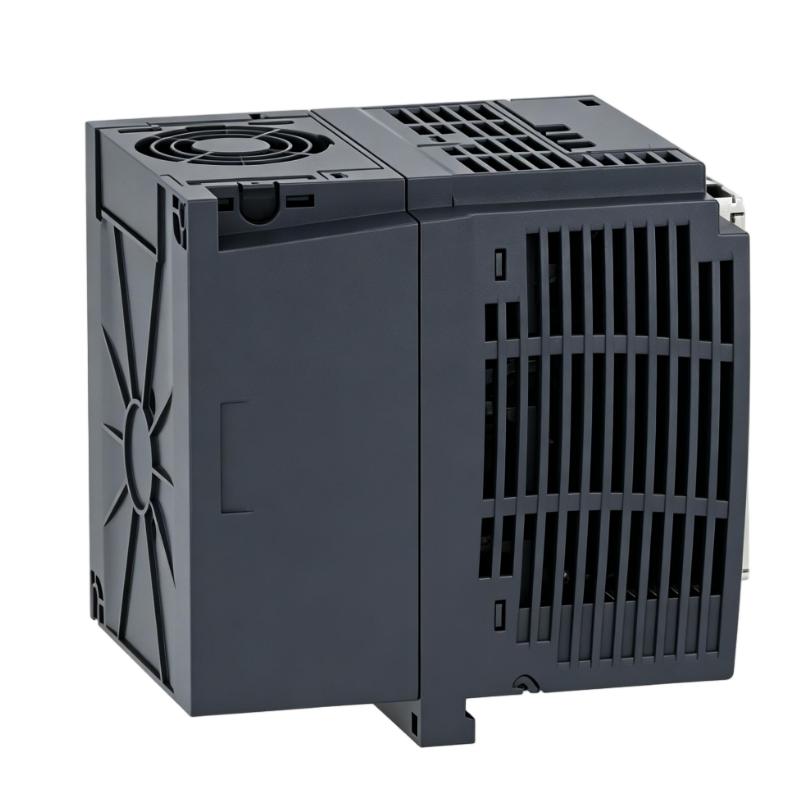

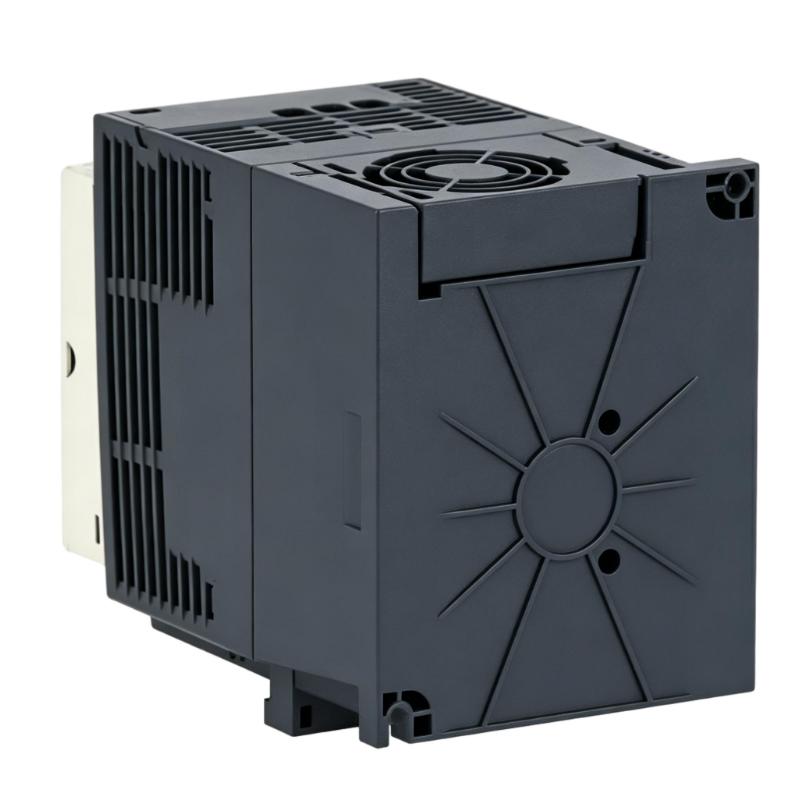

1. What motor power is the Schneider ATV12HU15M3 designed for?

The ATV12HU15M3 is designed for three-phase asynchronous motors with a rated power of 1.5 kW, equivalent to approximately 2 HP. It is suitable for applications requiring variable motor speed, controlled acceleration and deceleration, and electronic motor protection.

Typical applications include conveyors, small pumps, fans, material-handling equipment and general-purpose industrial machinery.

2. What input power supply does the ATV12HU15M3 require?

The ATV12HU15M3 is designed for a three-phase 200–240 V AC input supply at 50/60 Hz.

The rated input current depends on the supply voltage, reaching approximately 11.1 A at 200 V and 9.3 A at 240 V. The incoming power circuit should be appropriately protected, and the cable size should be selected according to the installation conditions and applicable electrical standards.

3. What motor control technology does the ATV12HU15M3 use?

The ATV12HU15M3 uses sensorless flux vector control and supports quadratic V/f control. Sensorless flux vector control provides speed and torque regulation without requiring an encoder for standard asynchronous motor applications.

Correct motor nameplate data is important for achieving good control performance. The rated motor voltage, current, frequency and power should be entered correctly during commissioning.

4. Does the ATV12HU15M3 support Modbus communication?

Yes. The ATV12HU15M3 supports Modbus communication through a 2-wire RS-485 interface with an RJ45 communication connector.

It can communicate with PLCs, HMIs and other compatible automation equipment for functions such as start/stop control, speed reference, status monitoring, fault monitoring and parameter management.

For reliable communication, the drive and controller must use compatible communication settings, including the node address, baud rate, parity and communication format.

5. What is the output frequency range of the ATV12HU15M3?

The ATV12HU15M3 provides an output frequency range of 0.5–400 Hz. The operating frequency should be selected according to the motor’s rated frequency and the mechanical requirements of the application.

When operating above the motor’s rated frequency, the motor’s cooling performance and permissible mechanical speed must be considered. High-frequency operation should only be used when the motor and driven equipment are suitable for the required speed.

6. What protection functions does the ATV12HU15M3 provide?

The ATV12HU15M3 provides electronic protection against several abnormal operating conditions, including overcurrent, short circuit, overheating, undervoltage and overvoltage.

It also incorporates electronic thermal motor protection. Correct motor parameters should be entered during commissioning so that the drive can calculate the motor’s thermal condition correctly.

If a protection fault occurs, the fault code should be identified and the cause investigated before the drive is reset.

7. How should the ATV12HU15M3 be commissioned with a new motor?

First verify the input power, motor wiring, grounding and control connections. Enter the motor nameplate data into the drive, including rated voltage, current, frequency and power.

Next configure the acceleration and deceleration times according to the mechanical load. Select the required control and speed-reference method, such as local operation, terminal control, analog reference or Modbus communication.

During the first startup, run the motor at low speed and verify the rotation direction, motor current and mechanical operation. After confirming normal operation, gradually increase the speed and apply the normal load.

8. What should be checked if the ATV12HU15M3 frequently trips?

Start by identifying the displayed fault code and determining when the trip occurs. Check whether it happens during motor startup, acceleration, deceleration or continuous operation.

For overcurrent faults, inspect the motor load, motor wiring, acceleration settings and mechanical system. For overheating faults, check ventilation, ambient temperature, load level and switching-frequency settings. For voltage-related faults, inspect the incoming power supply and electrical connections.

Incorrect motor parameters can also cause unstable operation or unnecessary protection trips. If the fault continues after basic checks, inspect the motor, load, control wiring and drive systematically instead of repeatedly resetting the VFD.
