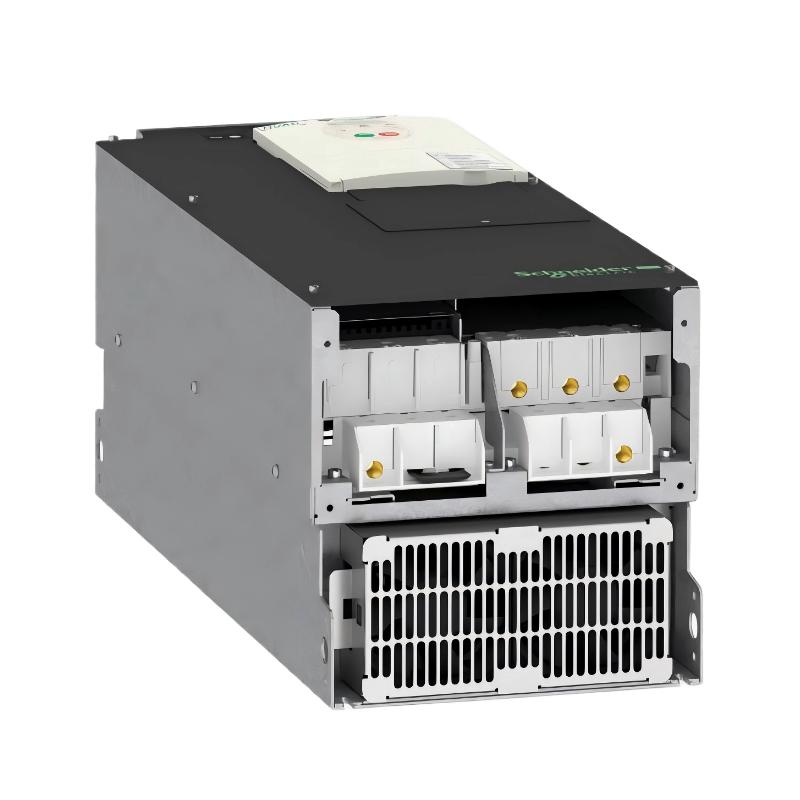

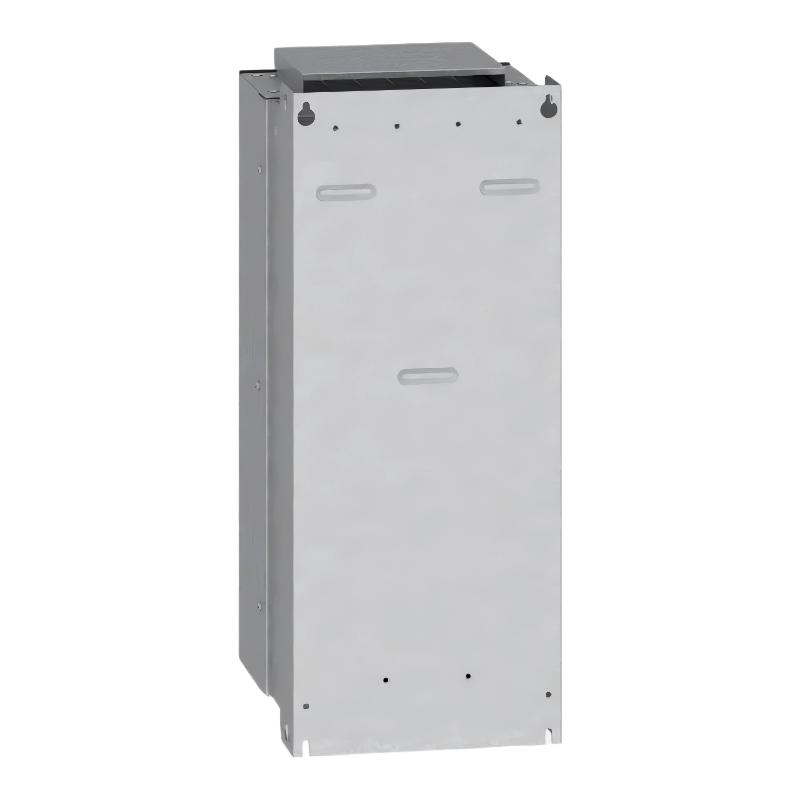

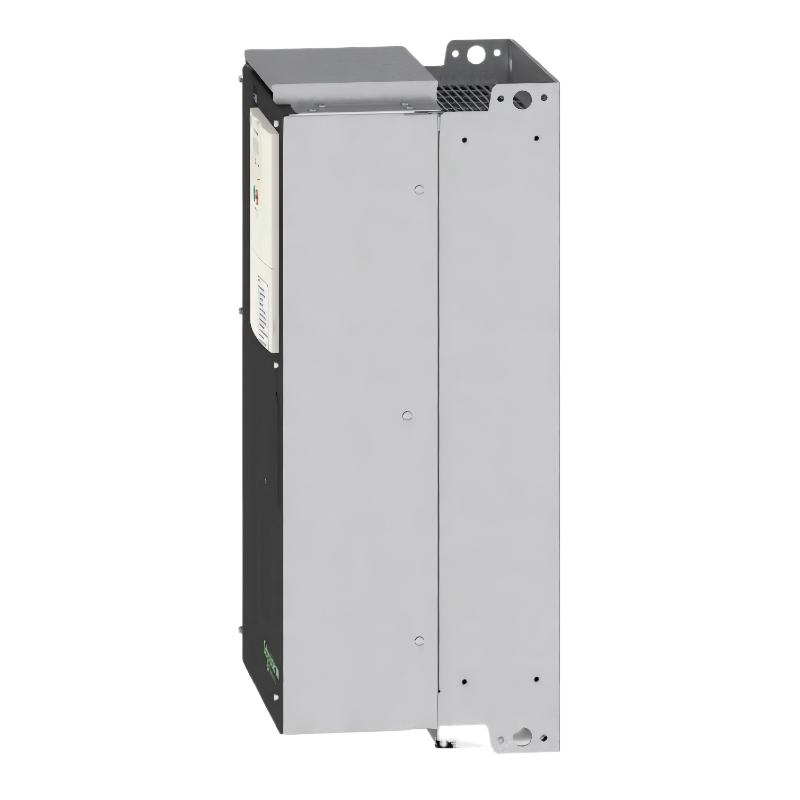

Schneider ATV212HD37N4 Variable Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV212HD37N4 |
| Product Type | Variable Speed Drive (VSD) |
| Brand | Schneider Electric |
| Application | HVAC systems, pumps, fans, and industrial energy-efficient motor control |
| Input Voltage | 3-phase 380–480 V AC |
| Rated Power | 37 kW (approx. 50 HP) |
| Output Frequency Range | 0.5 – 200 Hz |
| Control Method | V/F control, energy optimization control |
| Overload Capacity | 120% for 60 s, 150% for 2 s |
| EMC Filter | Built-in industrial-grade EMC filter |
| Communication Interfaces | Modbus (standard), BACnet (optional) |
| Protection Functions | Overcurrent, overvoltage, undervoltage, overheating, short-circuit protection |
| Cooling Method | Forced air cooling |
| Installation Type | Wall-mounted / cabinet installation |
| Protection Rating | IP21 (standard) |
| Operating Environment | Industrial and building automation environments |
| Dimensions | 550 × 240 × 244 mm |
| Weight | 38.1 kg |
FAQ
1. What is the main application of the ATV212HD37N4?
The ATV212HD37N4 is designed for HVAC applications such as large pumps, fans, and ventilation systems. It enables precise motor speed control to improve energy efficiency in commercial buildings and industrial facilities.
2. What type of motors is this drive suitable for?
It is suitable for three-phase asynchronous motors, especially centrifugal loads like water pumps and air handling fans, ensuring smooth operation and efficient speed regulation.
3. Does this VSD support energy-saving functions?
Yes, it includes built-in energy optimization control that automatically adjusts voltage and frequency based on load demand, helping reduce overall energy consumption.
4. What control modes are available?
It supports V/F control and energy optimization control modes, providing stable operation under varying load conditions without complex tuning requirements.
5. Can it be integrated into building management systems?
Yes, it supports Modbus communication as standard and optional BACnet protocol, making it suitable for integration into BMS and industrial automation systems.
6. What protection features are included?
It includes multiple protection functions such as overcurrent, overvoltage, undervoltage, overheating, and short-circuit protection to ensure safe and reliable operation.
7. What should be considered during installation and operation?
Proper ventilation is required to ensure effective cooling. The drive should be installed in a clean environment, avoiding excessive dust, humidity, and heat, with regular maintenance checks.
8. What happens when a fault occurs?
When a fault is detected, the drive immediately stops output and displays a fault code, allowing quick diagnosis and troubleshooting to protect both the drive and connected motor.
Schneider ATV212HD37N4 Variable Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
