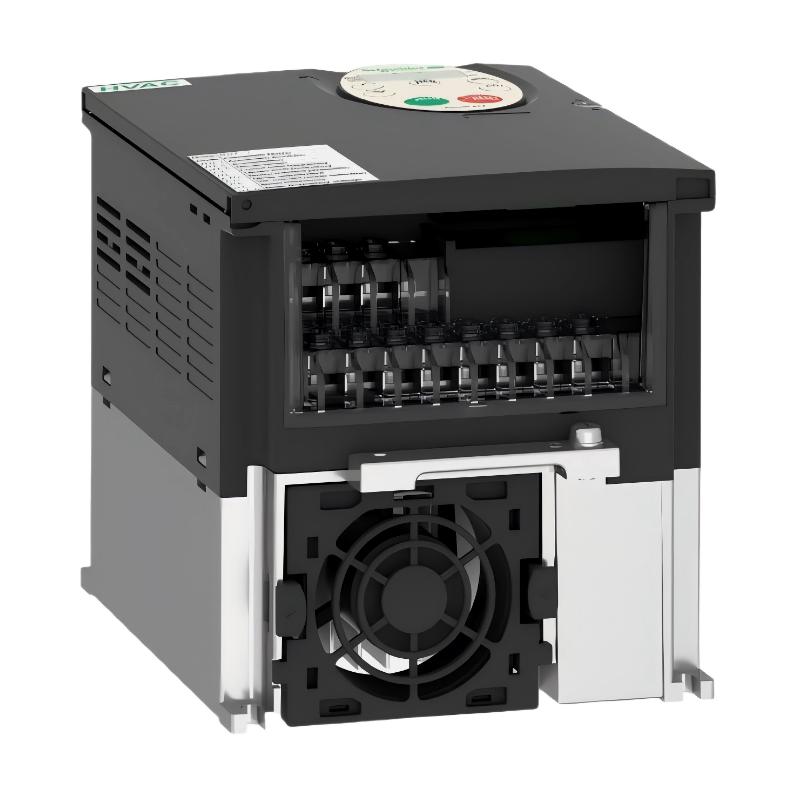

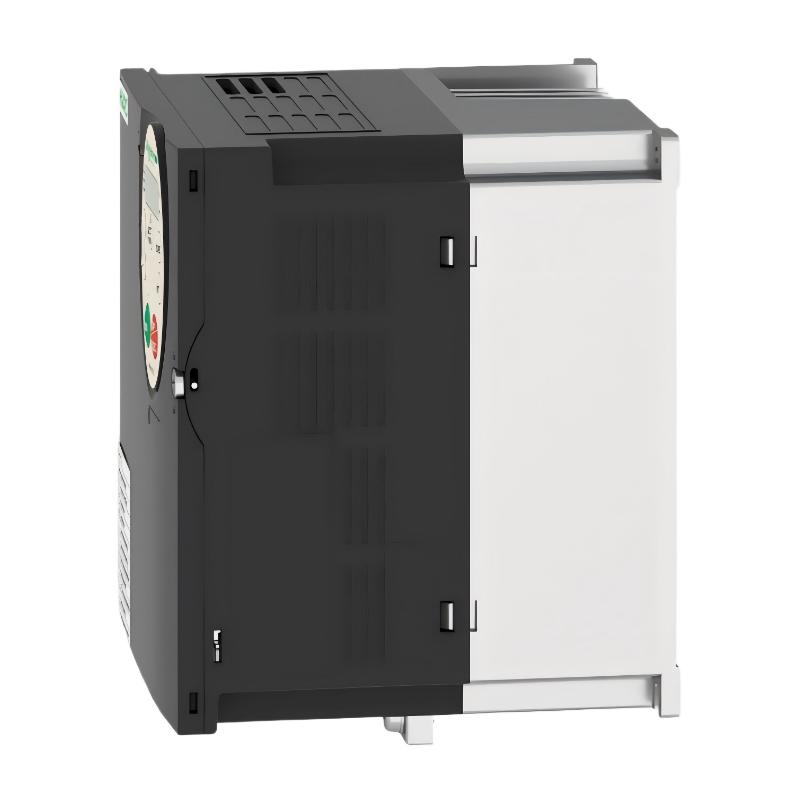

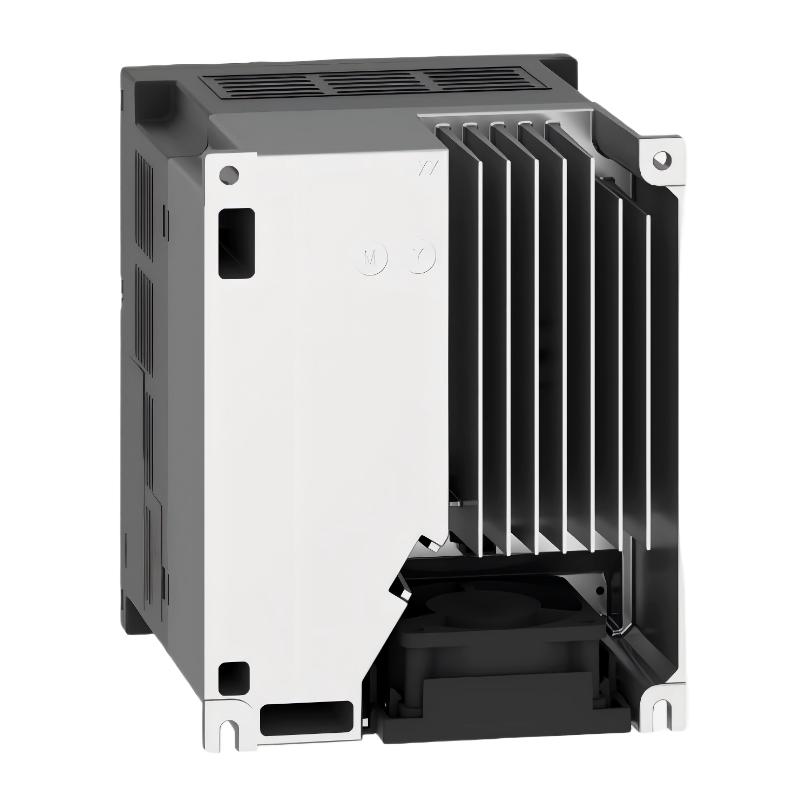

Schneider ATV212HU40N4 Variable Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Schneider Variable Speed Drive |
| Model | ATV212HU40N4 |
| Product Type | Variable Frequency Drive (VFD) |
| Function | Controls motor speed and torque by adjusting output frequency and voltage |
| Application Type | HVAC systems, pumps, fans, and industrial motors |
| Rated Power | 4 kW (typical for this model range) |
| Input Voltage | 3-phase 380–480 V AC |
| Output Voltage | 3-phase variable AC voltage |
| Control Method | V/F control with energy optimization features |
| Motor Compatibility | Asynchronous induction motors |
| Protection Functions | Overcurrent, overvoltage, undervoltage, thermal protection, short-circuit protection |
| Communication Interfaces | Modbus, BACnet (depending on configuration) |
| Cooling Method | Forced air cooling |
| Installation Type | Wall-mounted / cabinet installation |
| Operating Environment | Industrial and HVAC environments |
| Dimensions | 184 x 142 x 150 mm |
| Weight | 3.35 kg |
FAQ
1. What is the main function of the ATV212HU40N4 variable speed drive?
The ATV212HU40N4 is designed to control the speed and torque of AC motors by adjusting the output frequency and voltage. This allows efficient motor operation, improved process control, and significant energy savings, especially in HVAC and pump applications.
2. What applications is this VFD commonly used for?
It is widely used in HVAC systems, including fans, pumps, chillers, and air handling units. It is also suitable for general industrial motor control applications where energy efficiency and smooth motor operation are required.
3. How does the drive improve energy efficiency?
The drive optimizes motor operation by matching motor speed to actual load demand. This reduces unnecessary energy consumption, especially in variable torque applications like pumps and fans, where full-speed operation is not always required.
4. What motor types are compatible with this drive?
It is primarily designed for three-phase asynchronous induction motors. It can be configured to operate with different motor ratings within its power range, depending on system requirements.
5. What protection features are included?
The drive includes multiple protection functions such as overcurrent protection, overvoltage protection, undervoltage protection, motor thermal protection, and short-circuit protection to ensure safe and reliable operation.
6. Does it support communication with building automation systems?
Yes, it supports communication protocols such as Modbus and BACnet (depending on configuration), allowing integration into building management systems and industrial automation networks.
7. How is the drive typically installed?
It is typically installed in electrical cabinets or mounted on walls with proper ventilation. Correct installation ensures stable operation and prevents overheating during continuous use.
8. What maintenance is required for this drive?
Maintenance generally includes checking cooling fan operation, ensuring proper ventilation, inspecting electrical connections, and monitoring operating parameters to ensure long-term reliability and performance.
Schneider ATV212HU40N4 Variable Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
