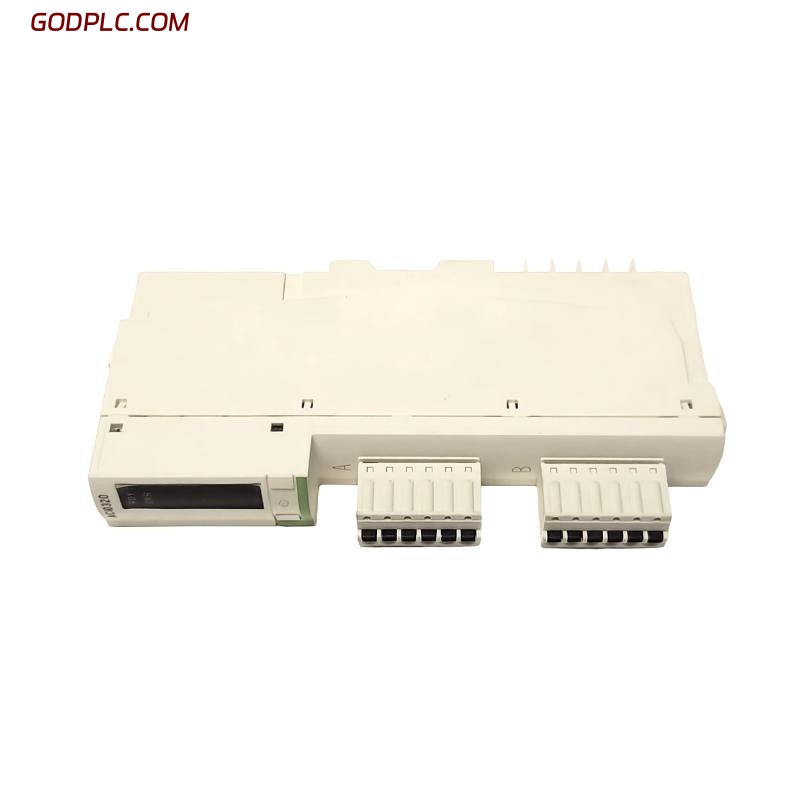

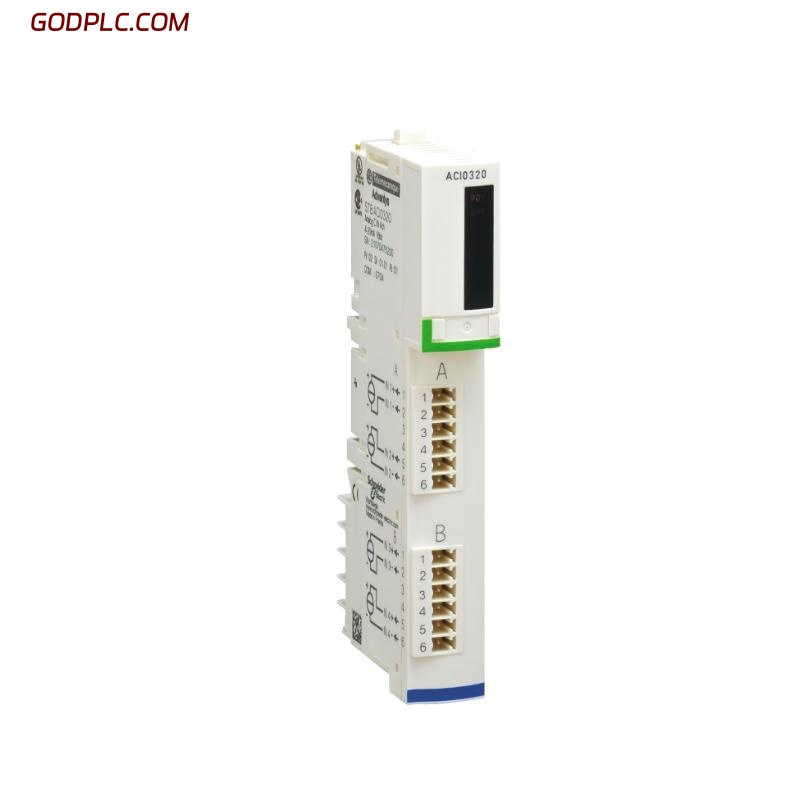

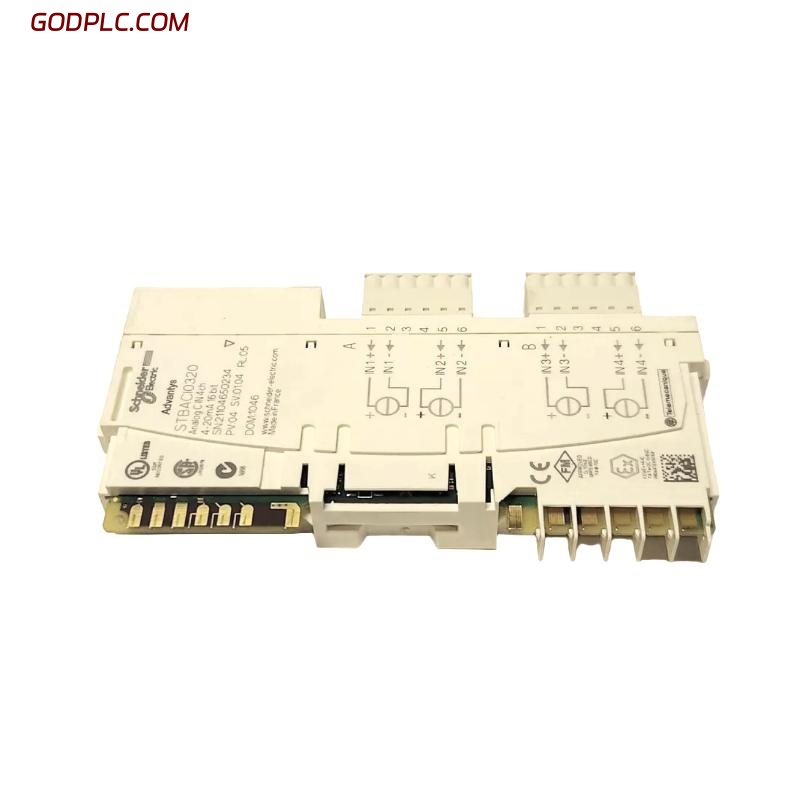

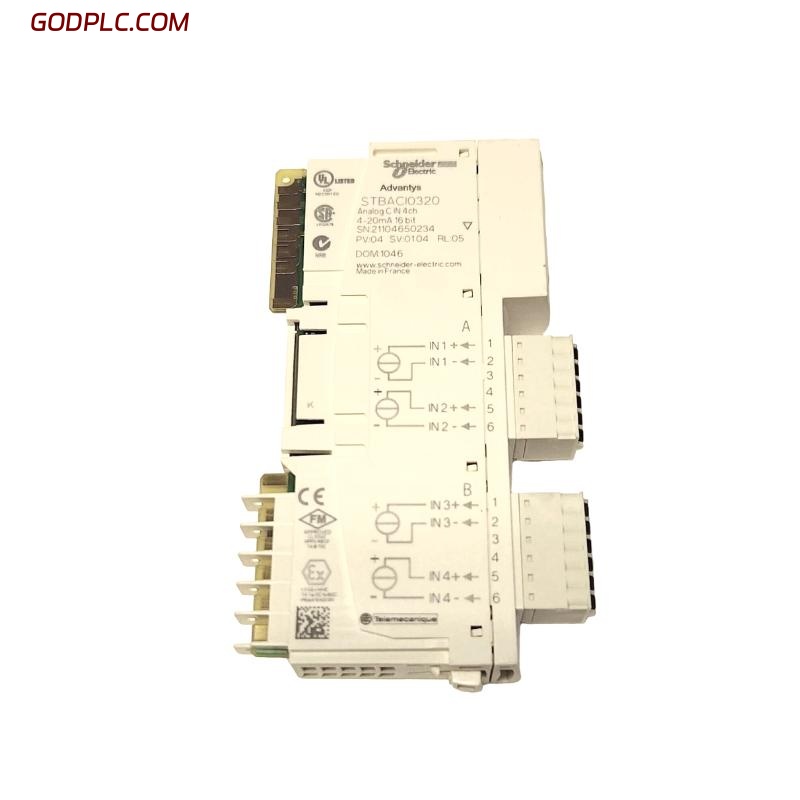

Schneider STBACI0320 Standard Analog Input Module
Product Overview
The Schneider STBACI0320 is a standard analog input module in the Advantys STB distributed I/O system. Designed for high-performance signal acquisition, this module offers four individually configurable analog input channels, supporting a range of current and voltage input types. It is ideal for collecting process values from sensors and transducers in automated control environments.
Engineered for modularity and ease of integration, the STBACI0320 enables distributed analog input capabilities with high accuracy and flexibility. It supports seamless communication with a variety of industrial controllers and networks via the Advantys STB island architecture.
Key Features
-
Multi-Channel Input – 4 analog input channels for current and voltage signals
-
Flexible Signal Support – Accepts 0–20 mA, 4–20 mA, 0–10 V analog inputs
-
High Accuracy – Reliable signal acquisition with 12-bit resolution
-
Individually Configurable Channels – Each input channel can be configured independently
-
Advanced Diagnostics – Built-in channel diagnostics for fault detection and status monitoring
-
Compact and Modular Design – Easily integrates into STB I/O islands for distributed architectures
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 70 x 18.4 x 128.3 mm |
| Weight | 0.0998 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 4 analog inputs |
| Input Signal Types | 0–20 mA, 4–20 mA, 0–10 V |
| Resolution | 12 bits |
| Conversion Time | ≤ 10 ms per channel |
| Input Impedance | >1 MΩ (voltage), 250 Ω (current) |
| Power Consumption | Approx. 1.5 W |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Enclosure Rating | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Platform | Schneider Advantys STB distributed I/O system |
| Configuration | Via STB system configuration tools (e.g., Advantys) |
| Controller Support | Compatible with Modicon PLCs and other fieldbus controllers |
Industry Applications
-
Process Automation – Captures precise analog signals from temperature, pressure, and flow sensors
-
Factory Automation – Enables flexible analog monitoring in distributed control systems
-
Energy Management – Interfaces with transducers in power monitoring and utility control systems
-
Building Management – Monitors HVAC and environmental conditions
-
Water/Wastewater – Collects data from level, pH, and turbidity sensors in treatment facilities
The Schneider STBACI0320 Standard Analog Input Module provides a reliable and flexible analog signal acquisition solution for distributed I/O applications, ensuring accurate data collection and seamless integration with advanced industrial control systems.
Schneider STBACI0320 Standard Analog Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
