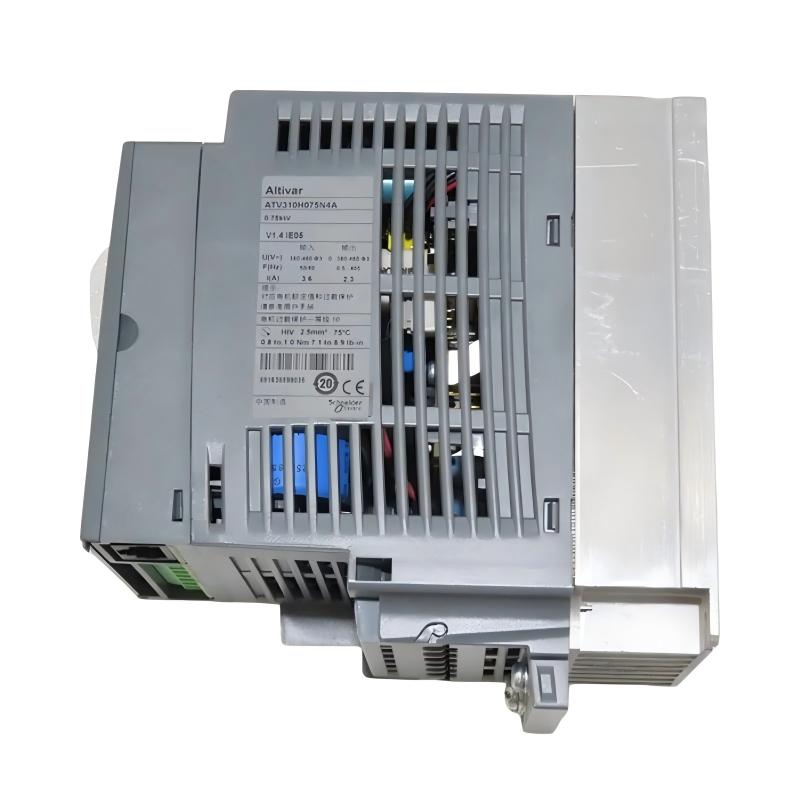

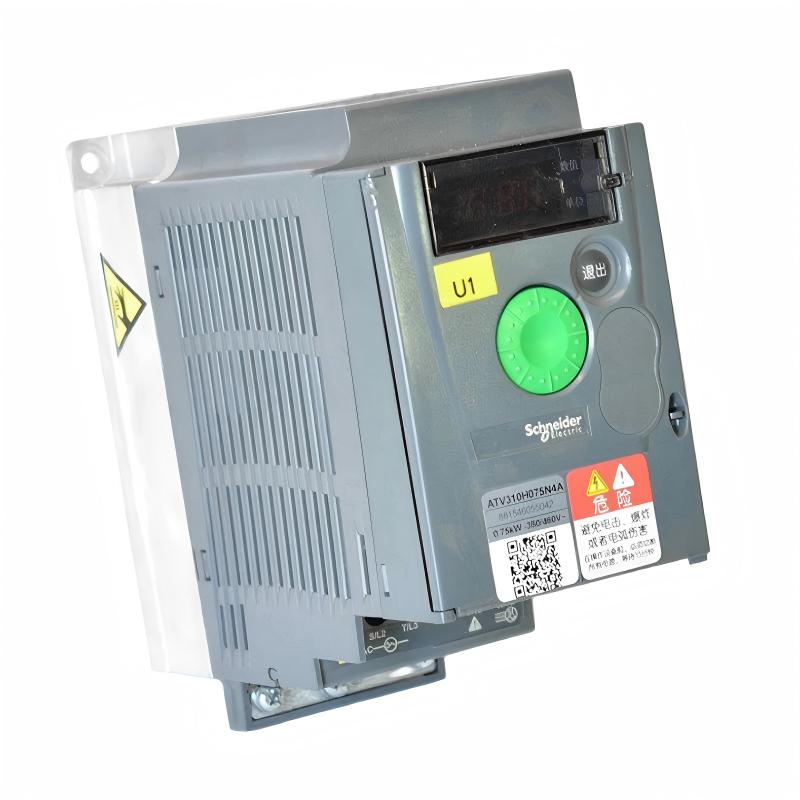

1. What motor power is the Schneider ATV310H055N4A designed for?

The ATV310H055N4A is designed for three-phase asynchronous motors rated at 0.55 kW, equivalent to approximately 0.75 HP. It belongs to the Easy Altivar 310 series and is intended primarily for variable-speed control of simple machinery.

Before selection, the motor’s rated voltage, current and frequency should be checked to ensure that its operating current is within the drive’s output capability.

2. What type of input power does the ATV310H055N4A require?

The ATV310H055N4A uses a three-phase 380–500 V AC power supply with an input frequency of 50–60 Hz.

The approximate input current is 2.8 A at 380 V and 2.2 A at 500 V. The upstream circuit breaker, protection devices and cables should be selected according to the actual installation and electrical requirements.

3. What motor control method does the ATV310H055N4A use?

The ATV310H055N4A uses sensorless flux vector control and PWM-based motor control.

This control method does not require an encoder and can provide effective speed and torque regulation for asynchronous motors. It can provide improved performance during low-speed operation, acceleration and load changes. The control parameters should be configured according to the motor and load characteristics.

4. Does the ATV310H055N4A support Modbus communication?

Yes. The ATV310H055N4A provides an RS-485 serial communication interface and supports the Modbus RTU protocol.

It can be connected to PLCs, HMIs and other automation systems for start/stop commands, speed references, operating-status monitoring, fault monitoring and parameter access.

When using communication control, the node address, baud rate, parity and other communication parameters must be configured correctly. The RS-485 wiring should also be installed according to appropriate industrial communication practices.

5. What is the output frequency range of the ATV310H055N4A?

The ATV310H055N4A provides an output frequency range of 0.5–500 Hz. Its nominal switching frequency is 4 kHz, with an adjustable switching-frequency range of 2–16 kHz.

The actual operating frequency should be selected according to the motor’s rated frequency, permissible mechanical speed and load characteristics. If the motor is operated continuously above its rated frequency, its cooling capacity and the mechanical speed limits of the system should be verified.

6. What protection functions are provided by the ATV310H055N4A?

The ATV310H055N4A provides protection against input phase loss, output phase loss, overvoltage, undervoltage, overcurrent, short circuit, overheating and motor thermal overload.

Its electronic thermal protection monitors the motor’s thermal load during operation. Accurate motor nameplate parameters should be entered during commissioning to ensure that the protection functions operate correctly.

When a fault occurs, the fault information should be checked and the electrical and mechanical conditions investigated before resetting the drive.

7. How should the ATV310H055N4A be commissioned for the first time?

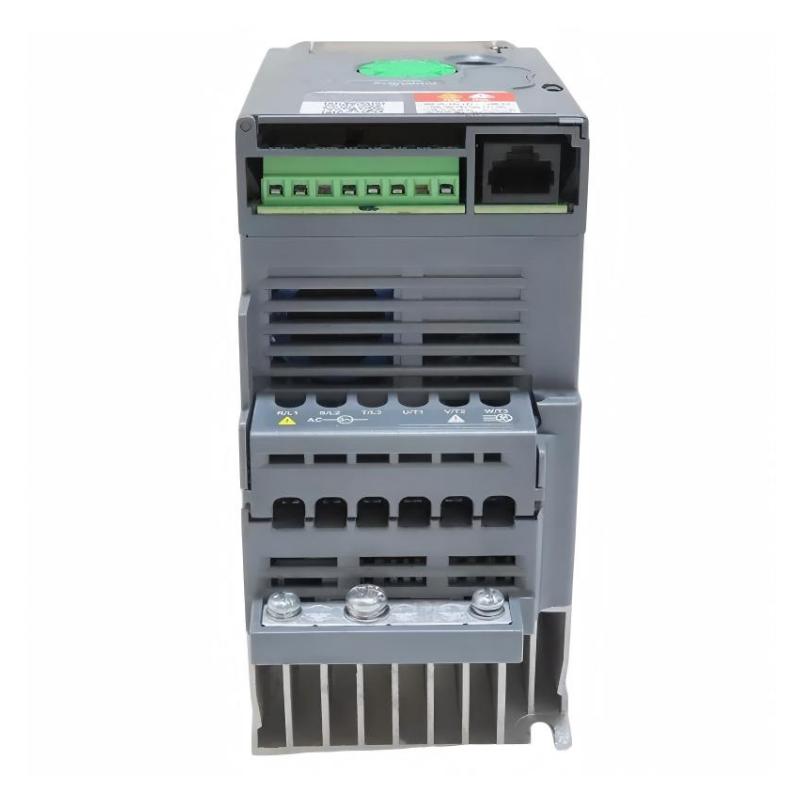

First check the three-phase power supply, motor wiring, protective grounding and control terminals to ensure all connections are correct.

Enter the motor nameplate information, including rated power, voltage, current and frequency, and select the appropriate motor-control method. Configure suitable acceleration and deceleration times according to the mechanical load.

For analog speed references, configure the corresponding voltage or current input correctly. For Modbus control, configure the communication parameters before connecting the drive to the control system.

During the initial startup, begin at a low speed and check the motor rotation direction, operating current and mechanical load. Once normal operation is confirmed, gradually increase the operating frequency.

8. What should be checked if the ATV310H055N4A frequently trips during operation?

First identify the fault code and determine whether the trip occurs during startup, acceleration, deceleration or steady-state operation.

For overcurrent or overload faults, inspect the motor load, mechanical system, motor wiring and acceleration time. For overheating faults, check ambient temperature, ventilation, load level and switching-frequency settings.

For overvoltage or undervoltage faults, inspect the incoming power supply and electrical connections. Motor nameplate parameters should also be verified because incorrect settings can cause abnormal current or unstable operation.

If the fault remains, systematically check the power supply, motor, mechanical load, control circuit and drive instead of repeatedly resetting the unit.
