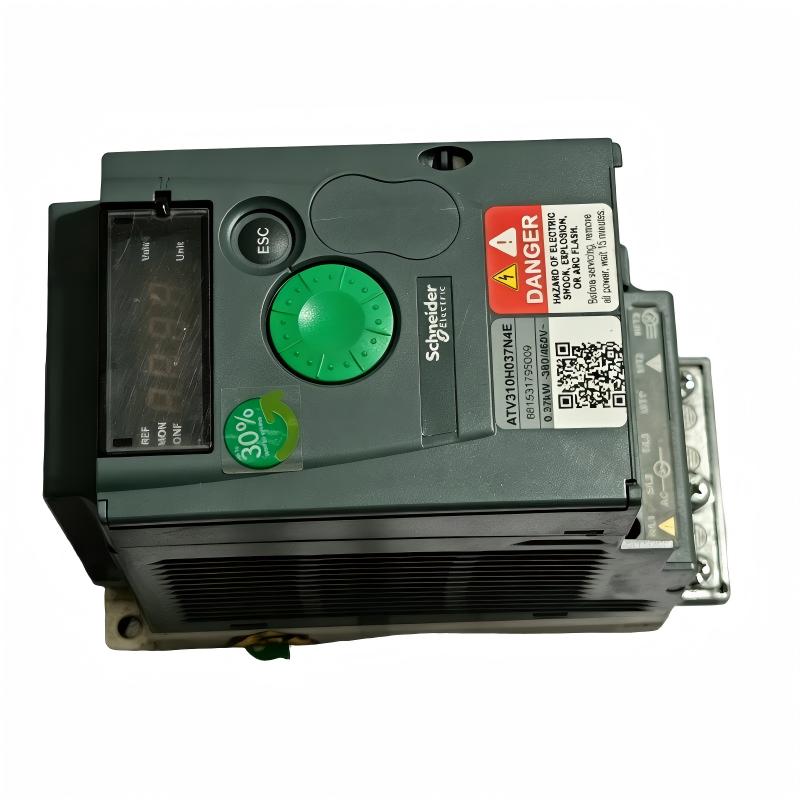

1. What motor power is the Schneider ATV310H037N4E designed for?

The ATV310H037N4E is a Heavy Duty variable-speed drive designed for three-phase asynchronous motors rated up to 0.37 kW, equivalent to 0.5 HP. It is intended mainly for simple industrial machines and compact motor-control applications.

The motor nameplate voltage and current should be checked before commissioning to ensure that the selected motor is compatible with the drive’s output rating.

2. What input power supply does the ATV310H037N4E require?

The ATV310H037N4E requires a three-phase 380–460 V AC supply at 50/60 Hz. The specified supply voltage tolerance is -15% to +10%.

The line current is approximately 2.1 A at 380 V and 1.8 A at 460 V under Heavy Duty conditions. Appropriate upstream protection and wiring should be selected according to the actual installation requirements.

3. What motor control methods are supported by the ATV310H037N4E?

The ATV310H037N4E supports sensorless vector control, conventional V/f control and quadratic V/f control with energy-saving characteristics.

Sensorless vector control is useful when improved speed and torque regulation is required without an encoder. V/f control can be selected for simpler applications where basic speed control is sufficient.

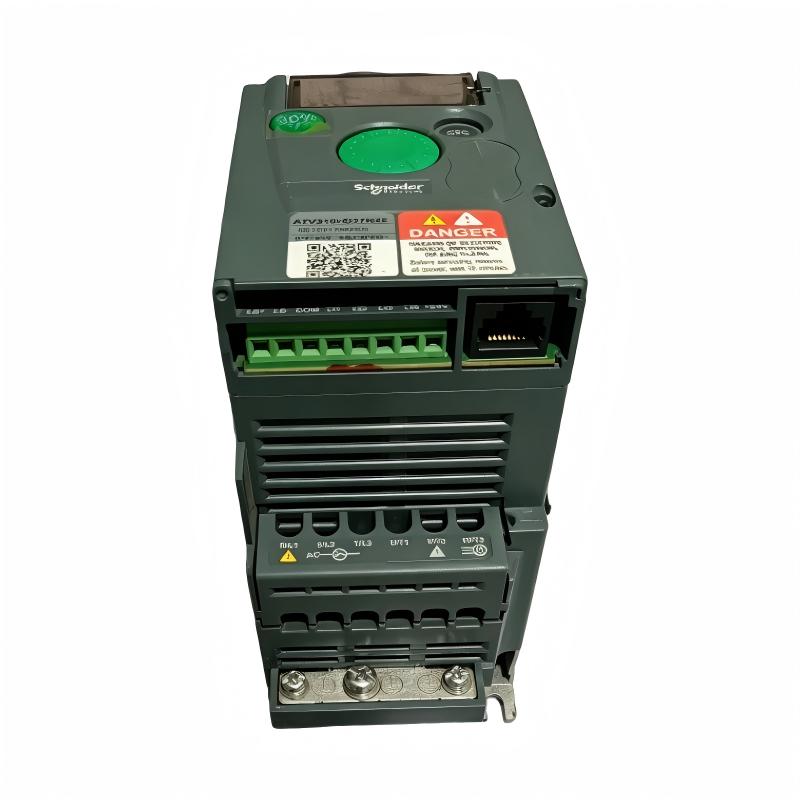

4. Does the ATV310H037N4E support Modbus communication?

Yes. The ATV310H037N4E supports Modbus RTU communication through a 2-wire RS-485 interface with an RJ45 connector.

It can communicate with PLCs, HMIs and other automation equipment for functions such as start/stop control, speed reference, operating-status monitoring, fault monitoring and parameter management.

Supported communication speeds include 4800, 9600, 19200 and 38400 bit/s. The Modbus address can be configured from 1 to 247.

5. What is the output frequency range of the ATV310H037N4E?

The ATV310H037N4E provides an output frequency range of 0.5–400 Hz. Its nominal switching frequency is 4 kHz, while the switching frequency can be adjusted from 2 to 12 kHz.

The actual operating frequency should be selected according to the motor’s rated frequency, mechanical speed limitations and application requirements. High-frequency operation should only be used when the motor and driven equipment are suitable for the required speed.

6. What protection functions are available on the ATV310H037N4E?

The ATV310H037N4E provides electronic protection functions for common abnormal operating conditions, including overcurrent, overload, overheating, overvoltage, undervoltage and short-circuit conditions.

The drive also provides electronic thermal protection for the connected motor. Correct motor nameplate parameters should be entered during commissioning to ensure that the protection functions operate correctly.

When a fault occurs, the displayed fault code should be checked before resetting the drive.

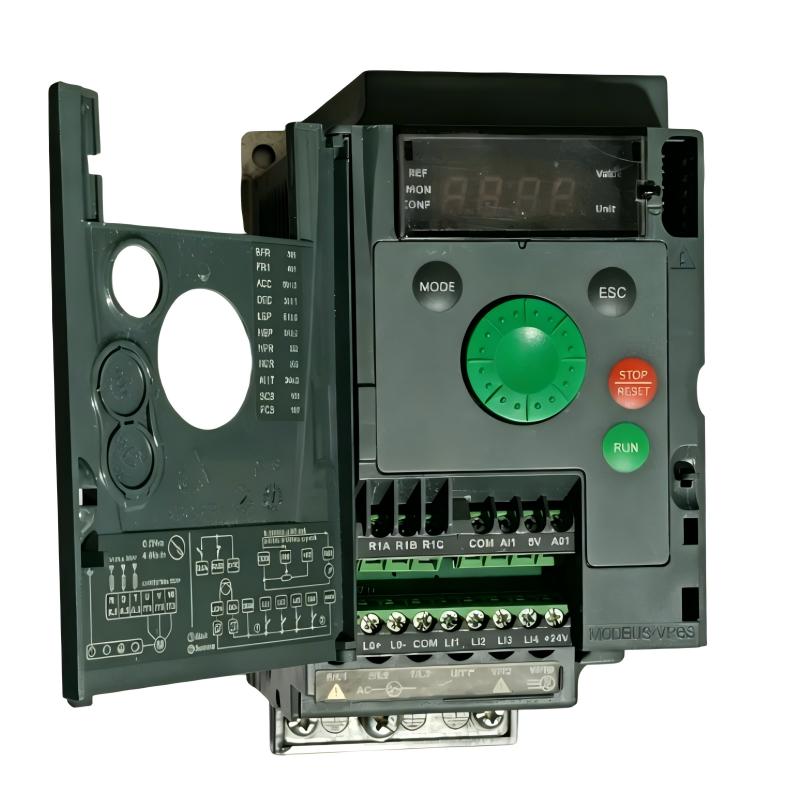

7. How should the ATV310H037N4E be commissioned with a new motor?

First verify the three-phase supply, motor wiring, grounding and control connections. Enter the motor’s rated voltage, current, frequency and power according to the motor nameplate.

Next select the required motor-control mode and configure the acceleration and deceleration ramps according to the mechanical load. If an analog speed reference is used, configure the analog input for the appropriate voltage or current signal.

For Modbus applications, configure the communication address, baud rate and other communication parameters before connecting the drive to the PLC or controller.

During initial startup, run the motor at low speed and check the rotation direction, operating current and mechanical behavior before gradually increasing the speed.

8. What should be checked if the ATV310H037N4E frequently trips?

Start by identifying the fault code and determining whether the trip occurs during startup, acceleration, deceleration or steady-state operation.

For overcurrent or overload faults, check the motor load, motor wiring, acceleration time and mechanical system. For overheating faults, inspect ventilation, ambient temperature, load conditions and switching-frequency settings. For voltage-related faults, check the incoming three-phase supply and electrical connections.

Incorrect motor parameters can also result in unstable operation or unnecessary protective trips. If the fault continues, systematically inspect the power supply, motor, mechanical load, control circuit and drive rather than repeatedly resetting the unit.
