Technical Specifications

FAQ

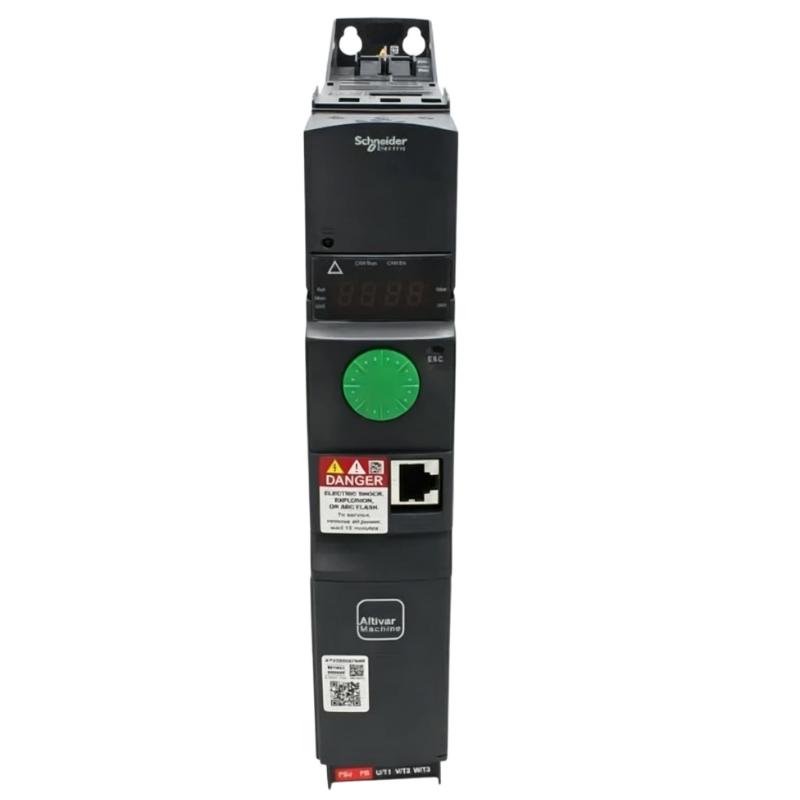

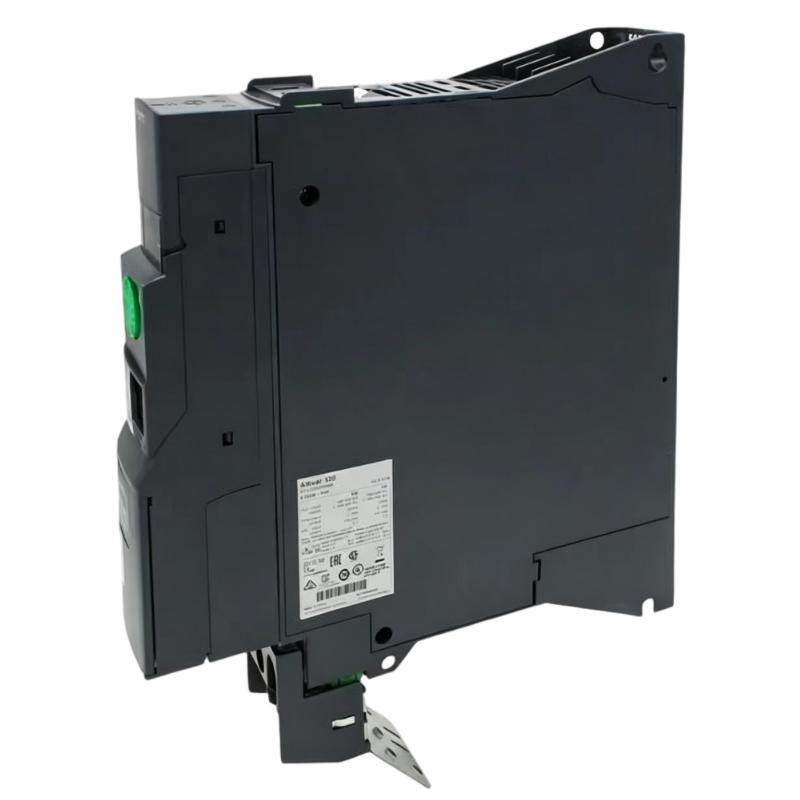

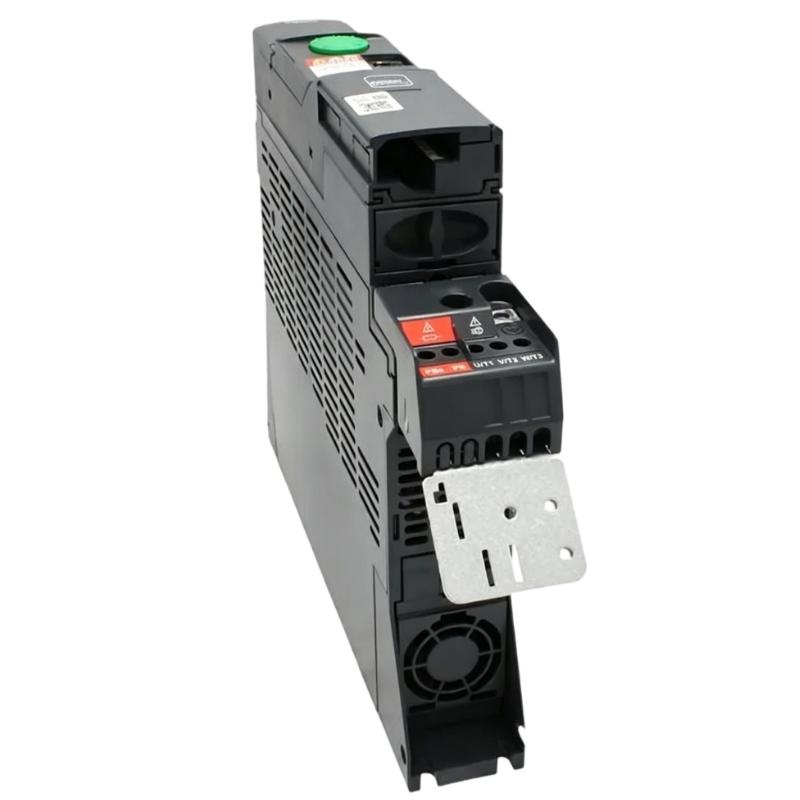

1. What is the main function of the Schneider ATV320U07M2B variable-speed drive?
The ATV320U07M2B is designed to regulate the speed and torque of AC motors used in industrial machinery. By controlling the output voltage and frequency, the drive can provide controlled acceleration, deceleration, and continuous speed adjustment. It is part of the Altivar Machine ATV320 series and is suitable for applications where stable motor control and flexible operating parameters are required.

2. What type of motor can be used with the ATV320U07M2B?
The ATV320U07M2B can control asynchronous and synchronous motors. The motor’s rated voltage, current, power, and frequency should be checked before commissioning. The drive parameters should then be configured according to the motor nameplate data. Correct motor data is particularly important when using sensorless flux vector control because the drive uses these parameters to optimize motor control.

3. What power supply does the ATV320U07M2B require?
The ATV320U07M2B is designed for a single-phase 200–240 V AC power supply with a 50/60 Hz frequency. The actual supply voltage should remain within the allowable operating range of the drive. Before installation, verify the incoming supply, protective devices, grounding, and wiring arrangement to ensure that the drive is connected correctly.

4. What is the rated motor power of the ATV320U07M2B?
The ATV320U07M2B is rated for a 0.75 kW motor, corresponding to approximately 1 hp. For proper selection, motor rated current should be considered together with motor power. Heavy-duty applications may require additional evaluation of the motor current, load profile, acceleration requirements, overload capacity, and operating cycle.

5. Which motor control modes are supported by the ATV320U07M2B?
The drive supports sensorless flux vector control and V/F control. V/F control can be used for applications with relatively straightforward speed requirements, while sensorless flux vector control can provide improved torque performance and speed regulation. During commissioning, the control mode should be selected according to the motor type and the dynamic requirements of the driven machine.

6. Does the ATV320U07M2B support industrial communication?
Yes. The ATV320U07M2B supports Modbus serial communication and CANopen. These communication functions allow the drive to exchange commands, operating status, speed references, monitoring values, and diagnostic information with PLCs and other industrial automation equipment. Communication parameters must be configured consistently between the drive and the connected controller.

7. What safety and protection functions are available?
The ATV320U07M2B provides integrated motor and drive protection functions, including electronic overload protection, short-circuit protection, overvoltage protection, and undervoltage protection. The ATV320 platform also supports safety functions such as Safe Torque Off (STO) and Safe Stop 1 (SS1). Safety functions must be correctly wired and validated according to the machine’s safety design.

8. Why might the ATV320U07M2B experience an overcurrent fault during motor acceleration?
An overcurrent fault during acceleration can be caused by excessive mechanical load, an acceleration time that is too short, incorrect motor parameters, motor cable problems, or mechanical blockage. Check the motor nameplate settings and verify the configured rated current, voltage, frequency, and control mode. Increasing the acceleration time may reduce the peak current demand. The motor, cable insulation, terminals, and driven mechanism should also be inspected if the fault continues.
