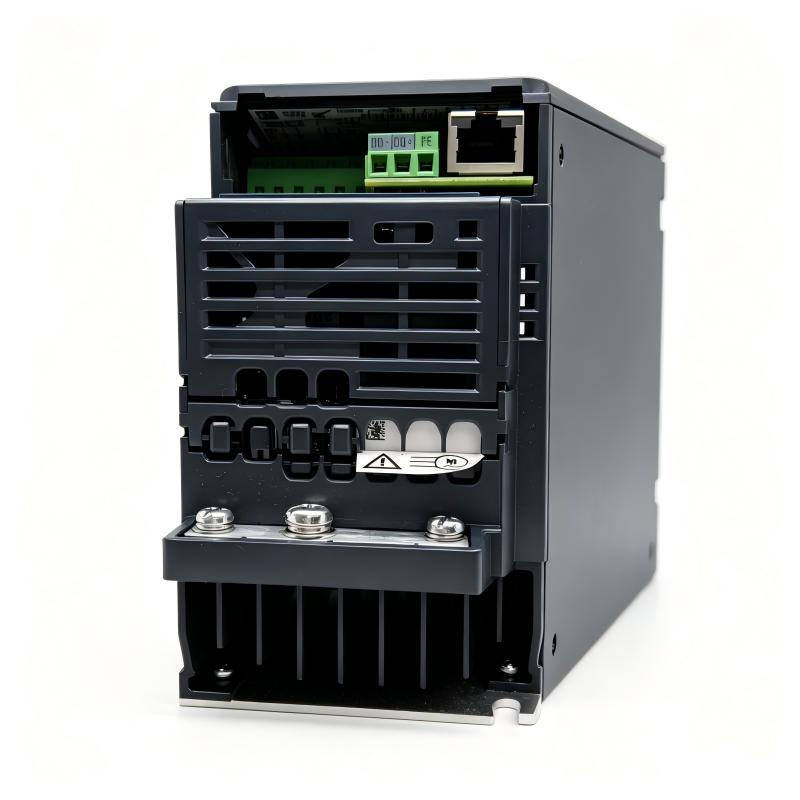

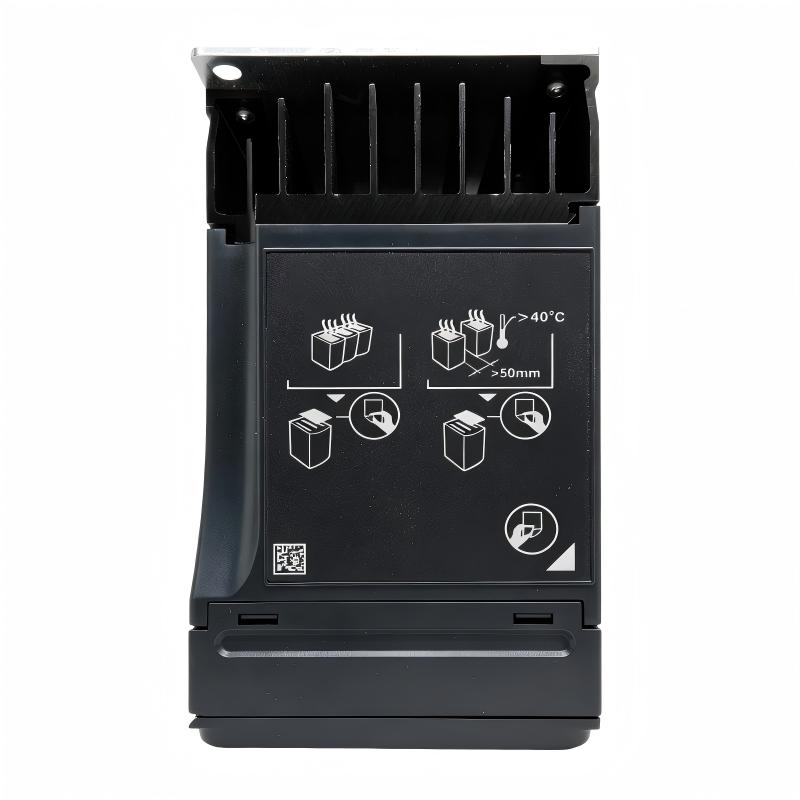

1. What is the main function of the Schneider ATV320U07M3C variable-speed drive?
The ATV320U07M3C is designed to control the speed, torque, acceleration, and deceleration of three-phase AC motors. It regulates motor operation by adjusting the output voltage and frequency according to machine requirements. The drive is suitable for industrial machinery requiring controlled motor starting, stopping, and variable-speed operation.

2. What type of motors can the ATV320U07M3C control?
The ATV320U07M3C supports both asynchronous and synchronous motors. During commissioning, the motor nameplate information, including rated voltage, current, frequency, and power, should be entered correctly into the drive. Proper motor parameter configuration helps the drive provide stable performance and accurate protection.

3. What input power supply is required for the ATV320U07M3C?
The ATV320U07M3C uses a three-phase 200–240 V AC input supply at 50/60 Hz. The incoming voltage should remain within the drive’s specified tolerance. Before installation, verify the power supply, grounding, circuit protection, and phase connections to prevent abnormal operation or electrical faults.

4. What motor power is suitable for the ATV320U07M3C?
The ATV320U07M3C is designed for motors rated at approximately 0.75 kW, or 1 hp, under the applicable duty conditions. Selection should not rely on motor power alone. The motor’s rated current, load characteristics, required overload capacity, acceleration time, and operating cycle should also be considered when determining whether this drive is appropriate.

5. Which motor control methods are supported?
The ATV320U07M3C supports sensorless flux vector control and V/F control. V/F control is suitable for relatively simple speed-control applications, while sensorless flux vector control can provide improved torque response and speed regulation. The appropriate control mode should be selected according to the motor and machine load characteristics.

6. What communication interfaces are available?
The ATV320U07M3C supports Modbus serial communication and CANopen. These interfaces allow the drive to communicate with PLCs, controllers, HMIs, and other automation equipment. Operating commands, speed references, drive status, monitoring data, and diagnostic information can be exchanged through the communication network.

7. What protection and safety functions does the ATV320U07M3C provide?
The drive provides electronic motor overload protection as well as short-circuit, overvoltage, and undervoltage protection. The ATV320 platform also incorporates safety functions such as Safe Torque Off (STO) and Safe Stop 1 (SS1). These functions must be correctly configured and integrated into the machine’s safety system according to the applicable safety requirements.

8. What should be checked if the ATV320U07M3C trips during acceleration?
First check the displayed fault code and determine whether the problem is related to overcurrent, overload, undervoltage, or another protection function. Then verify the motor rated current and other motor parameters. Excessive mechanical load, a blocked mechanism, incorrect wiring, or an acceleration time that is too short can also cause abnormal current during startup. If necessary, increase the acceleration time and inspect the motor, cables, terminals, and mechanical load before restarting the drive.
