FAQ

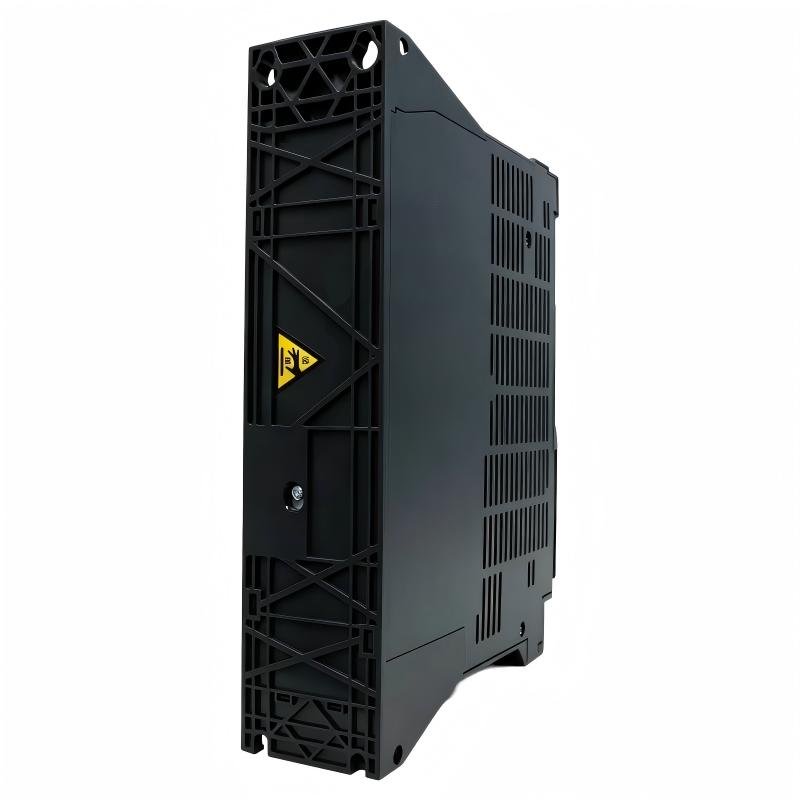

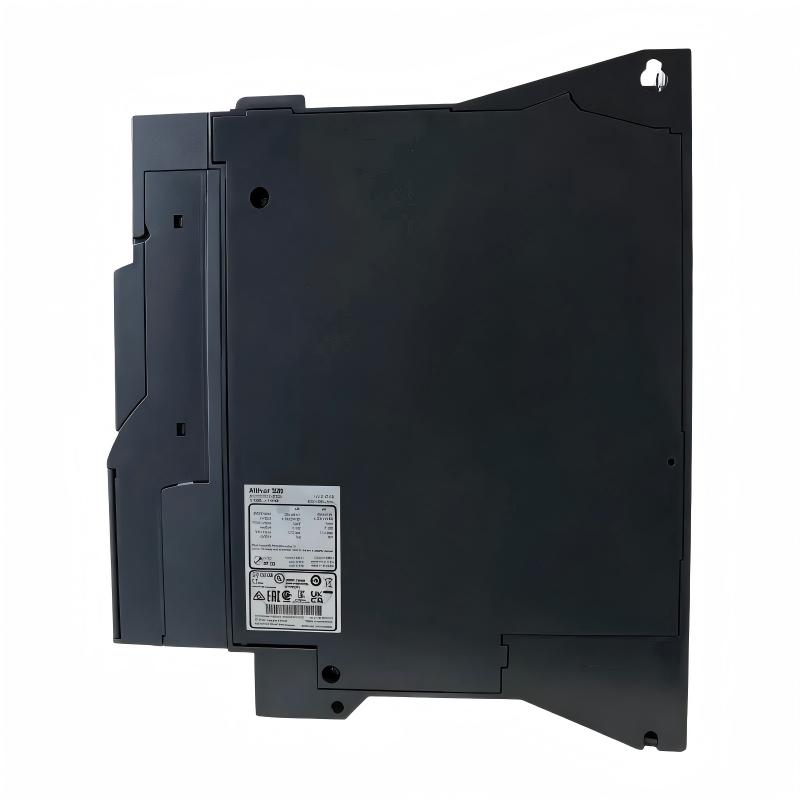

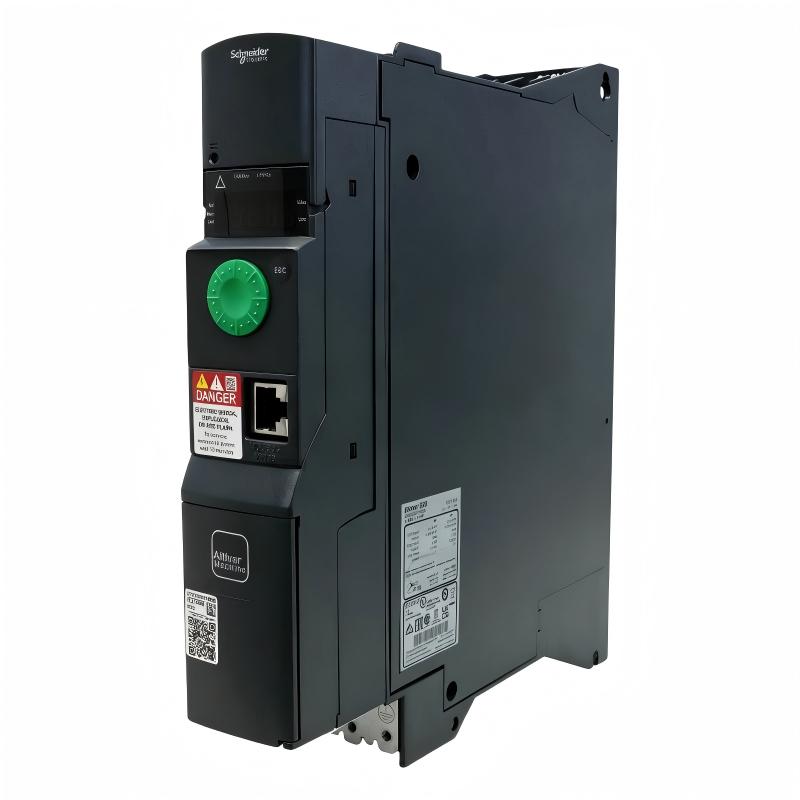

1. What is the main function of the Schneider ATV320U11M2B variable-speed drive?
The ATV320U11M2B is designed to control the speed, torque, acceleration, and deceleration of AC motors in industrial machinery. It adjusts the motor’s output frequency and voltage to provide controlled and stable operation. The drive is suitable for applications where variable-speed control, smooth starting, and controlled stopping are required.

2. What type of motors can the ATV320U11M2B control?
The ATV320U11M2B supports asynchronous and synchronous motors. During commissioning, the motor’s rated voltage, current, frequency, and power should be entered according to the motor nameplate. Correct motor data is essential for achieving stable control performance and ensuring that the drive’s motor protection functions operate correctly.

3. What power supply is required for the ATV320U11M2B?
The ATV320U11M2B is designed for a single-phase 200–240 V AC power supply with a 50/60 Hz frequency. The incoming voltage should remain within the permitted operating range. The power supply, grounding, upstream circuit protection, and wiring should be checked carefully before energizing the drive.

4. What motor power is suitable for the ATV320U11M2B?
The ATV320U11M2B is rated for a 1.1 kW motor, equivalent to approximately 1.5 hp. Correct selection should also take the motor’s rated current and application duty into account. For applications with frequent starts, high inertia, or significant overload requirements, the actual load profile should be evaluated before selecting the drive.

5. Which motor control modes are available?
The ATV320U11M2B supports sensorless flux vector control and V/F control. V/F control can be used for basic speed-control applications, while sensorless flux vector control offers improved torque response and speed regulation. The appropriate mode depends on the motor type, load characteristics, and required dynamic performance.

6. Does the ATV320U11M2B support communication with a PLC?
Yes. The drive supports Modbus serial communication and CANopen, allowing it to exchange control commands, speed references, operating status, monitoring values, and diagnostic information with PLCs and other automation controllers. Communication parameters such as address and baud rate must be configured consistently with the connected control system.

7. What protection and safety functions does the ATV320U11M2B provide?
The ATV320U11M2B provides electronic motor overload protection, short-circuit protection, overvoltage protection, and undervoltage protection. The ATV320 platform also supports safety functions such as Safe Torque Off (STO) and Safe Stop 1 (SS1). These functions must be correctly configured and integrated into the machine’s overall safety circuit.

8. What should be checked if the ATV320U11M2B has an overcurrent fault?
First, check the fault code and verify the motor’s rated current, voltage, and frequency settings. Excessive mechanical load, a blocked motor, incorrect acceleration parameters, or damaged motor cables can cause overcurrent conditions. If the acceleration time is too short, increasing it may reduce the current peak. The motor, cables, terminals, and driven machinery should also be inspected before the drive is returned to normal operation.
