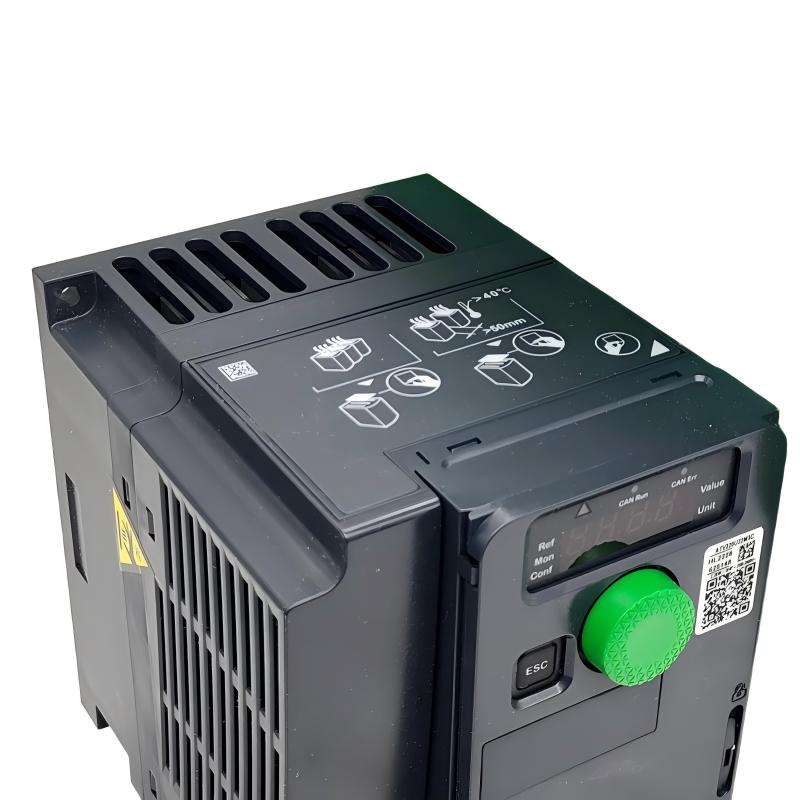

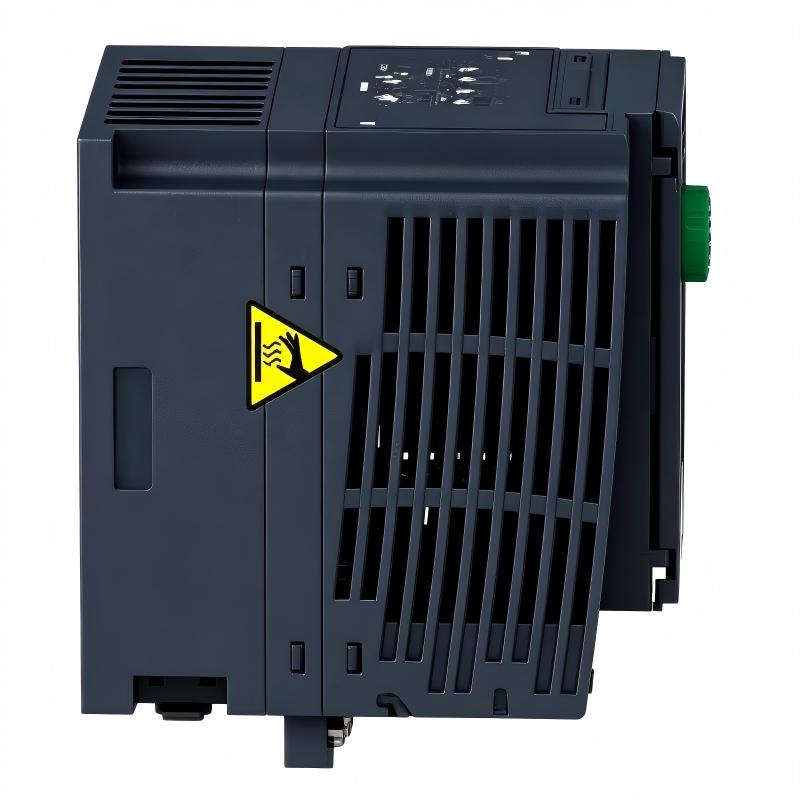

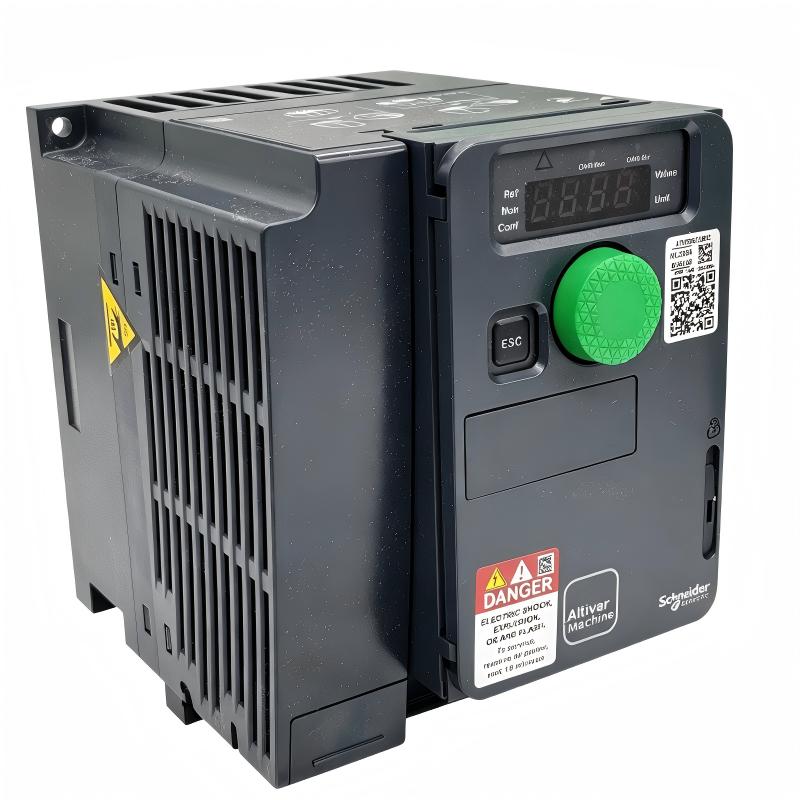

Schneider ATV320U11M3C Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV320U11M3C |
| Product Type | Variable-Speed Drive |
| Brand | Schneider Electric |
| Product Series | Altivar Machine ATV320 |
| Compatible Motors | Asynchronous and synchronous motors |
| Number of Phases | 3-phase |
| Rated Input Voltage | 200–240 V AC |
| Input Frequency | 50/60 Hz |
| Rated Motor Power | 1.1 kW |
| Motor Power | 1.5 hp |
| Continuous Output Current | 6.9 A, Heavy Duty |
| Maximum Transient Current | 10.4 A for 60 seconds |
| Maximum Output Voltage | 240 V AC |
| Output Frequency Range | 0.1–599 Hz |
| Switching Frequency | 2–16 kHz, 4 kHz nominal |
| Motor Control | Sensorless Flux Vector Control, V/F Control |
| Energy-Saving Function | Supported |
| Braking Method | DC Injection Braking |
| Brake Chopper | Built-in |
| Braking Resistor | External option |
| EMC Filter | Without Built-in EMC Filter |
| Protection Degree | IP20 |
| Cooling Method | Forced Air Cooling |
| Digital Inputs | 7 |
| Digital Outputs | 3 |
| Analog Inputs | 3 |
| Analog Output | 1 |
| Communication | Modbus Serial, CANopen |
| Safety Functions | STO, SS1 and other configurable safety functions |
| Motor Overload Protection | Supported |
| Short-Circuit Protection | Supported |
| Overvoltage Protection | Supported |
| Undervoltage Protection | Supported |
| Mounting | Wall mounting |
| Typical Applications | Conveyors, packaging machines, material handling, textile machinery and processing equipment |
| Operating Temperature | -10 to +50 °C, depending on load and installation conditions |
| Rated Short-Circuit Current | Up to 5 kA |
| Dimensions | 105 × 143 × 138 mm |
| Weight | 1.4 kg |
FAQ
1. What is the main function of the Schneider ATV320U11M3C variable-speed drive?
The ATV320U11M3C is designed to control the speed, torque, acceleration, and deceleration of three-phase AC motors. By regulating the output voltage and frequency, it provides controlled motor operation for industrial machinery. It is suitable for applications requiring stable speed regulation, smooth starting, and controlled stopping.
2. What type of motors can the ATV320U11M3C control?
The ATV320U11M3C supports asynchronous and synchronous motors. During commissioning, the motor’s rated voltage, current, frequency, and power should be configured according to the motor nameplate. Correct parameter settings help optimize motor performance and ensure that the drive’s protection functions operate properly.
3. What input power supply is required for the ATV320U11M3C?
The ATV320U11M3C is designed for a three-phase 200–240 V AC power supply with an input frequency of 50/60 Hz. The supply voltage should remain within the permitted operating range. Correct grounding, upstream protection, and phase wiring should be verified before the drive is energized.
4. What motor power is suitable for the ATV320U11M3C?
The ATV320U11M3C is intended for a 1.1 kW motor, equivalent to approximately 1.5 hp. Selection should also consider the motor’s rated current, load characteristics, acceleration requirements, overload conditions, and duty cycle. Matching the drive to the actual application helps prevent unnecessary overload and fault conditions.
5. Which motor control modes are supported?
The ATV320U11M3C supports sensorless flux vector control and V/F control. V/F control is suitable for simpler speed-control applications, while sensorless flux vector control provides improved torque response and speed regulation. The appropriate mode should be selected based on the motor and mechanical load characteristics.
6. Can the ATV320U11M3C communicate with a PLC?
Yes. The drive supports Modbus serial communication and CANopen. These interfaces can be used to exchange start/stop commands, speed references, operating status, monitoring values, and diagnostic information with PLCs and other automation controllers. Communication parameters must be configured correctly on both the drive and the control system.
7. What protection and safety functions are provided?
The ATV320U11M3C provides electronic motor overload protection, short-circuit protection, overvoltage protection, and undervoltage protection. It also supports safety functions such as Safe Torque Off (STO) and Safe Stop 1 (SS1). Safety functions should be correctly wired and validated according to the machine’s safety design.
8. What should be checked if the ATV320U11M3C develops an overcurrent fault?
First check the displayed fault code and verify the motor’s rated voltage, current, and frequency parameters. Excessive mechanical load, motor blockage, incorrect acceleration settings, or damaged motor cables can cause overcurrent conditions. If acceleration is too aggressive, increasing the acceleration time may reduce the current peak. The motor, cables, terminals, and driven mechanism should also be inspected before returning the drive to service.
Schneider ATV320U11M3C Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
