1. What is the main function of the ATV32HU55N4 variable-speed drive?

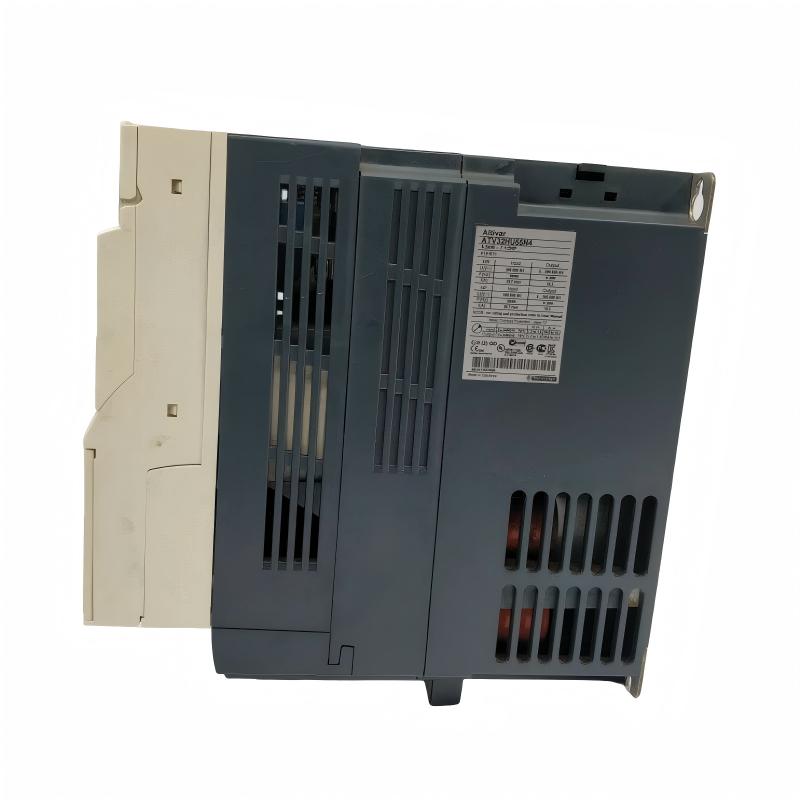

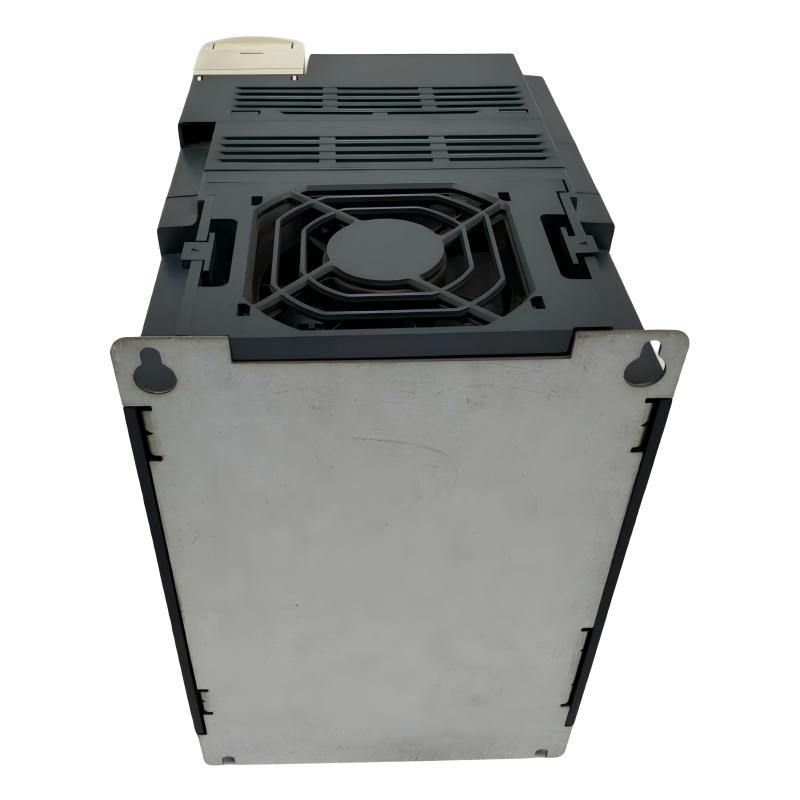

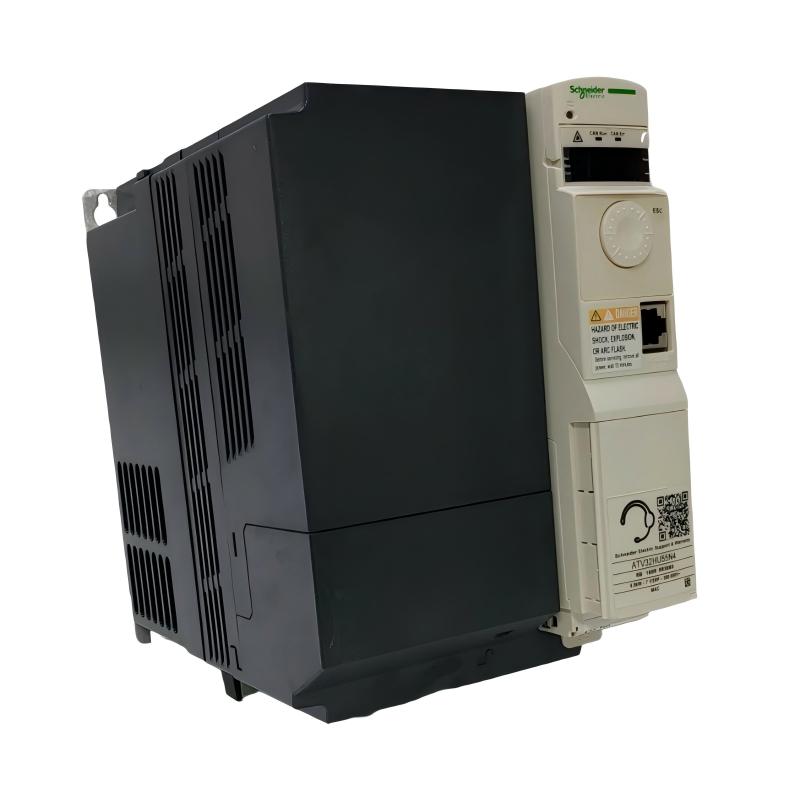

The ATV32HU55N4 is a 5.5 kW variable-speed drive designed to control the speed and torque of compatible three-phase motors. It allows controlled starting, stopping, acceleration, deceleration, and variable-speed operation, making it suitable for a wide range of industrial machines.

2. What type of motor can be used with the ATV32HU55N4?
The drive is primarily designed for compatible three-phase asynchronous motors and can also be used in suitable synchronous motor applications depending on the selected control configuration. Motor nameplate data should be entered correctly during commissioning to achieve stable control and appropriate motor protection.

3. What industrial applications are suitable for the ATV32HU55N4?
Typical applications include conveyors, pumps, fans, machine tools, material handling systems, and other machinery requiring adjustable motor speed. The correct application should be determined according to the motor rating, mechanical load characteristics, starting requirements, and duty cycle.

4. Why does the motor fail to start even though a run command has been issued?
Check the incoming power supply and confirm that the drive is not in a fault or inhibit state. The run command source, frequency reference, control terminals, safety circuit, motor wiring, and relevant configuration parameters should then be checked to identify conditions preventing the drive from enabling the motor.

5. What can cause motor speed fluctuations during operation?
Unstable speed can result from changes in the frequency reference, fluctuating mechanical load, incorrect motor parameters, or unsuitable control settings. Checking the reference signal, actual output frequency, motor current, load condition, and selected control mode can help determine whether the problem is related to the drive configuration or the external system.

6. What should be checked when an overcurrent fault occurs?
Inspect the motor and output cables for short circuits, grounding problems, loose connections, or incorrect wiring. The mechanical load should also be checked for excessive resistance or jamming, while motor parameters and acceleration settings should be reviewed to ensure the drive is not being subjected to an abnormal current demand.

7. What precautions should be taken when replacing an ATV32HU55N4?
Before removing the original drive, record its important operating parameters, control wiring, and communication configuration. After installing the replacement unit, verify the power supply, grounding, motor connections, control signals, and motor compatibility before restoring parameters and performing a controlled test run.

8. What commissioning checks should be performed after installation?
Verify all power, motor, grounding, control, and communication connections before energizing the drive. During initial commissioning, check the motor rotation direction, acceleration and deceleration response, operating current, frequency reference, fault status, and load response, starting with a low-risk operating condition before placing the machine into normal service.
