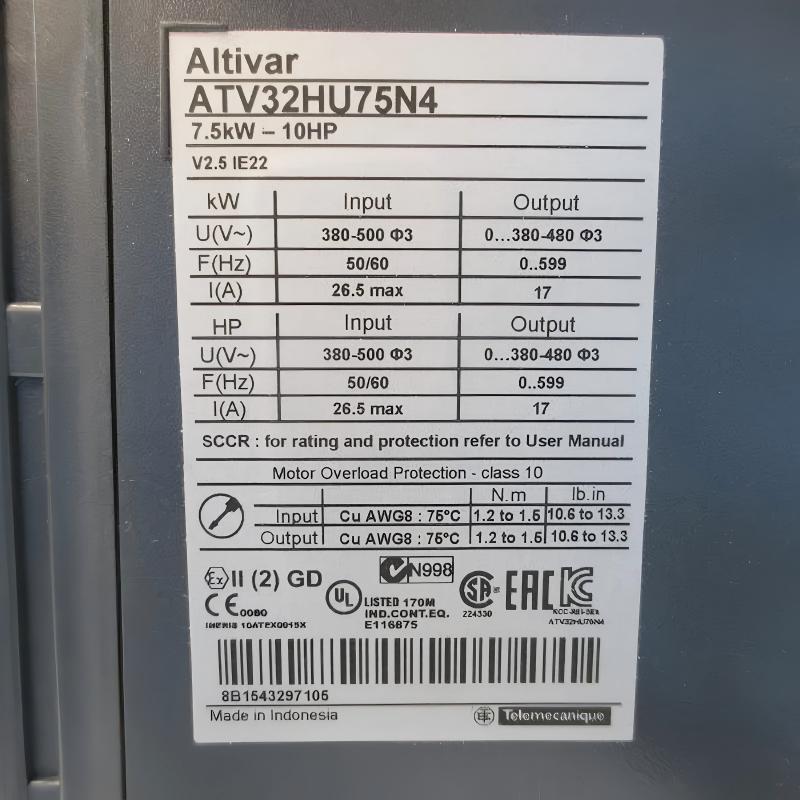

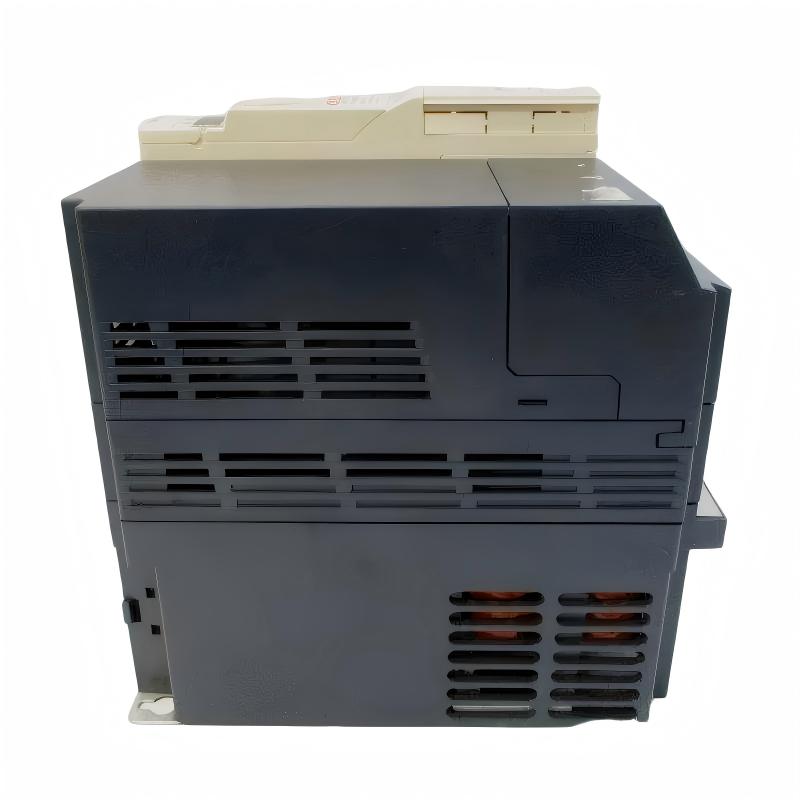

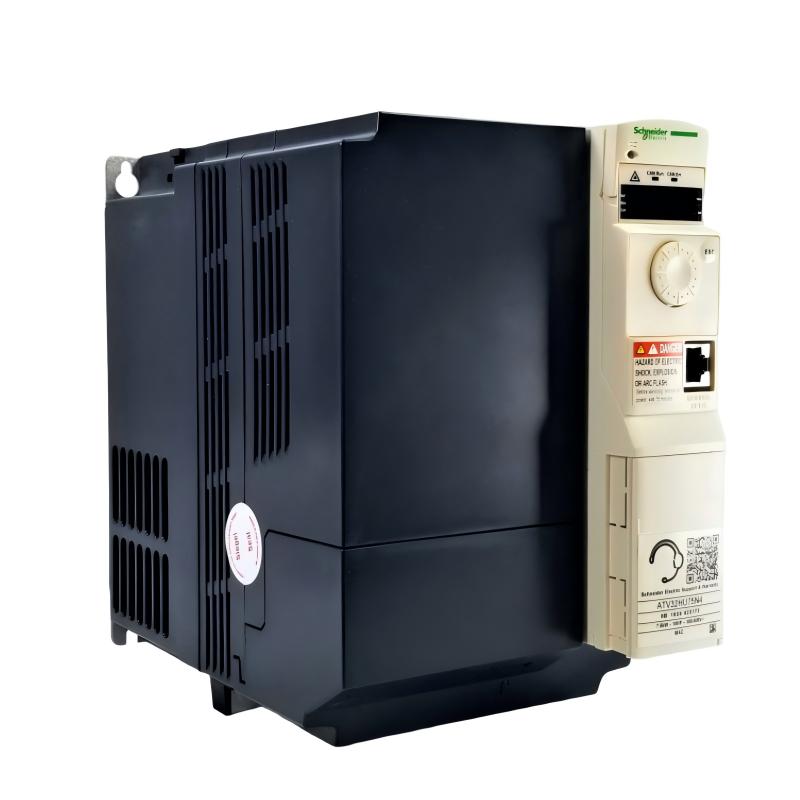

1. What is the main function of the ATV32HU75N4 variable-speed drive?
The ATV32HU75N4 is a 7.5 kW variable-speed drive designed to regulate the speed and torque of compatible three-phase motors. It provides controlled starting, stopping, acceleration, deceleration, and continuous speed adjustment for industrial machinery.

2. What type of motor is suitable for the ATV32HU75N4?
The drive is primarily intended for compatible three-phase asynchronous motors and can also be used for suitable synchronous motor applications depending on the selected control configuration. Correct motor nameplate data should be entered during commissioning to ensure stable operation and proper protection.

3. What applications are commonly used with the ATV32HU75N4?
Typical applications include conveyors, pumps, fans, machine tools, material handling equipment, and other industrial machinery requiring adjustable motor speed. The final selection should take into account the motor rating, mechanical load, duty cycle, and starting requirements of the equipment.

4. Why does the motor fail to start after a run command is received?
Check the incoming power supply and confirm that the drive is not in a fault, inhibit, or stop state. Then verify the run command source, frequency reference, control terminals, safety circuit, motor wiring, and relevant parameters that may prevent the drive from enabling the motor.

5. What can cause unstable motor speed during operation?
Speed fluctuations may be caused by an unstable frequency reference, changing mechanical load, incorrect motor parameters, or unsuitable control settings. Checking the frequency reference, actual operating frequency, motor current, load condition, and control mode can help identify the source of the instability.

6. What should be checked when an overcurrent fault occurs?
Inspect the motor and output cables for short circuits, grounding faults, loose terminals, or incorrect wiring. The mechanical load should also be checked for excessive resistance or jamming, while the motor rated parameters and acceleration settings should be reviewed for correct configuration.

7. What precautions should be taken when replacing the ATV32HU75N4?
Before replacement, record the existing drive parameters, control wiring, and communication configuration. After installing the replacement unit, verify the power supply, grounding, motor connections, control signals, and motor compatibility before restoring the operating parameters and starting the equipment.

8. What commissioning checks should be performed after installation?
Verify all power, motor, grounding, control, and communication connections before energizing the drive. During the initial test, check motor rotation direction, acceleration and deceleration response, operating current, frequency reference, fault status, and load response, preferably beginning under a low-load condition before normal operation.
