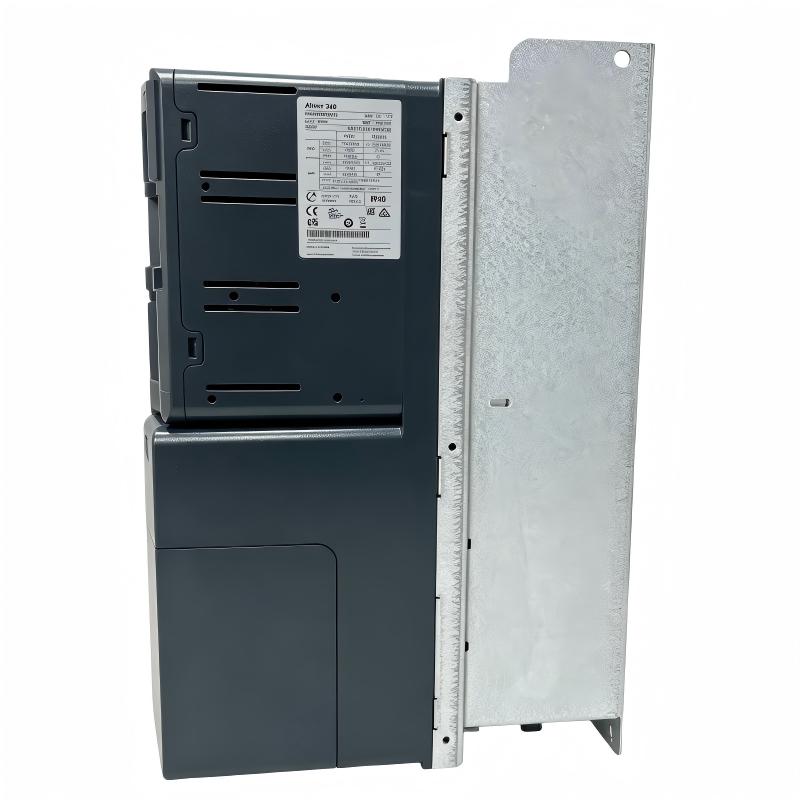

1. What is the main function of the Schneider ATV340D22N4E?
The ATV340D22N4E is a variable-speed drive designed to control the speed, torque, acceleration and deceleration of three-phase motors. It is intended for industrial machinery where precise motor control and reliable automation communication are required. The drive can be used for applications such as conveyors, packaging machines, material-handling equipment, machine tools and other automated production systems.

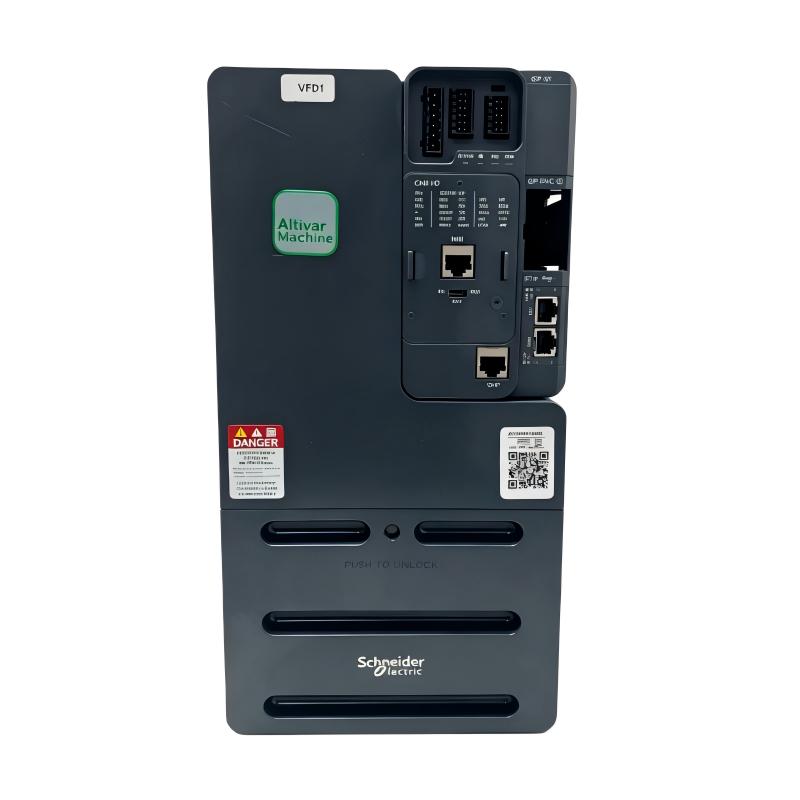

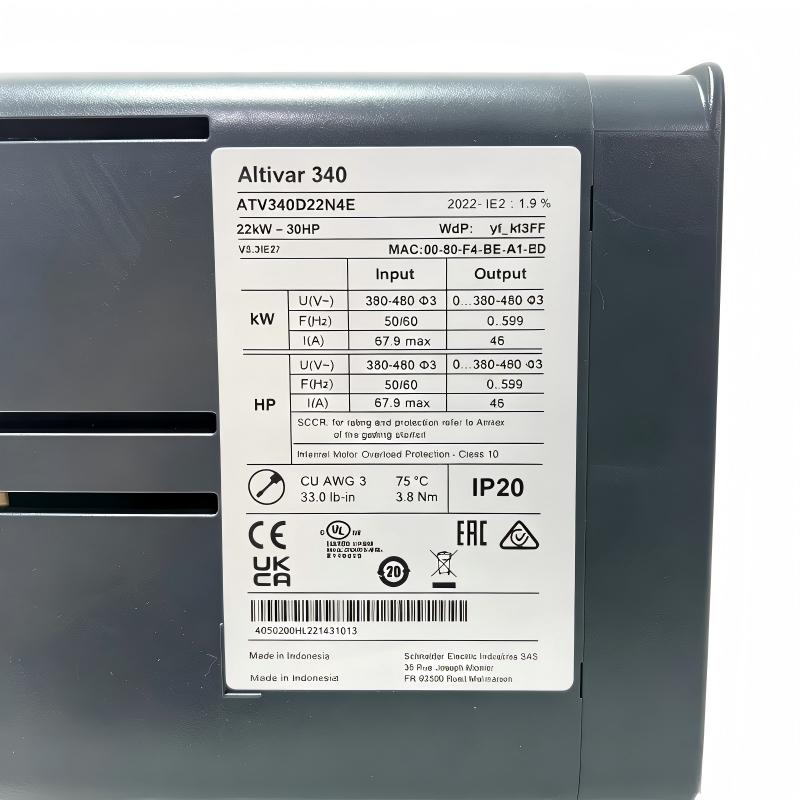

2. What motor power is supported by the ATV340D22N4E?
The ATV340D22N4E is rated for 22 kW in heavy-duty operation and can support up to 30 kW in normal-duty operation. The heavy-duty output rating is intended for applications with higher torque requirements or demanding overload conditions. When selecting the drive, the motor’s rated current and the actual load profile should also be checked rather than selecting the drive based only on motor power.

3. Which types of motors can the ATV340D22N4E control?
The drive supports three-phase asynchronous and synchronous motors, with control capabilities also covering reluctance motor applications depending on the configured motor-control mode. During commissioning, the motor nameplate data should be entered correctly, including rated voltage, current, frequency and power. Incorrect motor parameters can lead to excessive current, poor speed regulation, insufficient starting torque or unstable operation.

4. What communication protocols are available on the ATV340D22N4E?
The ATV340D22N4E provides integrated Ethernet connectivity with support for Modbus TCP and EtherNet/IP, as well as Modbus Serial communication. Additional communication options can be provided through compatible modules, including PROFINET, PROFIBUS DP V1, CANopen, DeviceNet and EtherCAT. For PLC integration, the communication protocol, network addressing and control/status data mapping should be configured consistently between the PLC and drive.

5. Why does the motor not start even though a start command is present?
Check the drive status and confirm that there is no active fault or operating inhibit. The STO safety circuit should be checked because an active STO condition can prevent the motor from producing torque. Also verify the command source, frequency reference, run-permission signal and forward/reverse configuration. If the drive is controlled through Ethernet or another fieldbus, check that the PLC is transmitting the correct control word and speed reference.

6. What can cause an overcurrent fault during acceleration?
Acceleration overcurrent is commonly associated with a short acceleration ramp, excessive load inertia, incorrect motor parameters, mechanical blockage or an unsuitable motor-control configuration. Check the motor parameters first and inspect the machine for excessive mechanical resistance. For high-inertia loads, increasing the acceleration time can reduce the current demand. Motor cables and terminals should also be checked for short circuits, insulation faults and incorrect wiring.

7. How can communication problems between the ATV340D22N4E and a PLC be diagnosed?
Start by checking the physical Ethernet connection, communication module and network equipment. Confirm that the IP configuration and network settings are correct and that no address conflict exists. Next, verify the PLC device configuration, communication protocol and control/status data mapping. Check whether the drive is receiving valid control commands and whether the PLC is receiving the expected status and feedback data. For intermittent communication faults, inspect network topology, shielding, grounding and possible electromagnetic interference.

8. What should be checked after replacing an ATV340D22N4E?
After replacement, first verify the drive rating and supply voltage against the original application. Restore the motor nameplate parameters, motor-control mode, acceleration and deceleration ramps, frequency limits, I/O configuration and communication settings. The STO and other safety circuits should be tested before normal operation. Start with a low-speed test and gradually apply the machine load while monitoring motor current, rotation direction, speed response, communication status and drive fault information.
