1. What is the main function of the Schneider ATV340D37N4E?

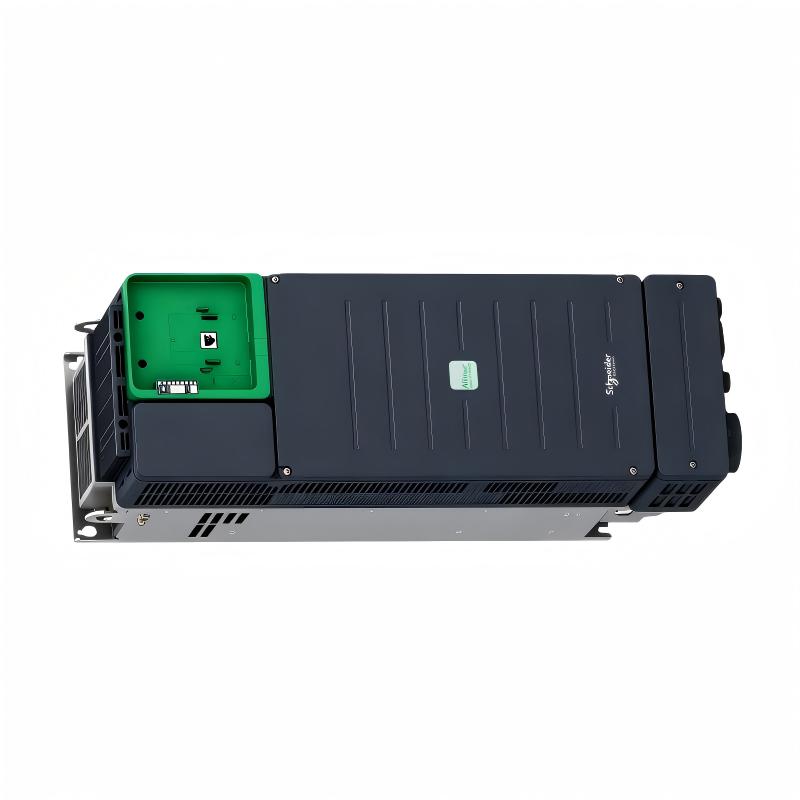

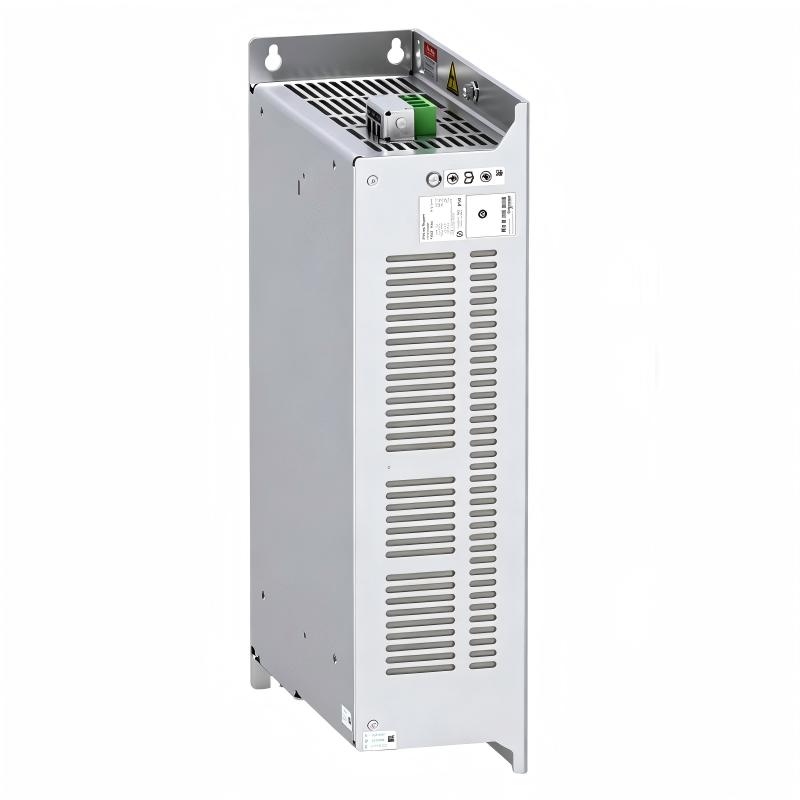

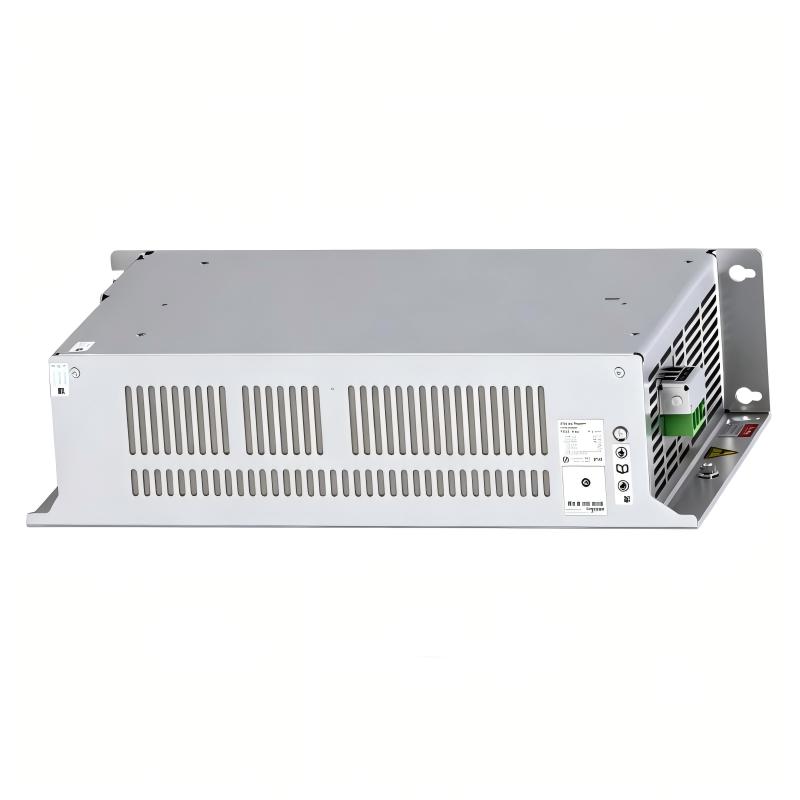

The Schneider Electric ATV340D37N4E is a high-performance variable speed drive designed to control three-phase industrial motors. It provides adjustable speed, torque and acceleration control while supporting advanced motor-control functions. With a 37 kW heavy-duty rating, it is suitable for demanding machine applications where stable motor performance and precise control are required. The integrated Ethernet capability also makes it suitable for modern automation architectures where the drive needs to exchange commands, status information and operating data with a PLC or other industrial controller.

2. What motor power is supported by the ATV340D37N4E?
The ATV340D37N4E is rated for 37 kW in heavy-duty operation and can support up to 45 kW under normal-duty conditions. The correct rating should always be selected according to the actual motor load, overload requirements, acceleration conditions and application duty cycle. For applications with frequent starts, high starting torque or significant load variations, the heavy-duty rating should be used as the primary selection reference rather than selecting the drive only according to the motor nameplate power.

3. What types of motors can the ATV340D37N4E control?
The drive can be configured for several industrial motor technologies, including asynchronous motors, synchronous motors and reluctance-type motors. Motor-control performance depends on the selected motor profile, control mode and commissioning parameters. During setup, the motor nameplate information should be entered accurately, including rated voltage, current, frequency, power and speed. Incorrect motor parameters can result in poor torque performance, excessive current, unstable speed regulation or motor-starting problems.

4. What communication protocols are available on the ATV340D37N4E?
The ATV340D37N4E provides integrated Ethernet connectivity and supports Modbus TCP and EtherNet/IP, in addition to Modbus Serial. Its Ethernet interfaces allow the drive to communicate directly with PLCs, HMIs, SCADA systems and other industrial Ethernet devices. Before commissioning, the network address, communication protocol, control channel and command/reference configuration should be checked carefully. The Ethernet version is specifically intended for applications requiring integrated Ethernet communication rather than an additional Ethernet option card.

5. Why does the motor not run even though a start command has been received?
Several conditions should be checked systematically. First verify that the drive is not displaying an active fault or safety-related stop condition. Then check the assigned run command source, frequency reference source, STO status and motor-control parameters. If the drive is controlled through Ethernet, confirm that the PLC is writing the correct command and reference values and that the drive is receiving valid data. It is also important to check whether an external interlock, limit switch, emergency-stop circuit or safety function is preventing the output stage from being enabled.

6. How should an overcurrent fault during acceleration be diagnosed?
An acceleration overcurrent condition can be caused by excessive mechanical load, an acceleration ramp that is too short, incorrect motor parameters, motor cable problems or unsuitable control settings. Start by checking the motor and mechanical system for abnormal resistance or locked components. Then verify the motor nameplate parameters and increase the acceleration time if the application permits. Motor current should also be compared with the drive’s rated current. If the fault remains after mechanical and parameter checks, inspect the motor cable, terminals and insulation for possible electrical problems.

7. What should be checked if the ATV340D37N4E loses communication with a PLC?
For Ethernet communication problems, first check the Ethernet cable, connectors, link status and network topology. Confirm that the PLC and drive have compatible IP addressing and that no duplicate IP address exists on the network. Next verify whether the PLC is using Modbus TCP or EtherNet/IP and that the corresponding drive communication settings are correct. The PLC program should also be checked for correct control words, reference values and data mapping. If the physical link is normal but communication remains unstable, review network diagnostics and drive communication status information to distinguish between configuration problems and hardware faults.

8. What should be considered when replacing an ATV340D37N4E?
Before replacing the drive, record the existing motor-control, communication, acceleration/deceleration, safety and application parameters whenever possible. The replacement unit should have the same model designation or an officially compatible specification for the application. Pay particular attention to the D37N4E designation because the integrated Ethernet architecture is an important part of this model. After installation, verify the input power wiring, motor terminals, grounding, STO circuit and Ethernet connections before applying power. The motor parameters and PLC communication settings should then be verified during commissioning, followed by a controlled no-load and loaded test.
