1. What is the main function of the Schneider ATV340D55N4E?

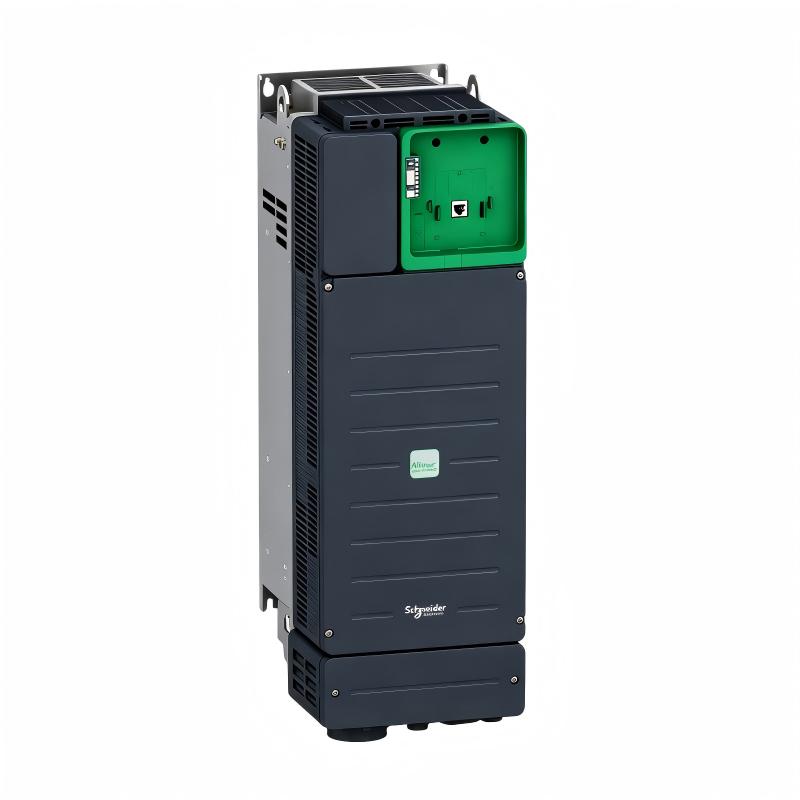

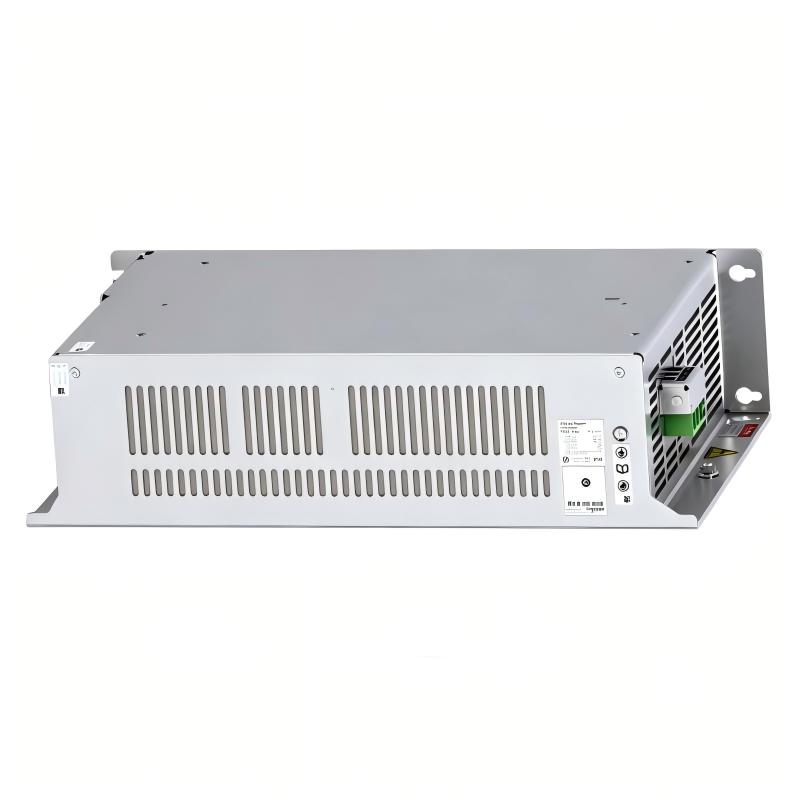

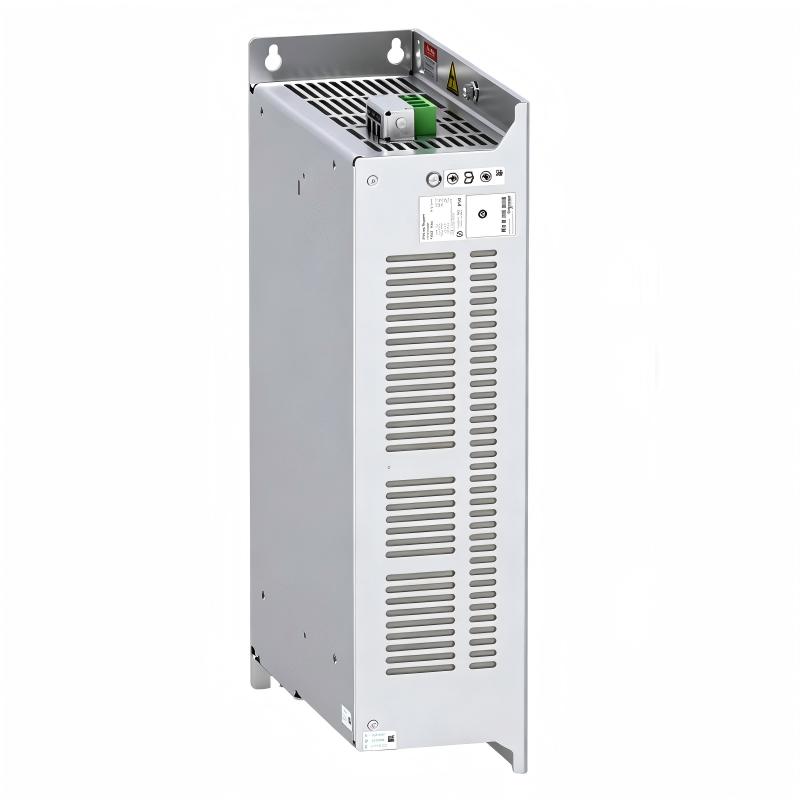

The Schneider Electric ATV340D55N4E is a high-performance variable-speed drive designed to control three-phase industrial motors. It regulates motor speed and torque by adjusting the output voltage and frequency according to the application requirements. With a 55 kW heavy-duty rating, the drive is intended for demanding machine applications where high starting torque, stable speed control and reliable operation under varying loads are required. Its integrated Ethernet communication also makes it suitable for PLC-based automation and connected industrial control systems.

2. What motor power can the ATV340D55N4E support?
The ATV340D55N4E supports a 55 kW motor under heavy-duty operation and up to 75 kW under normal-duty operation. The correct operating class should be selected according to the actual load profile rather than motor power alone. Heavy-duty operation is more appropriate for applications involving frequent acceleration, high starting torque, overload conditions or significant load fluctuations. The drive provides a continuous output current of approximately 106 A at 4 kHz for heavy duty and 145 A at 4 kHz for normal duty.

3. What types of motors are compatible with the ATV340D55N4E?
The drive can be configured for asynchronous motors, synchronous motors and reluctance motors, depending on the selected motor-control strategy. During commissioning, accurate motor nameplate information should be entered, including rated voltage, current, frequency, power and speed. Correct motor data is important for achieving stable torque production and accurate speed regulation. If incorrect parameters are entered, the system may experience excessive current, poor acceleration, unstable operation or motor-control faults.

4. What communication functions are available on the ATV340D55N4E?
The ATV340D55N4E provides integrated Ethernet communication and supports Modbus TCP and EtherNet/IP, while Modbus Serial is also available. Optional communication modules can provide protocols such as PROFINET, DeviceNet, CANopen and EtherCAT. In a PLC-controlled installation, the communication configuration must match the PLC network and control architecture. IP addressing, communication protocol, command source, frequency-reference source and control-word mapping should all be verified during commissioning.

5. Why does the motor fail to start even when the run command is active?
A valid run command alone does not guarantee that the inverter output stage will be enabled. Check whether the drive has an active fault, whether the STO safety circuit is released and whether an external interlock is preventing operation. The selected command channel and speed-reference channel should also be checked. If the drive is controlled through Ethernet, verify that the PLC is sending the correct command word and frequency reference. Motor parameters, minimum frequency settings and operating-mode configuration should also be reviewed before investigating hardware faults.

6. How can an overcurrent fault during motor acceleration be diagnosed?
An acceleration overcurrent fault can result from excessive mechanical load, an acceleration ramp that is too short, incorrect motor parameters, motor cable problems or inappropriate control settings. First inspect the driven machine for mechanical resistance, blockage or abnormal load conditions. Then verify the motor nameplate data and increase the acceleration time if the process allows it. Check motor current during acceleration and compare it with the drive’s rated current. If the fault continues, inspect motor terminals, cables, insulation and phase connections for electrical abnormalities.

7. What should be checked when communication between the ATV340D55N4E and PLC is unstable?
Begin with the physical Ethernet connection, including cables, connectors, network switches and link indicators. Confirm that the drive and PLC have compatible IP addresses and that there is no duplicate address on the network. Next verify whether the control system is using Modbus TCP or EtherNet/IP and confirm that the correct communication parameters and data mapping have been configured. If the physical link remains stable but commands or feedback data are intermittent, check PLC communication diagnostics, drive communication status and the control-word/reference configuration.

8. What precautions should be taken when replacing an ATV340D55N4E?
Before replacing the drive, record or back up the existing configuration whenever possible, including motor parameters, acceleration and deceleration settings, communication parameters, control-channel assignments and safety settings. The replacement drive should have the correct voltage, power and duty rating for the application. Because the ATV340D55N4E is the Ethernet version, its communication architecture should also be considered when preparing the replacement. After installation, inspect the power wiring, grounding, motor connections, STO circuit and Ethernet connections before energizing the unit. Commissioning should then be performed progressively, beginning with parameter verification and a controlled motor test before returning the machine to full-load operation.
