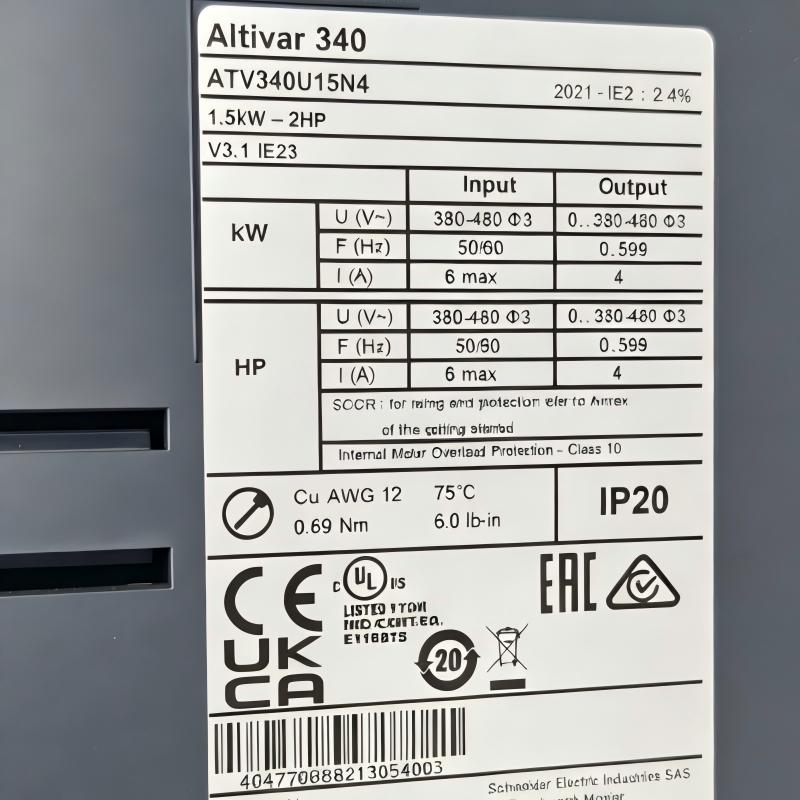

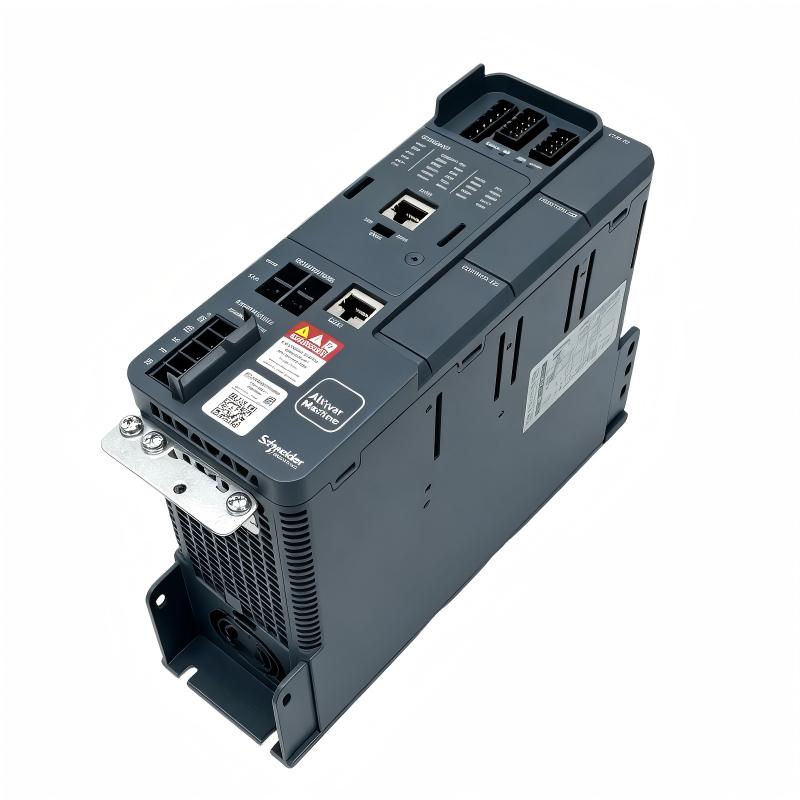

Schneider ATV340U15N4 Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV340U15N4 |
| Product Type | Variable-Speed Drive |
| Product Range | Altivar Machine ATV340 |
| Application | Machine motor control |
| Supply Voltage | 380–480 VAC, 3-phase |
| Supply Frequency | 50–60 Hz ±5% |
| Heavy-Duty Motor Power | 1.5 kW / 2 hp |
| Normal-Duty Motor Power | 2.2 kW / 3 hp |
| Nominal Output Current | 4.0 A at 4 kHz, heavy duty |
| Continuous Output Current | 5.6 A at 4 kHz, normal duty |
| Compatible Motors | Three-phase asynchronous and synchronous motors |
| Motor Control | Open-loop and closed-loop control |
| Maximum Output Frequency | 0.599 kHz |
| Switching Frequency | 2–16 kHz adjustable |
| Nominal Switching Frequency | 4 kHz |
| Acceleration / Deceleration | Linear, S-curve, U-curve or customized, 0.01–9999 s |
| Communication Protocol | Modbus Serial |
| Optional Communication | Profibus DP V1, PROFINET, DeviceNet, CANopen, EtherCAT |
| Digital Inputs | 5 programmable inputs |
| Pulse Input | 0–30 kHz, 24 VDC |
| Analog Inputs | 2 configurable analog inputs |
| Analog Output | 1 configurable analog output |
| Digital Outputs | 2 programmable outputs |
| Preset Speeds | Up to 16 preset speeds |
| Safety Function | Safe Torque Off (STO) |
| Braking Function | Integrated brake chopper and DC injection braking |
| EMC Filter | Integrated Class C3 EMC filter |
| Protection Rating | IP20 |
| Mounting | Cabinet mounting, vertical installation ±10° |
| Cooling Method | Forced convection |
| Operating Altitude | Up to 3000 m, with current derating above 1000 m |
| Typical Applications | Machine automation, conveyors, material handling, pumps, fans and general motor speed control |
| Certifications | UL, CSA, TÜV, EAC, C-Tick and CE |
| Dimensions | 85 × 270 × 232.5 mm |
| Weight | 1.7 kg |
FAQ
1. What is the rated motor power of the Schneider ATV340U15N4?
The ATV340U15N4 is designed for a 1.5 kW (2 hp) motor in heavy-duty operation and a 2.2 kW (3 hp) motor in normal-duty operation.
2. What power supply does the ATV340U15N4 require?
The drive requires a three-phase 380–480 VAC supply at 50–60 Hz ±5%. The permitted supply voltage range is -15% to +10%.
3. What is the nominal output current of the ATV340U15N4?
The nominal output current is 4.0 A for heavy-duty operation at a 4 kHz switching frequency. In normal-duty operation, the continuous output current is 5.6 A at 4 kHz.
4. Which types of motors can the ATV340U15N4 control?
The drive supports three-phase asynchronous and synchronous motors. Motor parameters and the appropriate control mode must be configured according to the motor and application.
5. Does the ATV340U15N4 support industrial communication?
Yes. Modbus Serial communication is provided as standard. Optional communication modules can add protocols such as PROFIBUS DP V1, PROFINET, DeviceNet, CANopen and EtherCAT.
6. What I/O functions are available on the ATV340U15N4?
The drive provides five programmable digital inputs, two configurable analog inputs, one configurable analog output and two programmable digital outputs. The pulse input function supports signals up to 30 kHz.
7. Does the ATV340U15N4 provide braking and safety functions?
Yes. The drive has an integrated brake chopper and supports DC injection braking. It also provides Safe Torque Off (STO), which can be incorporated into an appropriate machine safety circuit.
8. What should be checked if the ATV340U15N4 cannot start the motor?
First check the three-phase input power, motor wiring, motor parameters and run command. Then verify the speed reference, assigned digital inputs, STO status and active fault codes. If an optional communication module is being used, also check the network connection and communication parameters before restarting the drive.
