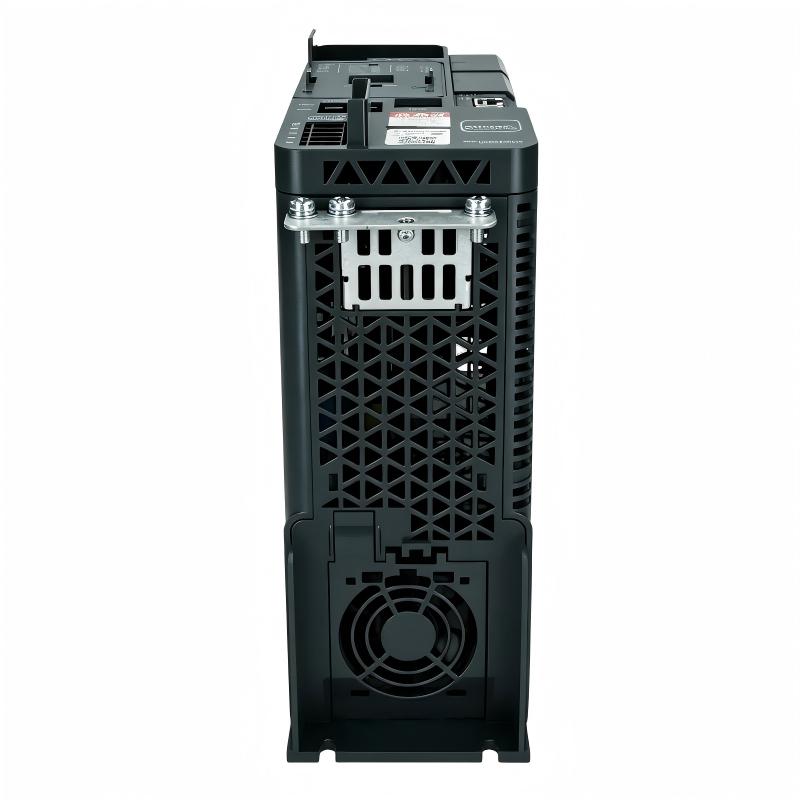

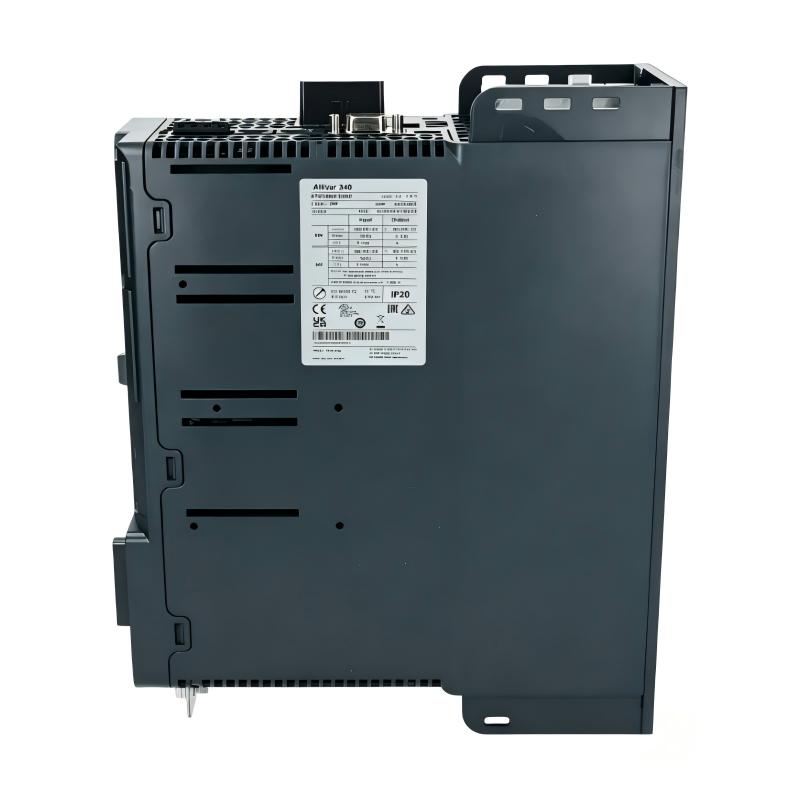

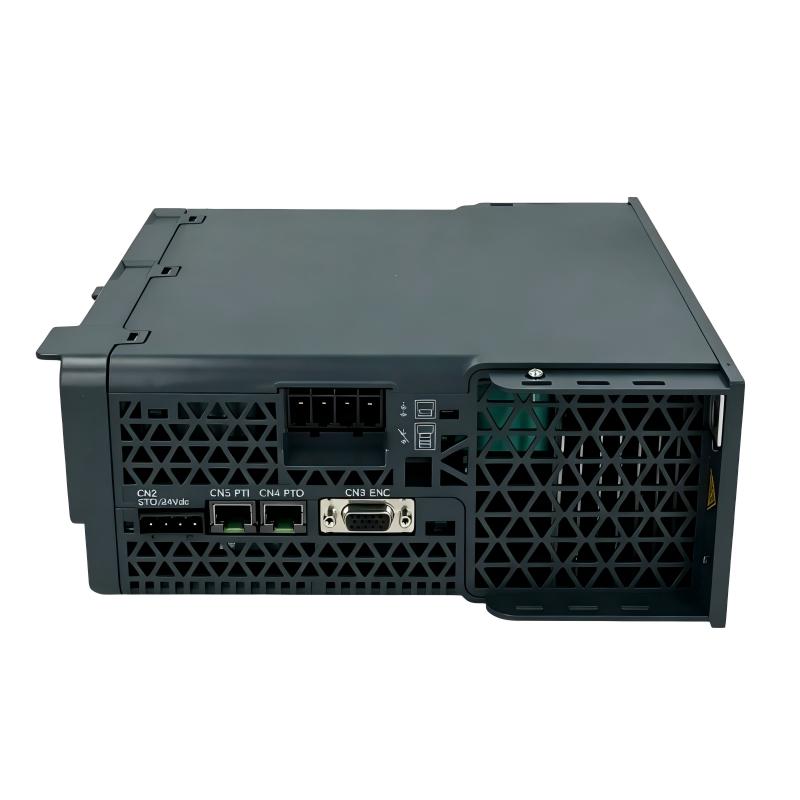

Schneider ATV340U15N4E Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV340U15N4E |
| Product Type | Variable-Speed Drive |
| Product Range | Altivar Machine ATV340 |
| Application | Machine motor control |
| Supply Voltage | 380–480 VAC, 3-phase |
| Supply Frequency | 50–60 Hz ±5% |
| Heavy-Duty Motor Power | 1.5 kW / 2 hp |
| Normal-Duty Motor Power | 2.2 kW / 3 hp |
| Heavy-Duty Output Current | 4.0 A at 4 kHz |
| Normal-Duty Continuous Output Current | 5.6 A at 4 kHz |
| Compatible Motors | Three-phase asynchronous and synchronous motors |
| Motor Control | Open-loop and closed-loop control |
| Output Frequency | 0.1–599 Hz |
| Switching Frequency | 2–16 kHz adjustable |
| Nominal Switching Frequency | 4 kHz |
| Acceleration / Deceleration | Linear, S-curve, U-curve or customized, 0.01–9999 s |
| Standard Communication | Modbus Serial, Modbus TCP, EtherNet/IP |
| Optional Communication | PROFIBUS DP V1, PROFINET, DeviceNet, CANopen, EtherCAT |
| Ethernet | Integrated dual Ethernet ports |
| Digital Inputs | 5 programmable inputs |
| Pulse Input | 0–30 kHz, 24 VDC |
| Analog Inputs | 2 configurable inputs |
| Analog Output | 1 configurable output |
| Digital Outputs | 2 programmable outputs |
| Preset Speeds | Up to 16 preset speeds |
| Safety Function | Safe Torque Off (STO) |
| Braking Function | Integrated brake chopper and DC injection braking |
| EMC Filter | Integrated Class C3 EMC filter |
| Protection Rating | IP20 |
| Cooling Method | Forced convection |
| Mounting | Cabinet mounting, vertical installation ±10° |
| Operating Altitude | Up to 3000 m, with applicable derating above 1000 m |
| Typical Applications | Machine automation, conveyors, material handling, pumps, fans and general motor speed control |
| Configuration Tools | EcoStruxure Machine Expert and SoMove with compatible DTM |
| Certifications | UL, CSA, TÜV, EAC, C-Tick and CE |
| Dimensions | 85 × 270 × 232.5 mm |
| Weight | 1.7 kg |
FAQ
1. What is the rated motor power of the Schneider ATV340U15N4E?
The ATV340U15N4E is designed for 1.5 kW (2 hp) motors in heavy-duty applications and 2.2 kW (3 hp) motors in normal-duty applications.
2. What power supply is required for the ATV340U15N4E?
The drive requires a three-phase 380–480 VAC supply with a frequency of 50–60 Hz ±5%. The specified supply voltage tolerance is -15% to +10%.
3. What is the output current of the ATV340U15N4E?
The heavy-duty continuous output current is 4.0 A at a 4 kHz switching frequency. For normal-duty operation, the continuous output current is 5.6 A at 4 kHz.
4. Which motors can the ATV340U15N4E control?
The drive supports three-phase asynchronous motors and synchronous motors. The motor control parameters should be configured according to the motor type and the required operating mode.
5. Which communication protocols are supported by the ATV340U15N4E?
The integrated communication functions support Modbus Serial, Modbus TCP and EtherNet/IP. Optional communication modules can provide PROFIBUS DP V1, PROFINET, DeviceNet, CANopen or EtherCAT connectivity.
6. What I/O functions are available on the ATV340U15N4E?
The drive provides five programmable digital inputs, two configurable analog inputs, one analog output and two programmable digital outputs. One input can be configured for pulse signals up to 30 kHz.
7. Does the ATV340U15N4E provide braking and safety functions?
Yes. It includes an integrated brake chopper and supports DC injection braking. The drive also provides Safe Torque Off (STO), which can be incorporated into an appropriate machine safety circuit.
8. What should be checked if the ATV340U15N4E does not start the motor?
Check the three-phase supply, motor wiring, motor nameplate parameters, run command and speed reference first. Then check the STO status, active fault codes and assigned I/O functions. If Ethernet or Modbus communication is being used, verify the network connection, communication parameters and control commands before restarting the drive.
Schneider ATV340U15N4E Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
