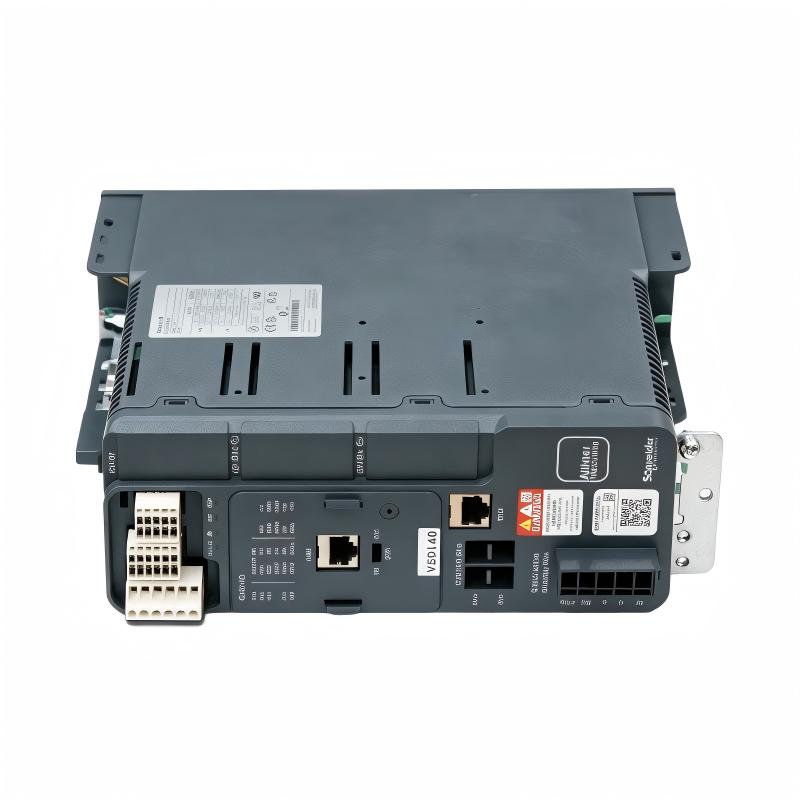

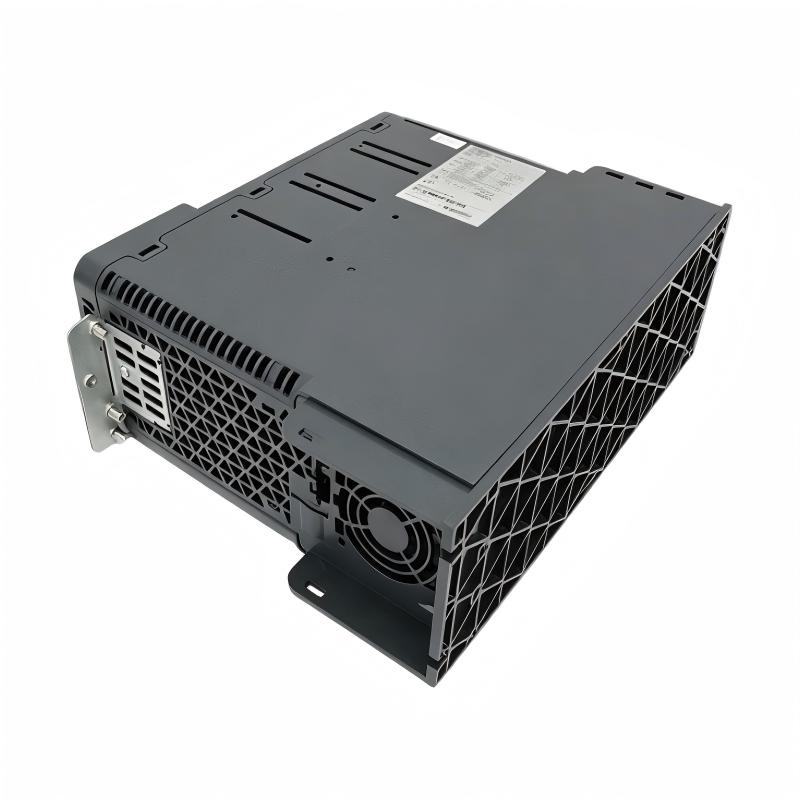

Schneider ATV340U22N4 Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

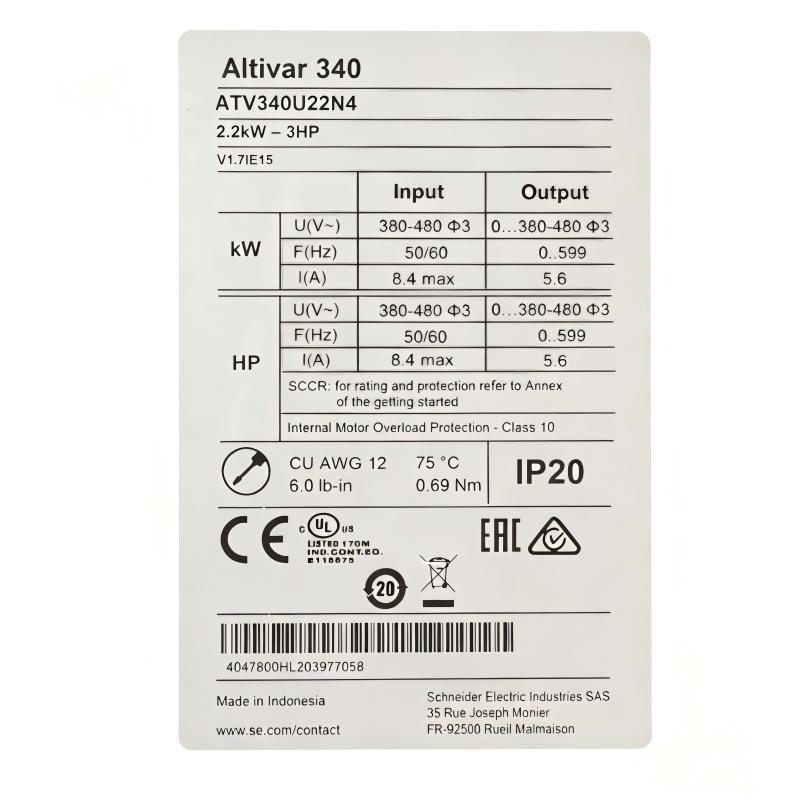

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV340U22N4 |
| Product Type | Variable-Speed Drive |
| Product Range | Altivar Machine ATV340 |
| Application | Machine motor control |
| Supply Voltage | 380–480 VAC, 3-phase |
| Supply Frequency | 50–60 Hz ±5% |
| Heavy-Duty Motor Power | 2.2 kW / 3 hp |
| Normal-Duty Motor Power | 3 kW / 3 hp |
| Nominal Output Current | 5.6 A |
| Maximum Transient Current | 10.1 A for 2 s in heavy-duty operation; 8.0 A for 60 s |
| Compatible Motors | Three-phase asynchronous and synchronous motors |
| Motor Control | Open-loop and closed-loop motor control |
| Maximum Output Frequency | 0.599 kHz |
| Switching Frequency | 2–16 kHz adjustable |
| Nominal Switching Frequency | 4 kHz |
| Acceleration / Deceleration | 0.01–9999 s, linear, S-curve, U-curve or customized |
| Standard Communication | Modbus Serial |
| Optional Communication | PROFIBUS DP V1, PROFINET, DeviceNet, CANopen, EtherCAT |
| Digital Inputs | 5 programmable inputs |
| Pulse Input | 0–30 kHz, 24 VDC |
| Analog Inputs | 2 configurable inputs |
| Analog Output | 1 configurable output |
| Digital Outputs | 2 programmable outputs |
| Preset Speeds | Up to 16 preset speeds |
| Safety Function | Safe Torque Off (STO) |
| Braking Function | Integrated brake chopper and DC injection braking |
| EMC Filter | Integrated Class C3 EMC filter |
| Protection Rating | IP20 |
| Cooling Method | Forced convection |
| Mounting | Cabinet mounting, vertical installation ±10° |
| Operating Altitude | Up to 3000 m, with applicable derating above 1000 m |
| Typical Applications | Machine automation, conveyors, material handling, pumps, fans and general motor speed control |
| Certifications | UL, CSA, TÜV, EAC, C-Tick and CE |
| Dimensions | 85 × 270 × 232.5 mm |
| Weight | 1.8 kg |
FAQ
1. What is the rated motor power of the Schneider ATV340U22N4?
The ATV340U22N4 supports a 2.2 kW / 3 hp motor under heavy-duty operation and a 3 kW / 3 hp motor under normal-duty operation.
2. What power supply does the ATV340U22N4 require?
It requires a three-phase 380–480 VAC power supply with a frequency of 50–60 Hz ±5%. The rated voltage operating range is 380–480 V with a -15% to +10% tolerance.
3. What is the nominal output current of the ATV340U22N4?
The nominal output current is 5.6 A. Under heavy-duty operation, the drive can provide a transient current of up to 10.1 A for 2 seconds.
4. Which motors are compatible with the ATV340U22N4?
The drive is designed for three-phase asynchronous motors and synchronous motors and can be used for a wide range of machine motion and speed-control applications.
5. What communication protocols are supported?
The standard version provides Modbus Serial communication. Optional communication modules are available for PROFIBUS DP V1, PROFINET, DeviceNet, CANopen and EtherCAT.
6. What I/O interfaces are available on the ATV340U22N4?
The drive provides 5 programmable digital inputs, 2 analog inputs, 1 analog output and 2 programmable digital outputs. One digital input can also be configured as a pulse input up to 30 kHz.
7. Does the ATV340U22N4 have built-in braking and safety functions?
Yes. It includes an integrated brake chopper, DC injection braking and Safe Torque Off (STO) functionality for applications requiring controlled stopping and safety-related motor shutdown.
8. What should be checked if the ATV340U22N4 does not start the motor?
Check the three-phase power supply, motor wiring, motor parameters, run command, speed reference, STO inputs and active fault codes. If the drive remains stopped, verify the configured control channel and command source before restarting the motor.
Schneider ATV340U22N4 Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
