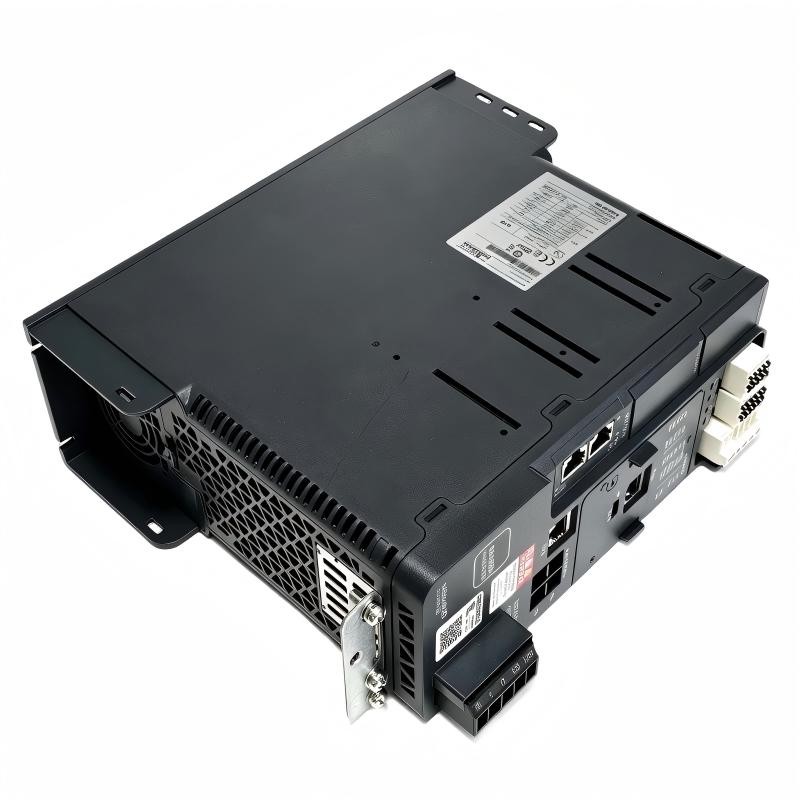

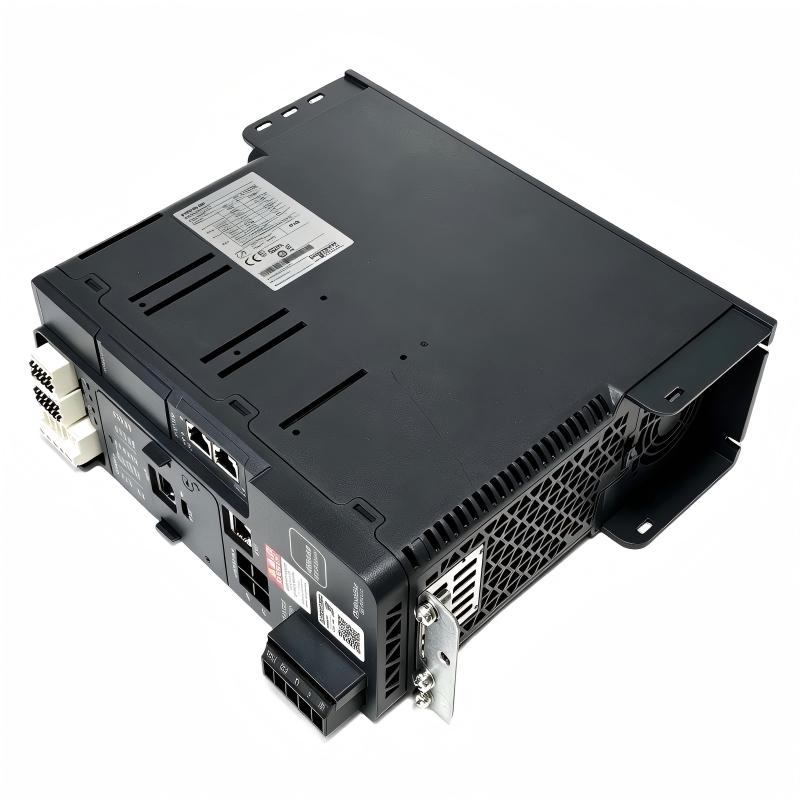

Schneider ATV340U22N4E Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

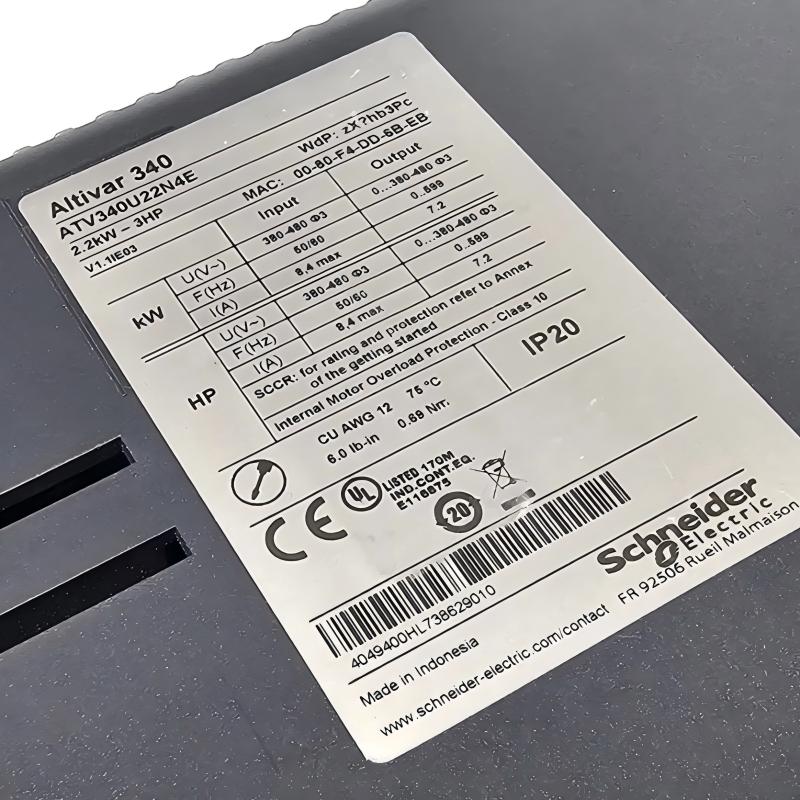

Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV340U22N4E |
| Product Type | Variable-Speed Drive |
| Product Range | Altivar Machine ATV340 |
| Application | Machine motor control |
| Supply Voltage | 380–480 VAC, 3-phase |
| Supply Frequency | 50–60 Hz ±5% |
| Heavy-Duty Motor Power | 2.2 kW / 3 hp |
| Normal-Duty Motor Power | 3 kW / 3 hp |
| Nominal Output Current | 5.6 A |
| Heavy-Duty Transient Current | 10.1 A for 2 s; 8 A for 60 s |
| Normal-Duty Transient Current | 9.7 A for 2 s; 7.9 A for 60 s |
| Compatible Motors | Three-phase asynchronous and synchronous motors |
| Motor Control | Open-loop and closed-loop control |
| Output Frequency | 0.1–599 Hz |
| Switching Frequency | 2–16 kHz adjustable |
| Nominal Switching Frequency | 4 kHz |
| Acceleration / Deceleration | 0.01–9999 s, linear, S-curve, U-curve or customized |
| Standard Communication | Modbus Serial, Modbus TCP, EtherNet/IP |
| Optional Communication | PROFINET, DeviceNet, CANopen, EtherCAT |
| Ethernet | Integrated Ethernet communication |
| Digital Inputs | 5 programmable inputs |
| Pulse Input | 0–30 kHz, 24 VDC |
| Analog Inputs | 2 configurable inputs |
| Analog Output | 1 configurable output |
| Digital Outputs | 2 programmable outputs |
| Relay Outputs | 2 |
| Preset Speeds | Up to 16 preset speeds |
| Safety Function | Safe Torque Off (STO) |
| Braking Function | Integrated brake chopper and DC injection braking |
| EMC Filter | Integrated Class C3 EMC filter |
| Protection Rating | IP20 |
| Cooling Method | Forced convection |
| Mounting | Cabinet mounting, vertical installation |
| Operating Altitude | Up to 3000 m, with applicable derating above 1000 m |
| Configuration Tools | EcoStruxure Machine Expert and SoMove with compatible DTM |
| Typical Applications | Machine automation, conveyors, material handling, pumps, fans and general motor speed control |
| Certifications | CE and applicable regional certifications |
| Dimensions | 85 × 270 × 232.5 mm |
| Weight | 1.8 kg |
FAQ
1. What is the motor power rating of the Schneider ATV340U22N4E?
The ATV340U22N4E is rated for 2.2 kW / 3 hp under heavy-duty operation and 3 kW / 3 hp under normal-duty operation.
2. What power supply does the ATV340U22N4E require?
It requires a three-phase 380–480 VAC supply at 50–60 Hz ±5%. The permitted supply voltage tolerance is -15% to +10%.
3. What is the nominal output current of the ATV340U22N4E?
The nominal output current is 5.6 A at the specified operating conditions. For heavy-duty operation, the drive can provide up to 10.1 A for 2 seconds and 8 A for 60 seconds.
4. Which types of motors can the ATV340U22N4E control?
The drive supports three-phase asynchronous motors and synchronous motors. It can be configured for different machine motor-control requirements.
5. Which communication protocols are supported by the ATV340U22N4E?
The Ethernet version supports Modbus TCP, Modbus Serial and EtherNet/IP as standard communication protocols. Optional modules can provide PROFINET, DeviceNet, CANopen and EtherCAT connectivity.
6. What input and output interfaces are available?
The ATV340U22N4E provides 5 programmable digital inputs, 2 analog inputs, 1 analog output, 2 programmable digital outputs and 2 relay outputs. One digital input can also be configured for pulse signals up to 30 kHz.
7. Does the ATV340U22N4E support safety and braking functions?
Yes. It includes Safe Torque Off (STO), an integrated brake chopper and DC injection braking. These functions can be used for controlled motor stopping and safety-related shutdown applications.
8. What should be checked if the ATV340U22N4E does not start the motor?
Check the three-phase supply, motor wiring, motor nameplate parameters, run command, speed reference, STO status and active fault codes. For network-controlled applications, also check the Ethernet connection, communication settings and configured command channel.
