1. What is the Schneider ATV650U40N4 mainly used for?

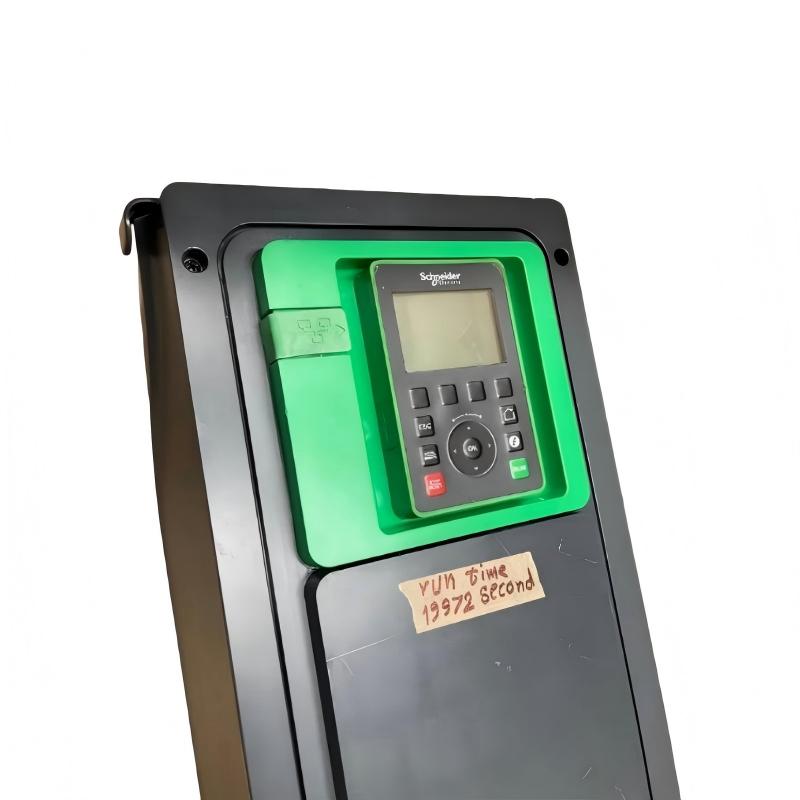

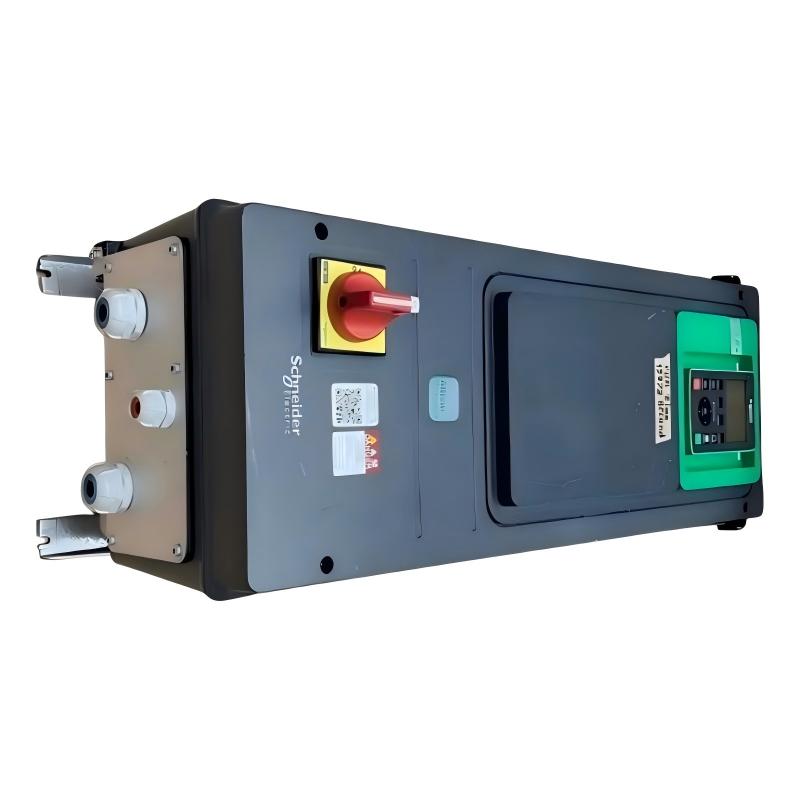

The ATV650U40N4 is a 4 kW Altivar Process variable-speed drive designed for industrial process and utility applications. It is suitable for pumps, fans, conveyors, and other machinery requiring precise motor speed control. In addition to standard speed regulation, the drive provides process monitoring, power measurement, energy management, and asset protection functions for industrial automation systems.

2. What is the difference between Normal Duty and Heavy Duty operation on the ATV650U40N4?
The ATV650U40N4 is rated for 4 kW / 5 HP motors in Normal Duty operation and 3 kW / 4 HP motors in Heavy Duty operation. Normal Duty is generally suitable for applications with moderate overload requirements, while Heavy Duty is intended for applications requiring greater overload capability or higher starting torque. The correct duty rating should be selected according to the actual load profile, starting conditions, and overload requirements of the machine.

3. Can the ATV650U40N4 control both synchronous and asynchronous motors?
Yes. The ATV650U40N4 supports both asynchronous and synchronous motors. The appropriate motor control configuration must be selected according to the motor technology and application. During commissioning, the motor nameplate information, including rated voltage, current, frequency, and other relevant parameters, should be entered accurately to achieve stable speed and torque control.

4. What should be checked before commissioning an ATV650U40N4?
Before commissioning, verify the three-phase 380–480 VAC supply, motor wiring, protective grounding, and all input and output connections. The motor nameplate data should then be entered into the drive, including rated voltage, rated current, and rated frequency. Acceleration and deceleration times, control mode, frequency limits, and command sources should also be configured. A low-load test run is recommended before placing the motor into full process operation.

5. How should an overcurrent fault on the ATV650U40N4 be diagnosed?
Start by checking whether the motor or driven equipment is mechanically overloaded, blocked, or experiencing abnormal friction. Next, inspect the motor cable, terminals, insulation, and phase connections. If the fault occurs mainly during acceleration, check whether the acceleration time is too short and whether the motor parameters are correctly configured. Repeated overcurrent faults should be investigated using the drive fault information, output current, operating frequency, and actual mechanical load rather than simply resetting the drive.

6. Does the ATV650U40N4 have an integrated DC choke?
Yes. The ATV650U40N4 uses an integrated DC choke. This design helps improve the input current characteristics of the drive and can reduce certain power-side harmonic effects. Because the DC choke is integrated, an additional external DC choke is normally not required for the standard drive configuration, although the final power-system design should still be evaluated according to the site electrical conditions and project requirements.

7. Can the ATV650U40N4 communicate with PLC, DCS, or SCADA systems?
Yes. The drive provides Ethernet and RS-485 communication interfaces for integration with PLCs, DCS systems, SCADA platforms, HMIs, and other industrial automation equipment. Communication can be used to monitor operating status, frequency, current, alarms, and fault information, as well as to provide start/stop and speed commands where supported by the control architecture. Communication parameters, addressing, protocol configuration, network topology, shielding, and grounding should be checked during commissioning.

8. How can the ATV650U40N4 improve energy efficiency and process performance?
The ATV650U40N4 includes power measurement and energy-monitoring functions that allow operators to evaluate motor and process energy consumption. Process monitoring, asset protection, and drift monitoring can help identify changes in equipment operating conditions. The Stop and Go function can also reduce unnecessary operation when continuous motor running is not required. For variable-torque loads such as pumps and fans, adjusting motor speed according to actual process demand can provide significant energy savings compared with constant-speed operation.
