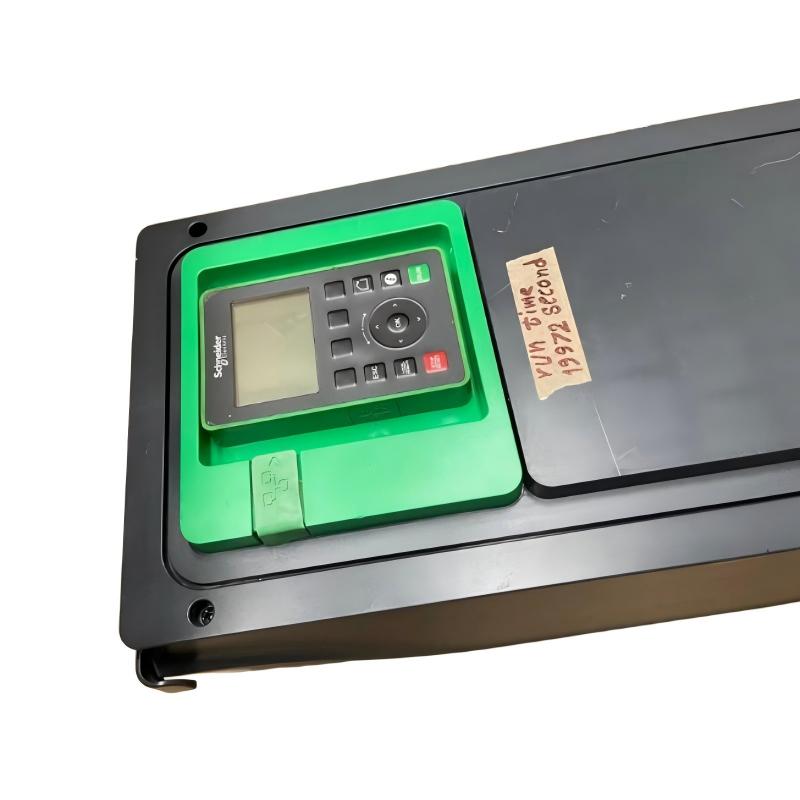

1. What is the Schneider ATV650U40N4E designed for?
The ATV650U40N4E is a 4 kW Altivar Process variable-speed drive designed for industrial process and utility applications. It can be used for pumps, fans, conveyors, and other machinery requiring variable-speed motor control. Its process monitoring, energy measurement, asset protection, and diagnostic functions make it suitable for applications where both motor control and equipment performance need to be monitored.

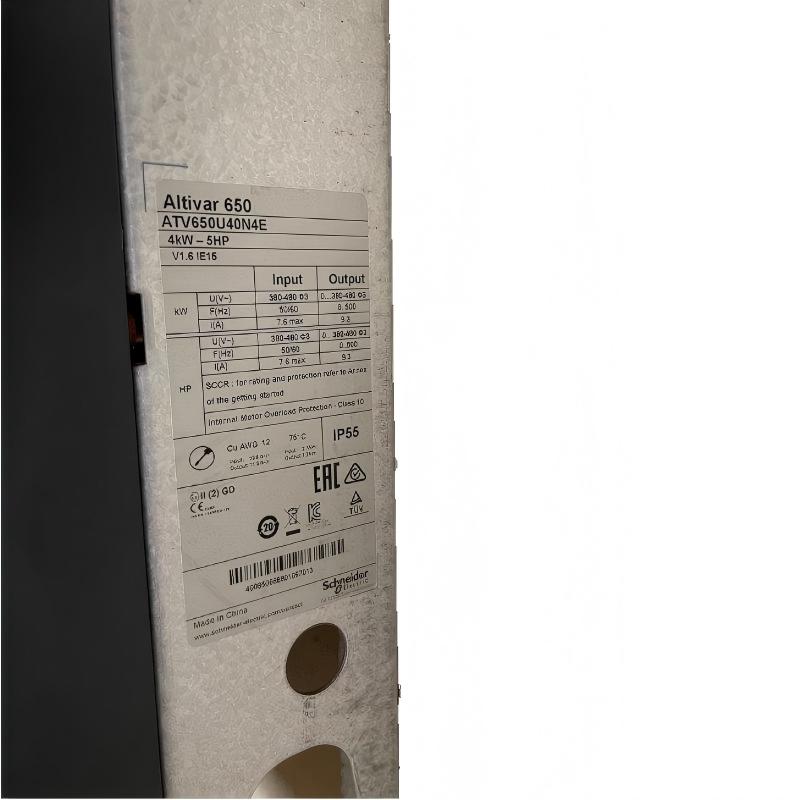

2. What motor power is supported by the ATV650U40N4E?
The drive is rated for motors up to 4 kW / 5 HP in Normal Duty operation and 3 kW / 4 HP in Heavy Duty operation. Normal Duty is appropriate for applications with relatively moderate overload requirements, while Heavy Duty is intended for applications with higher starting torque or more demanding overload conditions. The actual selection should be based on motor current and load characteristics, not motor power alone.

3. What is the main difference between the ATV650U40N4E and ATV650U40N4?

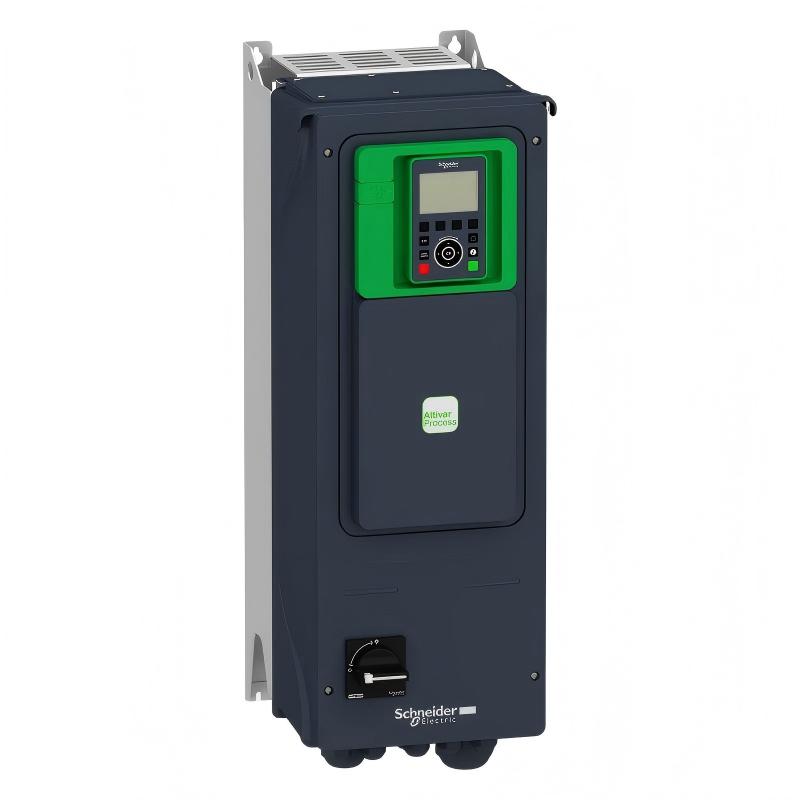

The ATV650U40N4E includes an integrated Vario disconnect switch, while the standard ATV650U40N4 does not. The integrated switch provides local electrical isolation for maintenance and service operations. The E version retains the same basic 4 kW drive class and 380–480 VAC three-phase supply range.

4. Does the ATV650U40N4E support both asynchronous and synchronous motors?
Yes. The ATV650U40N4E is designed to control both asynchronous and synchronous motors. Correct motor parameters and the appropriate control mode must be selected during commissioning. For reliable operation, the motor rated voltage, rated current, rated frequency, and other relevant nameplate data should be entered accurately into the drive.

5. What should be checked before commissioning the ATV650U40N4E?
Before startup, verify the three-phase 380–480 VAC supply, protective grounding, input and motor wiring, and the condition of the motor. Enter the motor nameplate parameters and configure the control mode, acceleration and deceleration times, frequency limits, and command source. The integrated disconnect switch should also be checked for correct operation. A controlled test run should be performed before applying the full process load.

6. How can an overcurrent fault on the ATV650U40N4E be diagnosed?
Check the mechanical load first for blockage, excessive friction, sudden torque increases, or other abnormal conditions. Then inspect the motor cable, terminals, insulation, and phase connections. If the fault occurs during acceleration, check whether the acceleration time is too short or the motor parameters are incorrect. If the fault occurs repeatedly during steady-state operation, compare the motor current with the expected load and investigate mechanical and electrical causes before resetting the drive.

7. Can the ATV650U40N4E be integrated with a PLC, DCS, or SCADA system?
Yes. The drive provides Ethernet and RS-485 interfaces for integration with industrial control systems. Modbus communication can be used to exchange operating commands and diagnostic data with PLCs, HMIs, SCADA systems, and other automation equipment. Depending on the required architecture, additional industrial Ethernet communication options can also be used. Network addressing, protocol parameters, wiring, shielding, and grounding should be verified during commissioning.

8. What functions does the ATV650U40N4E provide for energy and process management?
The ATV650U40N4E includes embedded power measurement and energy-monitoring functions that help operators evaluate equipment consumption. Process monitoring and control functions can be used to maintain operating conditions, while asset monitoring, protection, and drift monitoring support predictive maintenance and early fault detection. The Stop and Go function can reduce unnecessary motor operation. For variable-torque loads such as pumps and fans, adjusting motor speed to match actual process demand can also reduce energy consumption.
