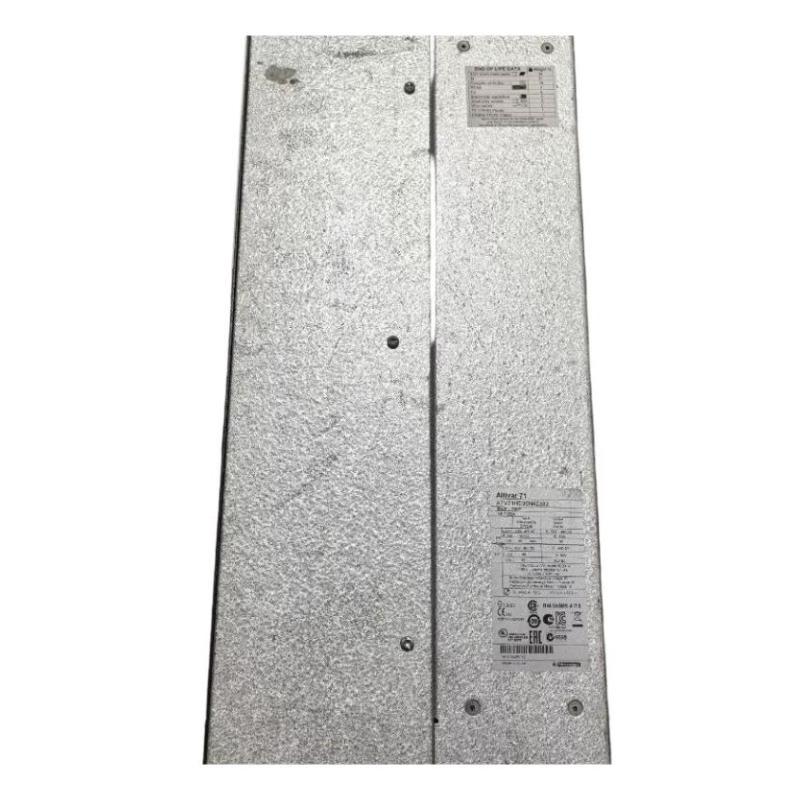

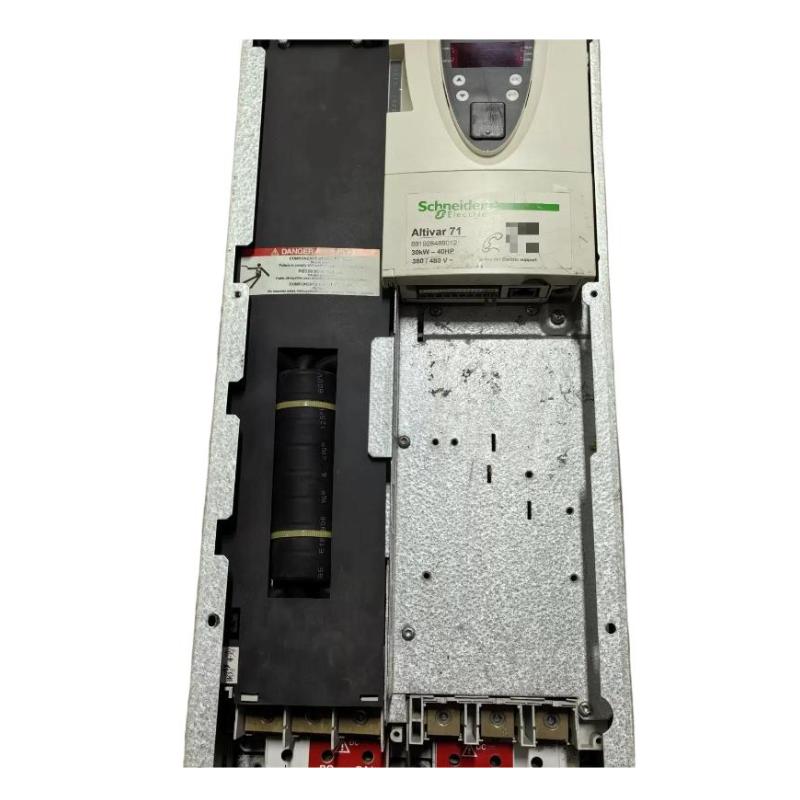

1. What is the main function of the Schneider ATV71HD30N4Z383?
The ATV71HD30N4Z383 is a 30 kW, 480 V-class Altivar 71 variable speed drive designed for demanding industrial motor-control applications. It regulates motor speed and torque by controlling the supplied electrical frequency and voltage. The unit supports synchronous and asynchronous motor control and can be integrated into industrial automation systems through its available control and communication functions.

2. Can the ATV71HD30N4Z383 be used with permanent magnet synchronous motors?
Yes. The ATV71HD30N4Z383 is specified for applications involving permanent magnet synchronous motors and supports vector-based motor control. Correct motor identification and parameter configuration are important when commissioning a permanent magnet motor. Motor nameplate data, feedback requirements, control mode, and application-specific parameters should be configured according to the motor and drive combination.

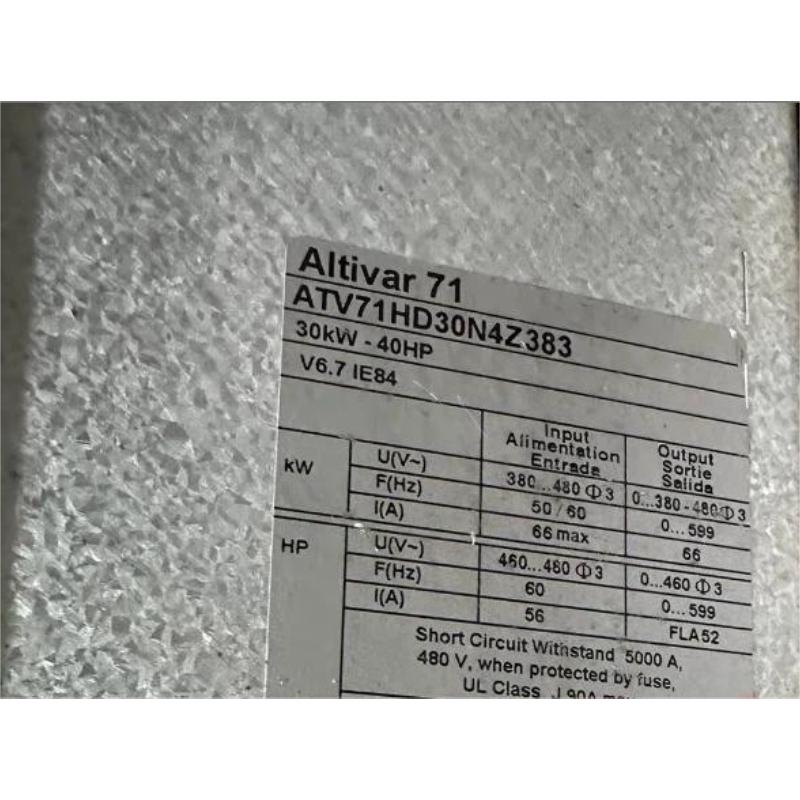

3. What are the rated voltage and power of the ATV71HD30N4Z383?
The drive is rated for 380–480 V AC, three-phase power supply and is intended for 30 kW / 40 HP motor applications. The supply voltage tolerance is specified as -15% to +10%. The nominal output current is up to 52 A at 460 V and 66 A at 380 V at a 4 kHz switching frequency, with higher transient current available for short-duration overload conditions.

4. What should be checked if the motor does not start after commissioning?
First verify that the drive has the correct three-phase input supply and that no active fault or warning is preventing operation. Then check the motor parameters, run command source, reference source, acceleration settings, motor wiring, and any installed speed-feedback device. For a permanent magnet synchronous motor, incorrect motor data or an unsuitable control configuration can prevent correct starting. The drive’s fault history and monitoring parameters should be reviewed before changing hardware.

5. What can cause an overcurrent or overload fault on the ATV71HD30N4Z383?
Possible causes include excessive mechanical load, incorrect motor parameters, an acceleration ramp that is too short, motor cable problems, phase-to-phase faults, grounding problems, or inappropriate motor-control settings. For permanent magnet motors, incorrect motor identification or feedback configuration can also affect current regulation. Troubleshooting should begin with the drive’s fault code and operating measurements, followed by inspection of the motor, cabling, mechanical load, and configuration parameters.

6. What is the maximum recommended motor cable length?
The specified maximum motor cable length is 100 m when using shielded cable and 200 m when using unshielded cable. Cable selection and installation become increasingly important as cable length increases because cable capacitance, electromagnetic interference, voltage drop, and motor insulation stress can affect drive performance. Proper grounding and shielding practices should be followed, particularly in installations with sensitive control or communication equipment.

7. How should the ATV71HD30N4Z383 be configured for a permanent magnet synchronous motor?
The motor’s rated electrical and mechanical data should first be entered accurately into the drive. The appropriate synchronous-motor control mode should then be selected, with speed feedback configured when required by the application. Motor identification or commissioning procedures should be completed according to the applicable Altivar 71 setup procedure. After configuration, verify motor rotation, current, speed response, acceleration, deceleration, and fault monitoring at low speed before applying the full operating load.

8. What should be checked if the drive operates intermittently or communication is lost?
For intermittent operation, check the incoming power, control wiring, motor feedback connections, grounding, and drive fault history. If the problem involves CANopen or Modbus, inspect communication wiring, termination, addressing, baud-rate or communication settings, and the status of the connected controller. Electromagnetic interference can also cause intermittent communication problems, so cable routing and shielding should be reviewed. If the drive repeatedly generates the same fault after these checks, the fault code and operating conditions should be used to determine whether the problem is related to configuration, external wiring, or the drive itself.
