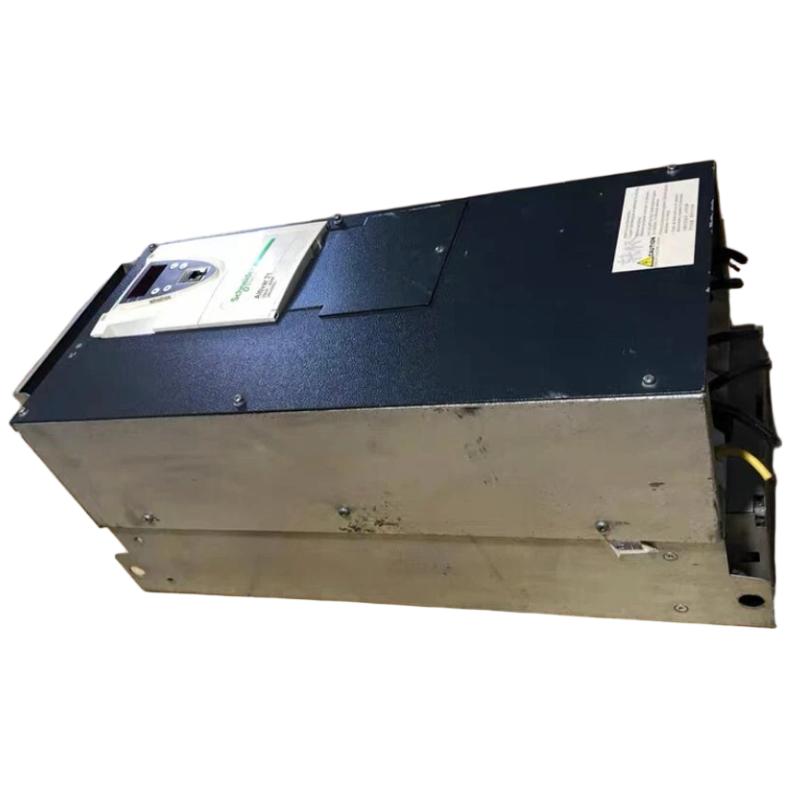

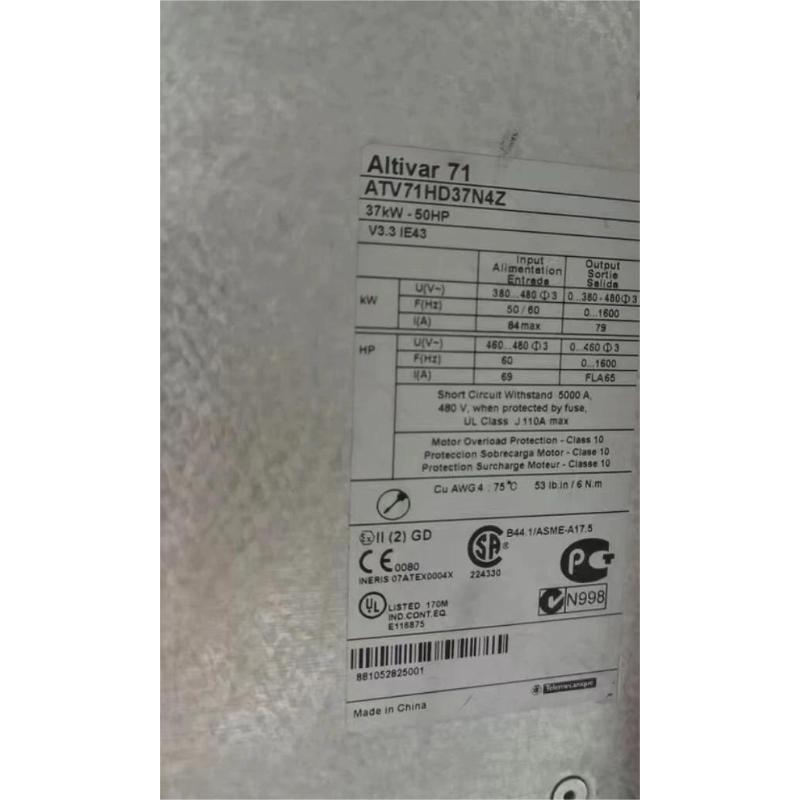

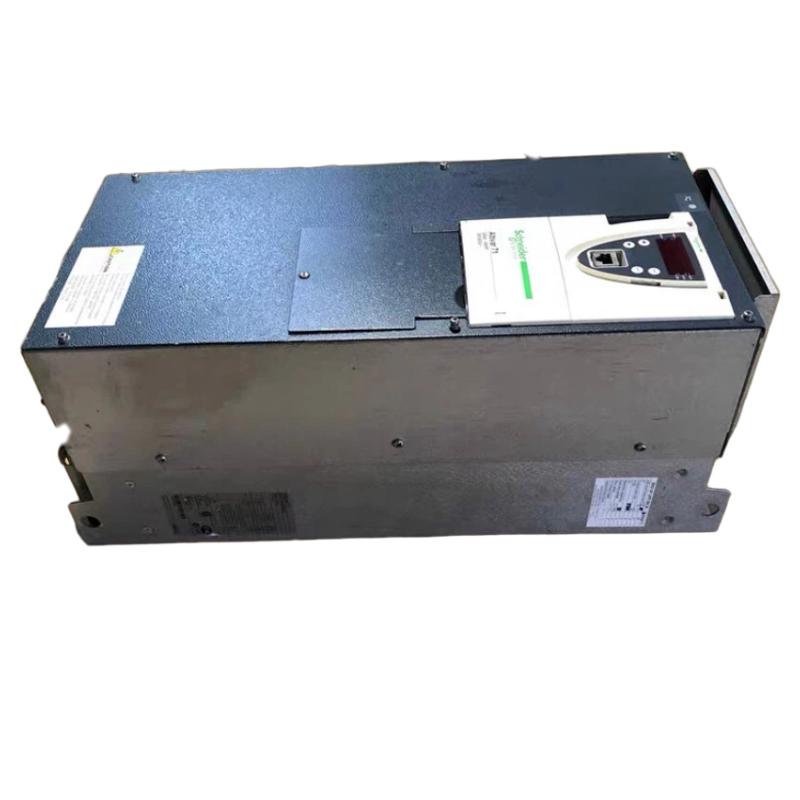

Schneider ATV71HD37N4Z Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ATV71HD37N4Z |
| Product Type | Variable Speed Drive |
| Manufacturer | Schneider Electric |
| Product Series | Altivar 71 |
| Application | Complex, high-power industrial machines |
| Motor Power | 37 kW / 50 HP |
| Motor Compatibility | 3-phase asynchronous and synchronous motors |
| Rated Supply Voltage | 380–480 V AC |
| Supply Voltage Tolerance | -15% to +10% |
| Supply Phase | 3-phase |
| Supply Frequency | 50/60 Hz |
| Line Current | 84 A at 380 V; 69 A at 480 V |
| Apparent Power | 55.3 kVA at 380 V |
| Integrated EMC Filter | Yes |
| Cooling / Assembly | Integrated heat sink |
| Nominal Output Current | 79 A at 380 V; 65 A at 460 V, 2.5 kHz |
| Maximum Transient Current | 130 A for 2 s; 118.5 A for 60 s |
| Output Frequency | 0.1–599 Hz |
| Nominal Switching Frequency | 2.5 kHz |
| Adjustable Switching Frequency | 1–16 kHz |
| Motor Control | V/F control, sensorless flux vector control, flux vector control with sensor |
| Maximum Motor Cable Length | 100 m shielded; 200 m unshielded |
| Communication Interfaces | CANopen, Modbus |
| Graphic Terminal | Not included |
| Protection Rating | IP20 |
| Typical Installation | Industrial control cabinet |
| Product Status | Discontinued / Service Support |
| Dimensions | 550 × 266 × 240 mm |
| Weight | 37 kg |
FAQ
1. What is the main function of the Schneider ATV71HD37N4Z?
The ATV71HD37N4Z is a 37 kW Altivar 71 variable speed drive designed to control the speed, torque, acceleration, and deceleration of three-phase industrial motors. It is intended for demanding machine applications where adjustable motor control and configurable operating characteristics are required.
2. What motor power is supported by the ATV71HD37N4Z?
The drive is rated for motors up to 37 kW, equivalent to approximately 50 HP, on a three-phase 380–480 V supply. Motor selection should also consider the motor rated current and the actual load characteristics rather than relying on power rating alone.
3. What input voltage does the ATV71HD37N4Z require?
The drive uses a three-phase AC supply from 380 to 480 V, with a permitted voltage tolerance of approximately -15% to +10%. The installation should provide suitable upstream protection and switching equipment according to the drive and system requirements.
4. What is the output current of the ATV71HD37N4Z?
The nominal output current is up to 79 A at 380 V and 65 A at 460 V under the specified switching-frequency conditions. The drive can also provide short-duration overload capability, reaching approximately 118.5 A for 60 seconds and 130 A for 2 seconds.
5. Can the ATV71HD37N4Z control synchronous motors?
Yes. The Altivar 71 platform supports both asynchronous and synchronous motor applications. For a synchronous motor, the motor parameters and control mode must be configured correctly so that the drive can establish appropriate voltage, current, and control characteristics.
6. What should be checked if the motor does not start after installing the drive?
First verify the incoming three-phase supply, drive status, control commands, motor wiring, and active fault codes. Then check the configured motor rated voltage, current, frequency, and power parameters. If an external start command is used, confirm that the assigned digital input and control channel are correctly configured.
7. What should be checked when the ATV71HD37N4Z frequently reports an overcurrent fault?
Check for mechanical overload, excessive acceleration or deceleration settings, incorrect motor parameters, phase-to-phase or phase-to-ground wiring problems, and motor bearing or load problems. If the fault occurs only during acceleration, increasing the acceleration time and checking the load inertia can help identify whether the problem is related to the acceleration profile.
8. How can communication problems with the ATV71HD37N4Z be diagnosed?
Check the CANopen or Modbus wiring, communication address, baud-rate settings, termination, grounding, and network topology. The drive’s communication configuration should match the PLC or controller. If communication drops intermittently, inspect cable shielding, connector quality, electrical noise, and whether other devices on the network are generating communication conflicts.
Schneider ATV71HD37N4Z Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
