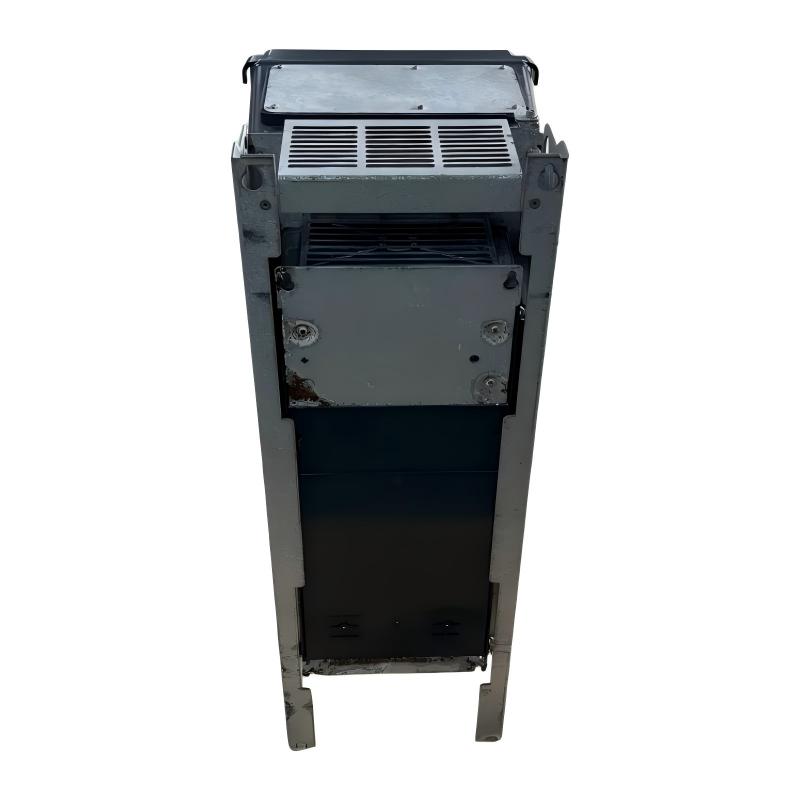

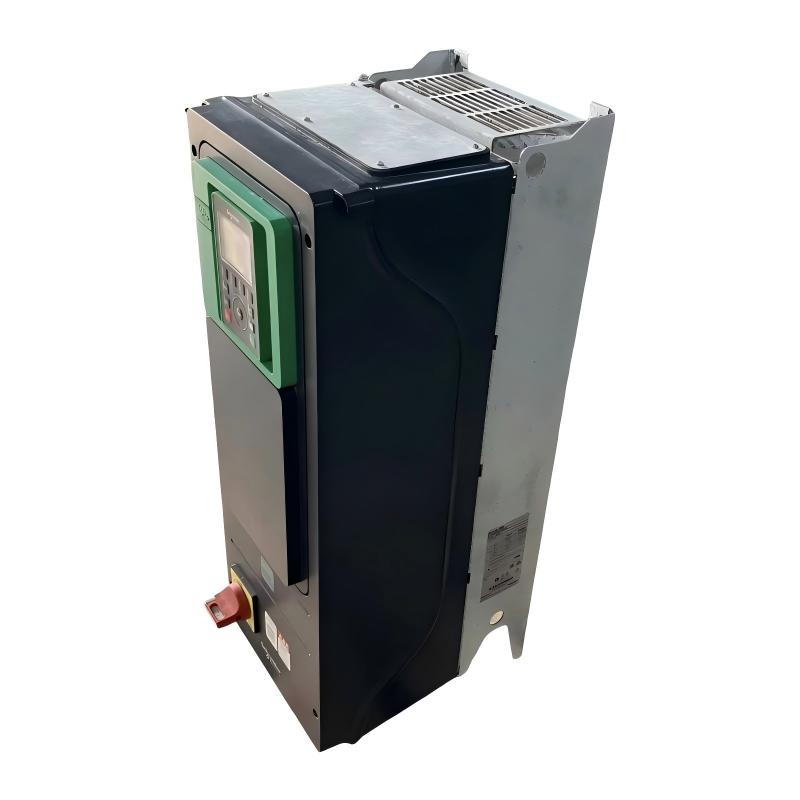

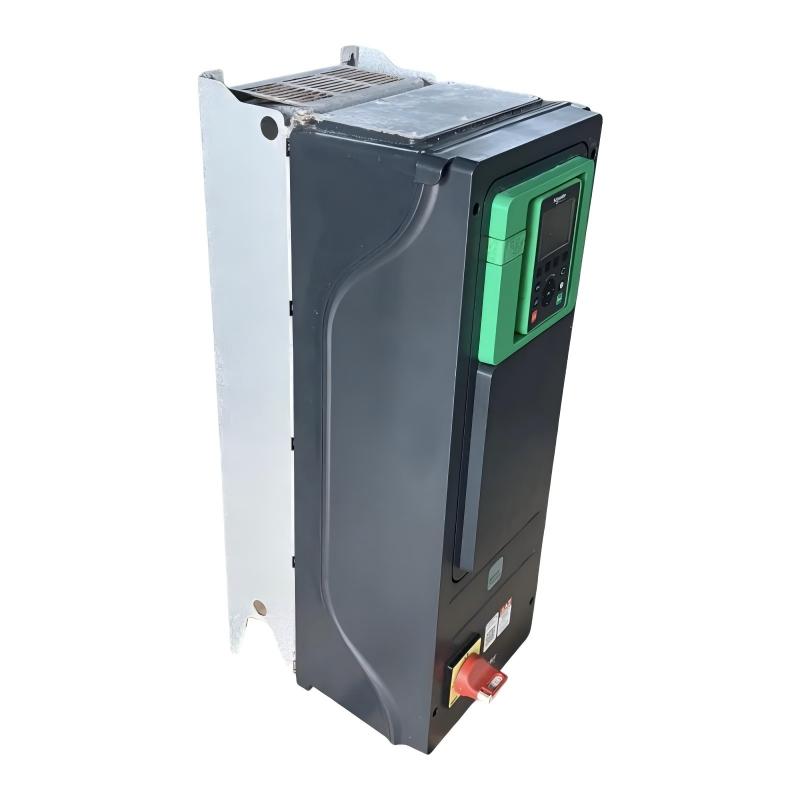

Schneider ATV950D15N4E Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | ATV950D15N4E |
| Brand | Schneider Electric |
| Product Series | Altivar Process ATV900 |
| Product Type | Variable-Speed Drive |
| Model | ATV950 |
| Rated Motor Power | 15 kW / 20 HP (Normal Duty) |
| Heavy-Duty Motor Power | 11 kW / 15 HP |
| Rated Supply Voltage | 380–480 VAC |
| Supply Frequency | 50–60 Hz |
| Input Phases | 3-phase |
| Output Phases | 3-phase |
| Nominal Output Current | 31.7 A |
| Motor Type | Synchronous and asynchronous motors |
| Maximum Output Frequency | 500 Hz |
| Overload Capacity | Up to 120% for normal-duty applications; up to 150% for heavy-duty applications |
| Braking Function | Integrated braking chopper |
| EMC Filter | Integrated |
| EMC Category | C2 with motor cable up to 50 m; C3 with motor cable up to 150 m |
| Protection Rating | IP55 |
| Mounting | Wall mounting |
| Cooling Method | Forced convection |
| Communication | Modbus Serial, Modbus TCP, EtherNet/IP |
| Expansion Capability | Optional communication, I/O and encoder interface modules |
| Typical Applications | Industrial process control, pumps, fans, compressors, conveyors and other motor-driven equipment |
| Dimensions | 264 × 678 × 330 mm |
| Weight | 19.6 kg |
FAQ
1. What is the Schneider ATV950D15N4E Variable-Speed Drive used for?
The ATV950D15N4E is an Altivar Process ATV900 variable-speed drive designed to control three-phase synchronous and asynchronous motors. It provides adjustable motor speed, torque and process control for industrial applications where accurate and reliable motor operation is required.
2. What motor power is supported by the ATV950D15N4E?
The drive is rated for motors up to 15 kW / 20 HP under normal-duty conditions. For heavy-duty applications with higher overload requirements, the applicable motor rating is 11 kW / 15 HP.
3. What is the input voltage range of the ATV950D15N4E?
The ATV950D15N4E operates from a three-phase 380–480 VAC supply with a nominal frequency of 50–60 Hz. The incoming supply should be checked against the drive’s electrical specifications before installation.
4. What is the nominal output current of the ATV950D15N4E?
The nominal output current is 31.7 A. The actual current requirement depends on the motor rating, operating mode, load profile, ambient conditions and selected duty class. The drive should be sized according to the motor nameplate and application requirements.
5. Does the ATV950D15N4E support both synchronous and asynchronous motors?
Yes. The ATV950D15N4E can control both synchronous and asynchronous three-phase motors. Correct motor-control parameters, motor identification and drive configuration must be selected according to the motor type and application.
6. Does the ATV950D15N4E have an integrated braking function?
Yes. The ATV950D15N4E includes an integrated braking chopper. This allows the drive to work with an appropriate braking resistor when additional braking capability is required, subject to the applicable braking and installation specifications.
7. What communication interfaces are available on the ATV950D15N4E?
The drive supports Modbus Serial, Modbus TCP and EtherNet/IP communication. Optional communication modules are also available for other industrial networks, allowing the drive to be integrated into PLC, DCS and industrial Ethernet control architectures.
8. How should the ATV950D15N4E be commissioned and troubleshot?
Commissioning should begin by verifying the incoming three-phase supply, motor wiring, grounding, control terminals and motor nameplate data. Configure the motor parameters and control mode before running the motor. For faults, check the drive fault code, DC bus condition, motor current, acceleration/deceleration settings, load condition and communication status. If an overcurrent or overload fault occurs repeatedly, inspect the motor and mechanical load before replacing the drive.
Schneider ATV950D15N4E Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
