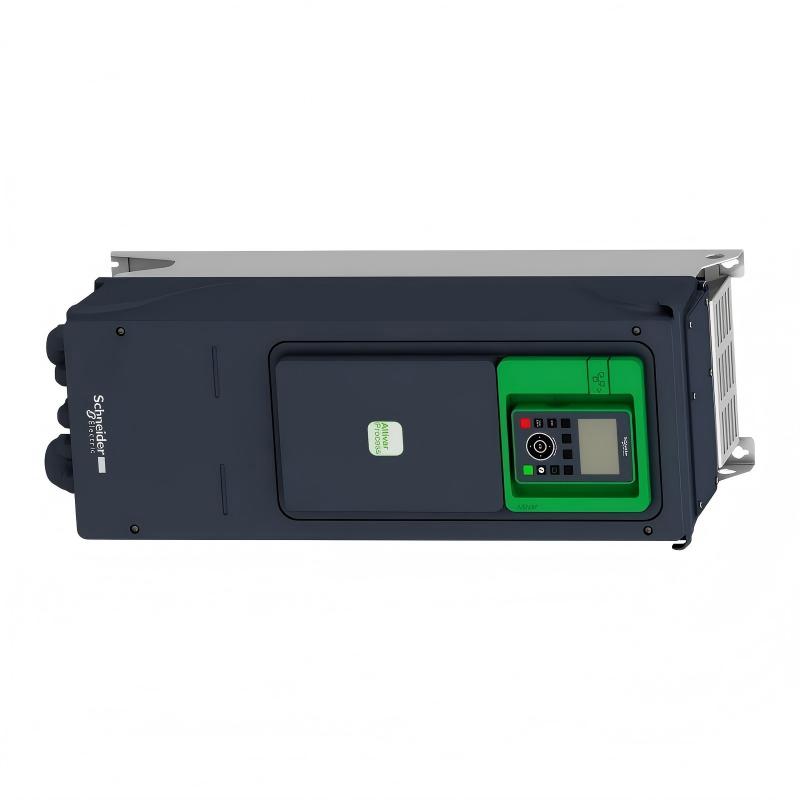

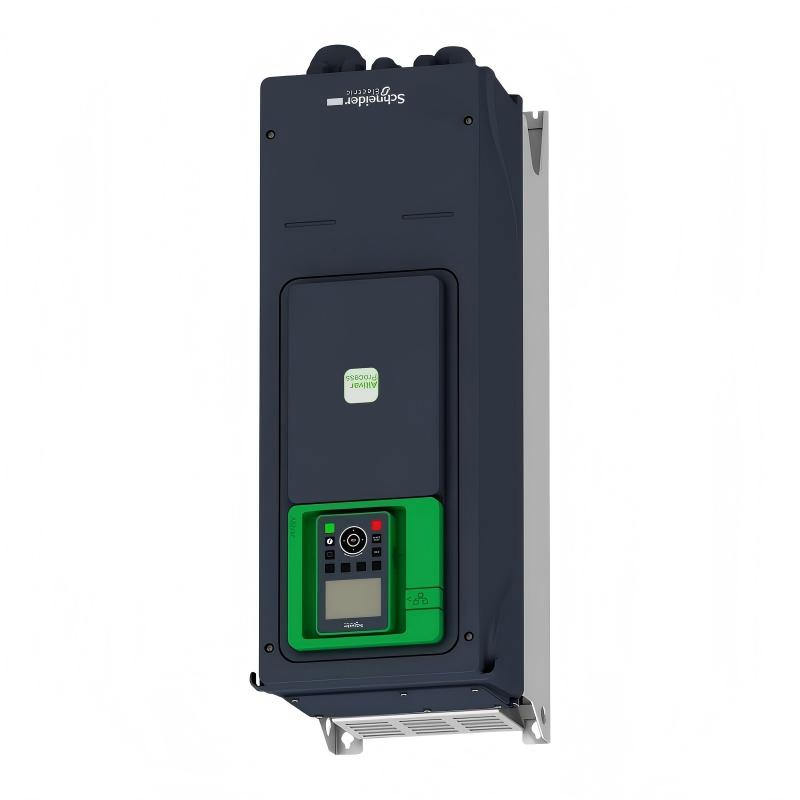

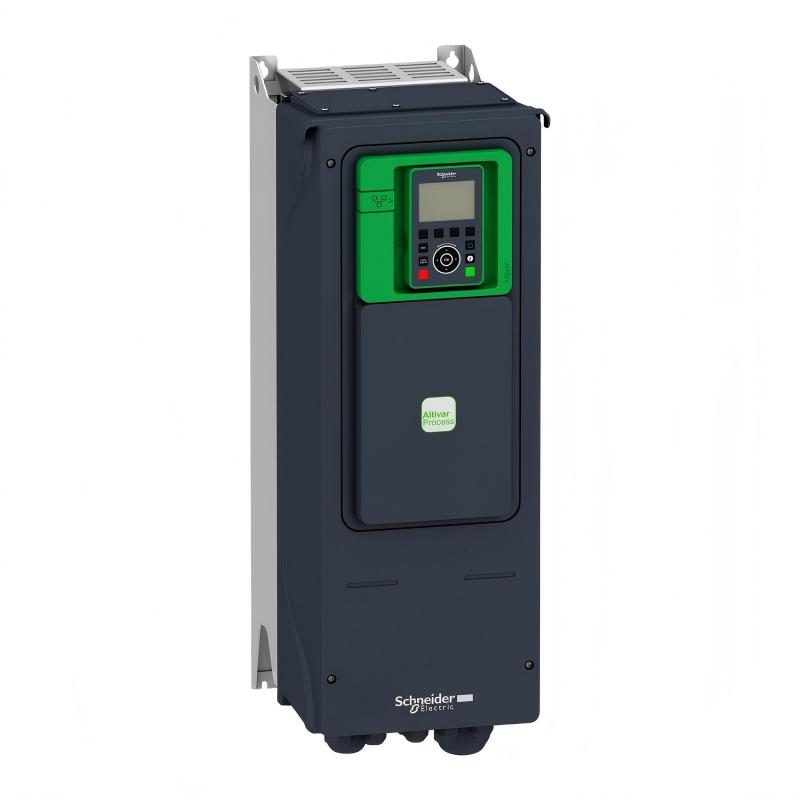

Schneider ATV950D18N4 Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | ATV950D18N4 |
| Brand | Schneider Electric |
| Product Series | Altivar Process ATV900 |
| Product Type | Variable-Speed Drive |
| Device Model | ATV950 |
| Application | Industrial motor control |
| Rated Supply Voltage | 380–480 VAC |
| Supply Frequency | 50–60 Hz |
| Input Phases | 3-phase |
| Output Phases | 3-phase |
| Motor Power – Normal Duty | 18.5 kW / 25 HP |
| Motor Power – Heavy Duty | 15 kW / 20 HP |
| Continuous Output Current – Normal Duty | 39.2 A at 4 kHz |
| Continuous Output Current – Heavy Duty | 31.7 A at 4 kHz |
| Maximum Transient Current | 47.6 A for 60 s |
| Maximum Output Frequency | 500 Hz |
| Motor Compatibility | Synchronous and asynchronous motors |
| Braking Function | Integrated braking chopper |
| EMC Filter | Integrated, Category C2 up to 50 m motor cable; Category C3 up to 150 m |
| Protection Rating | IP55 |
| Cooling Method | Forced convection |
| Mounting | Wall mounting |
| Communication | Modbus Serial, Modbus TCP, EtherNet/IP |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Digital Inputs | 8 |
| Digital Outputs | 1 |
| Expansion | Optional communication, I/O and encoder modules |
| Typical Applications | Industrial process control, pumps, fans, compressors, conveyors and motor-driven equipment |
| Dimensions | 264 × 678 × 299 mm |
| Weight | 20.6 kg |
FAQ
1. What is the Schneider ATV950D18N4 Variable-Speed Drive used for?
The ATV950D18N4 is an Altivar Process ATV900 variable-speed drive designed for controlling three-phase synchronous and asynchronous motors. It is intended for industrial applications requiring adjustable motor speed, torque control and integration with automation or process-control systems.
2. What motor power does the ATV950D18N4 support?
The drive supports motors rated at 18.5 kW / 25 HP under normal-duty conditions. For heavy-duty applications, the applicable motor power is 15 kW / 20 HP. The correct duty rating should be selected according to the actual load profile and motor operating conditions.
3. What are the input voltage and frequency requirements?
The ATV950D18N4 uses a three-phase 380–480 VAC supply and operates at 50–60 Hz. The permitted supply voltage tolerance is -15% to +10%, while the mains frequency tolerance is ±5%.
4. What is the output current rating of the ATV950D18N4?
The continuous output current is 39.2 A at 4 kHz for normal-duty operation and 31.7 A at 4 kHz for heavy-duty operation. The drive can provide up to 47.6 A of transient current for 60 seconds under the specified heavy-duty conditions.
5. Does the ATV950D18N4 support synchronous and asynchronous motors?
Yes. The ATV950D18N4 supports both synchronous and asynchronous motors. During commissioning, the motor type and nameplate data must be correctly entered so that the drive can apply the appropriate motor-control parameters.
6. Does the ATV950D18N4 have an integrated braking chopper?
Yes. This model includes an integrated braking chopper. When additional dynamic braking is required, a suitable braking resistor can be connected according to the drive’s braking specifications and application requirements.
7. What communication protocols can be used with the ATV950D18N4?
The drive supports Modbus Serial, Modbus TCP and EtherNet/IP communication. Optional communication modules can also be used to extend connectivity to other industrial networks, allowing integration with PLC, DCS, HMI and plant-level automation systems.
8. How should the ATV950D18N4 be commissioned and troubleshot?
Before commissioning, check the three-phase supply, grounding, motor wiring, control terminals and motor nameplate data. Configure the motor parameters, control mode and acceleration/deceleration settings before performing a test run. For fault diagnosis, check the displayed fault code, input voltage, output current, DC bus condition, motor load, communication status and thermal conditions. Repeated overcurrent or overload faults should also be investigated at the motor and mechanical-load level.
Schneider ATV950D18N4 Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
