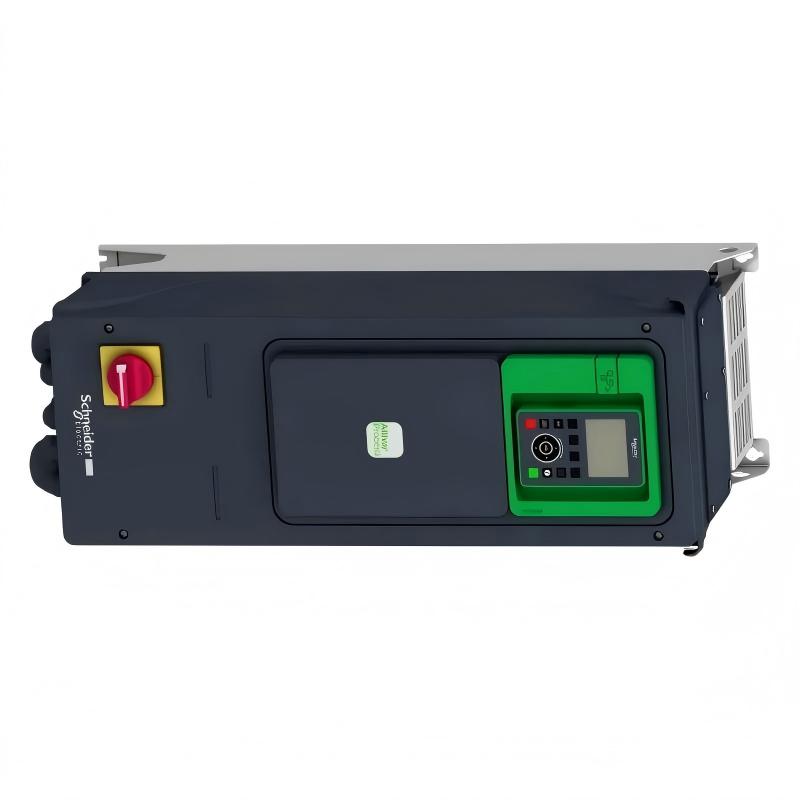

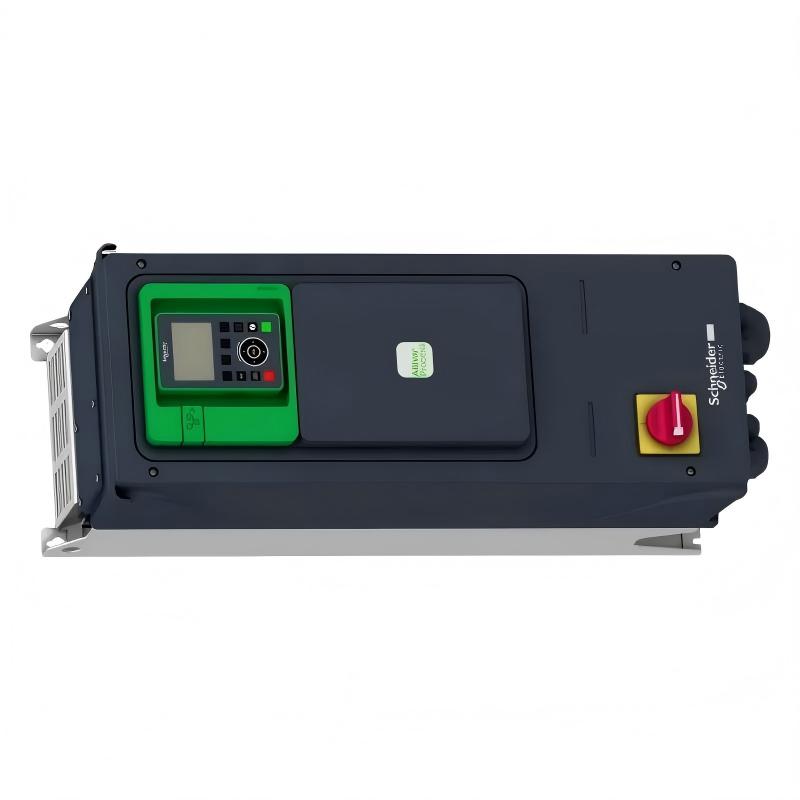

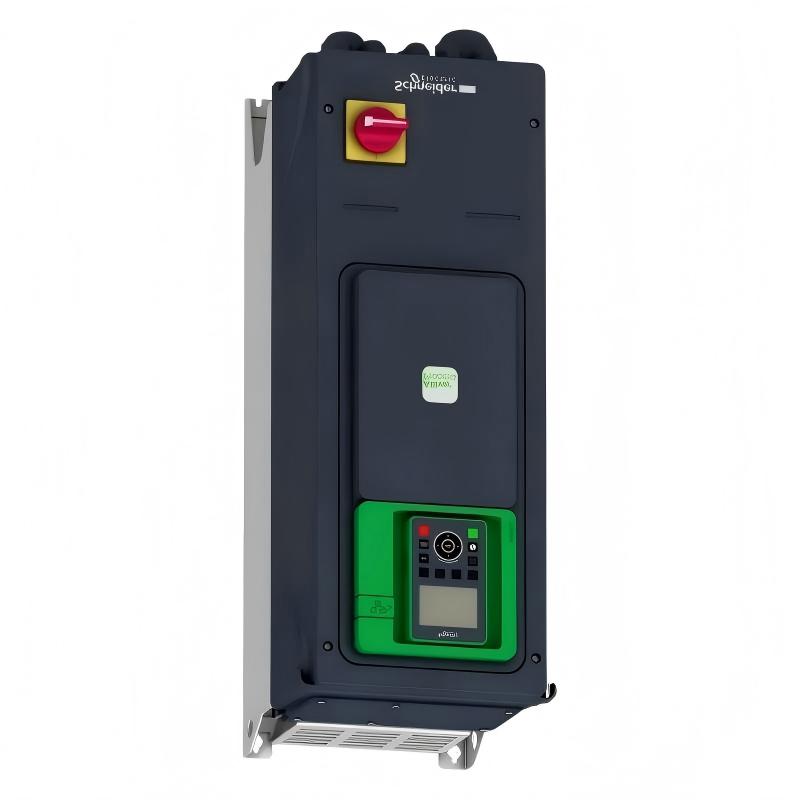

Schneider ATV950D18N4E Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | ATV950D18N4E |
| Brand | Schneider Electric |
| Product Series | Altivar Process ATV900 |
| Product Type | Variable-Speed Drive |
| Device Model | ATV950 |
| Application | Industrial motor control |
| Rated Supply Voltage | 380–480 VAC |
| Supply Frequency | 50–60 Hz |
| Input Phases | 3-phase |
| Output Phases | 3-phase |
| Motor Power – Normal Duty | 18.5 kW / 25 HP |
| Motor Power – Heavy Duty | 15 kW / 20 HP |
| Continuous Output Current – Normal Duty | 39.2 A at 4 kHz |
| Continuous Output Current – Heavy Duty | 31.7 A at 4 kHz |
| Maximum Transient Current | 47.6 A for 60 s |
| Maximum Output Frequency | 599 Hz |
| Motor Compatibility | Synchronous and asynchronous motors |
| Braking Function | Integrated braking chopper |
| EMC Filter | Integrated, Category C2 up to 50 m motor cable; Category C3 up to 150 m |
| Protection Rating | IP55 |
| Cooling Method | Forced convection |
| Mounting | Wall mounting |
| Communication Protocols | Modbus Serial, Modbus TCP, EtherNet/IP |
| Switching Frequency | 2–16 kHz adjustable |
| Nominal Switching Frequency | 4 kHz |
| Safety Functions | Safe Torque Off (STO), Safe Stop 1 (SS1), Safely Limited Speed (SLS), Safe Brake Control (SBC/SBT) |
| Typical Applications | Industrial process control, pumps, fans, compressors, conveyors and other motor-driven equipment |
| Dimensions | 264 × 678 × 330 mm |
| Weight | 20.6 kg |
FAQ
1. What is the Schneider ATV950D18N4E Variable-Speed Drive used for?
The ATV950D18N4E is an Altivar Process ATV900 variable-speed drive designed to control three-phase synchronous and asynchronous motors. It is intended for industrial process applications requiring adjustable speed, torque control and integration with automation systems.
2. What motor power does the ATV950D18N4E support?
The drive supports motors rated at 18.5 kW / 25 HP under normal-duty conditions and 15 kW / 20 HP under heavy-duty conditions. The appropriate rating should be selected according to the motor nameplate data and actual load profile.
3. What are the input voltage and frequency requirements?
The ATV950D18N4E requires a three-phase 380–480 VAC supply and operates at 50–60 Hz. The rated supply voltage tolerance is -15% to +10%, with a mains frequency tolerance of ±5%.
4. What is the continuous output current of the ATV950D18N4E?
The continuous output current is 39.2 A at 4 kHz for normal-duty operation and 31.7 A at 4 kHz for heavy-duty operation. Under specified heavy-duty conditions, the drive can provide a maximum transient current of 47.6 A for 60 seconds.
5. Does the ATV950D18N4E support both synchronous and asynchronous motors?
Yes. The drive supports both synchronous and asynchronous motors. It also supports permanent-magnet and synchronous-reluctance motor control profiles. Correct motor type and nameplate parameters must be configured during commissioning.
6. Does the ATV950D18N4E include a braking chopper?
Yes. The ATV950D18N4E has an integrated braking chopper. When additional dynamic braking is required, an appropriate braking resistor can be connected according to the drive’s braking specifications and application requirements.
7. Which communication protocols are supported by the ATV950D18N4E?
The standard communication interfaces support Modbus Serial, Modbus TCP and EtherNet/IP. Optional communication modules can extend the drive to networks such as PROFINET, PROFIBUS DP, DeviceNet, EtherCAT and CANopen, depending on the selected module.
8. How should the ATV950D18N4E be commissioned and troubleshot?
Before commissioning, verify the three-phase supply, grounding, motor wiring, control terminals and motor nameplate parameters. Configure the motor type, control mode and acceleration/deceleration settings before performing a test run. For troubleshooting, check the displayed fault code, input voltage, output current, DC bus condition, motor load, thermal status and communication status. Repeated overcurrent or overload faults should also be investigated at the motor and mechanical-load level.
Schneider ATV950D18N4E Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
