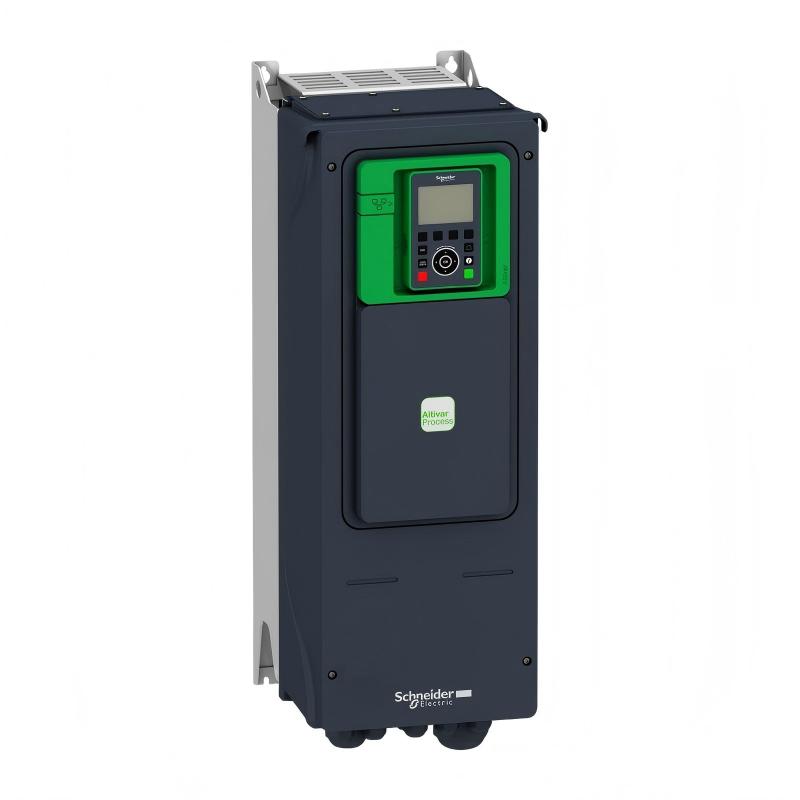

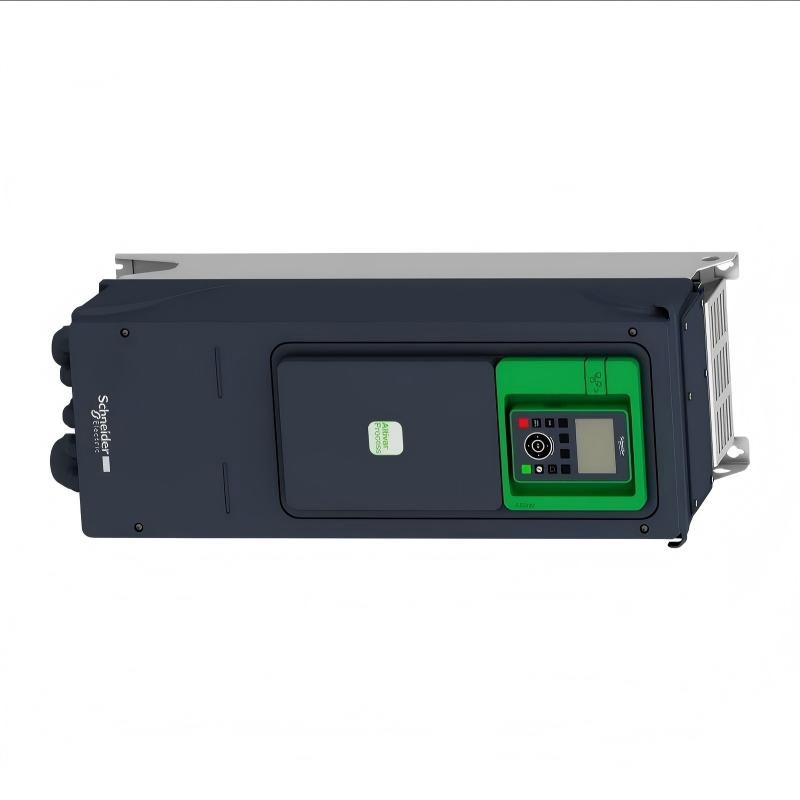

Schneider ATV950D22N4 Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | ATV950D22N4 |
| Brand | Schneider Electric |
| Product Series | Altivar Process ATV900 |
| Product Type | Variable-Speed Drive |
| Device Model | ATV950 |
| Application | Industrial motor control |
| Rated Supply Voltage | 380–480 VAC |
| Supply Frequency | 50–60 Hz |
| Input Phases | 3-phase |
| Output Phases | 3-phase |
| Motor Power – Normal Duty | 22 kW / 30 HP |
| Motor Power – Heavy Duty | 18.5 kW / 25 HP |
| Line Current – Normal Duty | 39.6 A at 380 V / 34.4 A at 480 V |
| Line Current – Heavy Duty | 34.1 A at 380 V / 29.9 A at 480 V |
| Continuous Output Current – Normal Duty | 46.3 A at 4 kHz |
| Continuous Output Current – Heavy Duty | 39.2 A at 4 kHz |
| Maximum Transient Current – Normal Duty | 55.6 A for 60 s |
| Maximum Transient Current – Heavy Duty | 58.8 A for 60 s |
| Maximum Output Frequency | 599 Hz |
| Motor Compatibility | Synchronous and asynchronous motors |
| Braking Function | Integrated braking chopper |
| EMC Filter | Integrated, Category C2 up to 50 m motor cable; Category C3 up to 150 m |
| Protection Rating | IP55 |
| Cooling Method | Forced convection |
| Mounting | Wall mounting |
| Switching Frequency | 2–16 kHz adjustable |
| Nominal Switching Frequency | 4 kHz |
| Communication Protocols | Modbus Serial, Modbus TCP, EtherNet/IP |
| Typical Applications | Industrial process control, pumps, fans, compressors, conveyors and other motor-driven equipment |
| Dimensions | 264 × 678 × 299 mm |
| Weight | 20.6 kg |
FAQ
1. What is the Schneider ATV950D22N4 Variable-Speed Drive used for?
The ATV950D22N4 is an Altivar Process ATV900 variable-speed drive designed for controlling three-phase synchronous and asynchronous motors. It is suitable for industrial process applications such as pumps, fans, compressors, conveyors and other motor-driven equipment.
2. What motor power does the ATV950D22N4 support?
The drive supports 22 kW / 30 HP motors under normal-duty conditions and 18.5 kW / 25 HP motors under heavy-duty conditions. Motor selection should be based on the motor nameplate data, load characteristics and required operating duty.
3. What are the input voltage and frequency requirements?
The ATV950D22N4 uses a three-phase 380–480 VAC power supply and operates at 50–60 Hz. The supply voltage should remain within the specified operating range to ensure stable drive performance.
4. What is the continuous output current of the ATV950D22N4?
The continuous output current is 46.3 A at 4 kHz for normal-duty operation and 39.2 A at 4 kHz for heavy-duty operation. The maximum transient current is 55.6 A for 60 seconds in normal-duty operation and 58.8 A for 60 seconds in heavy-duty operation.
5. Can the ATV950D22N4 control both synchronous and asynchronous motors?
Yes. The drive supports both synchronous and asynchronous motors. During commissioning, the motor type and relevant nameplate parameters should be configured correctly to match the connected motor and selected control mode.
6. Does the ATV950D22N4 have an integrated braking chopper?
Yes. The ATV950D22N4 is equipped with an integrated braking chopper. When additional dynamic braking is required, an appropriate braking resistor can be connected according to the application’s braking requirements and the drive’s specifications.
7. Which communication protocols are supported by the ATV950D22N4?
The standard communication interfaces support Modbus Serial, Modbus TCP and EtherNet/IP. Optional communication modules can provide connectivity to networks such as PROFINET, PROFIBUS DP, DeviceNet, EtherCAT and CANopen, depending on the selected configuration.
8. How should an overcurrent or overload fault on the ATV950D22N4 be diagnosed?
First check the displayed fault code and verify the input power, motor wiring and configured motor parameters. Then check the motor load, acceleration and deceleration settings, output current and mechanical condition of the driven equipment. Persistent faults should also be investigated for motor insulation problems, mechanical blockage, inadequate cooling or incorrect drive configuration.
Schneider ATV950D22N4 Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
