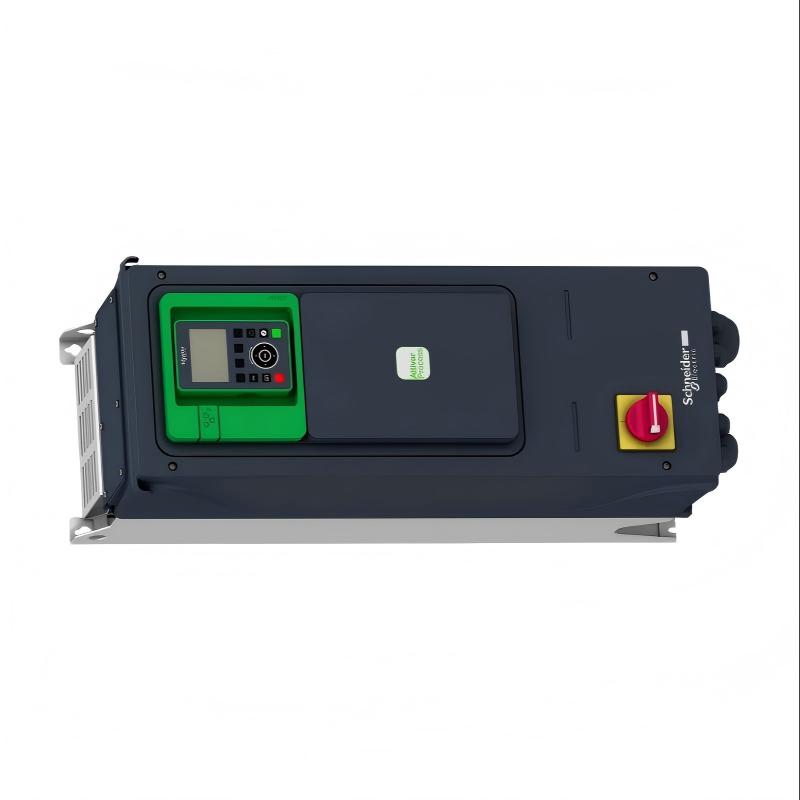

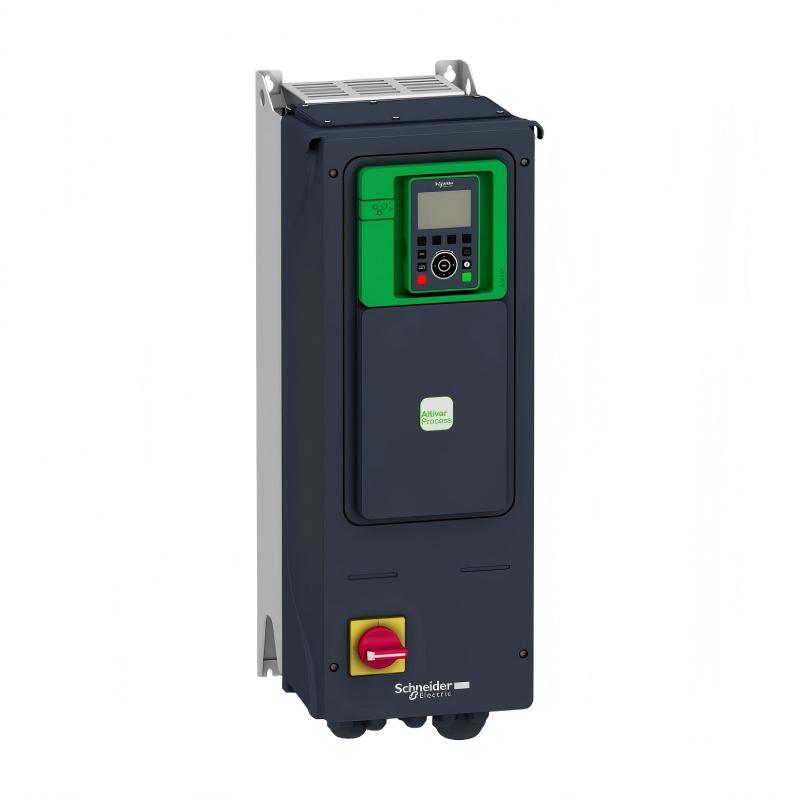

Schneider ATV950D22N4E Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | ATV950D22N4E |
| Brand | Schneider Electric |
| Product Series | Altivar Process ATV900 |
| Product Type | Variable-Speed Drive |
| Device Model | ATV950 |
| Application | Industrial process and motor control |
| Rated Supply Voltage | 380–480 VAC |
| Supply Voltage Tolerance | -15% to +10% |
| Supply Frequency | 50–60 Hz |
| Input Phases | 3-phase |
| Motor Power – Normal Duty | 22 kW / 30 HP |
| Motor Power – Heavy Duty | 18.5 kW / 25 HP |
| Line Current – Normal Duty | 39.6 A at 380 V / 34.4 A at 480 V |
| Line Current – Heavy Duty | 34.1 A at 380 V / 29.9 A at 480 V |
| Continuous Output Current – Normal Duty | 46.3 A at 4 kHz |
| Continuous Output Current – Heavy Duty | 39.2 A at 4 kHz |
| Maximum Transient Current – Normal Duty | 55.6 A for 60 s |
| Maximum Transient Current – Heavy Duty | 58.8 A for 60 s |
| Maximum Output Frequency | 599 Hz |
| Motor Compatibility | Synchronous and asynchronous motors |
| Motor Control Profiles | Variable torque, constant torque, optimized torque, permanent magnet and synchronous reluctance |
| Braking Function | Integrated braking chopper |
| EMC Filter | Integrated; Category C2 up to 50 m motor cable, Category C3 up to 150 m |
| Protection Rating | IP55 |
| Cooling Method | Forced convection |
| Mounting | Wall mounting |
| Switching Frequency | 2–16 kHz adjustable |
| Nominal Switching Frequency | 4 kHz |
| Communication Protocols | Modbus Serial, Modbus TCP, EtherNet/IP |
| Optional Communication | PROFINET, PROFIBUS DP V1, DeviceNet, EtherCAT, CANopen and Ethernet Powerlink |
| Typical Applications | Pumps, fans, compressors, conveyors, process machinery and industrial motor control |
| Dimensions | 264 × 678 × 330 mm |
| Weight | 20.6 kg |
FAQ
1. What is the Schneider ATV950D22N4E Variable-Speed Drive used for?
The ATV950D22N4E is an Altivar Process ATV900 variable-speed drive designed for industrial motor and process control. It can be used with three-phase synchronous and asynchronous motors in applications such as pumps, fans, compressors, conveyors and process machinery.
2. What motor power is supported by the ATV950D22N4E?
The drive is rated for 22 kW / 30 HP under normal-duty operation and 18.5 kW / 25 HP under heavy-duty operation. The correct rating should be selected according to the motor nameplate data and the actual load profile.
3. What are the power supply requirements for the ATV950D22N4E?
The drive requires a three-phase 380–480 VAC supply at 50–60 Hz. The specified supply voltage tolerance is -15% to +10%, while the network frequency tolerance is ±5%.
4. What is the continuous output current of the ATV950D22N4E?
The continuous output current is 46.3 A at 4 kHz in normal-duty operation and 39.2 A at 4 kHz in heavy-duty operation. The maximum transient current is 55.6 A for 60 seconds in normal duty and 58.8 A for 60 seconds in heavy duty.
5. Can the ATV950D22N4E control synchronous and asynchronous motors?
Yes. The ATV950D22N4E supports both synchronous and asynchronous motors. It also provides motor control profiles for variable torque, constant torque, permanent-magnet motors and synchronous-reluctance motors. The motor parameters should be configured according to the connected motor.
6. Does the ATV950D22N4E include a braking chopper?
Yes. The ATV950D22N4E includes an integrated braking chopper. When the application requires additional dynamic braking, a suitable braking resistor can be selected and connected according to the required braking power and drive specifications.
7. Which communication networks are supported by the ATV950D22N4E?
The standard communication interfaces support Modbus Serial, Modbus TCP and EtherNet/IP. Optional communication modules can provide connectivity to PROFINET, PROFIBUS DP V1, DeviceNet, EtherCAT, CANopen and Ethernet Powerlink networks.
8. How should an overcurrent or overload fault be diagnosed on the ATV950D22N4E?
Start by checking the displayed fault code and verifying the input supply, motor wiring and configured motor parameters. Then inspect the mechanical load, acceleration and deceleration settings, motor current and operating temperature. If the fault continues, check for mechanical blockage, motor insulation problems, excessive load or inadequate cooling before returning the drive to normal operation.
Schneider ATV950D22N4E Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
