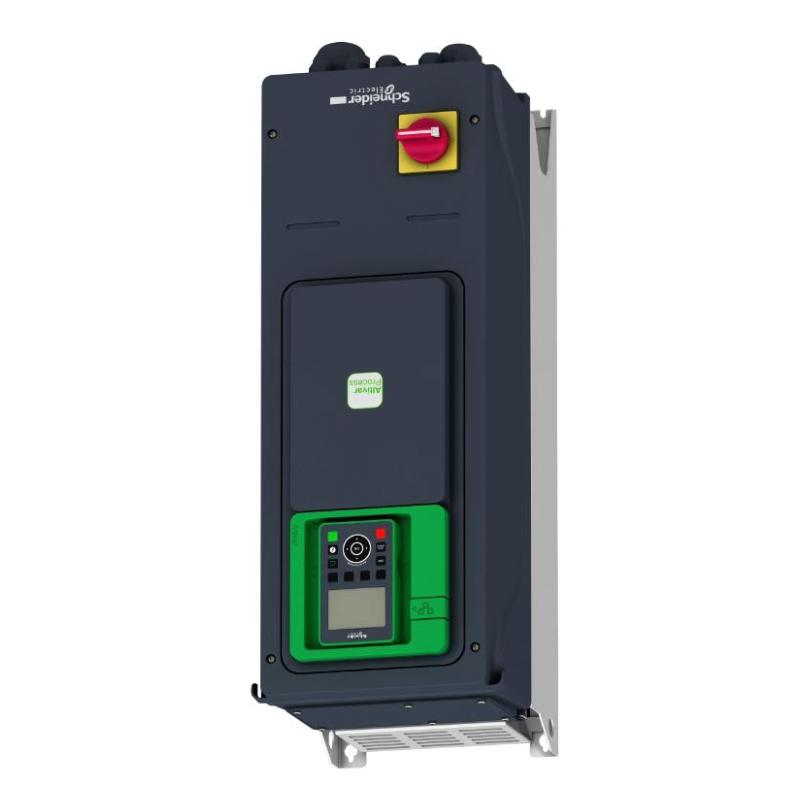

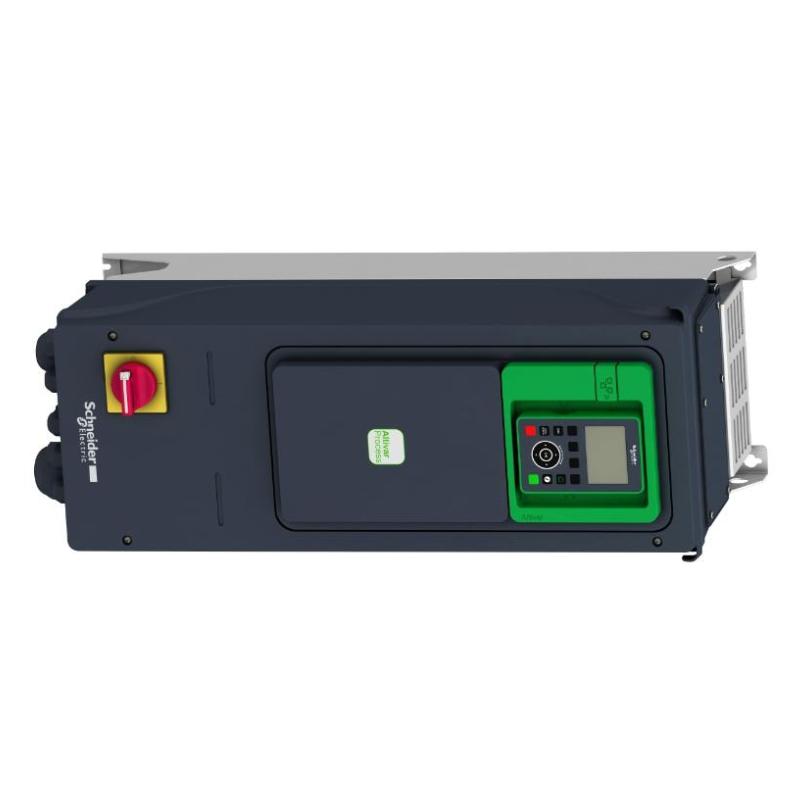

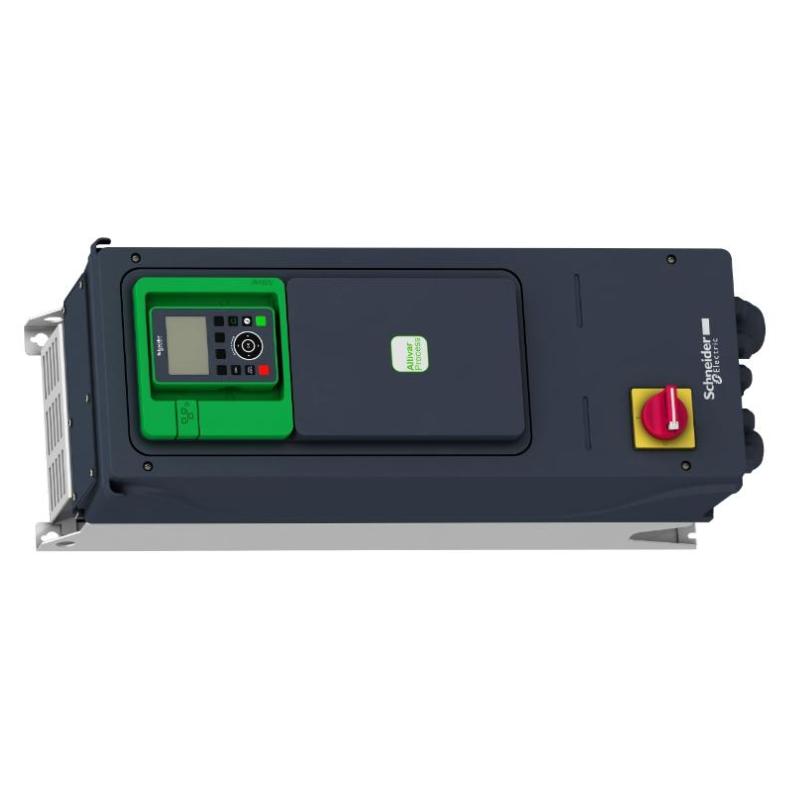

Schneider ATV950U15N4E Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV950U15N4E |
| Product Type | Variable-Speed Drive |
| Product Range | Altivar Process ATV900 |
| Drive Series | Altivar Process ATV950 |
| Application | Industrial process applications |
| Motor Compatibility | Asynchronous motors and synchronous motors |
| Rated Motor Power | 1.5 kW, normal duty; 0.75 kW, heavy duty |
| Rated Supply Voltage | 380–480 VAC, 3-phase |
| Supply Voltage Tolerance | -15% to +10% |
| Continuous Output Current | 4 A at 4 kHz, normal duty; 2.2 A at 4 kHz, heavy duty |
| Maximum Transient Current | 4.8 A for 60 s, normal duty; 3.3 A for 60 s, heavy duty |
| Maximum Output Frequency | 599 Hz |
| Switching Frequency | 4–16 kHz, adjustable with derating |
| Control Profiles | Constant torque, variable torque, optimized torque |
| Synchronous Motor Control | Permanent magnet motor control |
| Braking Function | Integrated braking chopper |
| Disconnect Switch | Integrated load-break switch |
| EMC Filter | Integrated EMC filter |
| Protection Rating | IP55 |
| Cooling Method | Forced convection |
| Communication Protocols | Modbus TCP, Modbus Serial, EtherNet/IP |
| Communication Interface | Integrated Ethernet and serial communication |
| Optional Communication Modules | PROFINET, PROFIBUS DP V1, DeviceNet, EtherCAT, CANopen and other communication options |
| Optional I/O Modules | Digital and analog I/O expansion modules |
| Encoder Interface Options | 5/12 V digital encoder, analog encoder, resolver encoder |
| Preset Speeds | 16 preset speed references |
| Motor Control | Open-loop and closed-loop motor control functions depending on configuration |
| Embedded Functions | Power measurement, energy monitoring, process monitoring, asset monitoring and protection |
| Mounting | Wall mounting |
| Operating Temperature | Application-dependent; high-temperature operation available with appropriate derating |
| Typical Applications | Pumps, fans, compressors, conveyors, process machinery and industrial automation |
| Dimensions | 678 × 264 × 300 mm |
| Weight | 10.5 kg |
FAQ
1. What is the main function of the Schneider ATV950U15N4E?
The ATV950U15N4E is an Altivar Process ATV950 variable-speed drive designed to regulate the speed, torque and operating characteristics of industrial motors. It is suitable for process automation equipment using asynchronous or synchronous motors.
2. What motor power is supported by the ATV950U15N4E?
The drive is rated for 1.5 kW under normal-duty operation and 0.75 kW under heavy-duty operation. The appropriate rating should be selected according to the motor load profile and application requirements.
3. What input power supply does the ATV950U15N4E require?
The ATV950U15N4E uses a three-phase 380–480 VAC power supply. The specified supply voltage range is designed for industrial power systems within the drive’s operating tolerance.
4. What is the continuous output current of the ATV950U15N4E?
The continuous output current is 4 A at 4 kHz for normal-duty operation and 2.2 A at 4 kHz for heavy-duty operation. Short-term overload capability depends on the selected duty rating and operating conditions.
5. Which communication protocols are supported?
The ATV950U15N4E supports Modbus TCP, Modbus Serial and EtherNet/IP as standard communication options. Additional communication capabilities can be added using compatible option modules such as PROFINET, PROFIBUS DP, EtherCAT, DeviceNet or CANopen.
6. Does the ATV950U15N4E have an integrated braking function?
Yes. The ATV950U15N4E includes an integrated braking chopper. This allows the drive to be used with an appropriate braking resistor when the application requires faster motor deceleration or controlled dissipation of regenerative energy.
7. What protection rating does the ATV950U15N4E provide?
The drive has an IP55 protection rating, making it suitable for industrial environments where protection against dust and water jets is required. Correct installation, cable entry and enclosure conditions are still necessary to maintain the specified protection level.
8. What should be checked if the ATV950U15N4E reports a drive or motor fault?
First check the incoming three-phase supply, motor wiring, motor parameters, load condition and drive fault code. Communication settings should also be checked when the drive is controlled through an industrial network. If an overload, overvoltage or overcurrent fault occurs, inspect the motor load, acceleration/deceleration settings, braking circuit and supply conditions before restarting the drive.
