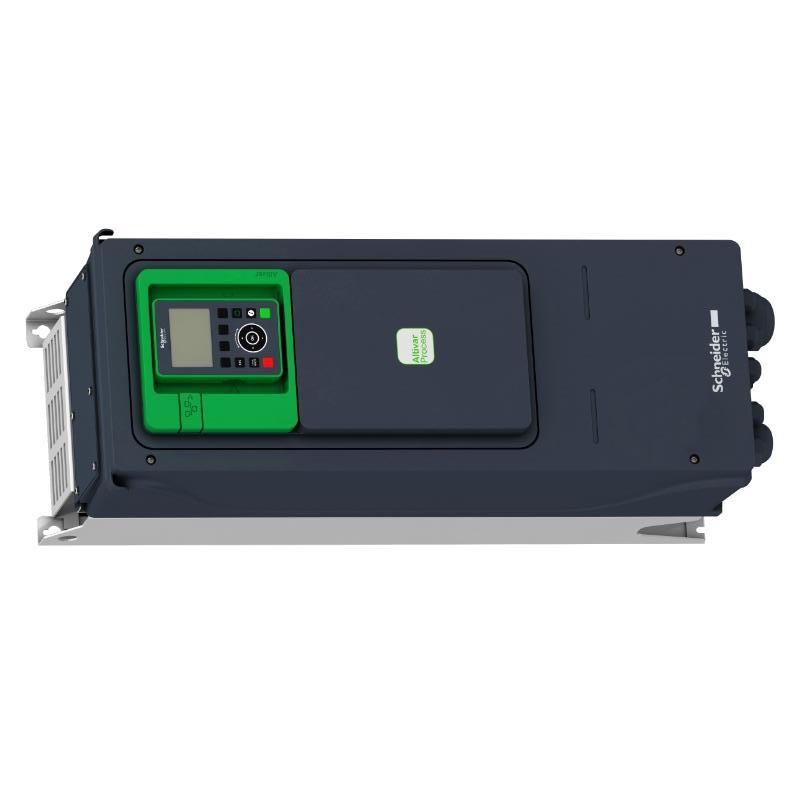

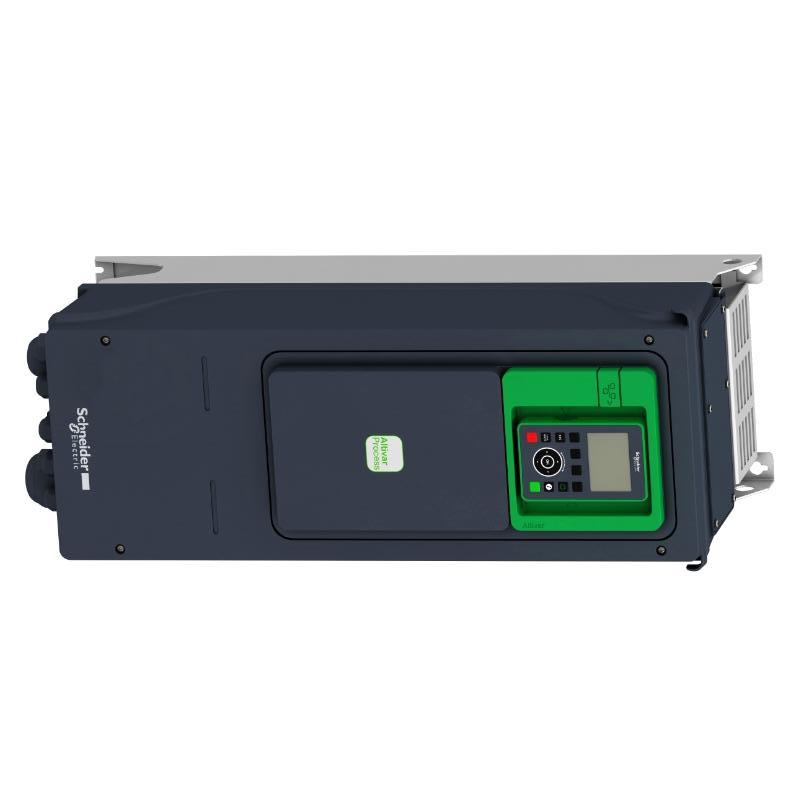

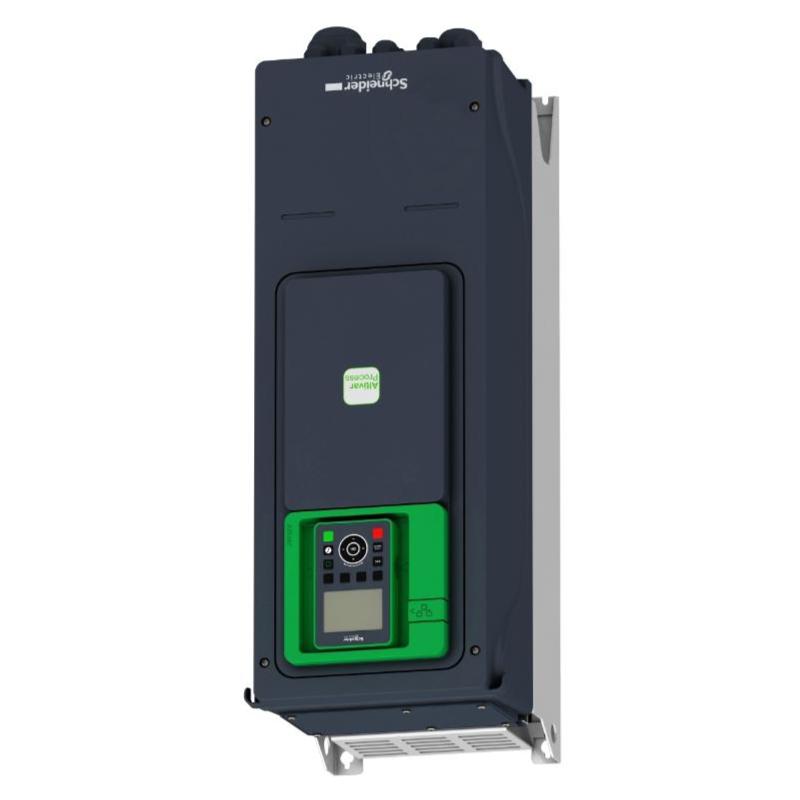

Schneider ATV950U22N4 Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV950U22N4 |
| Product Type | Variable-Speed Drive |
| Product Range | Altivar Process ATV900 |
| Drive Series | Altivar 950 |
| Application | Industrial process applications |
| Compatible Motors | Asynchronous motors and synchronous motors |
| Rated Motor Power | 2.2 kW normal duty; 1.5 kW heavy duty |
| Motor Power | 3 hp normal duty; 2 hp heavy duty |
| Rated Supply Voltage | 380–480 VAC, 3-phase |
| Supply Frequency | 50–60 Hz |
| Supply Voltage Tolerance | -15% to +10% |
| Line Current | 4.3 A at 380 V and 3.8 A at 480 V, normal duty |
| Heavy-Duty Line Current | 3.1 A at 380 V and 2.9 A at 480 V |
| Continuous Output Current | 5.6 A at 4 kHz, normal duty; 4 A at 4 kHz, heavy duty |
| Maximum Transient Current | 6.7 A for 60 s, normal duty; 6 A for 60 s, heavy duty |
| Output Frequency | 0.1–500 Hz |
| Switching Frequency | 2–16 kHz adjustable; 4–16 kHz with derating |
| Motor Control Profiles | Constant torque, variable torque, optimized torque |
| Synchronous Motor Control | Permanent magnet motor control |
| Braking Unit | Integrated braking unit |
| EMC Filter | Integrated, Category C2/C3 according to installation conditions |
| Safety Function | Safe Torque Off (STO), SIL 3 |
| Preset Speeds | 16 preset speeds |
| Protection Rating | IP55 |
| UL Protection | UL Type 12 |
| Cooling Method | Forced convection |
| Mounting | Wall mounting |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Digital Inputs | 8 |
| Digital Outputs | 1 |
| Standard Communication | Modbus Serial, Modbus TCP, EtherNet/IP |
| Optional Communication | PROFINET, PROFIBUS DP V1, EtherCAT, CANopen, DeviceNet and other option modules |
| Encoder Options | 5/12 V digital encoder, analog encoder, resolver |
| Control Functions | Motor speed control, torque control, process control, monitoring and protection |
| Typical Applications | Pumps, fans, compressors, conveyors, process machinery and industrial automation |
| Operating Temperature | -15°C to 50°C under standard operating conditions |
| Dimensions | 678 × 264 × 272 mm |
| Weight | 10.5 kg |
FAQ
1. What is the main function of the Schneider ATV950U22N4?
The ATV950U22N4 is an Altivar Process ATV950 variable-speed drive designed for industrial process applications. It controls the speed and torque of asynchronous and synchronous motors and can be integrated into automated process-control systems.
2. What motor power is supported by the ATV950U22N4?
The drive supports a 2.2 kW motor under normal-duty operation and a 1.5 kW motor under heavy-duty operation. These ratings correspond to approximately 3 hp and 2 hp respectively.
3. What power supply does the ATV950U22N4 require?
The ATV950U22N4 requires a three-phase 380–480 VAC supply at 50–60 Hz. The permitted supply voltage tolerance is -15% to +10%.
4. What is the continuous output current of the ATV950U22N4?
The continuous output current is 5.6 A at 4 kHz in normal-duty operation and 4 A at 4 kHz in heavy-duty operation. The maximum transient current is 6.7 A for 60 seconds in normal duty and 6 A for 60 seconds in heavy duty.
5. Which communication protocols are supported by the ATV950U22N4?
The drive supports Modbus Serial, Modbus TCP and EtherNet/IP as communication protocols. Optional communication modules can provide additional interfaces such as PROFINET, PROFIBUS DP V1, EtherCAT, CANopen and DeviceNet.
6. Does the ATV950U22N4 include a braking unit?
Yes. The ATV950U22N4 includes an integrated braking unit. An appropriate external braking resistor can be used when the application requires controlled dissipation of regenerative energy during motor deceleration.
7. What motor control functions are available?
The drive supports constant-torque, variable-torque and optimized-torque control profiles for asynchronous motors. It also supports permanent-magnet synchronous motor control and provides functions for speed regulation, torque control, monitoring and motor protection.
8. What should be checked if the ATV950U22N4 reports a fault?
Start by checking the displayed fault code and drive status. Then inspect the incoming power supply, motor wiring, motor parameters and mechanical load. For overcurrent faults, check for motor wiring problems, grounding issues or excessive load. For overvoltage faults, check the supply voltage, deceleration settings and braking circuit. If the drive is controlled through an industrial network, also verify the communication connection and control parameters.
Schneider ATV950U22N4 Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
