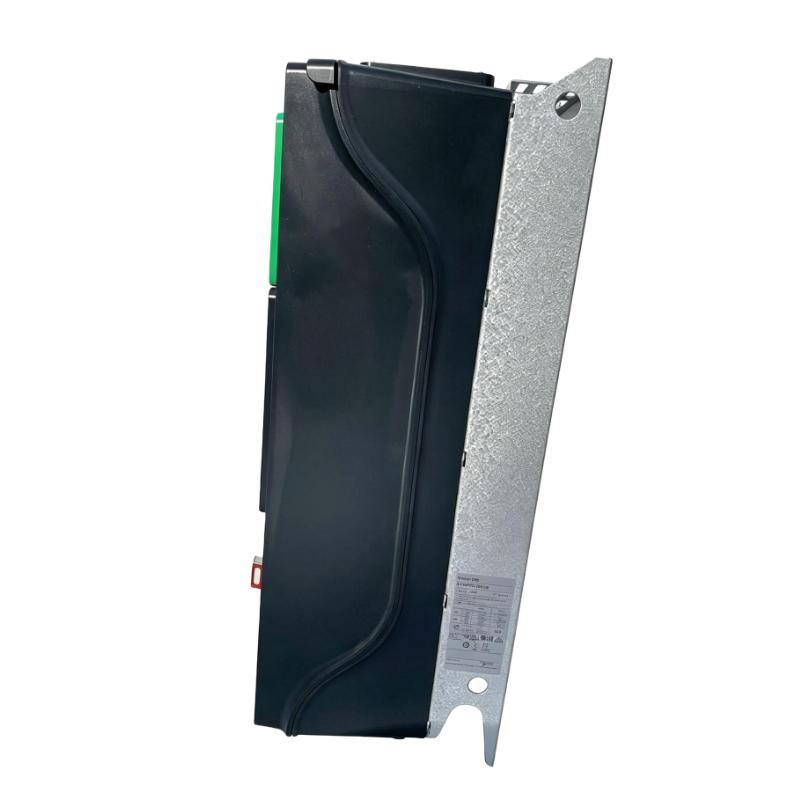

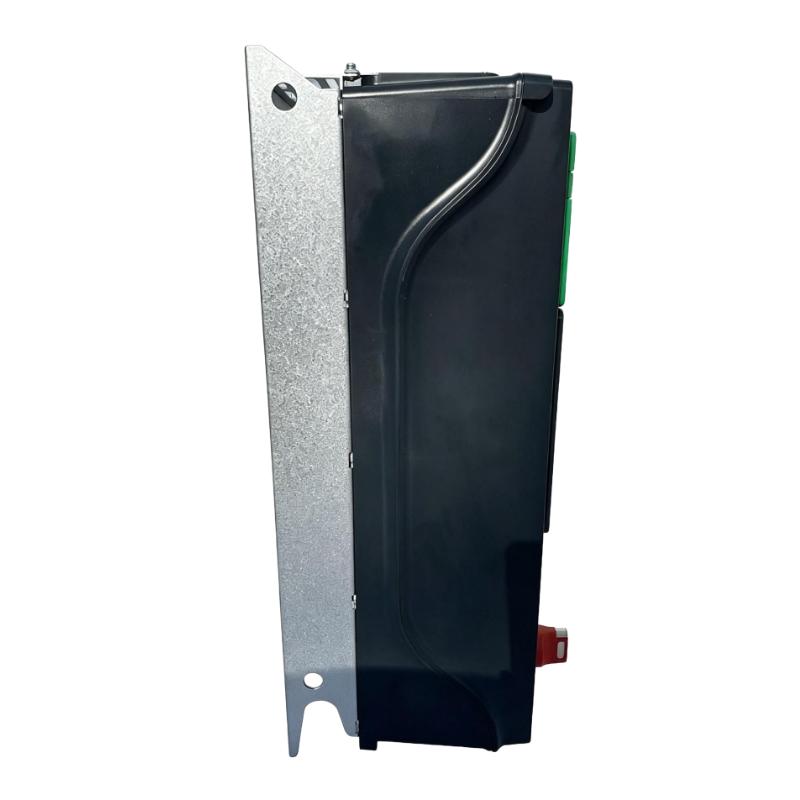

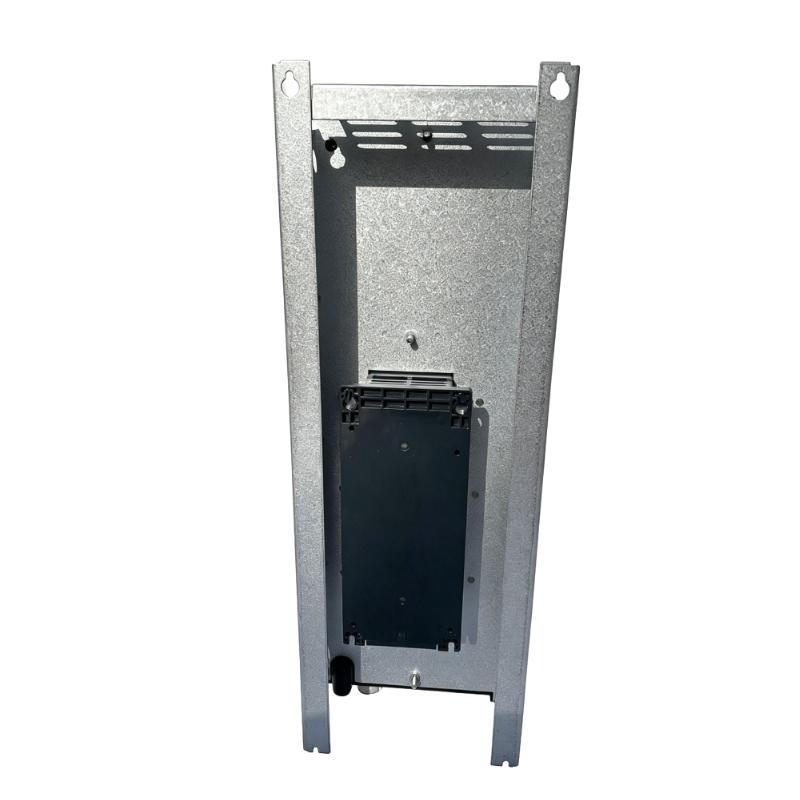

Schneider ATV950U22N4E Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV950U22N4E |
| Product Type | Variable-Speed Drive |
| Product Range | Altivar Process ATV900 |
| Drive Series | Altivar 950 |
| Application | Industrial process applications |
| Compatible Motors | Asynchronous motors and synchronous motors |
| Rated Motor Power | 2.2 kW normal duty; 1.5 kW heavy duty |
| Motor Power | 3 hp normal duty; 2 hp heavy duty |
| Rated Supply Voltage | 380–480 VAC, 3-phase |
| Supply Frequency | 50–60 Hz |
| Supply Voltage Tolerance | -15% to +10% |
| Line Current | 4.3 A at 380 V / 3.8 A at 480 V, normal duty; 3.1 A at 380 V / 2.9 A at 480 V, heavy duty |
| Continuous Output Current | 5.6 A at 4 kHz, normal duty; 4 A at 4 kHz, heavy duty |
| Maximum Transient Current | 6.7 A for 60 s, normal duty; 6 A for 60 s, heavy duty |
| Output Frequency | 0.1–599 Hz |
| Switching Frequency | 2–16 kHz adjustable; 4–16 kHz with derating |
| Motor Control | Constant torque, variable torque, optimized torque, and permanent-magnet synchronous motor control |
| Braking Function | Integrated braking chopper |
| Disconnect Switch | Integrated Vario load-break switch |
| EMC Filter | Integrated EMC filter, suitable for Category C2/C3 installation conditions |
| Safety Function | Safe Torque Off (STO) |
| Preset Speeds | 16 preset speeds |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Digital Inputs | 10 |
| Digital Outputs | 2 |
| Communication Protocols | Modbus Serial, Modbus TCP, EtherNet/IP |
| Communication Interfaces | Ethernet and RS-485 |
| Optional Communication Modules | PROFINET, PROFIBUS DP V1, EtherCAT, CANopen, DeviceNet and other compatible options |
| Encoder Options | 5/12 V digital encoder, analog encoder and resolver |
| Cooling Method | Forced convection |
| Mounting | Wall mounting, vertical installation |
| Protection Rating | IP55 |
| UL Enclosure Rating | UL Type 12 |
| Typical Applications | Pumps, fans, compressors, conveyors, process machinery and industrial automation |
| Operating Temperature | Application-dependent; derating may be required at elevated temperatures |
| Dimensions | 678 × 264 × 300 mm |
| Weight | 10.5 kg |
FAQ
1. What is the main function of the Schneider ATV950U22N4E?
The ATV950U22N4E is an Altivar Process ATV950 variable-speed drive designed for industrial process applications. It controls the speed and torque of asynchronous and synchronous motors and can be integrated into automated motor-control systems.
2. What motor power is supported by the ATV950U22N4E?
The drive is rated for a 2.2 kW motor under normal-duty operation and a 1.5 kW motor under heavy-duty operation. The corresponding motor ratings are approximately 3 hp and 2 hp.
3. What power supply does the ATV950U22N4E require?
The ATV950U22N4E requires a three-phase 380–480 VAC power supply at 50–60 Hz. The specified supply voltage tolerance is -15% to +10%.
4. What are the continuous and transient output current ratings?
The continuous output current is 5.6 A at 4 kHz for normal duty and 4 A at 4 kHz for heavy duty. The maximum transient current is 6.7 A for 60 seconds in normal-duty operation and 6 A for 60 seconds in heavy-duty operation.
5. Which communication protocols are supported?
The ATV950U22N4E supports Modbus Serial, Modbus TCP and EtherNet/IP. Optional communication modules can add PROFINET, PROFIBUS DP V1, EtherCAT, CANopen, DeviceNet and other industrial network interfaces.
6. Does the ATV950U22N4E include braking and disconnect functions?
Yes. The drive includes an integrated braking chopper and a Vario load-break switch. The braking function can be used with a suitable braking resistor when the application requires controlled dissipation of regenerative energy during deceleration.
7. What motor control functions are available?
The drive supports constant-torque, variable-torque and optimized-torque control profiles for asynchronous motors. It also supports permanent-magnet synchronous motor control and provides functions for speed regulation, process control, monitoring and motor protection.
8. What should be checked if the ATV950U22N4E reports a fault?
Check the displayed fault code first, then inspect the incoming power supply, motor wiring, motor parameters and mechanical load. For overcurrent faults, check for short circuits, grounding problems and excessive load. For overvoltage faults, check the supply voltage, deceleration settings and braking circuit. If the drive is controlled over an industrial network, also verify the communication connection and control parameters.
Schneider ATV950U22N4E Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
